Troubleshooting

DTC P0116 ENGINE COOLANT TEMPERATURE CIRCUIT RANGE/PERFORMANCE PROBLEM

CIRCUIT DESCRIPTION

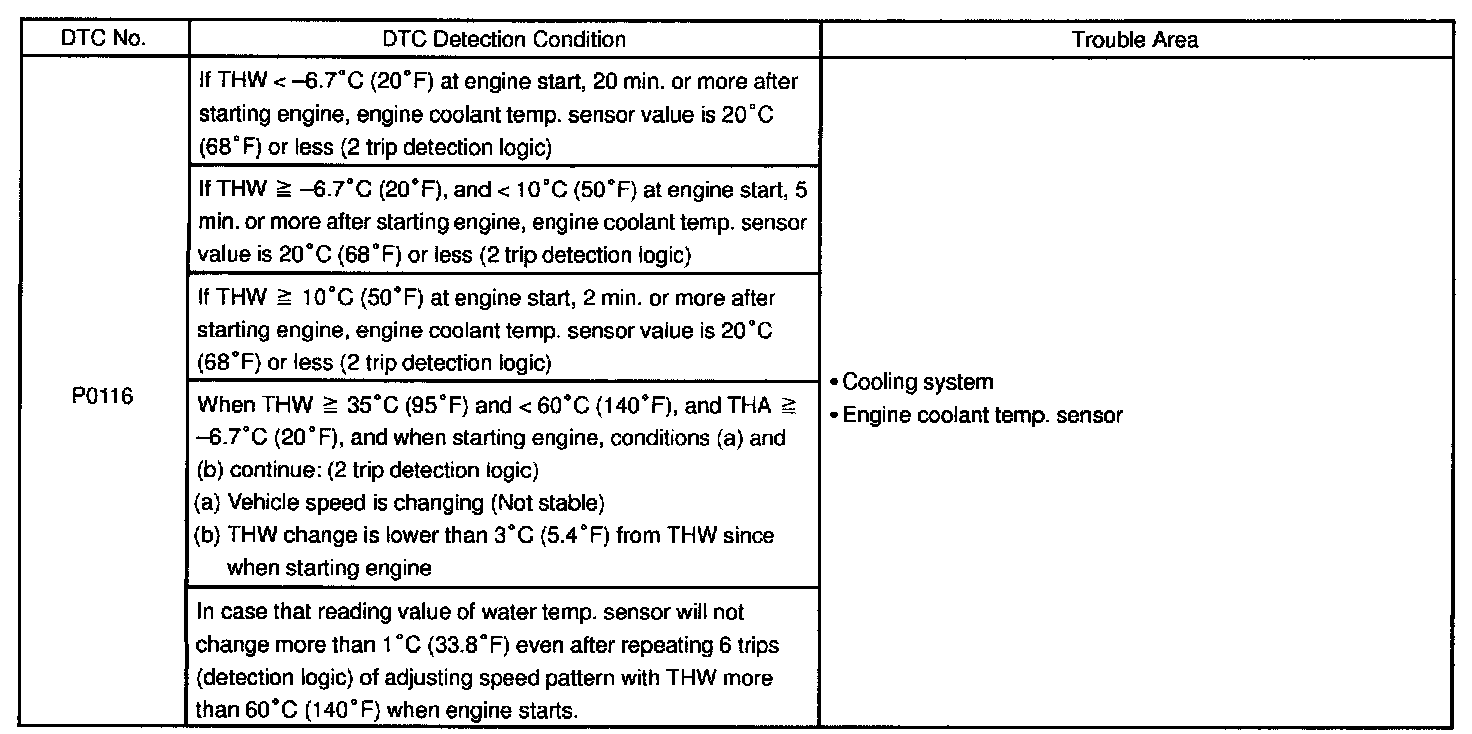

DTC Detection Condition:

A thermistor built in the engine coolant temperature sensor changes the resistance value according to the engine coolant temperature.

The structure of the sensor and connection to the ECM is the same as ones of the air temperature sensor.

Step 1:

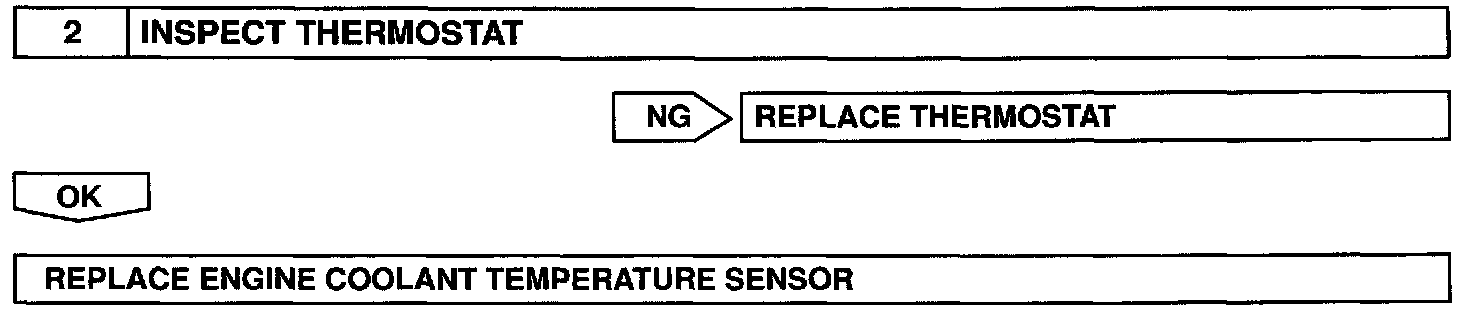

Step 2:

INSPECTION PROCEDURE
