Power Windows

DIAGNOSTIC TROUBLE CODE CHART

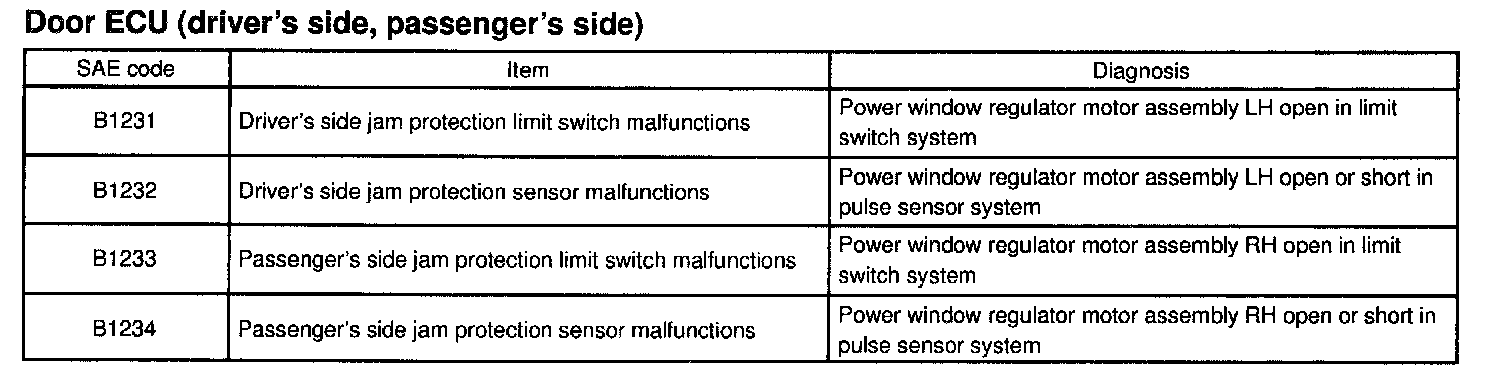

B1231 - B1234:




1. DOOR ECU

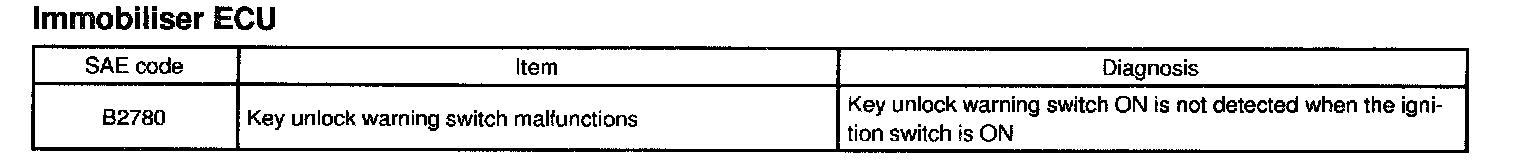

B2780:




2. TRANSPONDER KEY (IMMOBILIZER) ECU

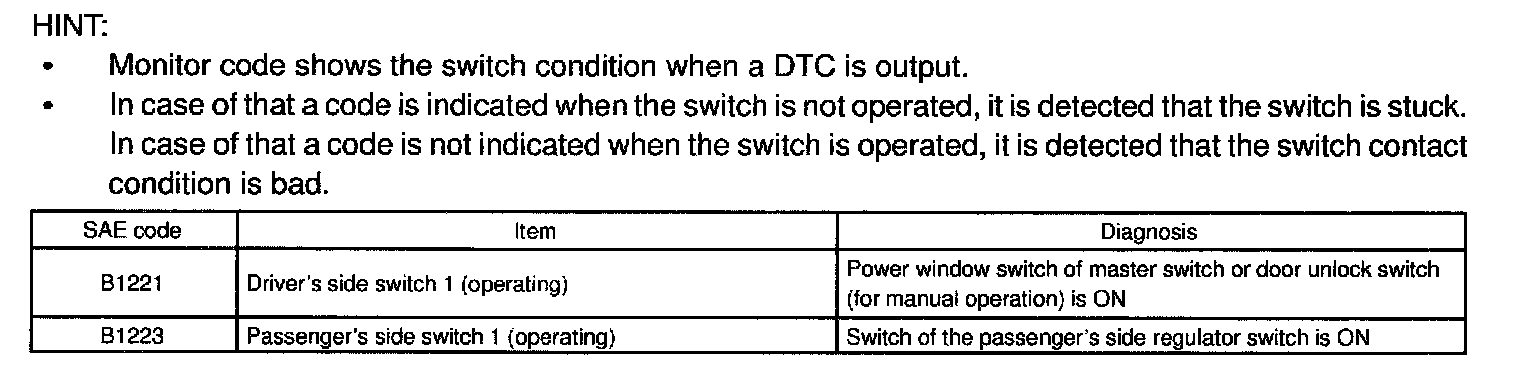

B1221 - B1223:




3. MONITOR CODE
