Multiplex Communication System

DIAGNOSTIC TROUBLE CODE CHART

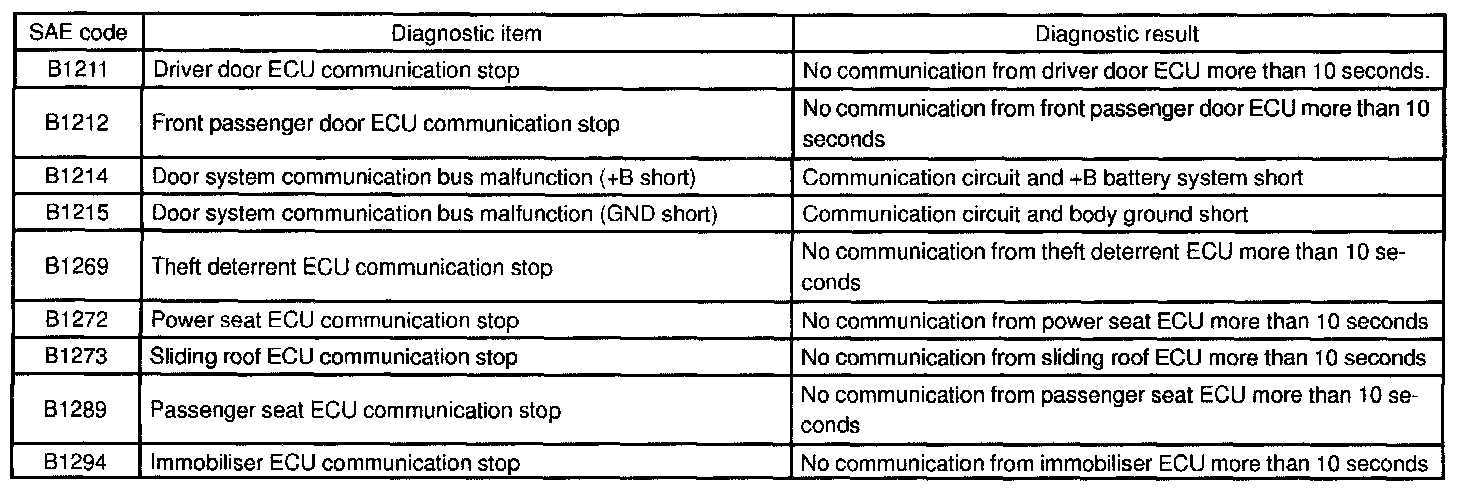

B1211 - B1294:

1. GATEWAY ECU DIAGNOSTIC TROUBLE CODE (DOOR BUS)

B1247 - B1284:

2. GATEWAY ECU DIAGNOSTIC TROUBLE CODE (I/P BUS)

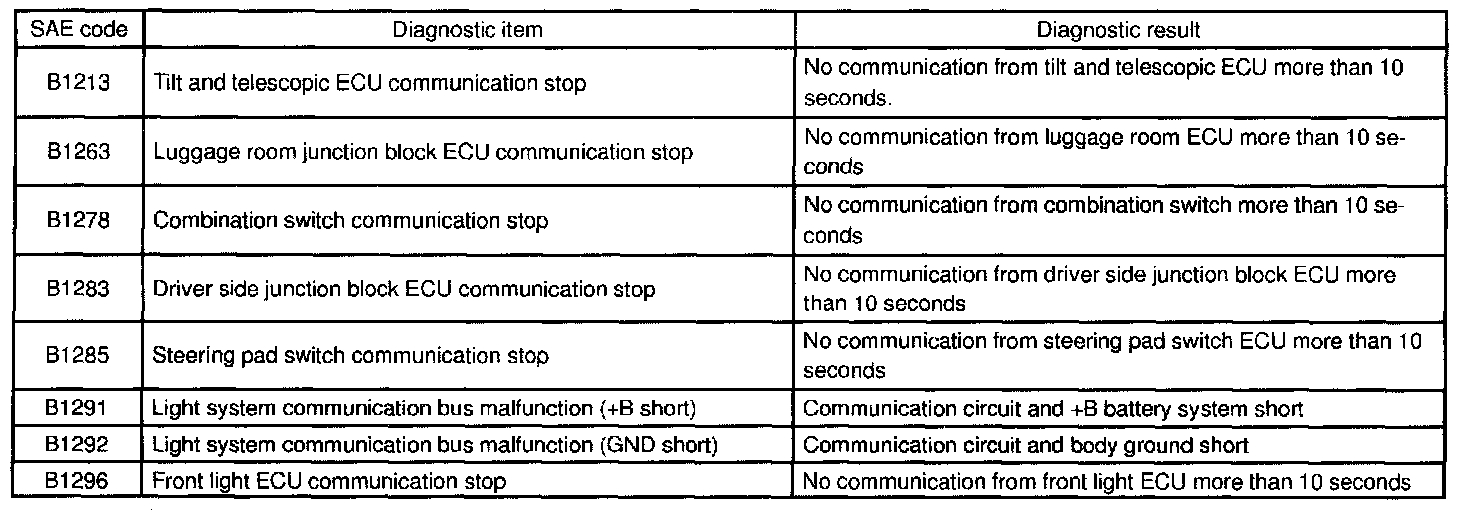

B1213 - B1296:

3. GATEWAY ECU DIAGNOSTIC TROUBLE CODE (LIGHTING BUS)

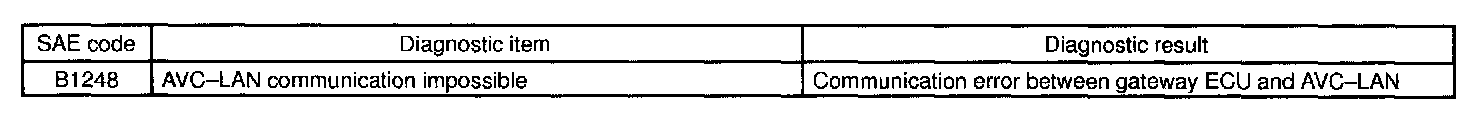

B1248:

4. GATEWAY ECU DIAGNOSTIC TROUBLE CODE (AVC-LAN)
