Engine Immobiliser System

DIAGNOSTIC TROUBLE CODE CHART

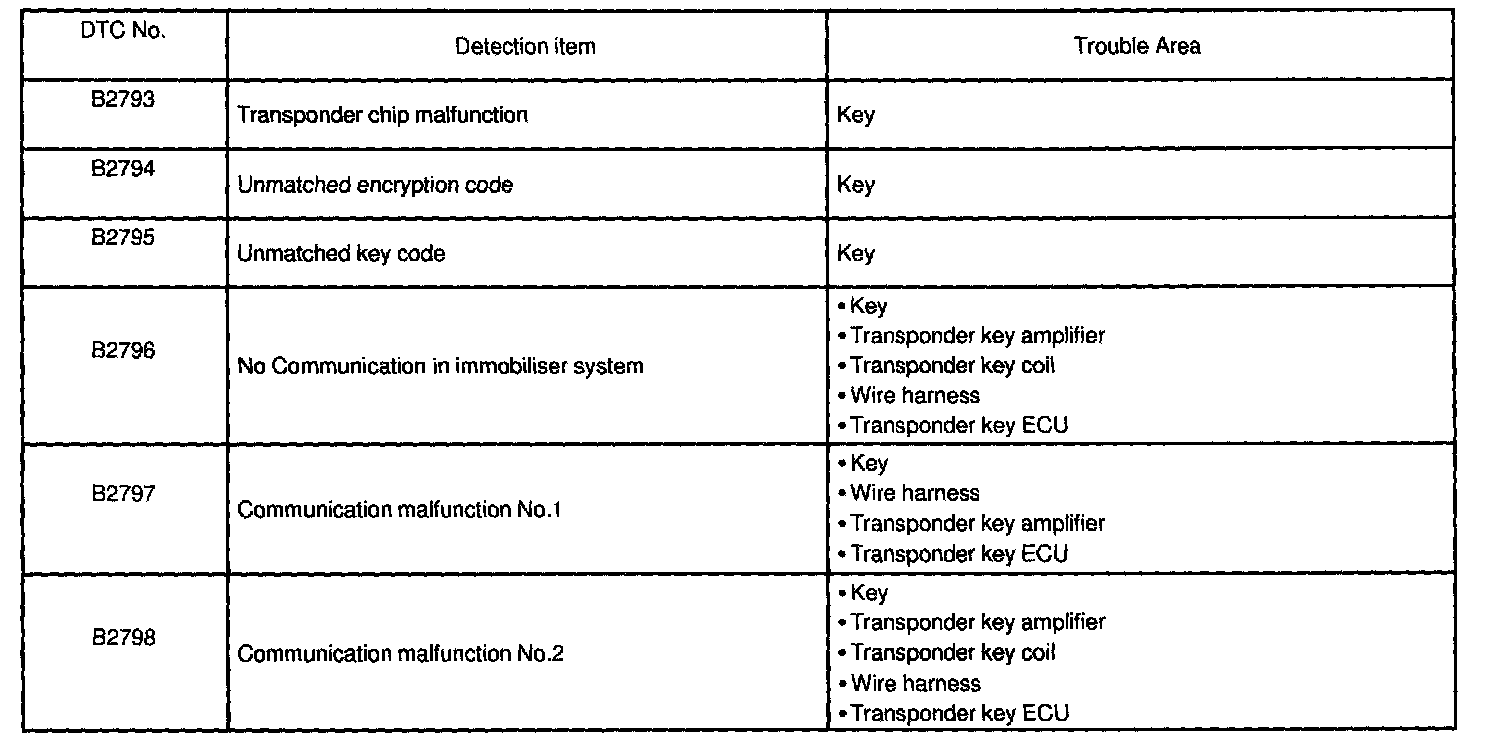

B2793 - B2798:




1. TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CODE CHART

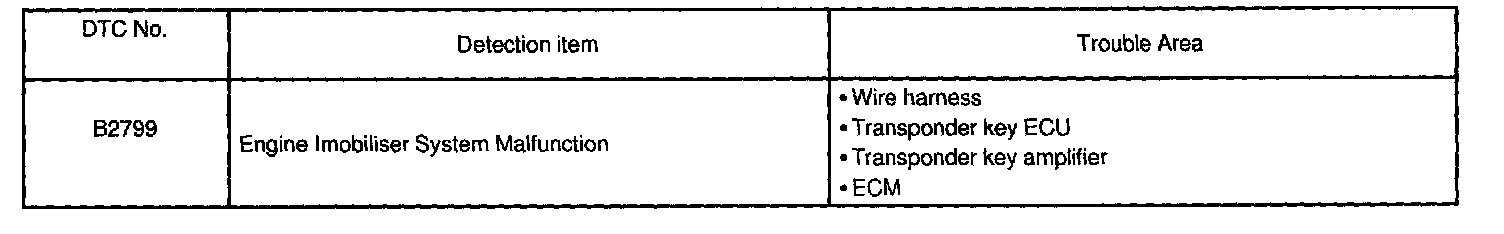

B2799:




2. ECM DIAGNOSTIC TROUBLE CODE CHART

NOTE: Diagnostic trouble codes for the immobilizer system are specified. If the other codes are output, make a check in the diagnostic trouble code chart of the engine control system.
