C2119

DTC C2119 TRANSMITTER ID4 NOT RECEIVED

CIRCUIT DESCRIPTION

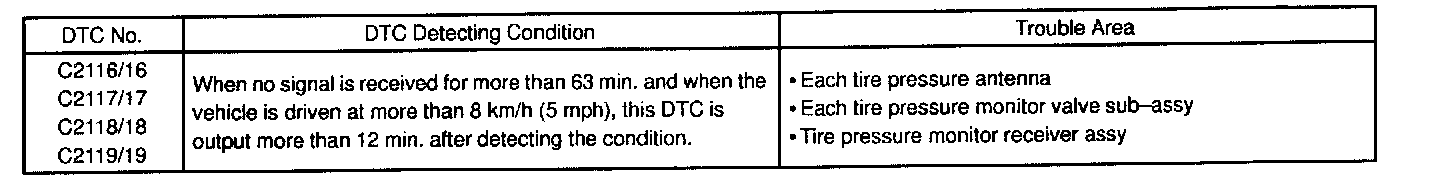

DTC Detecting Condition:

The tire pressure monitor valve sub-assy constantly sends radio waves to the tire pressure antenna. If the battery for the tire pressure monitor valve sub-assy is depleted, or if the tire pressure antenna is defective or comes off, the DTC will be output. The DTC will be erased if the tire pressure antenna receives the radio waves sent from the tire pressure monitor valve sub-assy again under any conditions.

HINT: Because the pressure monitor valve sub-assy and tire pressure antenna cannot be identified by DTC, it is necessary to identify it by another way.

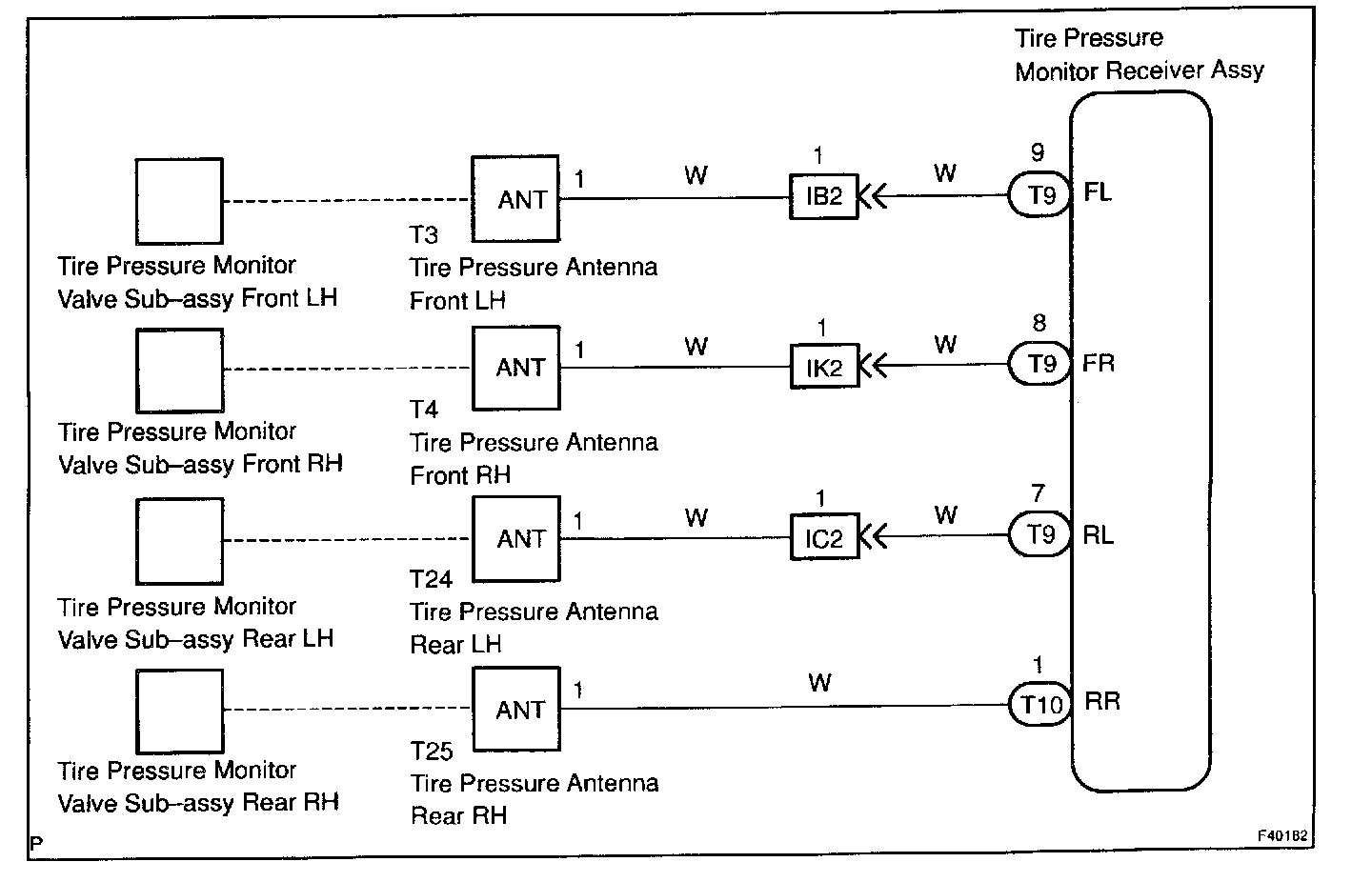

Wiring Diagram:

Step 1 - 5:

Step 6 - 10:

Step 11 - 12:

Step 13 - 16:

Step 17:

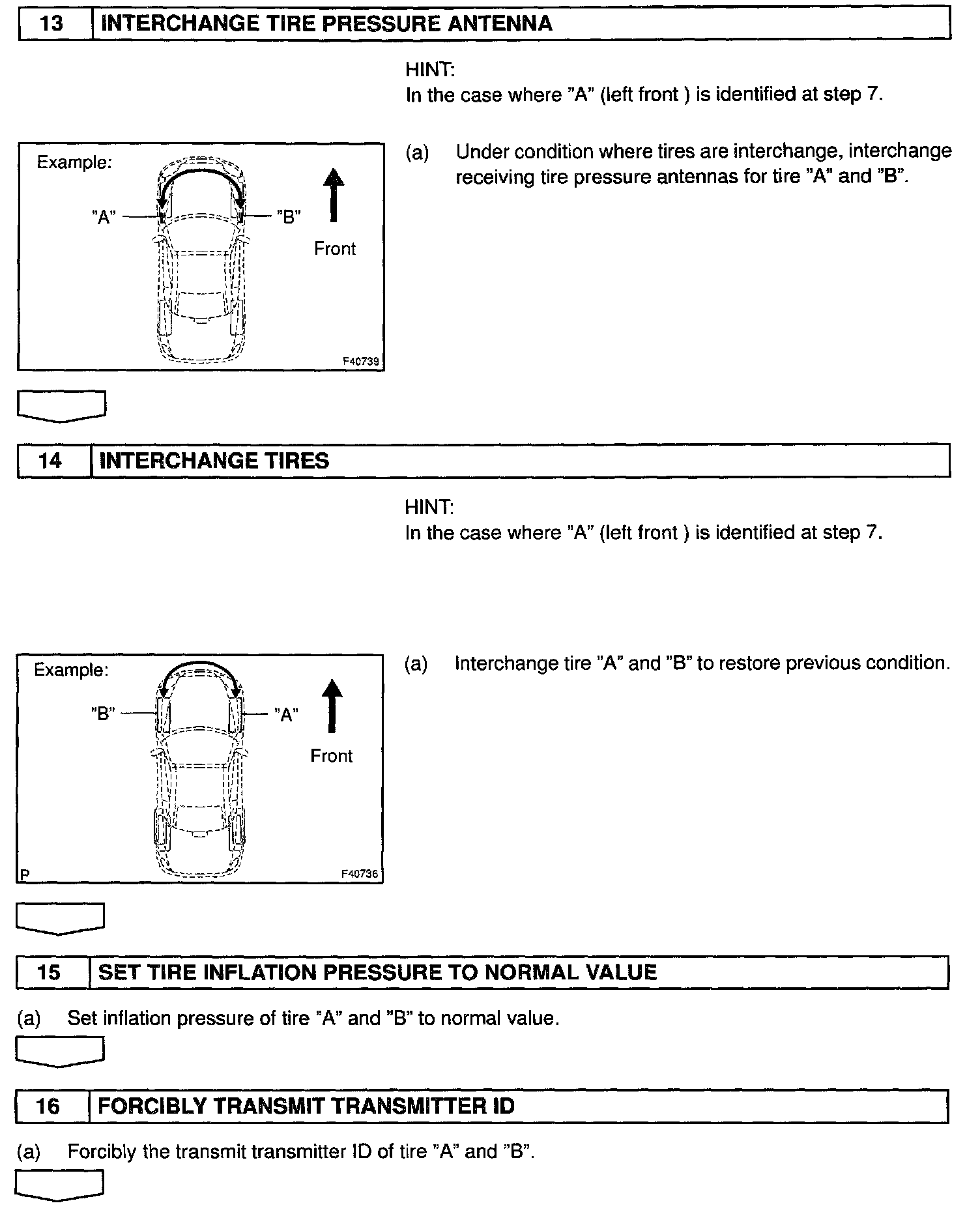

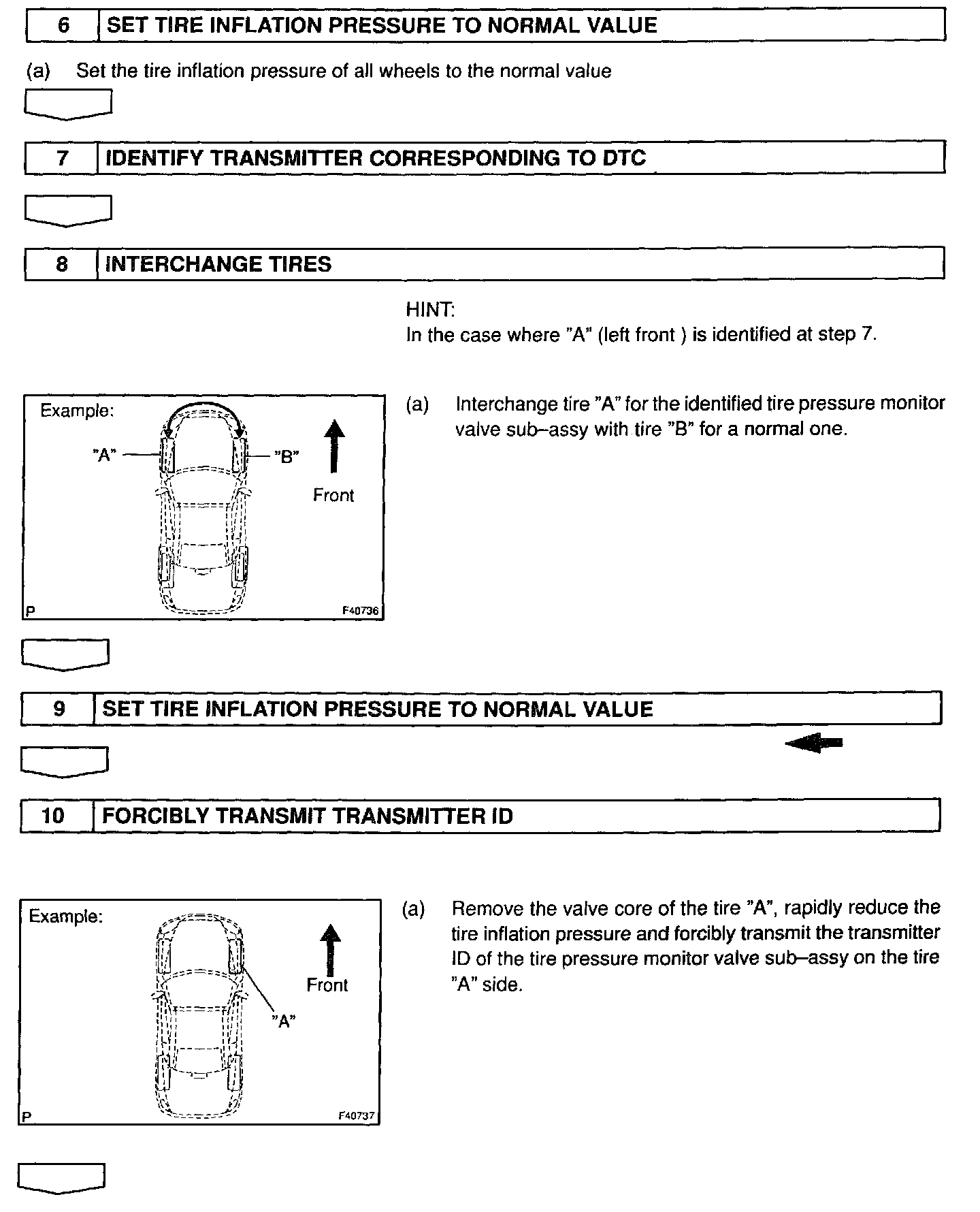

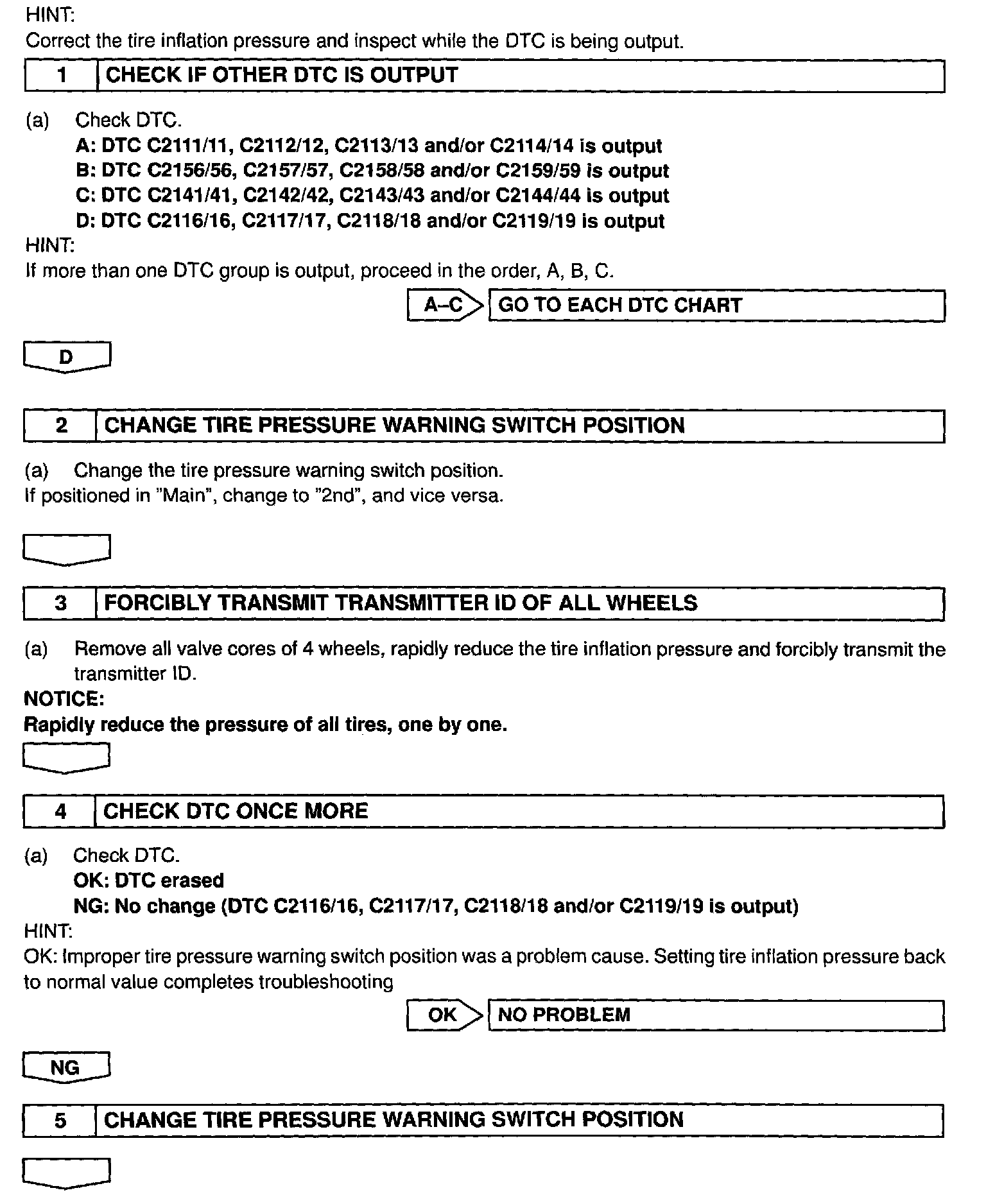

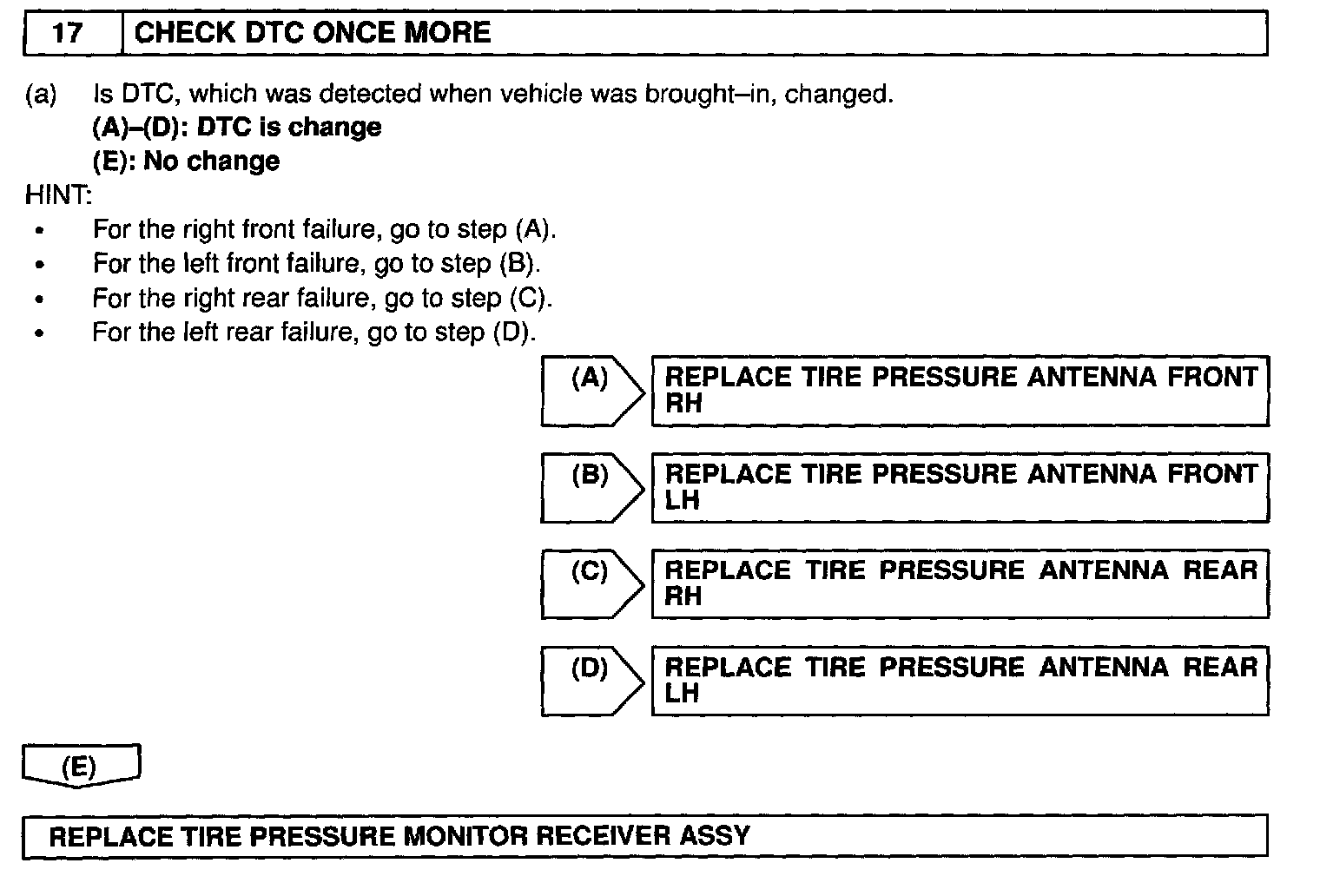

CIRCUIT PROCEDURE
