DTC C1242 IG2 POWER SOURCE CIRCUIT

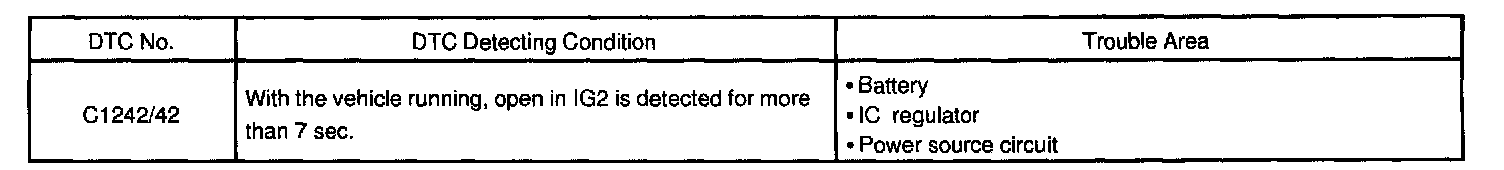

DTC Detecting Condition:
CIRCUIT DESCRIPTION

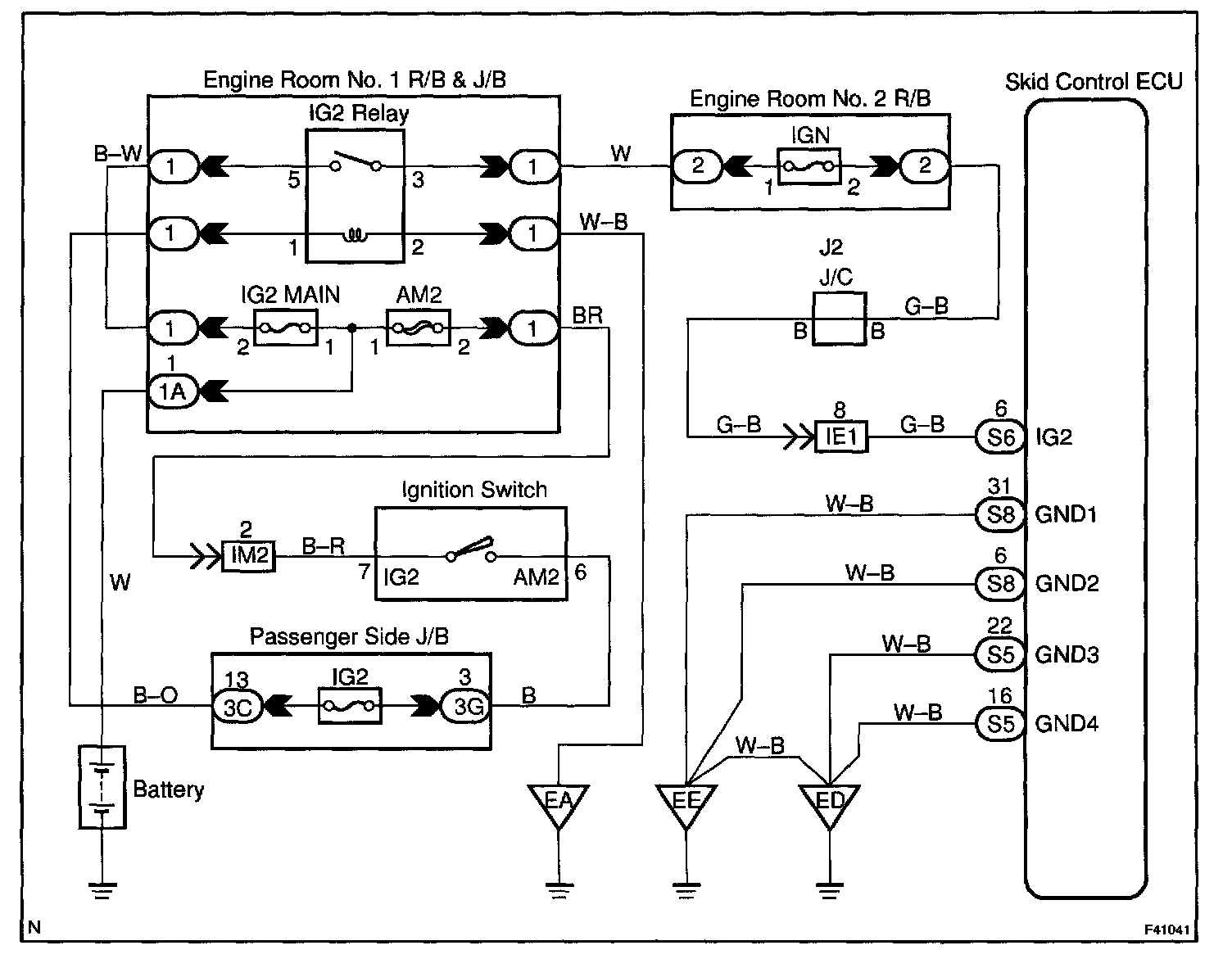

Wiring Diagram:

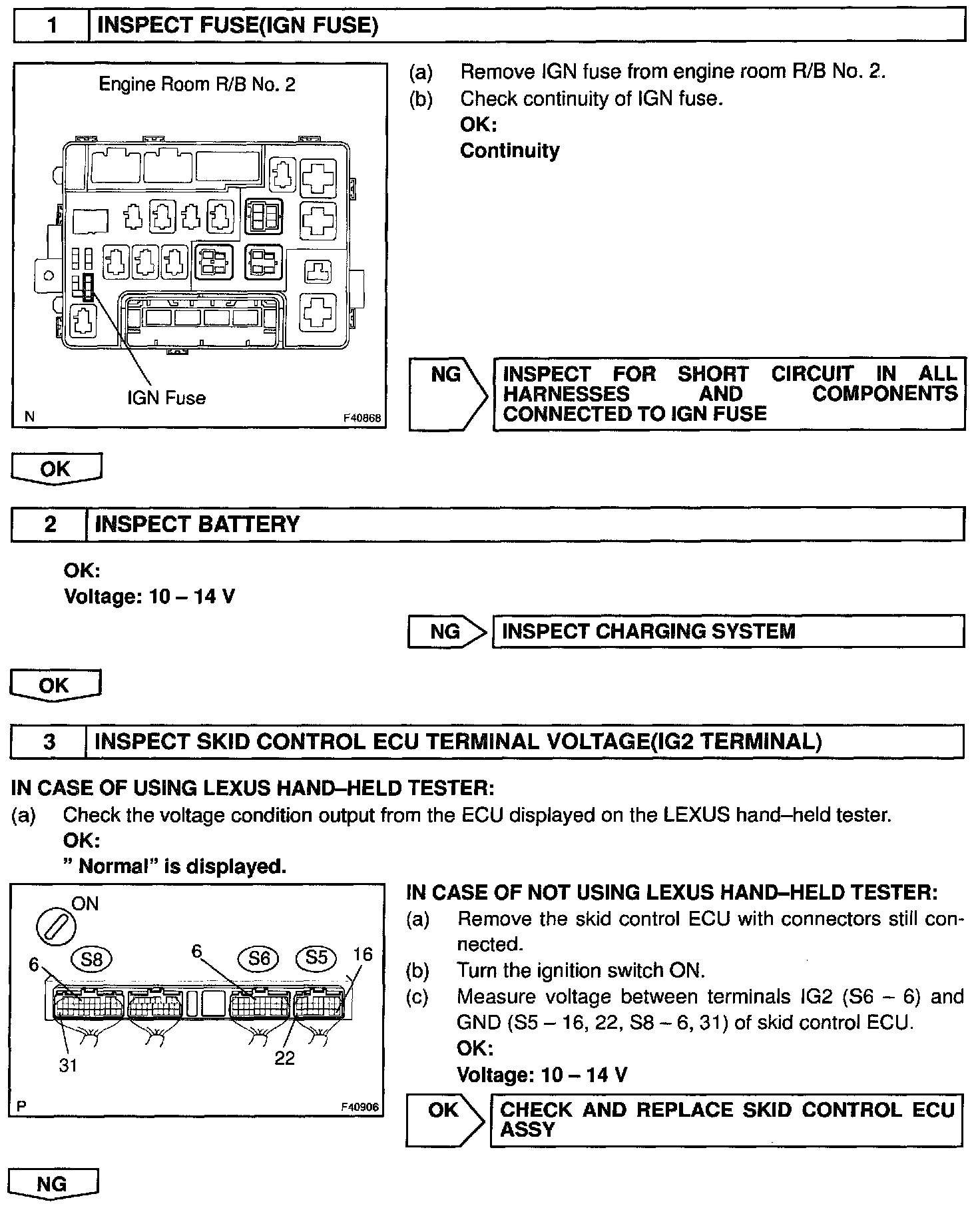

Step 1 - 3:

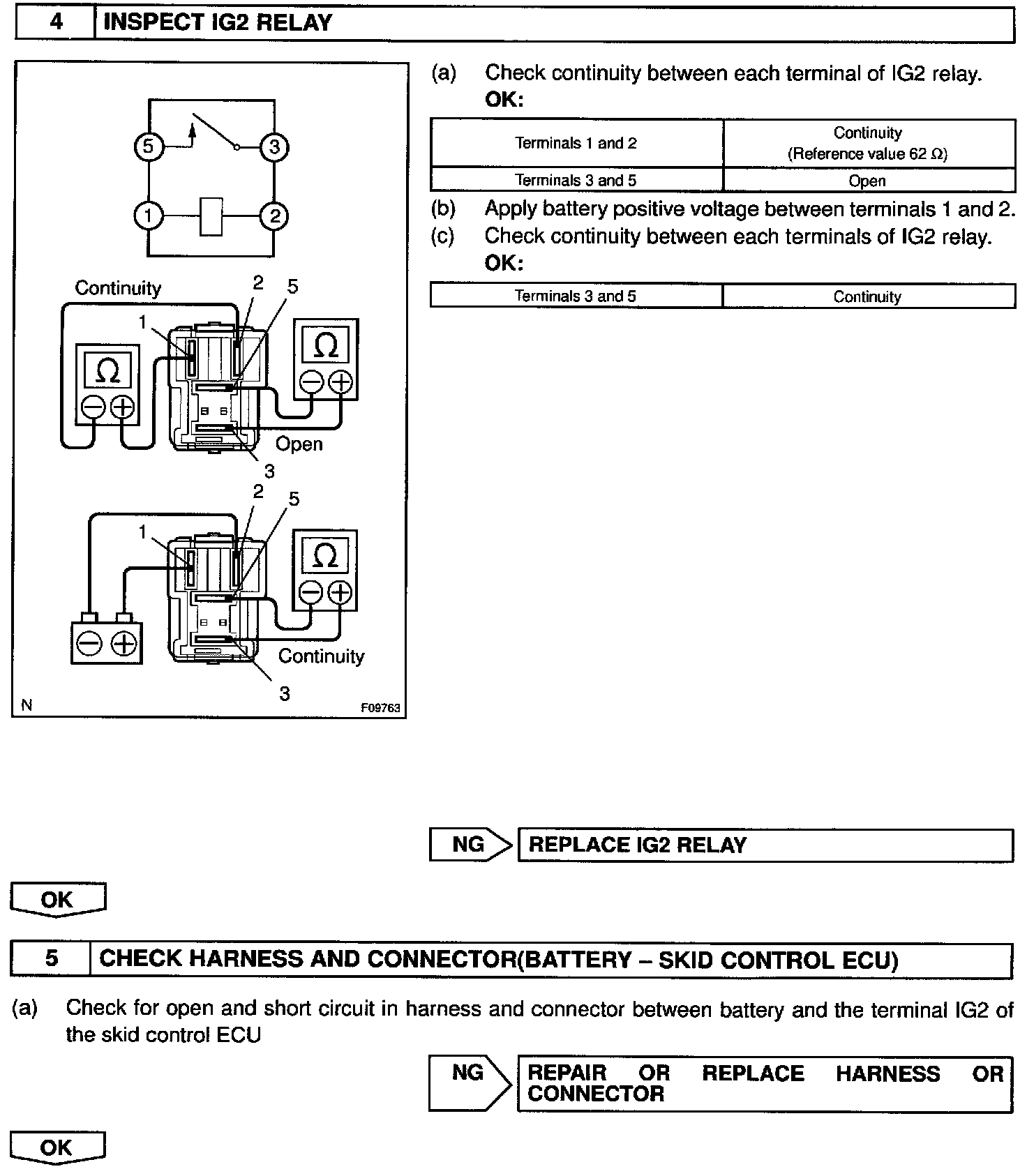

Step 4 - 5:

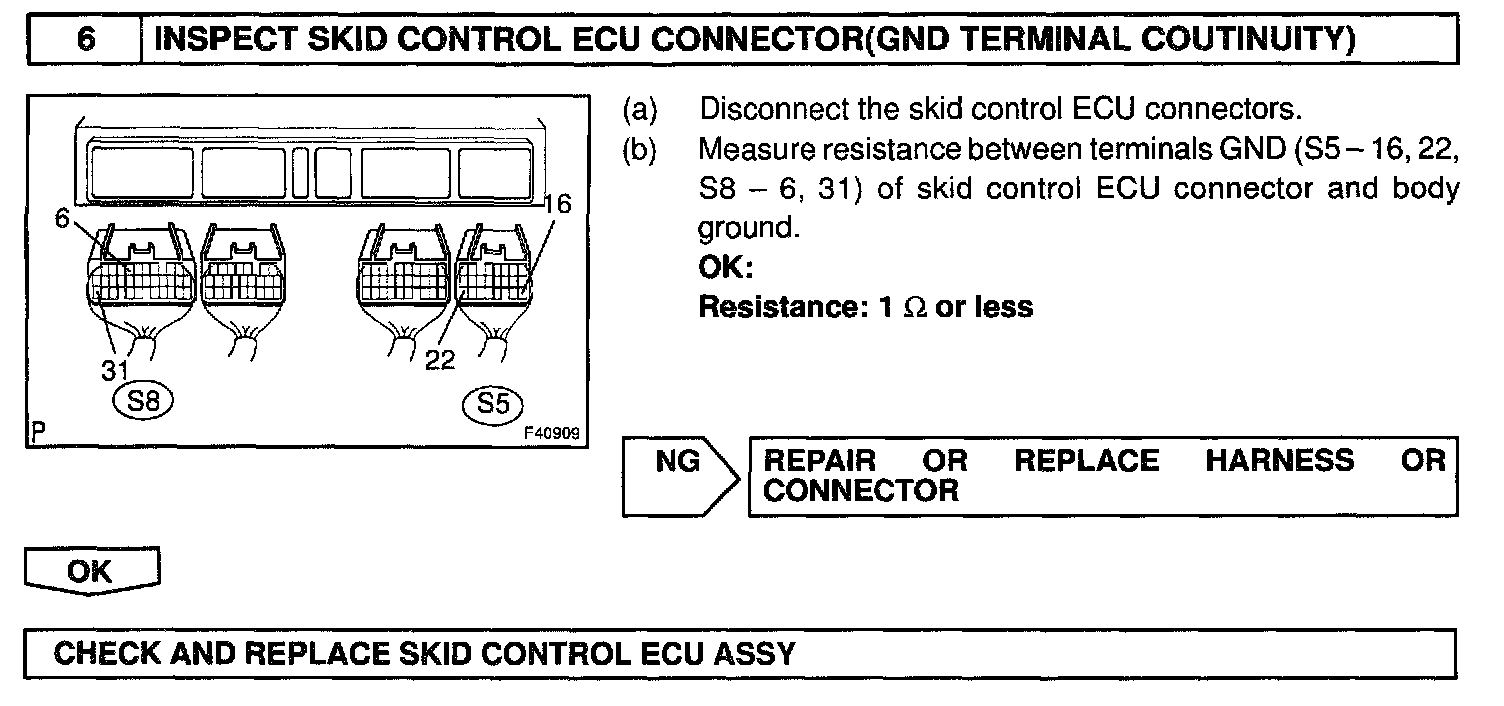

Step 6:
INSPECTION PROCEDURE
