C0246

DTC C0246 SRR SOLENOID CIRCUIT

CIRCUIT DESCRIPTION

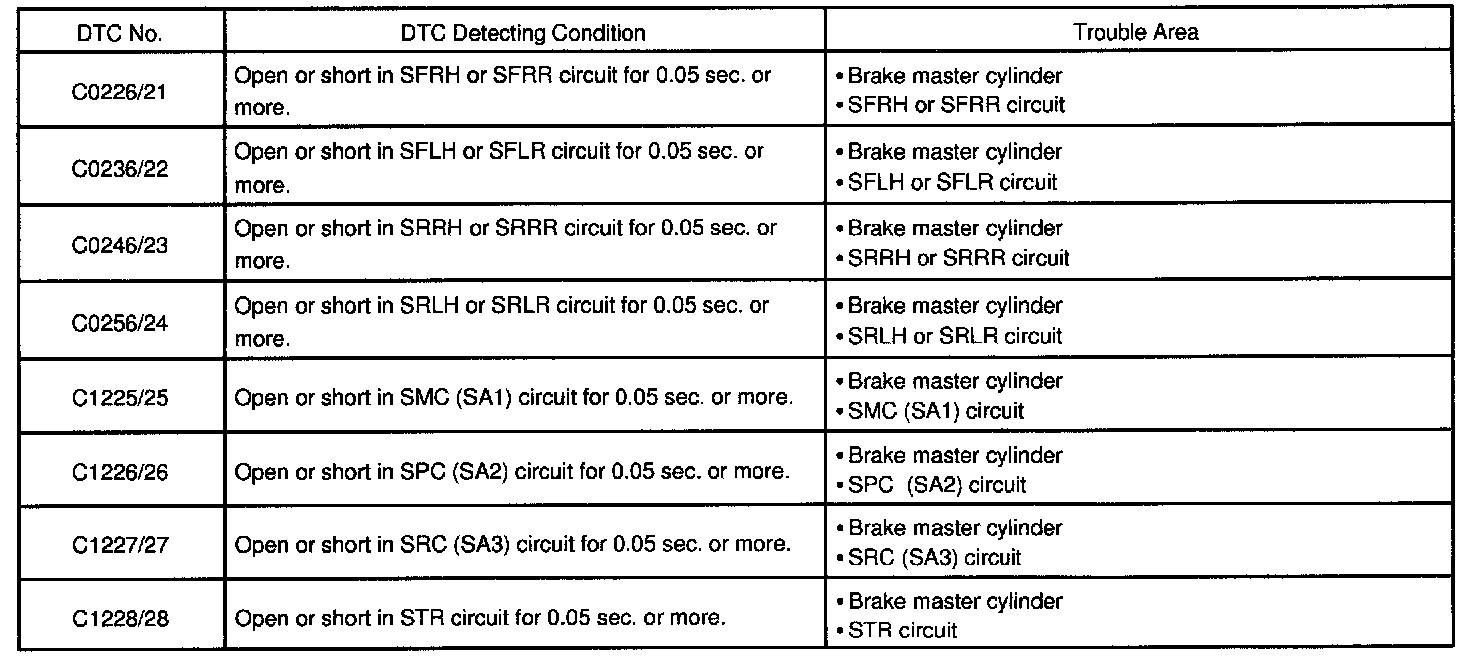

DTC Detecting Condition:

The solenoid goes on when signals are received from the ECU and controls the pressure action on the wheel cylinders thus controlling the braking force.

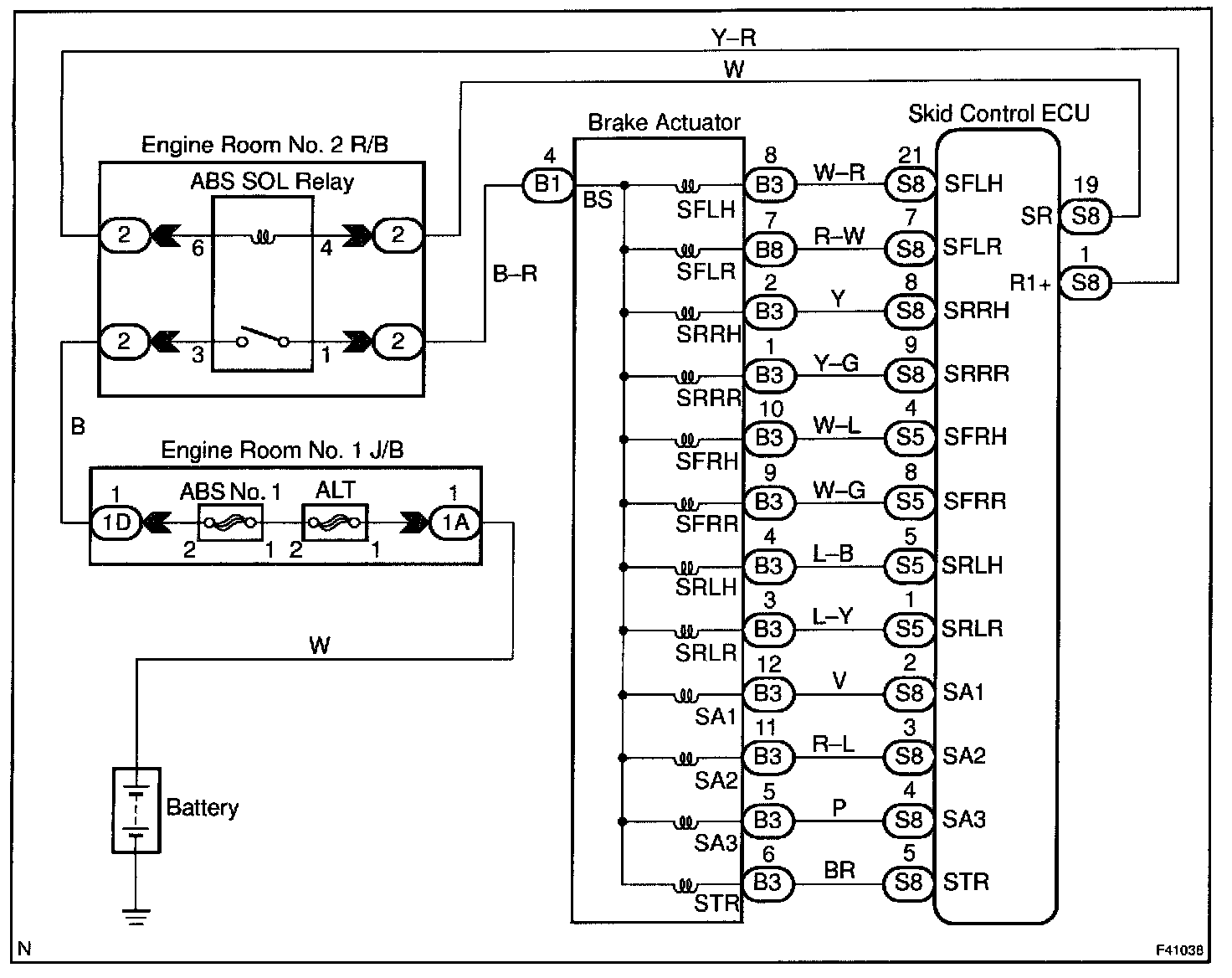

Wiring Diagram:

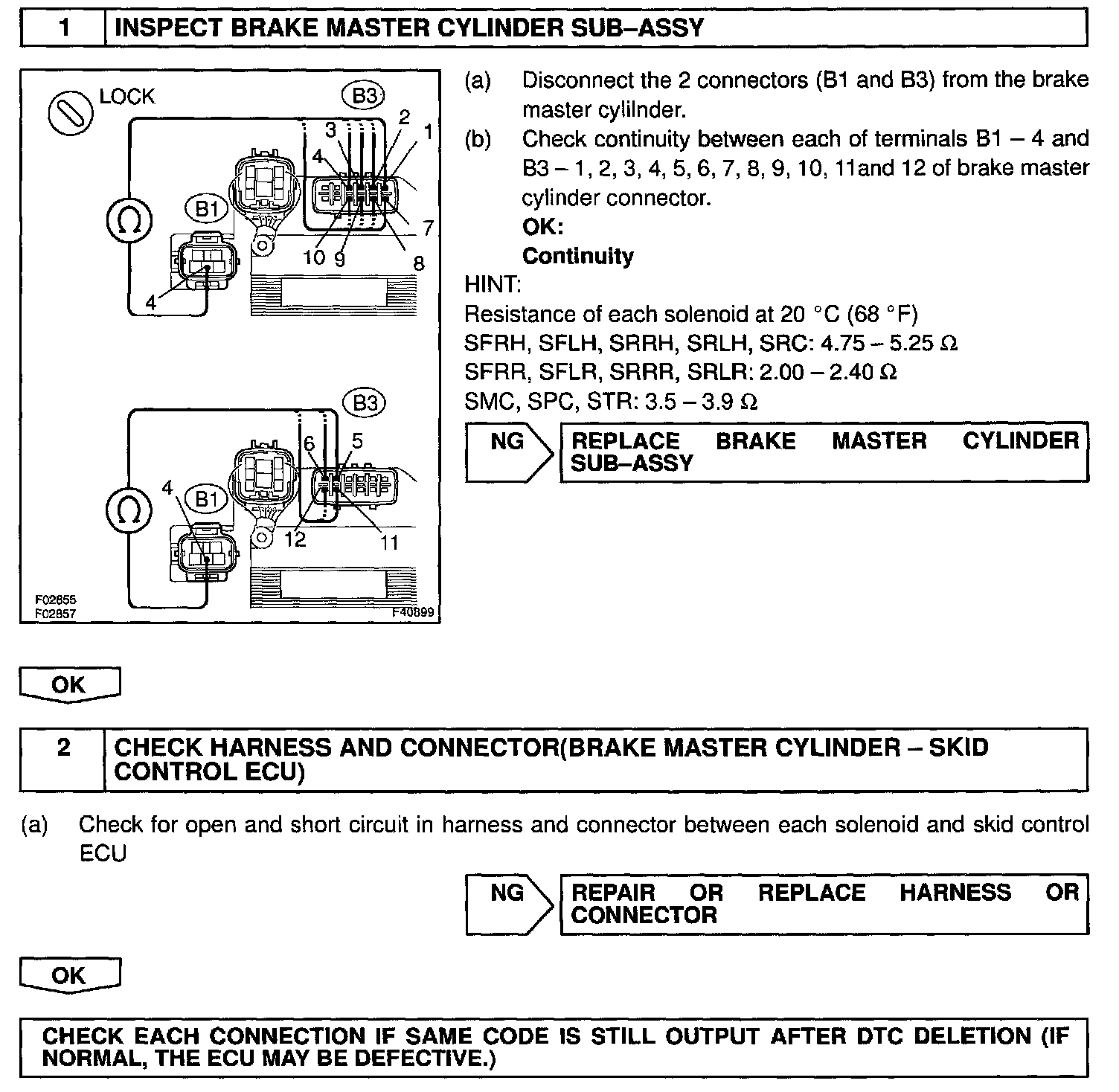

Step 1 - 2:

INSPECTION PROCEDURE
