B2799

DTC B2799 ENGINE IMMOBILIZER SYSTEM MALFUNCTION

CIRCUIT DESCRIPTION

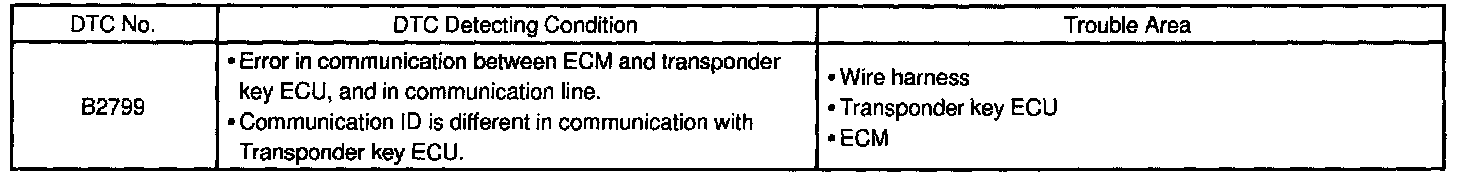

DTC Detecting Condition:

This DTC is output, when a DTC is output from the transponder key ECU, or when there is a open or short circuit in the wire harness between the transponder key ECU and the ECM.

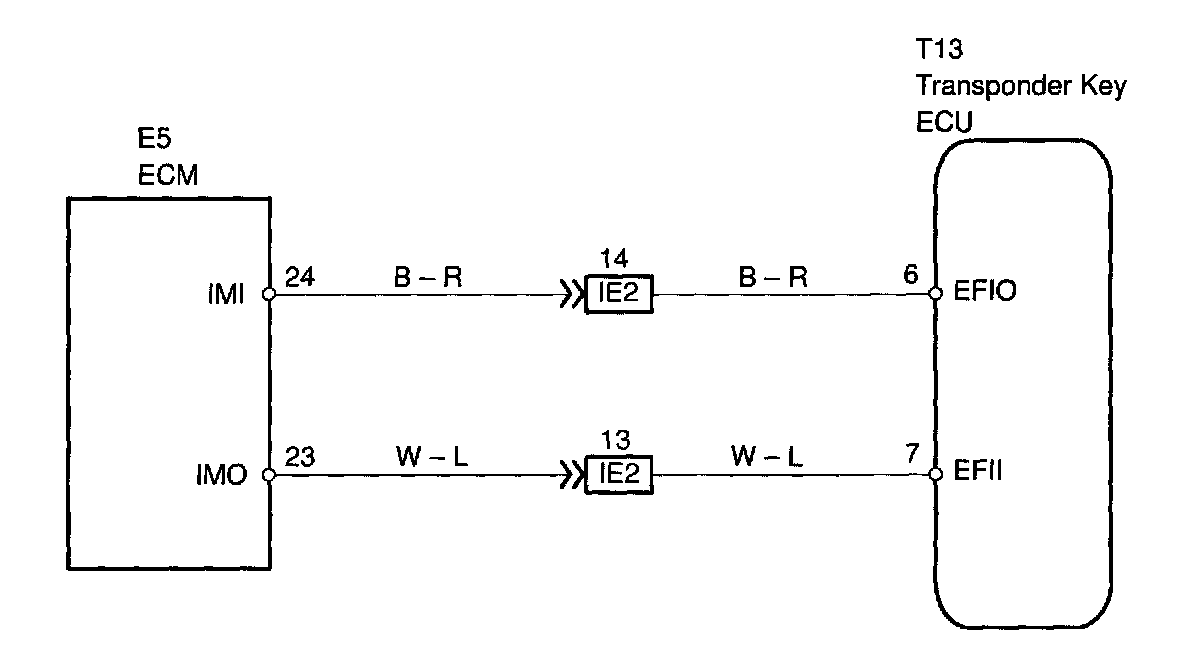

Wiring Diagram:

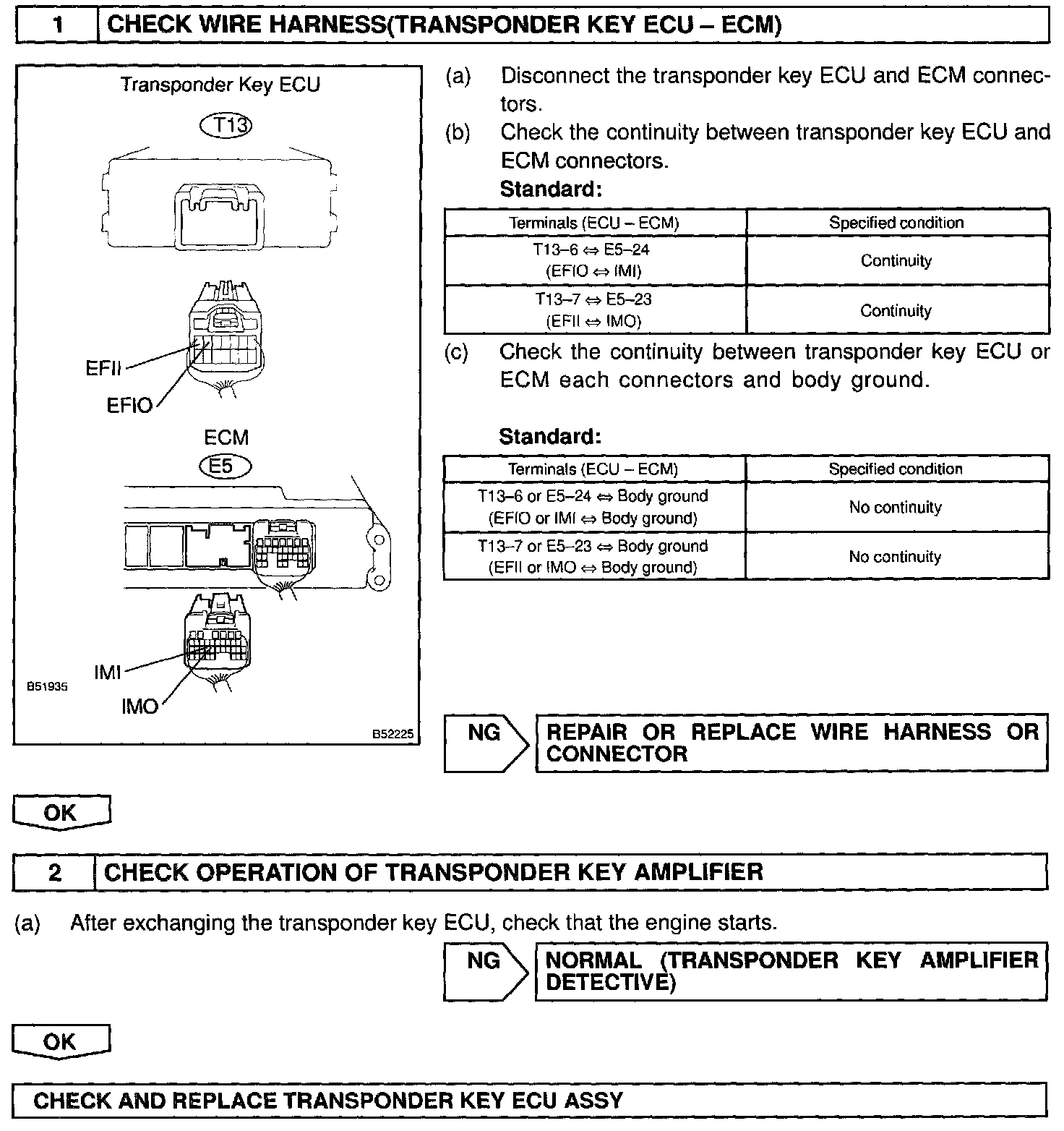

Step 1 - 2:

INSPECTION PROCEDURE
