DTC B2798 COMMUNICATION MALFUNCTION NO.2

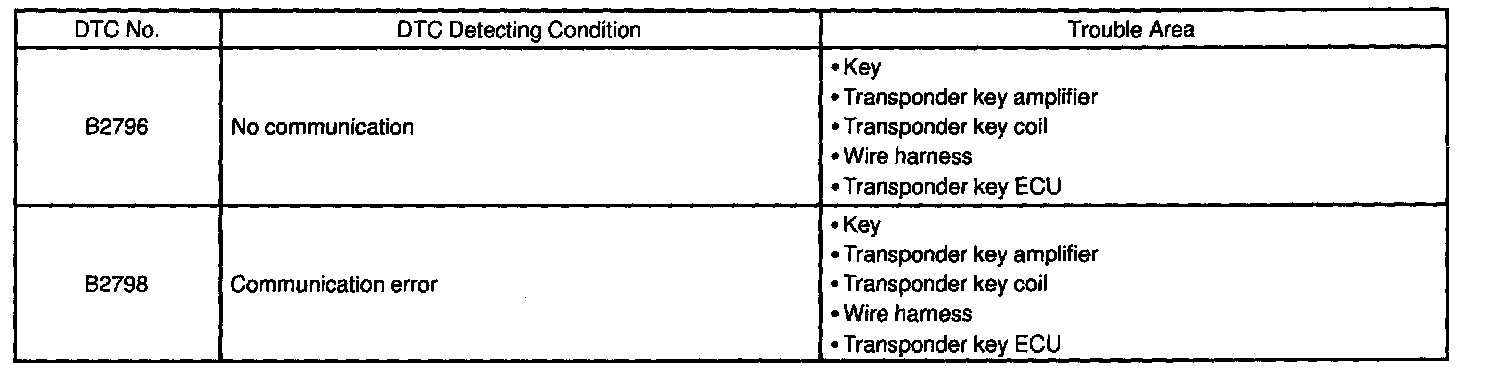

DTC Detecting Condition:
CIRCUIT DESCRIPTION

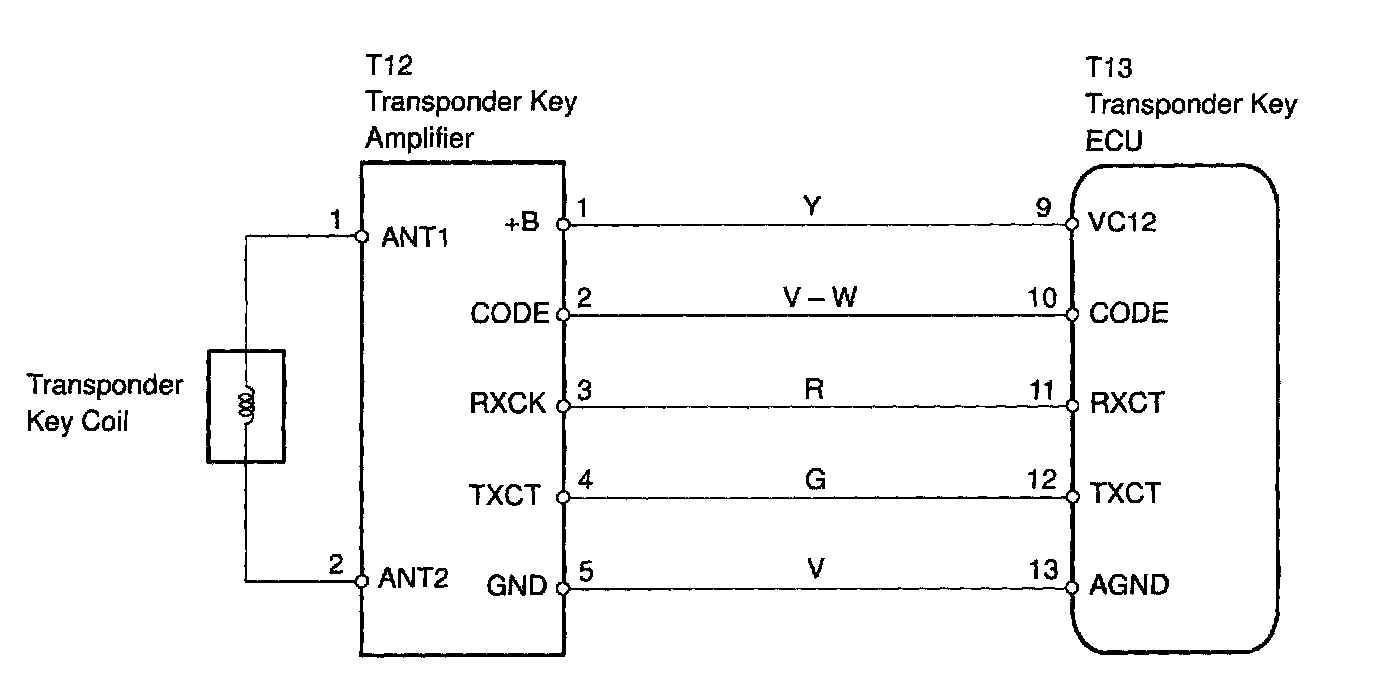

Wiring Diagram:

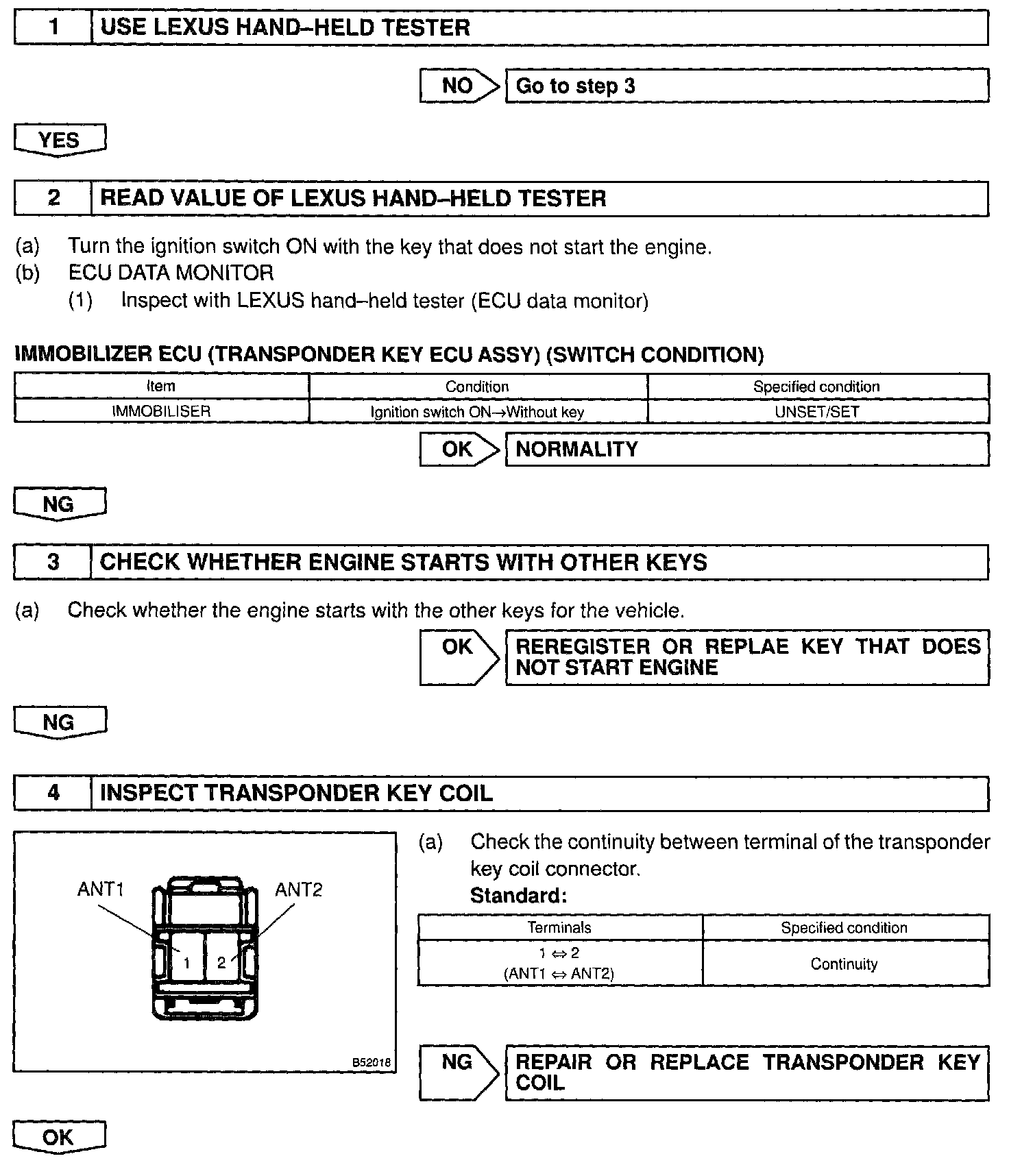

Step 1 - 4:

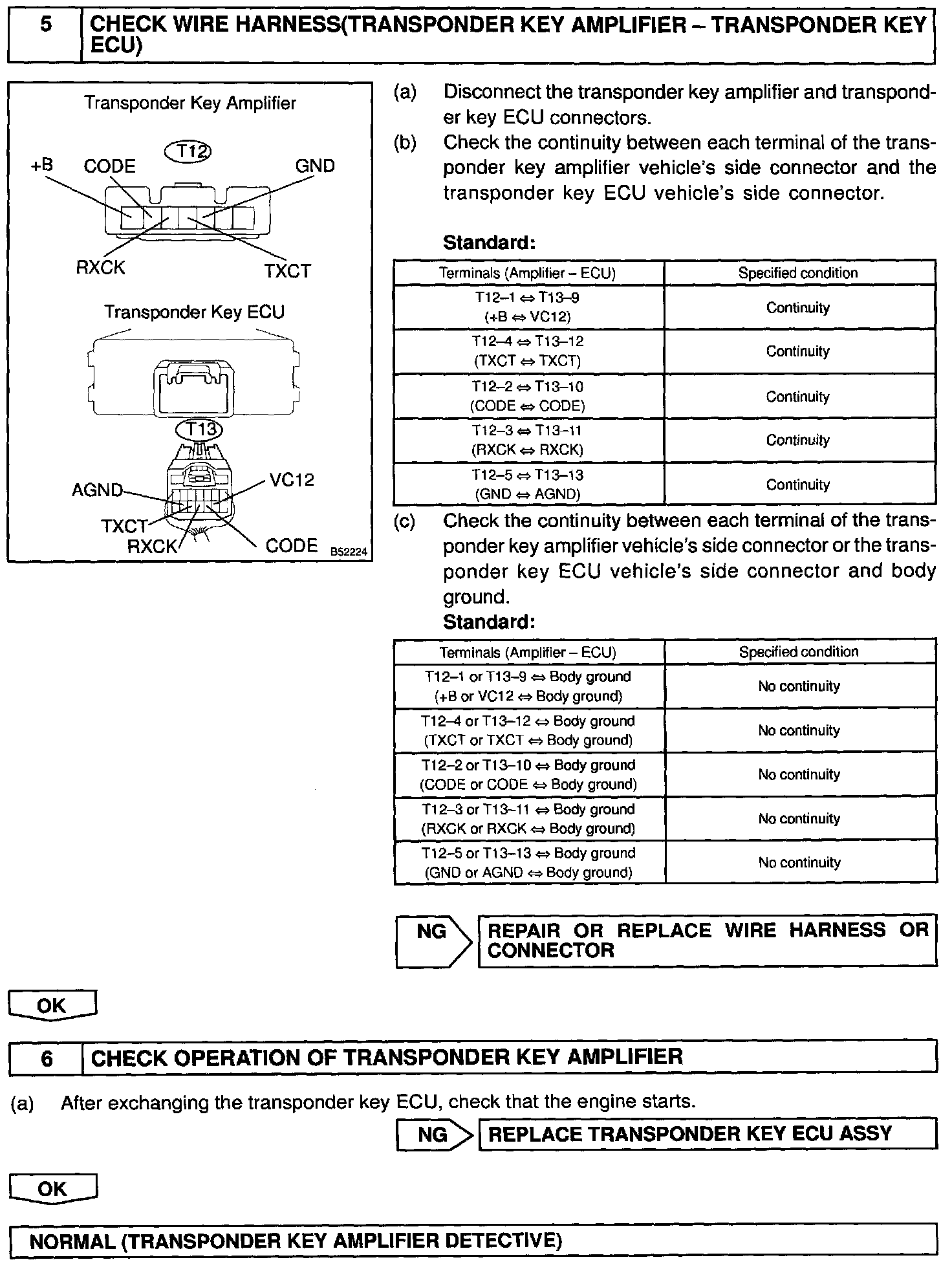

Step 5 - 6:
INSPECTION PROCEDURE
