B2797

DTC B2797 COMMUNICATION MALFUNCTION NO.1

CIRCUIT DESCRIPTION

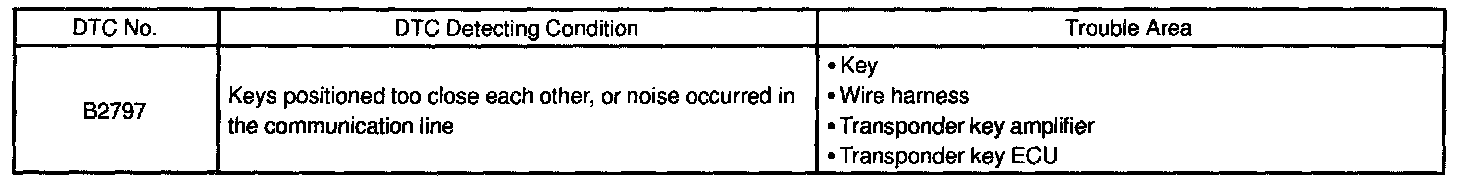

DTC Detecting Condition:

This DTC is output when an error occurs in the normal communication

HINT: Some noise exists in the communication line.

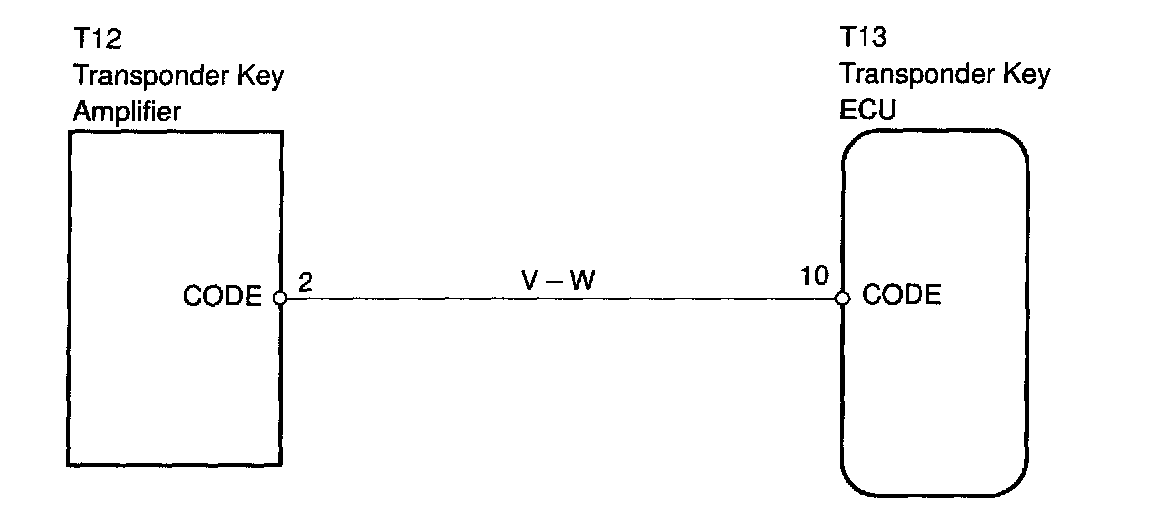

Wiring Diagram:

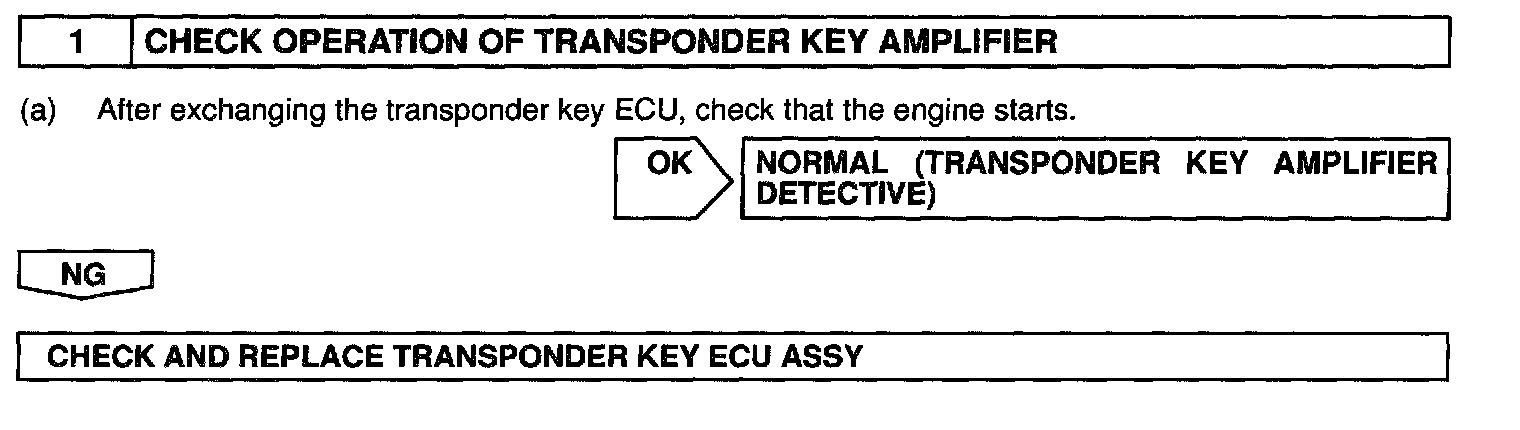

Step 1:

INSPECTION PROCEDURE
