B2620

DTC B2620 ECU POWER SOURCE CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

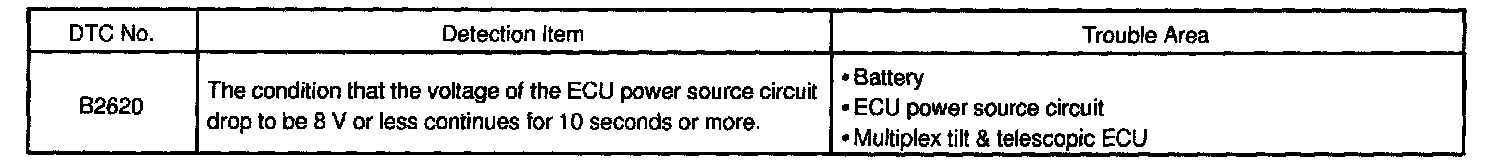

Detection Item:

ECU power source circuit supply the battery positive voltage to multiplex tilt & telescopic ECU.

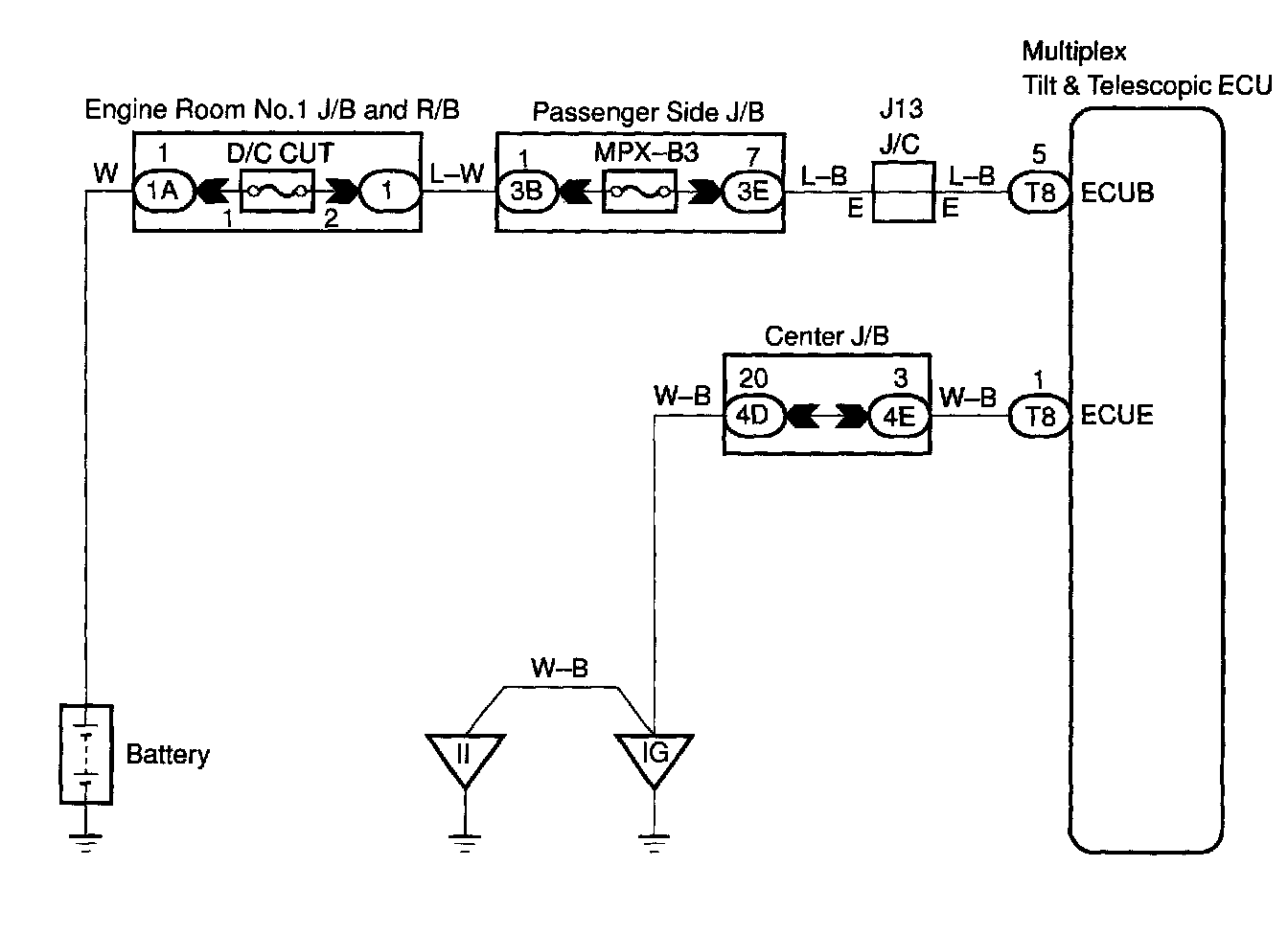

Wiring Diagram:

Step 1 - 3:

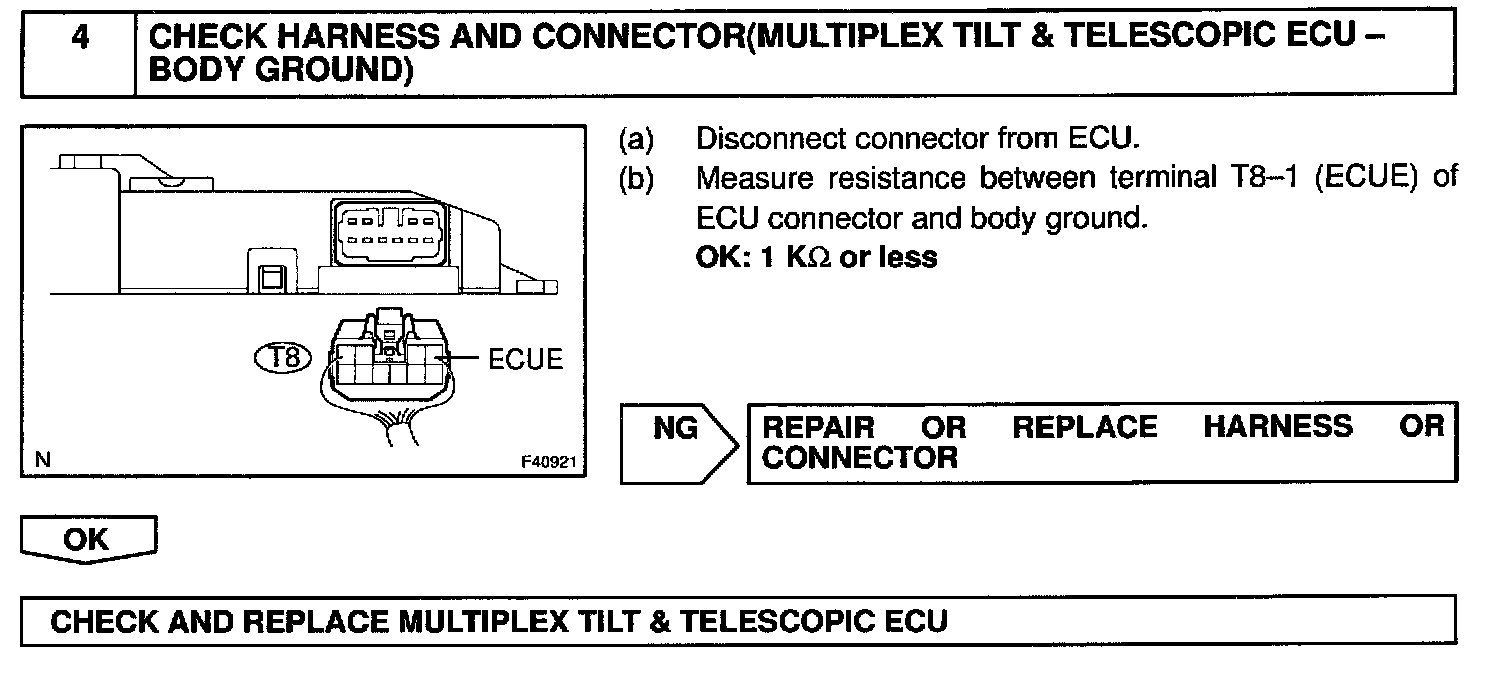

Step 4:

INSPECTION PROCEDURE
