B2555

DTC B2555 A/C ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

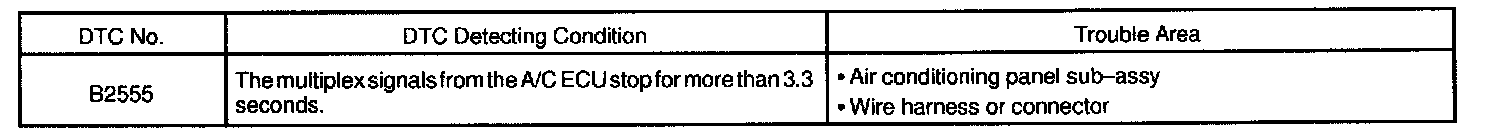

DTC Detecting Condition:

Receiving the multiplex signals (ambient temperature).

Changing the fixed control number according to the above information.

Wiring Diagram - I/P Bus:

Wiring Diagram - Lighting Bus:

Wiring Diagram - Door Bus:

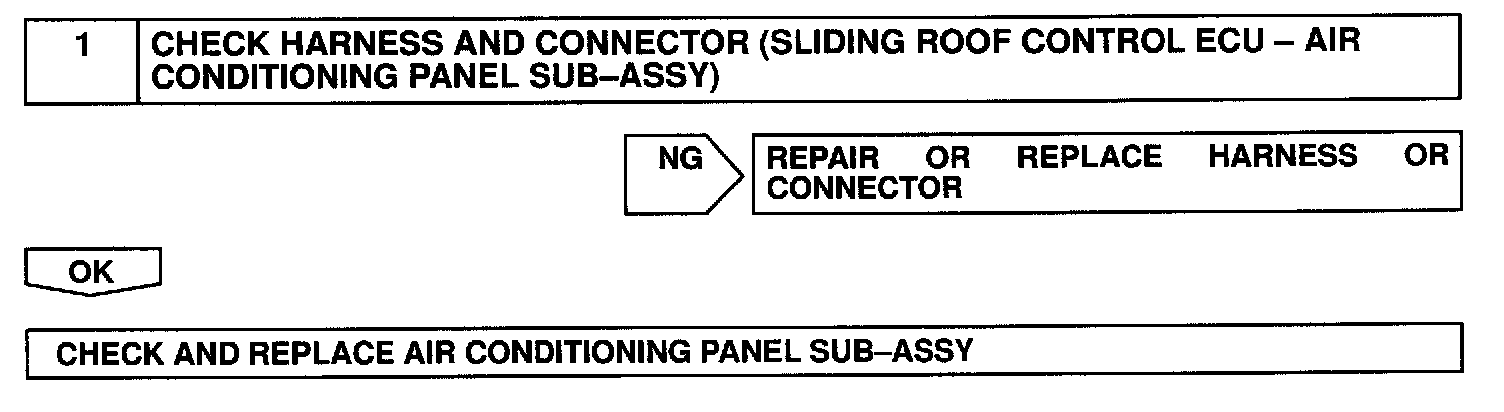

Step 1:

INSPECTION PROCEDURE
