B2552

DTC B2552 PULSE WIDTH MODULATION MOTOR LH POWER SUPPLY CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

General term to indicate 3 motors, the roof motor, luggage motor and luggage closer motor. It actually includes 6 motors as the three motors have one motor each located on right and left side.

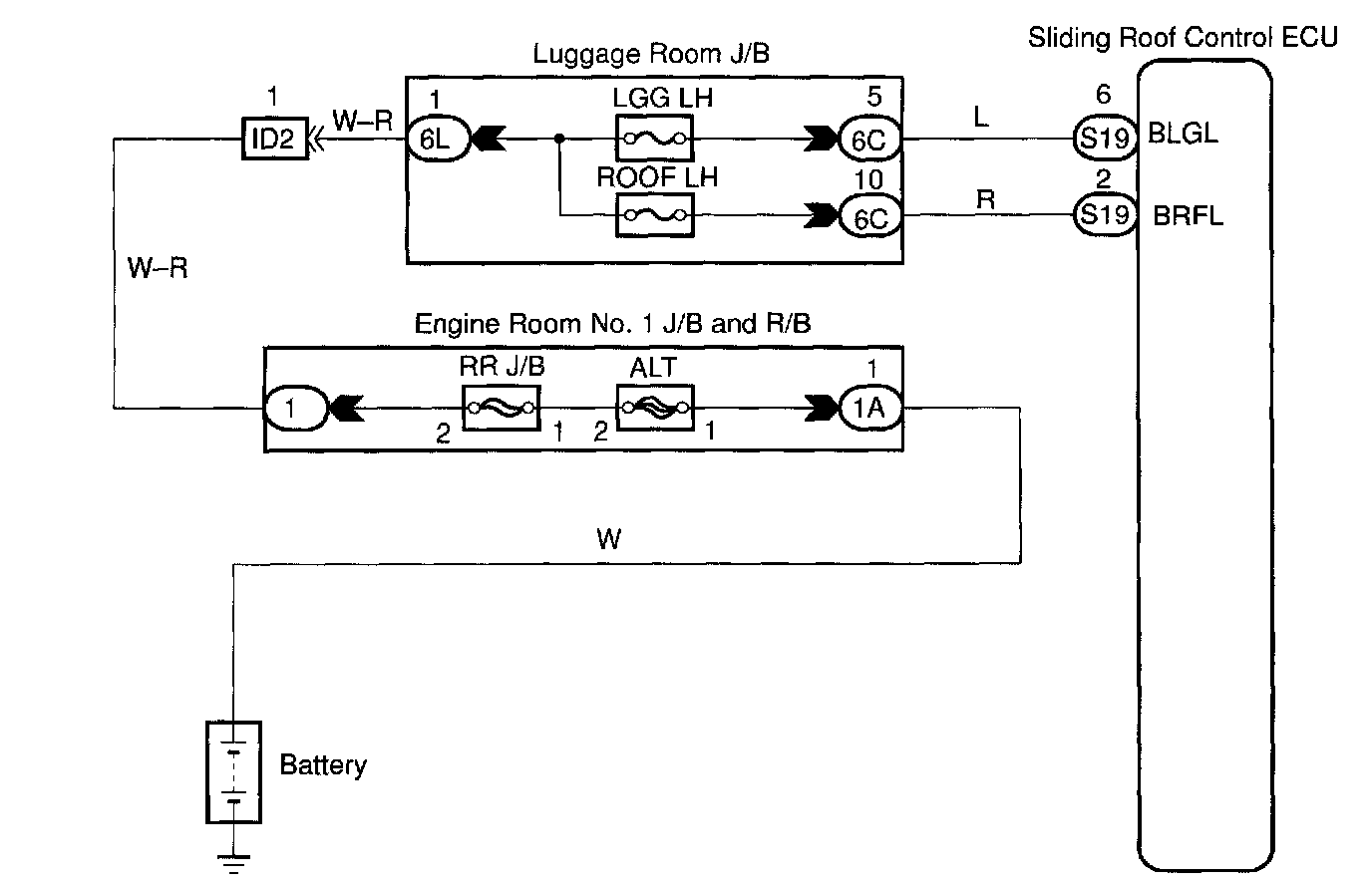

Wiring Diagram:

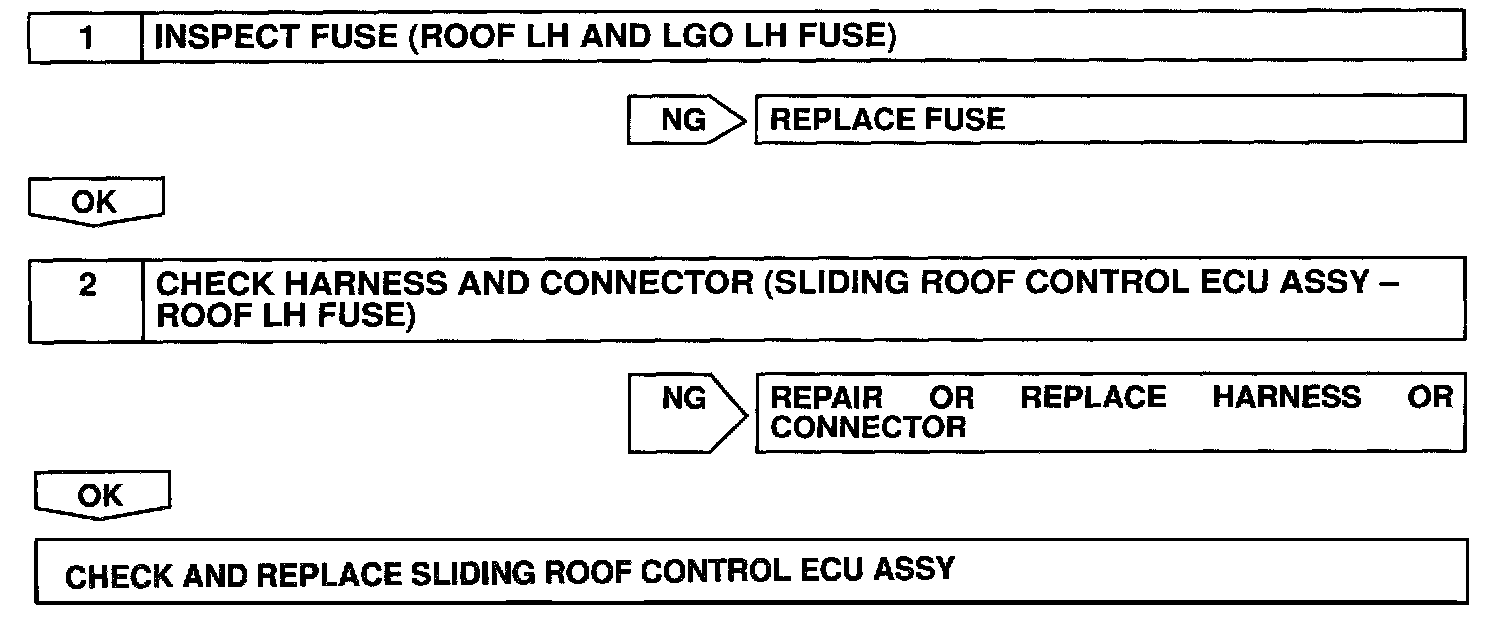

Step 1 - 2:

INSPECTION PROCEDURE
