B2551

DTC B2551 PULSE WIDTH MODULATION MOTOR RH POWER SUPPLY CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

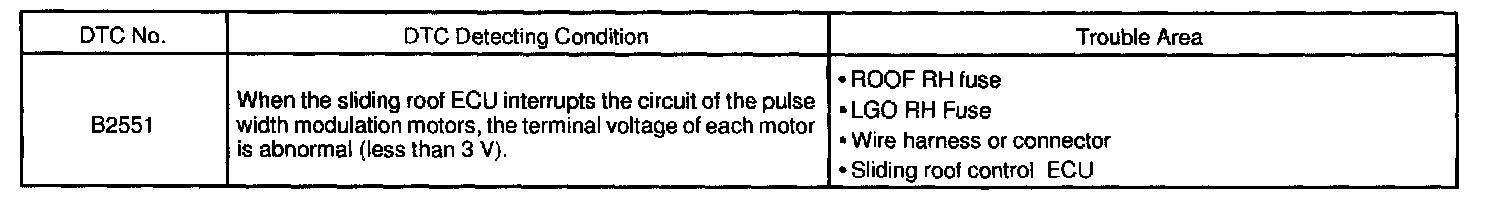

DTC Detecting Condition:

General term to indicate 3 motors, the roof motor, luggage motor and luggage closer motor. It actually includes 6 motors as the three motors have one motor each located on right and left side.

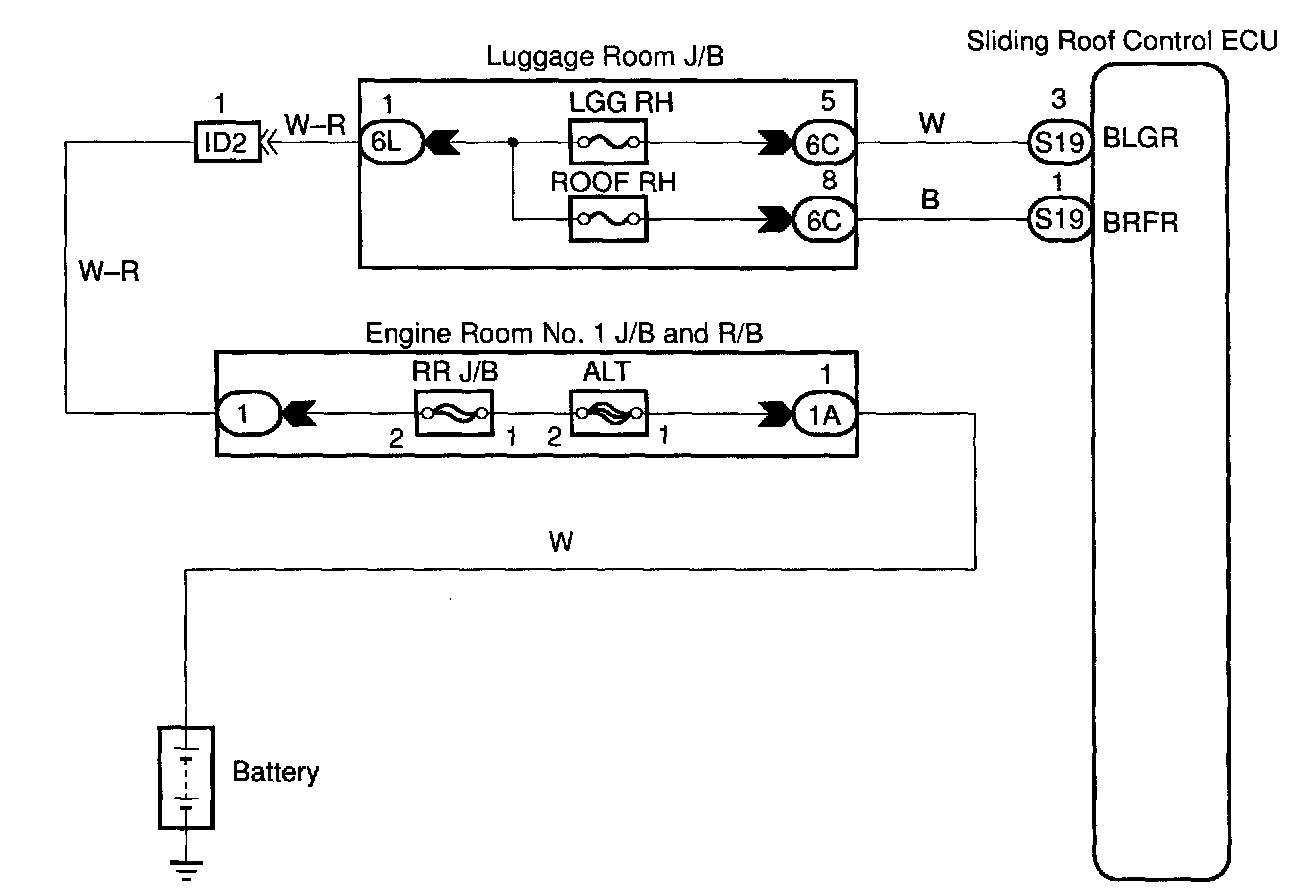

Wiring Diagram:

Step 1:

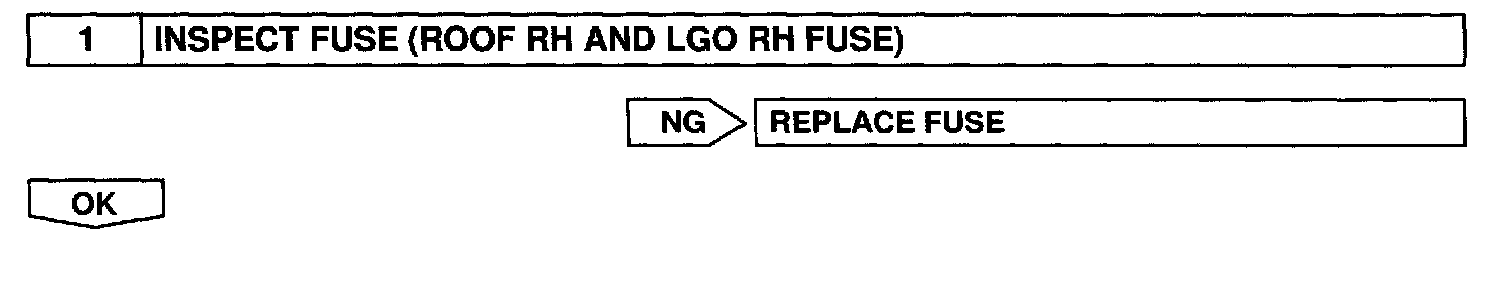

Step 2:

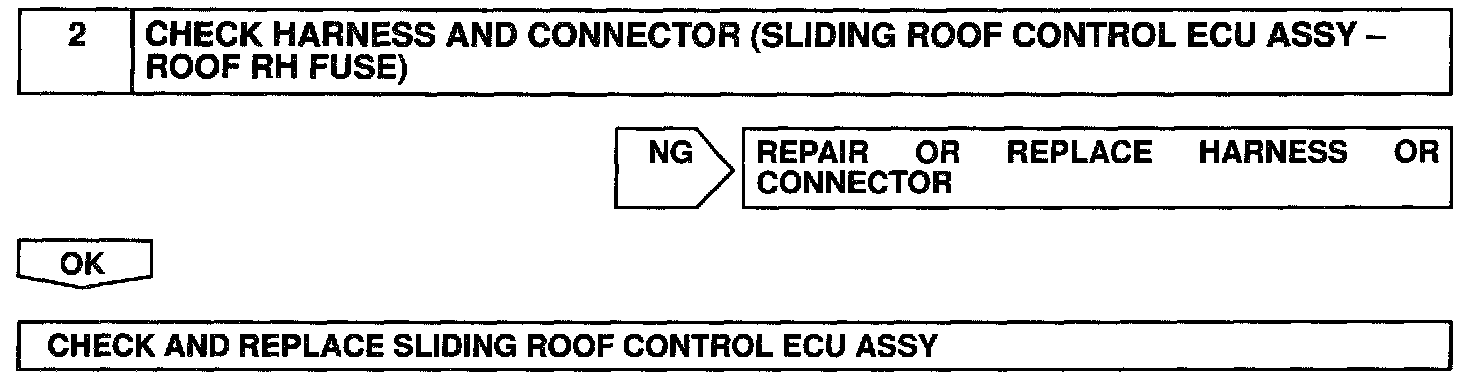

INSPECTION PROCEDURE
