B2546

DTC B2546 COMBINATION METER ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

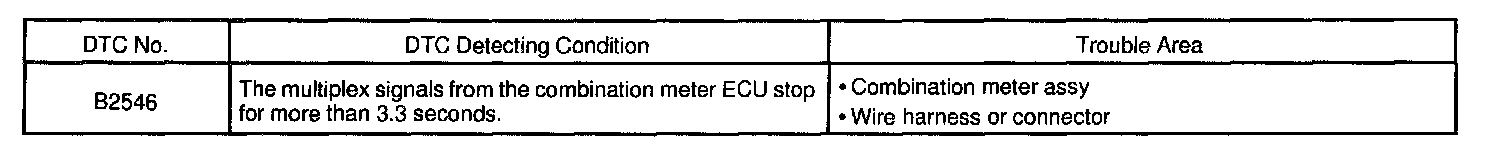

DTC Detecting Condition:

Receiving the multiplex signals (vehicle speed).

Deciding to permit or stop the sliding roof operation judging from the acquired vehicle speed.

Wiring Diagram - I/P Bus:

Wiring Diagram - Lighting Bus:

Wiring Diagram - Door Bus:

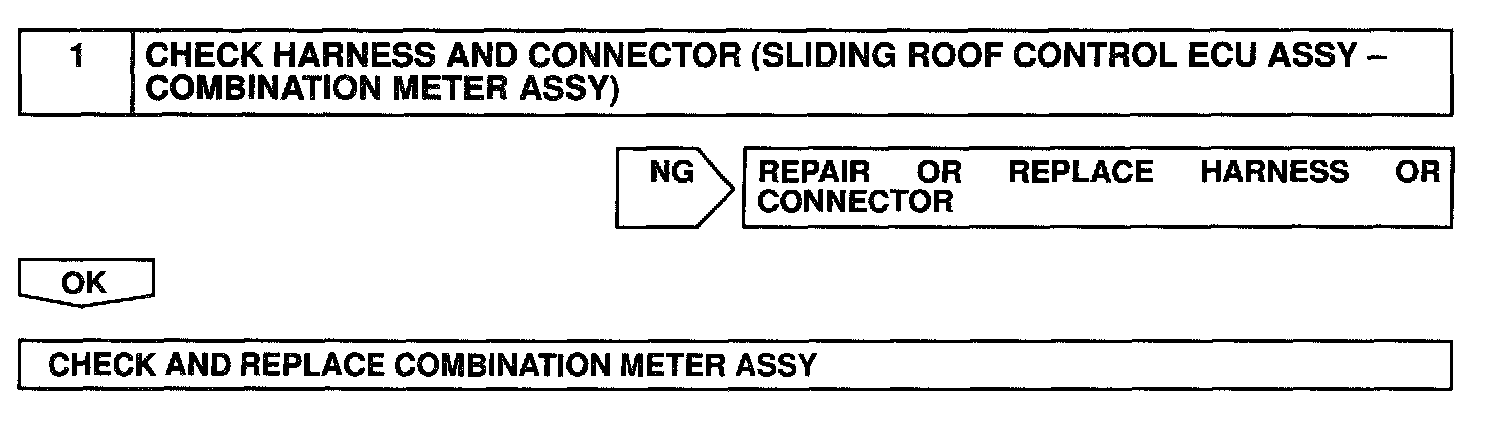

Step 1:

INSPECTION PROCEDURE
