B2543

DTC B2543 ABNORMAL DIFFERENCE BETWEEN RH AND LH LUGGAGE DOOR DRIVE MOTOR PULSE

CIRCUIT DESCRIPTION

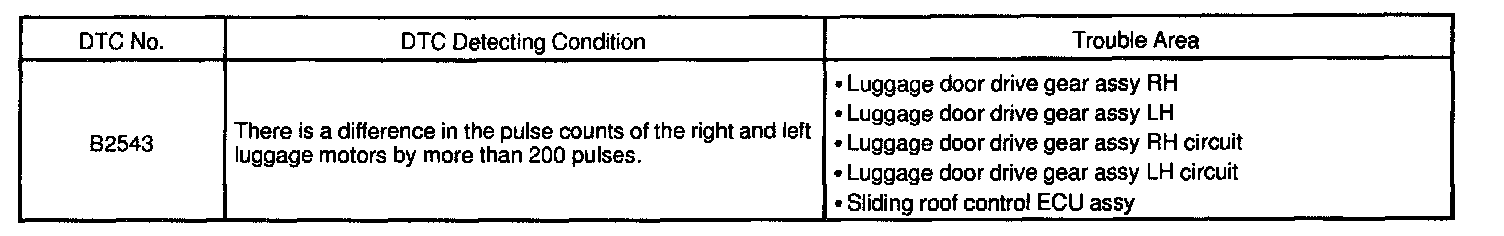

DTC Detecting Condition:

Pulse signal created by the rotation of the luggage door drive motor. Used to control the luggage door speed.

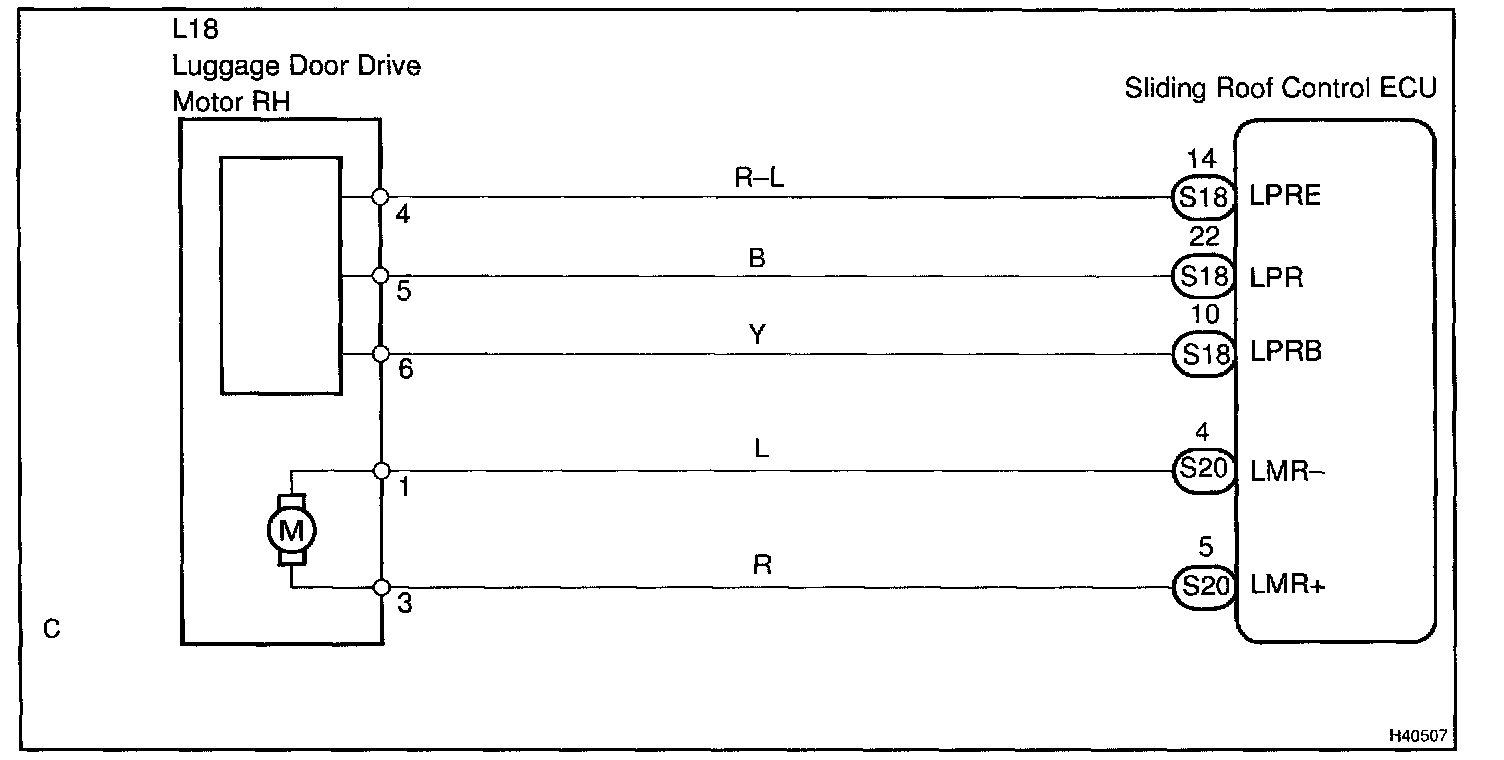

Wiring Diagram:

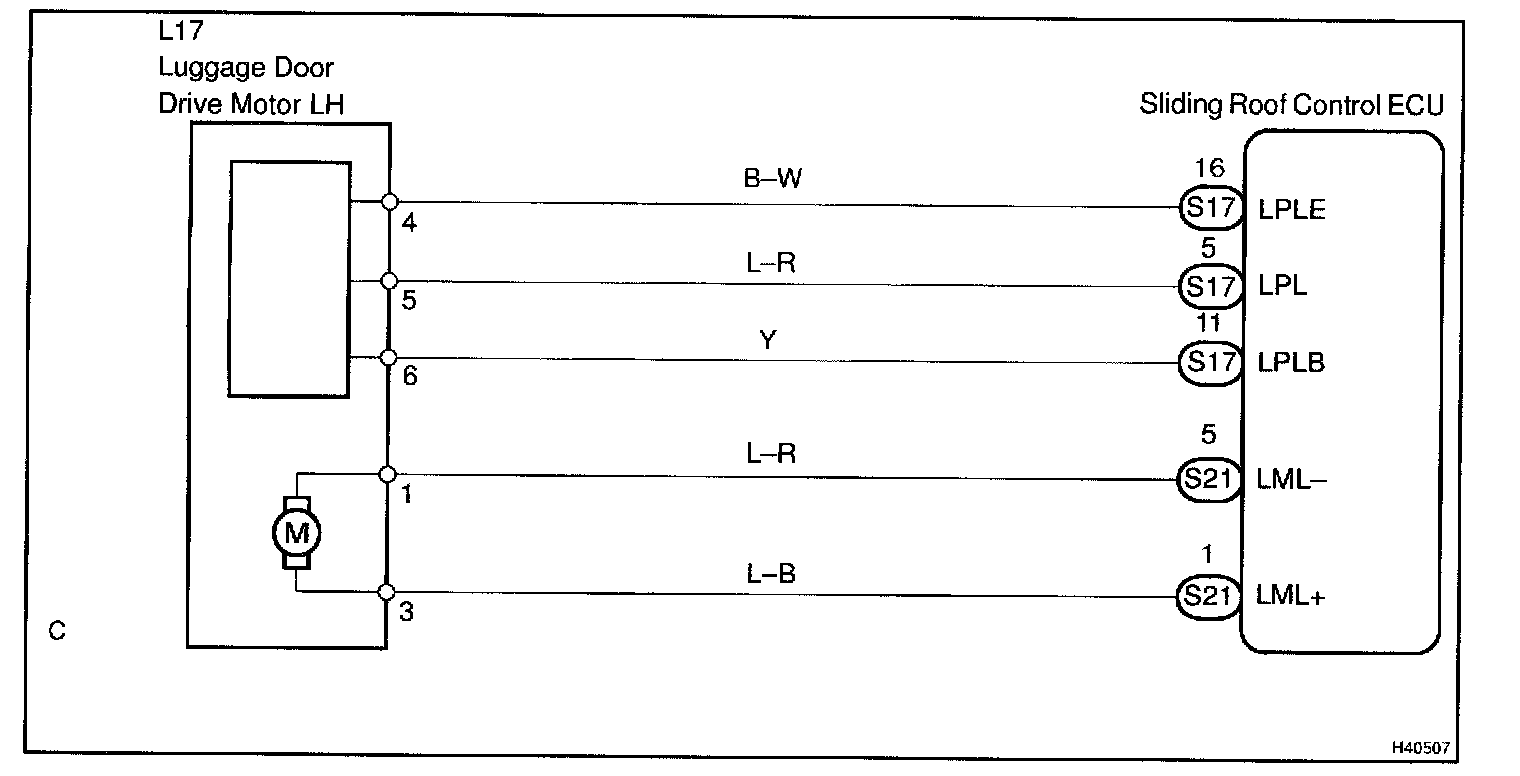

Wiring Diagram:

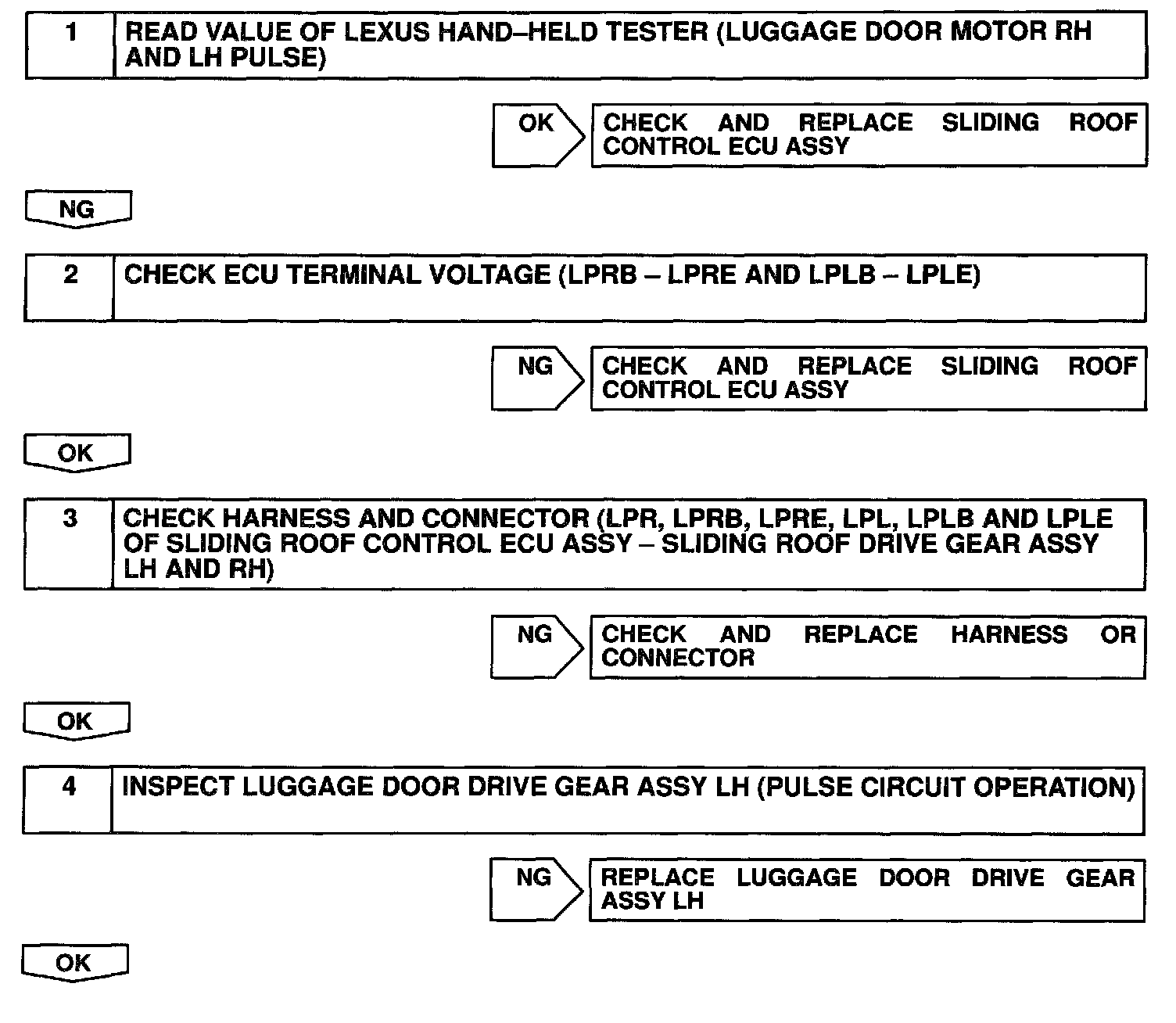

Step 1 - 4:

Step 5:

INSPECTION PROCEDURE
