B2542

DTC B2542 ABNORMAL LUGGAGE DOOR DRIVE MOTOR LH PULSE

CIRCUIT DESCRIPTION

DTC Detecting Condition:

Pulse signal created by the rotation of the luggage door drive motor. Used to control the luggage door speed.

Wiring Diagram:

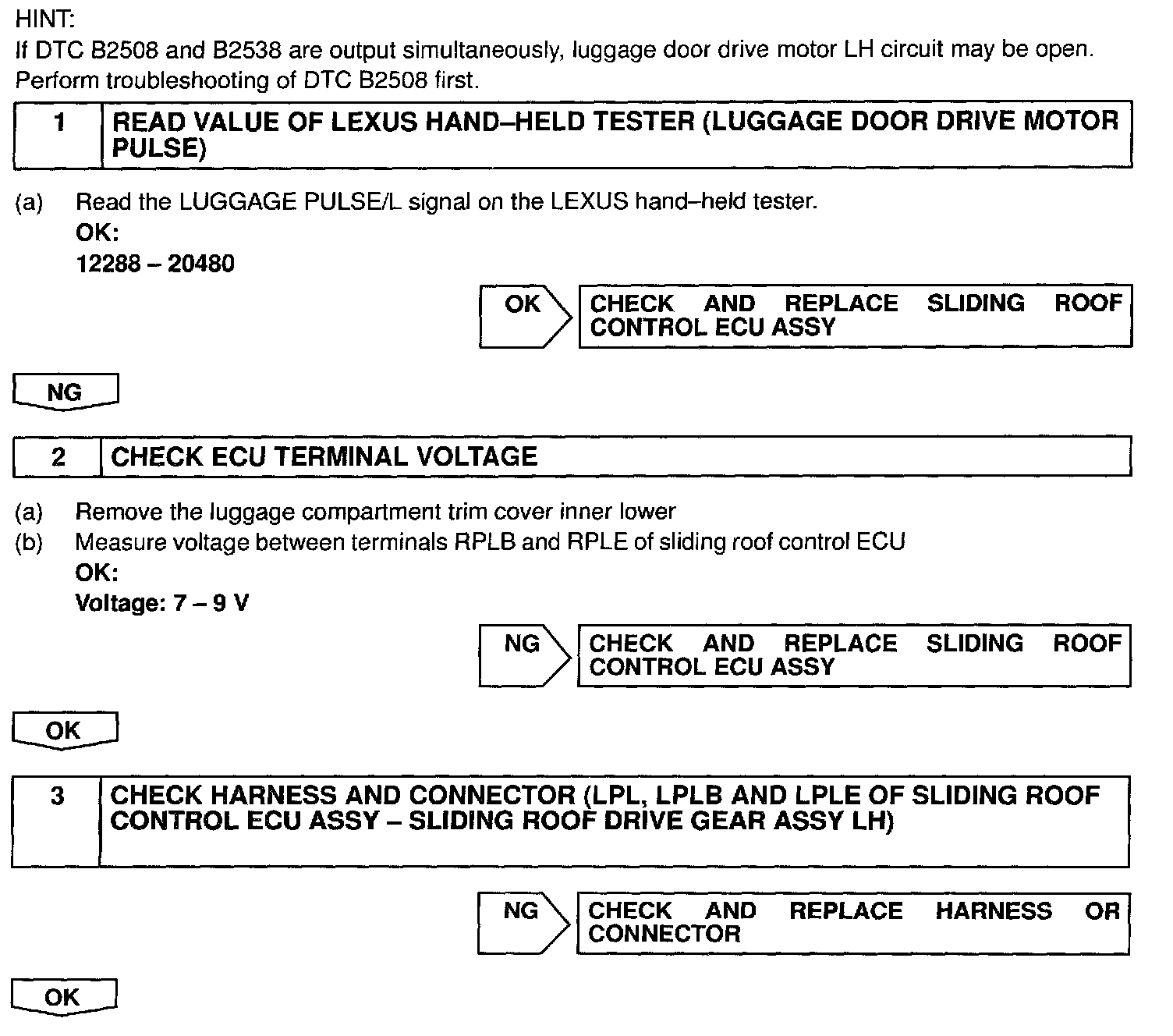

Step 1 - 3:

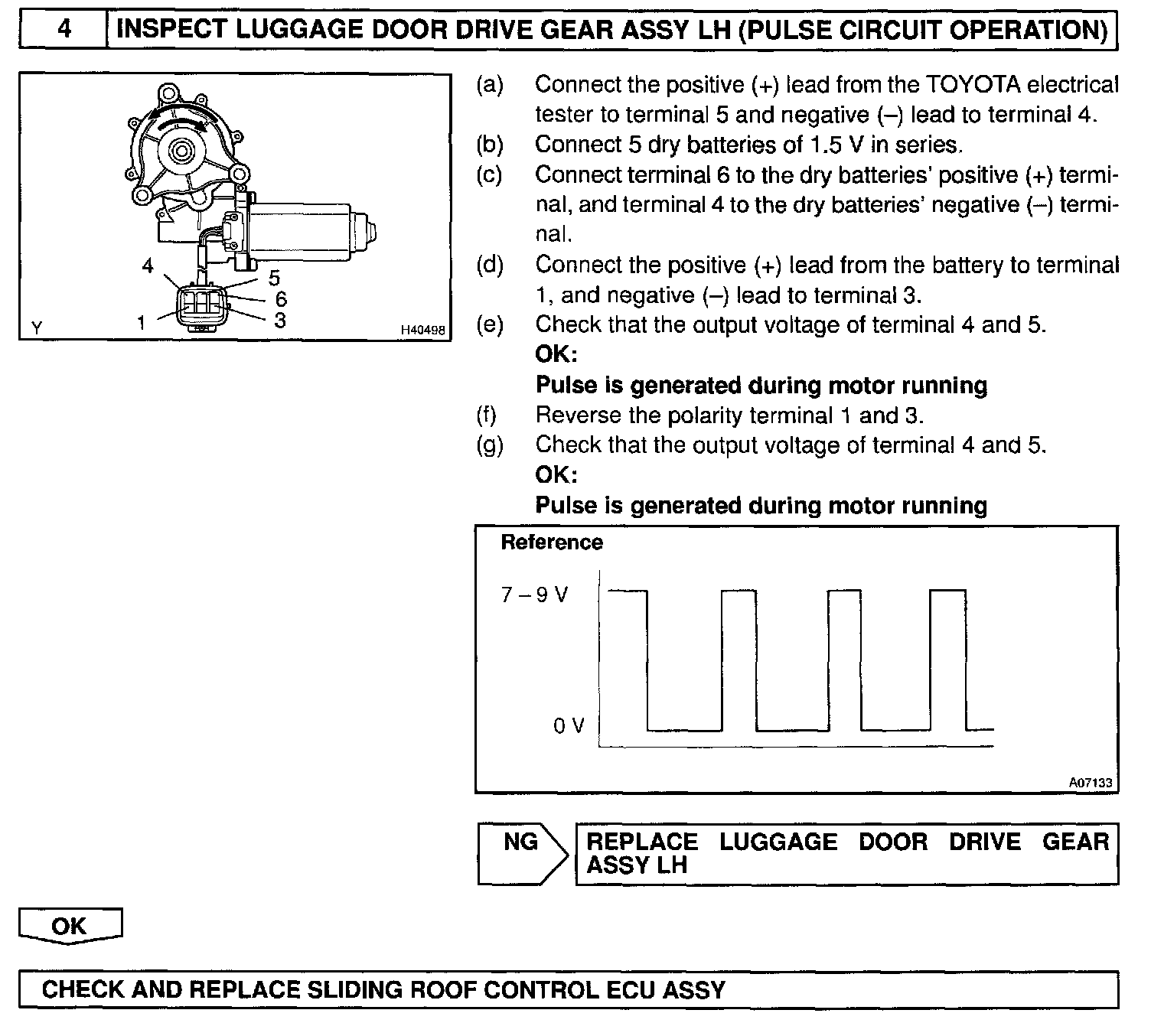

Step 4:

INSPECTION PROCEDURE
