B2541

DTC B2541 ABNORMAL LUGGAGE DOOR DRIVE MOTOR RH PULSE

CIRCUIT DESCRIPTION

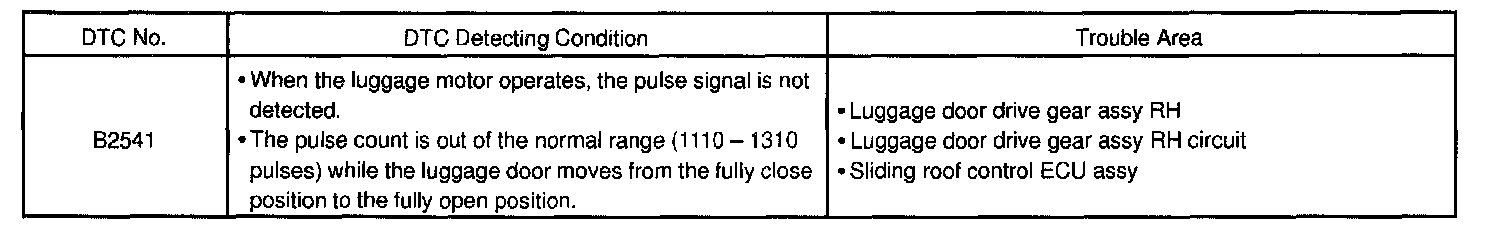

DTC Detecting Condition:

Pulse signal created by the rotation of the luggage door drive motor. Used to control the luggage door speed.

Wiring Diagram:

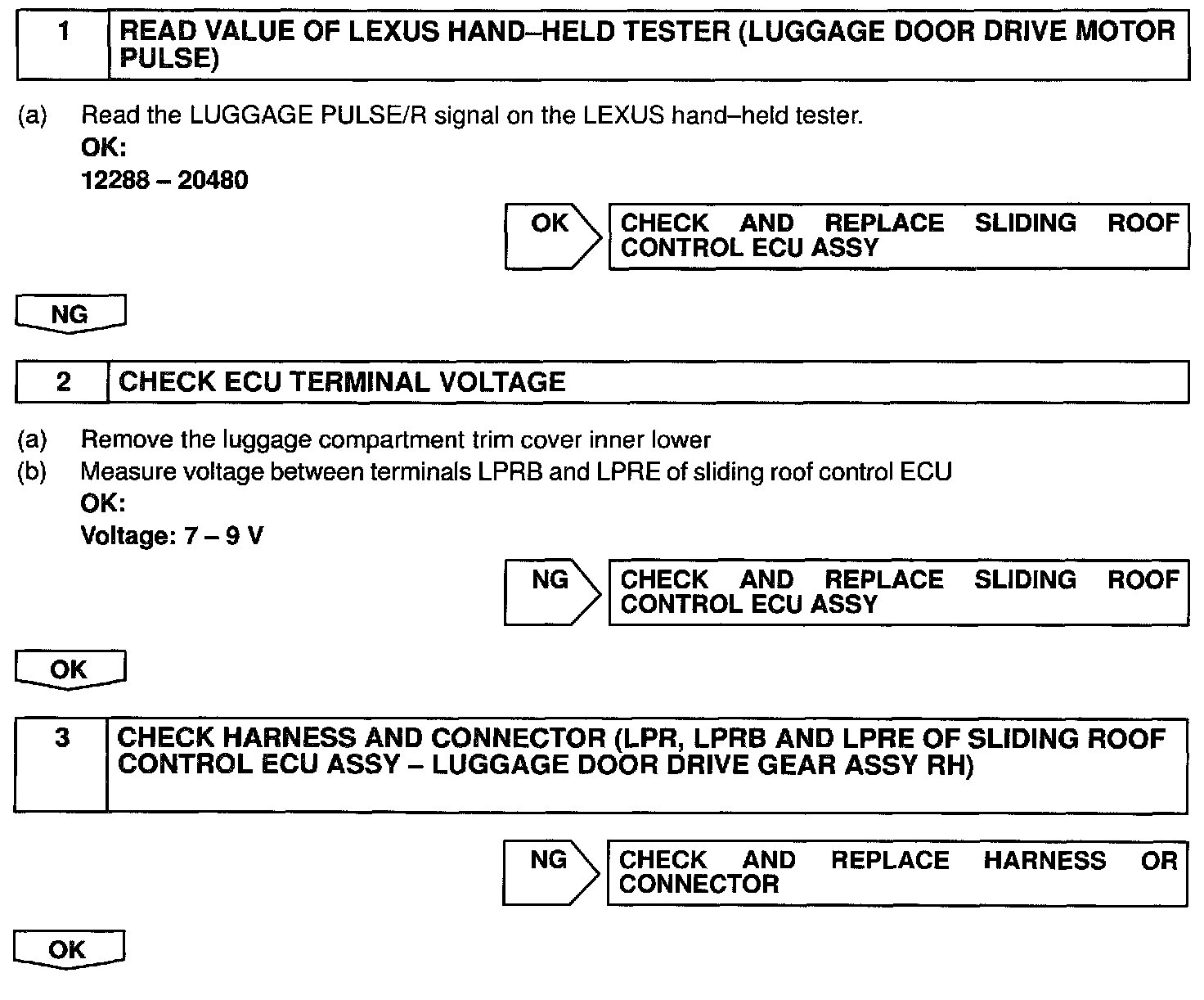

Step 1 - 3:

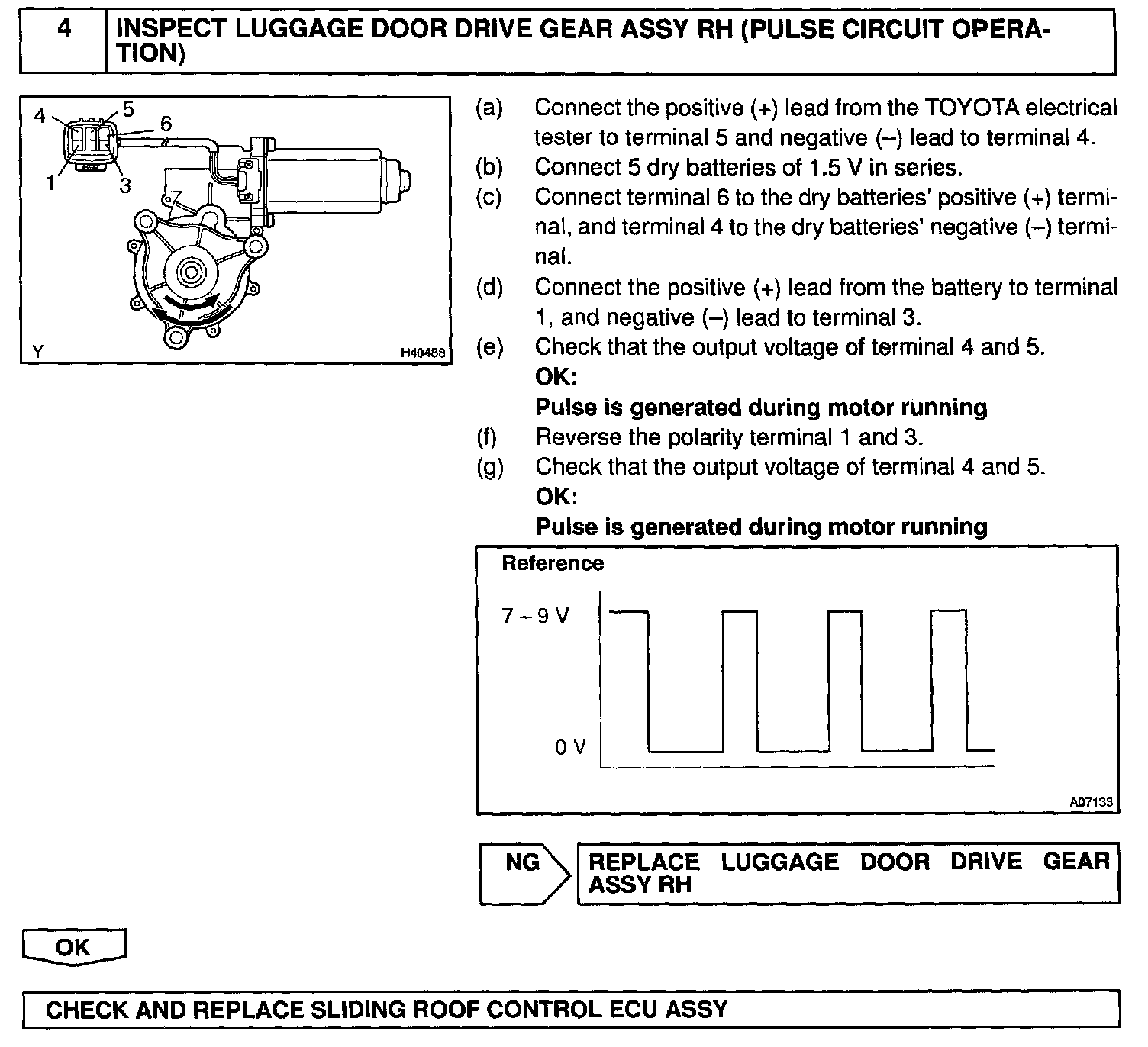

Step 4:

INSPECTION PROCEDURE
