B2539

DTC B2539 ABNORMAL ROOF DRIVE MOTOR PULSE

CIRCUIT DESCRIPTION

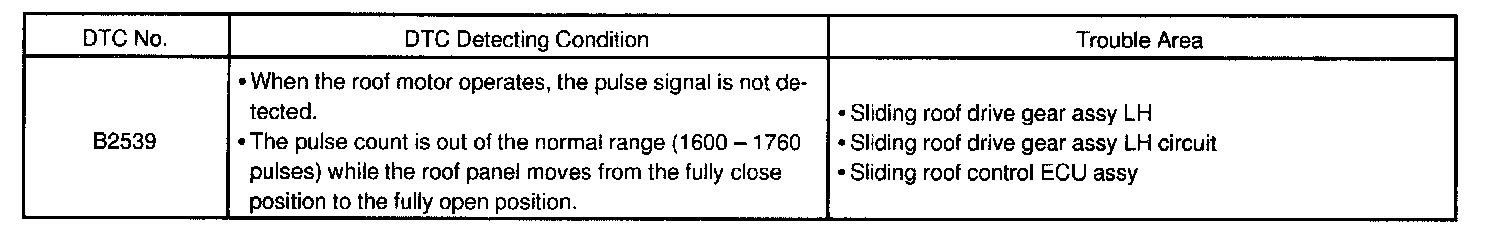

DTC Detecting Condition:

Pulse signal created by the rotation of the roof drive motor.

Used to control the roof panel speed.

Wiring Diagram:

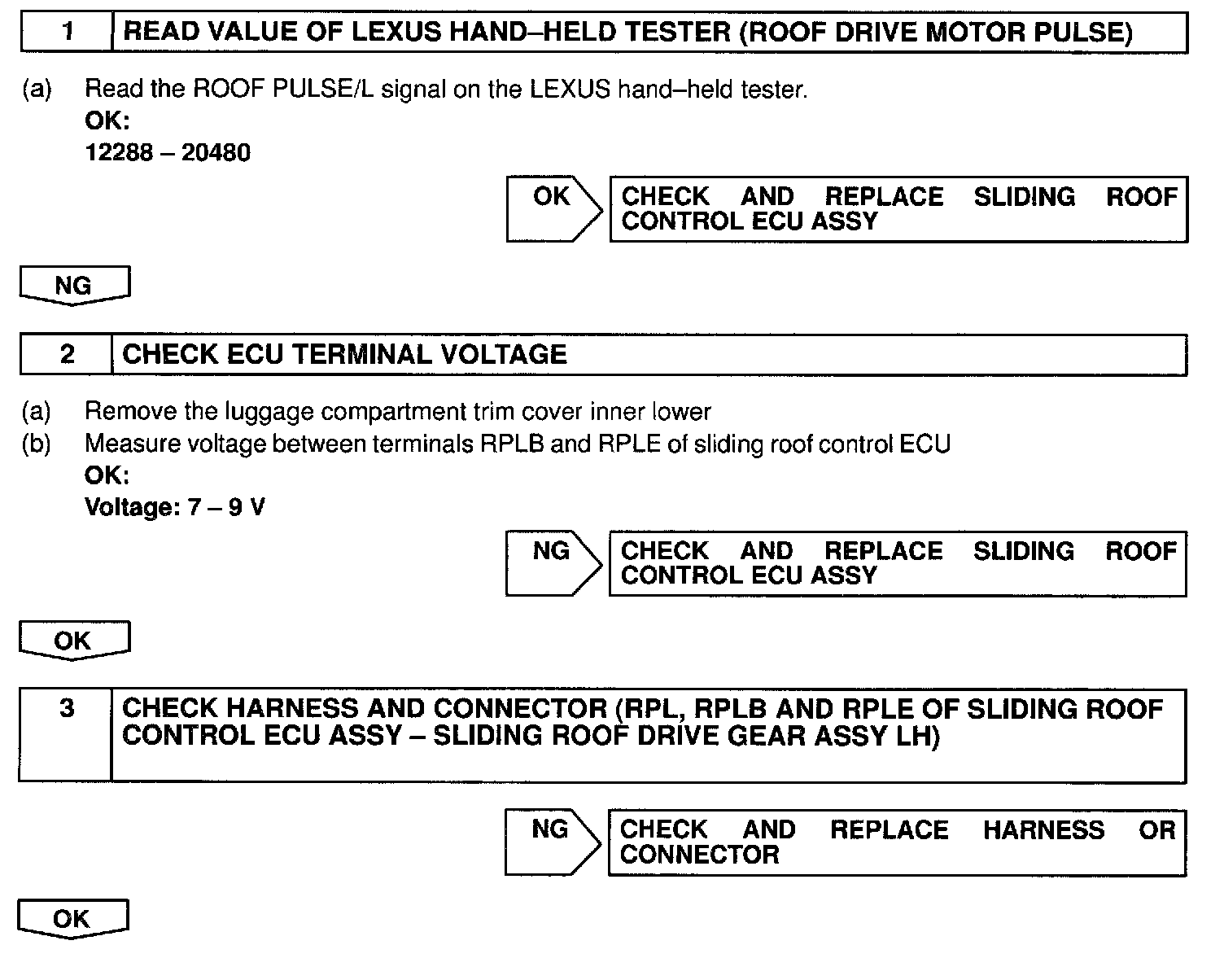

Step 1 - 2:

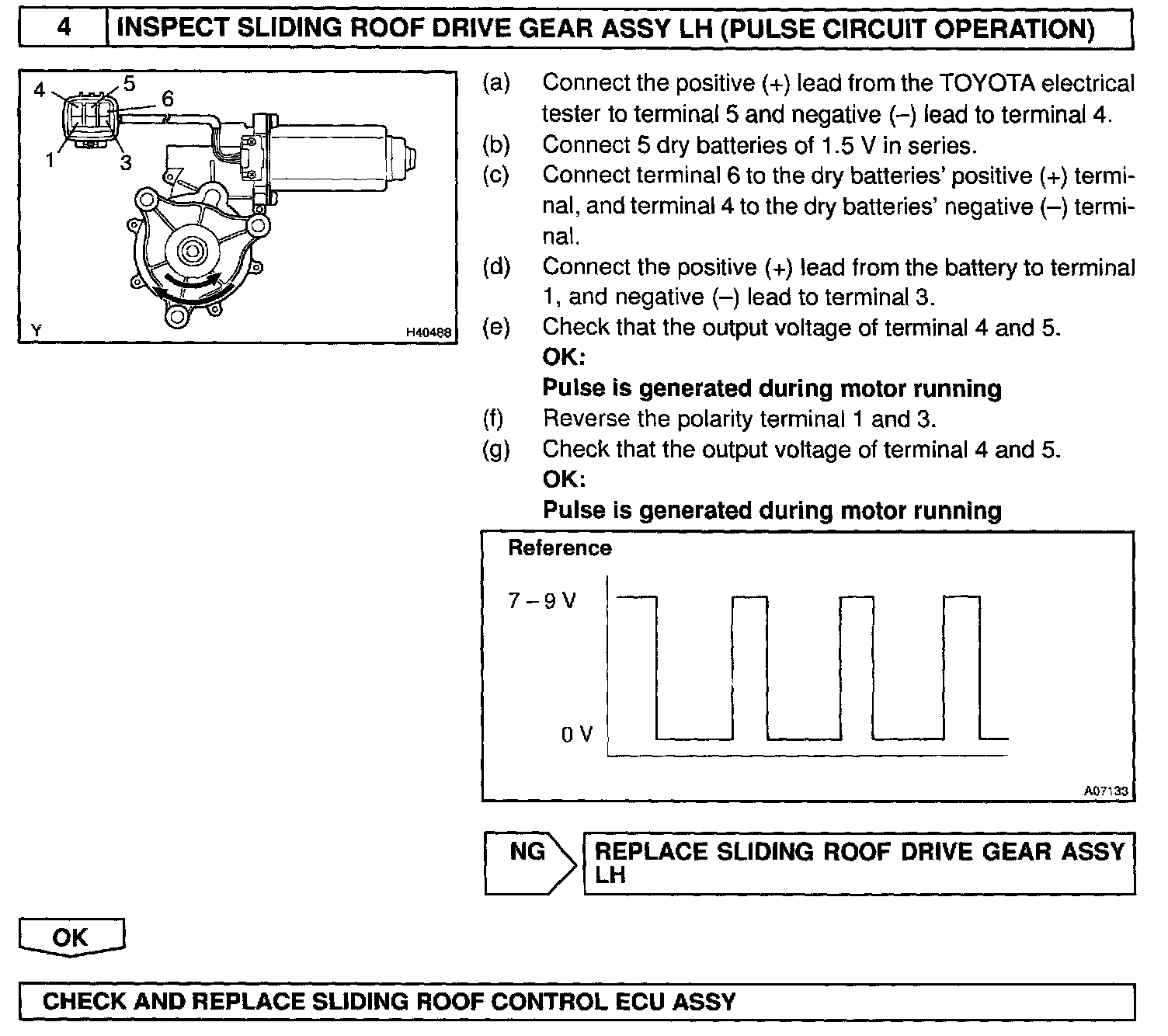

Step 4:

INSPECTION PROCEDURE
