B2537

DTC B2537 ROOF CONTROL SWITCH MALFUNCTION

CIRCUIT DESCRIPTION

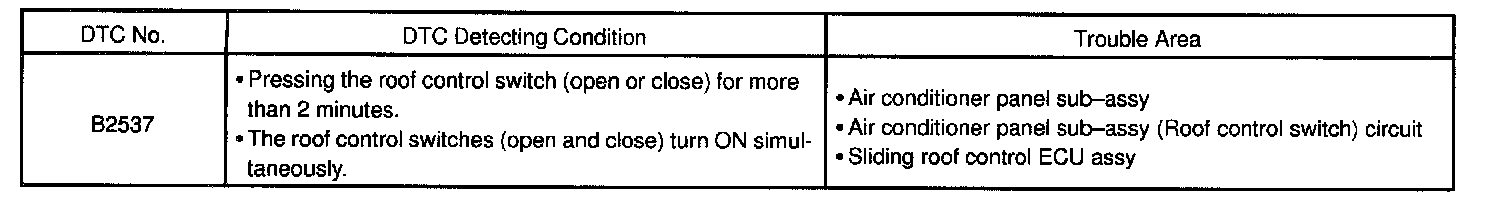

DTC Detecting Condition:

Located on the air conditioner panel sub-assembly.

General term to indicate the switches for open and close operation.

The open switch allows the sliding roof to open and the close switch allows it to close.

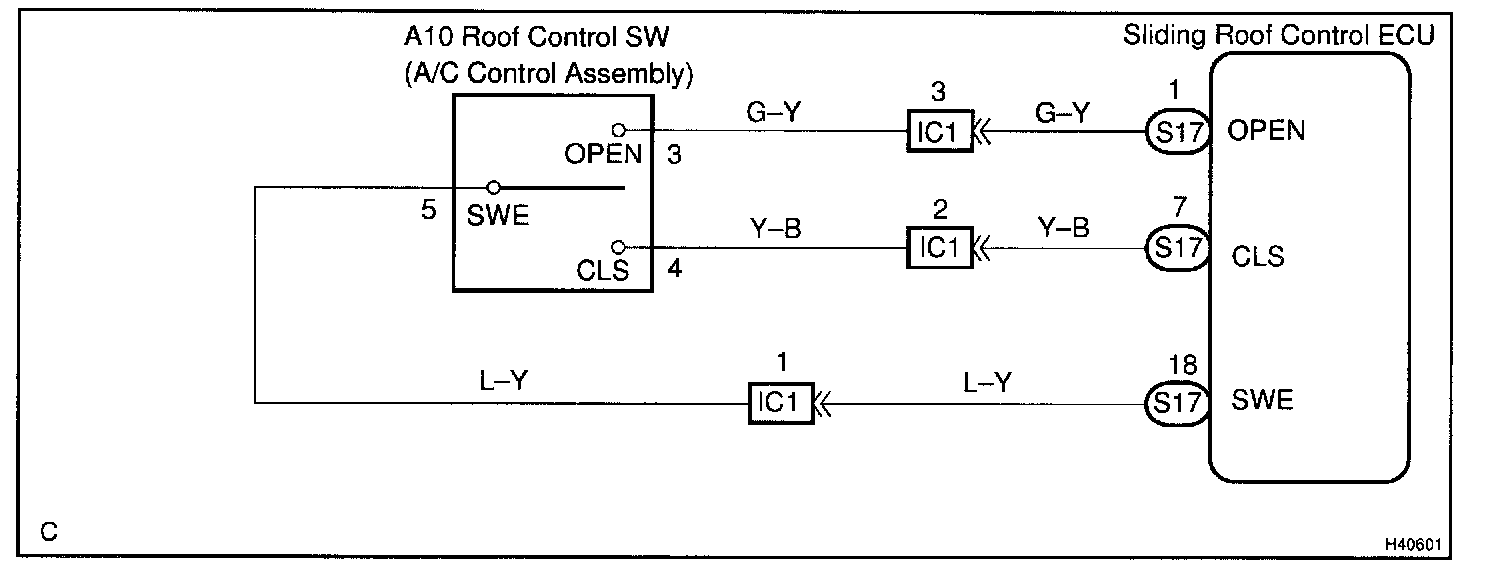

Wiring Diagram:

Step 1:

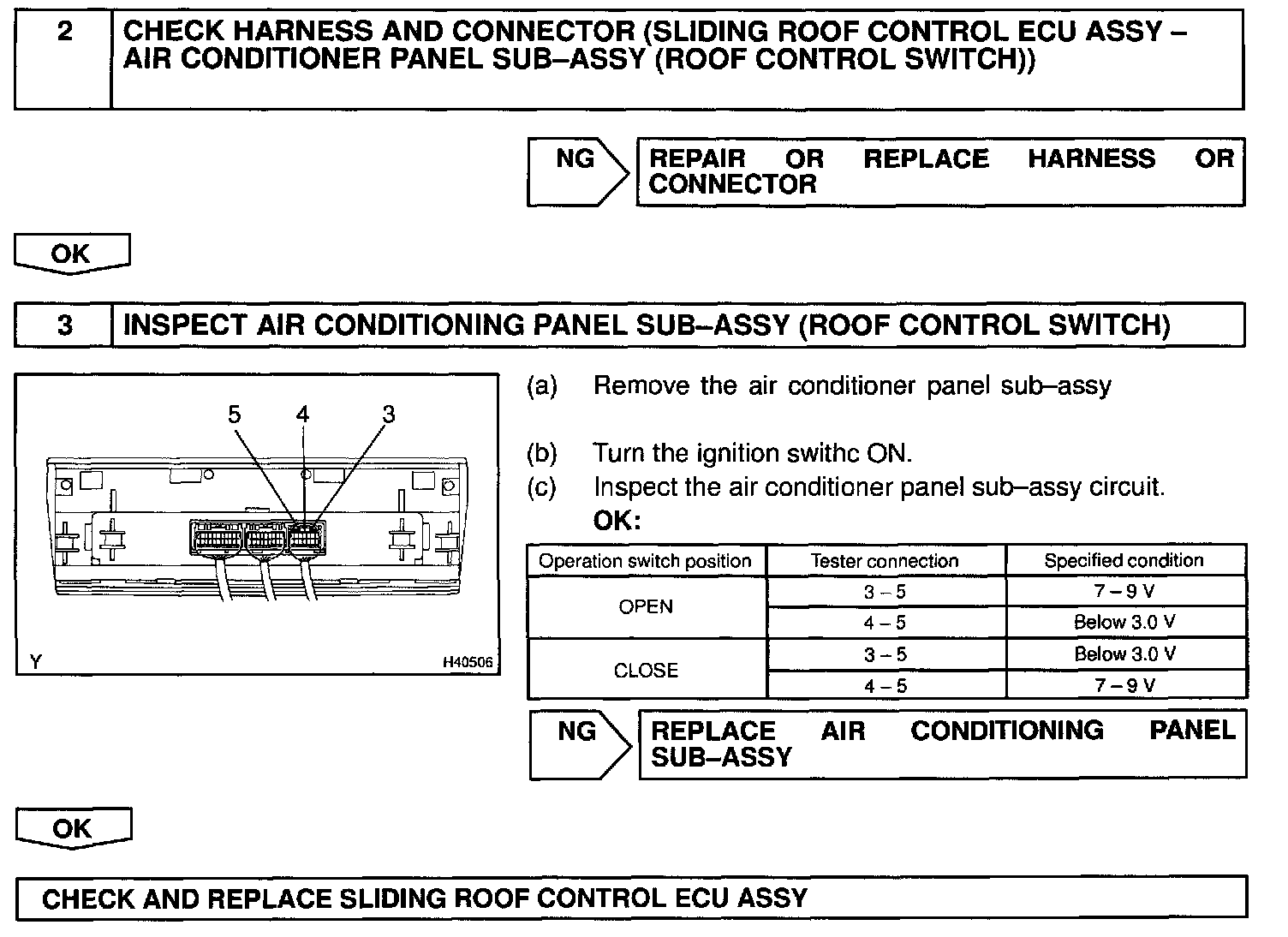

Step 2 - 3:

INSPECTION PROCEDURE
