B2534

DTC B2534 PACKAGE TRAY SWITCH NO.1 OR NO.2 MALFUNCTION

CIRCUIT DESCRIPTION

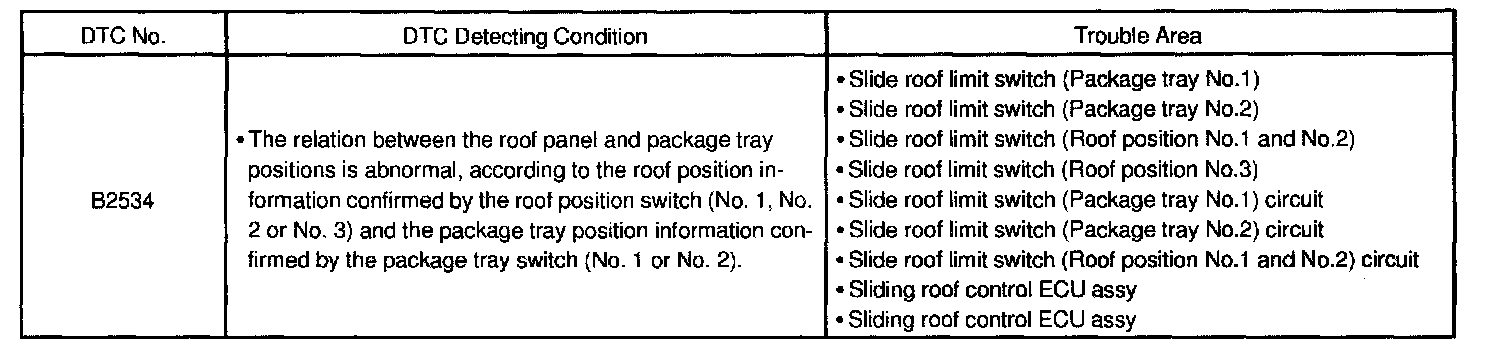

DTC Detecting Condition:

General term to indicate either package tray switch No.1 or No.2.

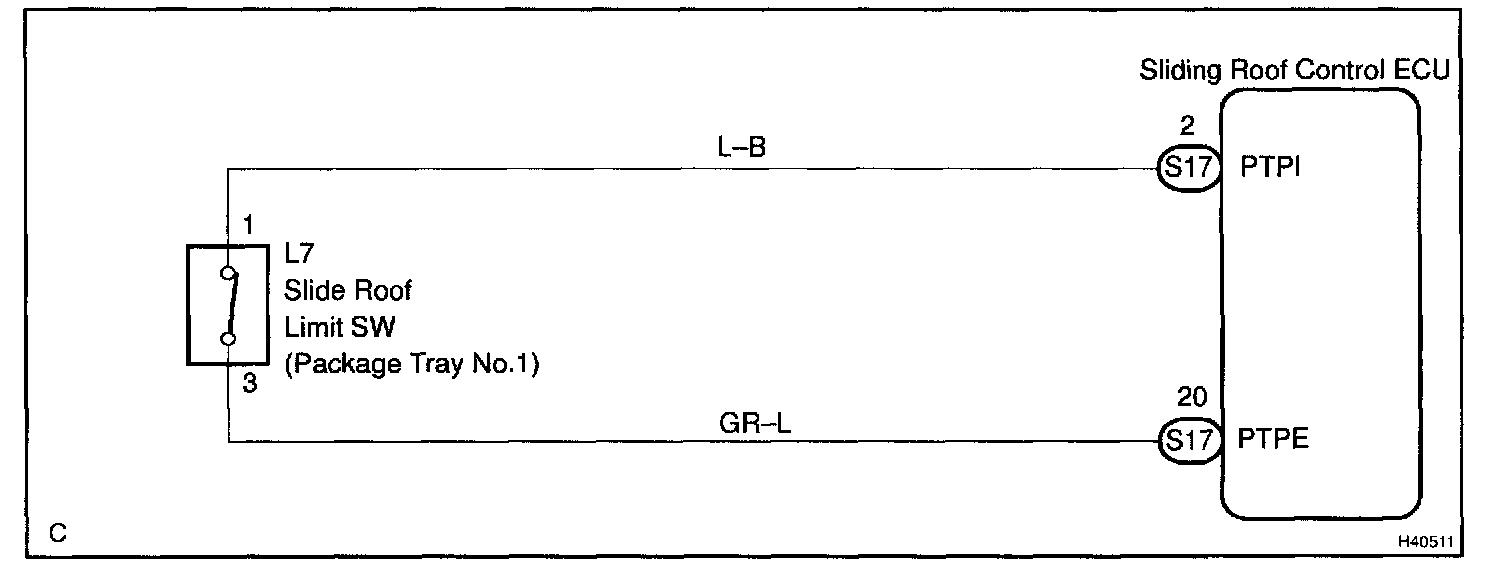

Wiring Diagram:

Wiring Diagram:

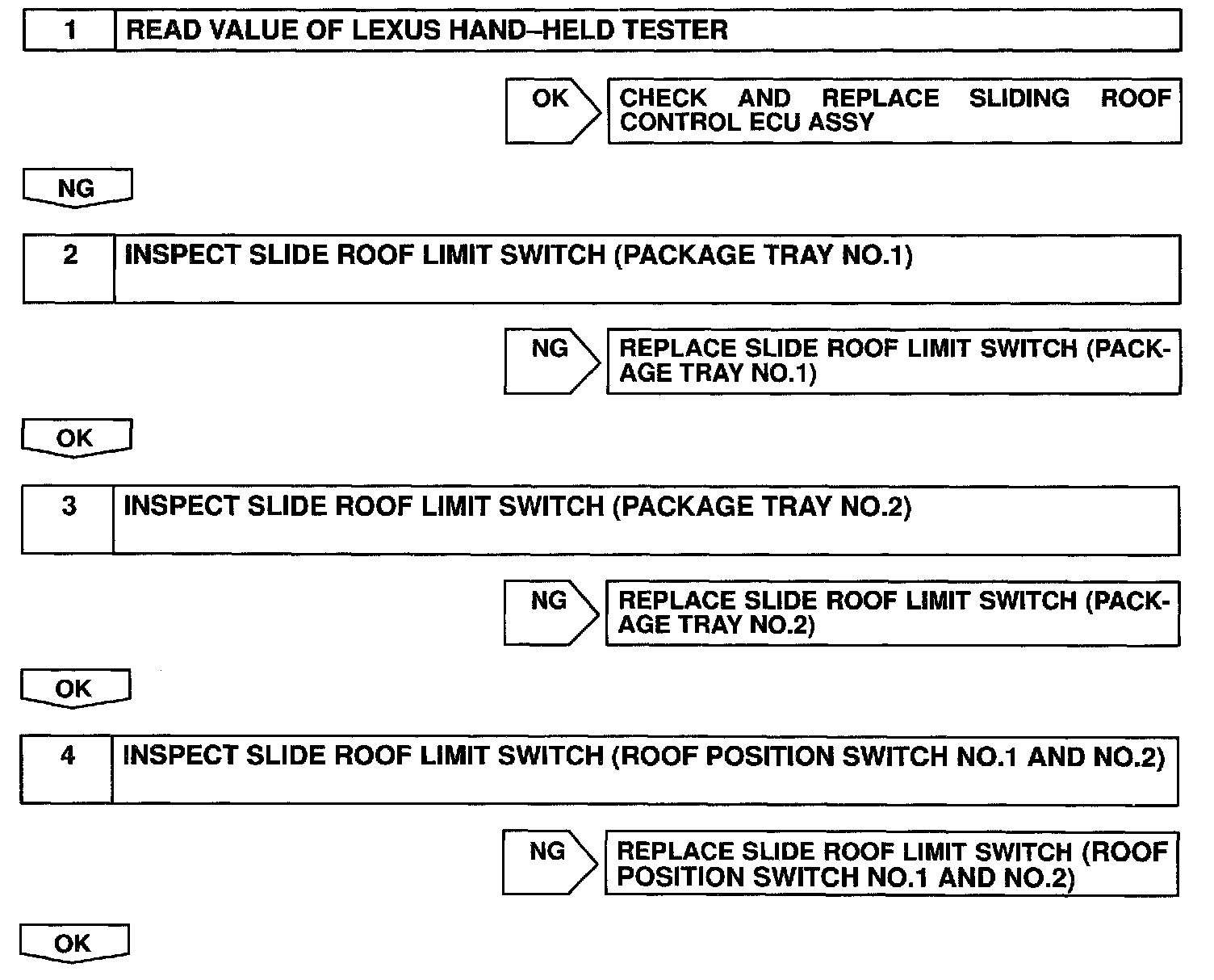

Step 1 - 4:

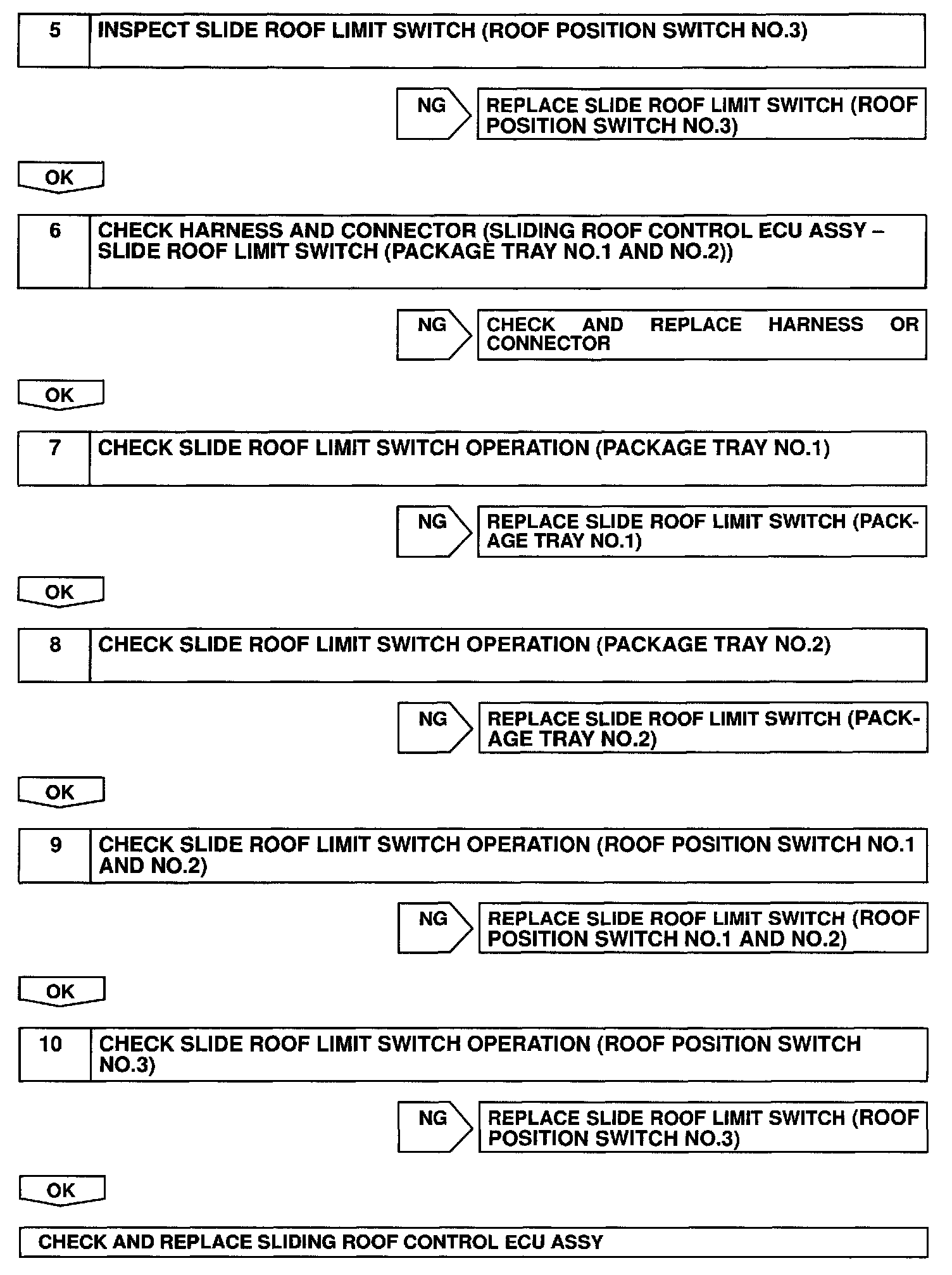

Step 5 - 10:

INSPECTION PROCEDURE
