B2533

DTC B2533 PACKAGE TRAY SWITCH NO.2 MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

Located at the bottom of the package tray link.

Detecting the package tray opening opening position (Close 1, close2 and open position).

Turned ON when the sliding roof is fully closed and turned OFF when it is fully open.

Wiring Diagram:

Step 1:

Step 2 - 5:

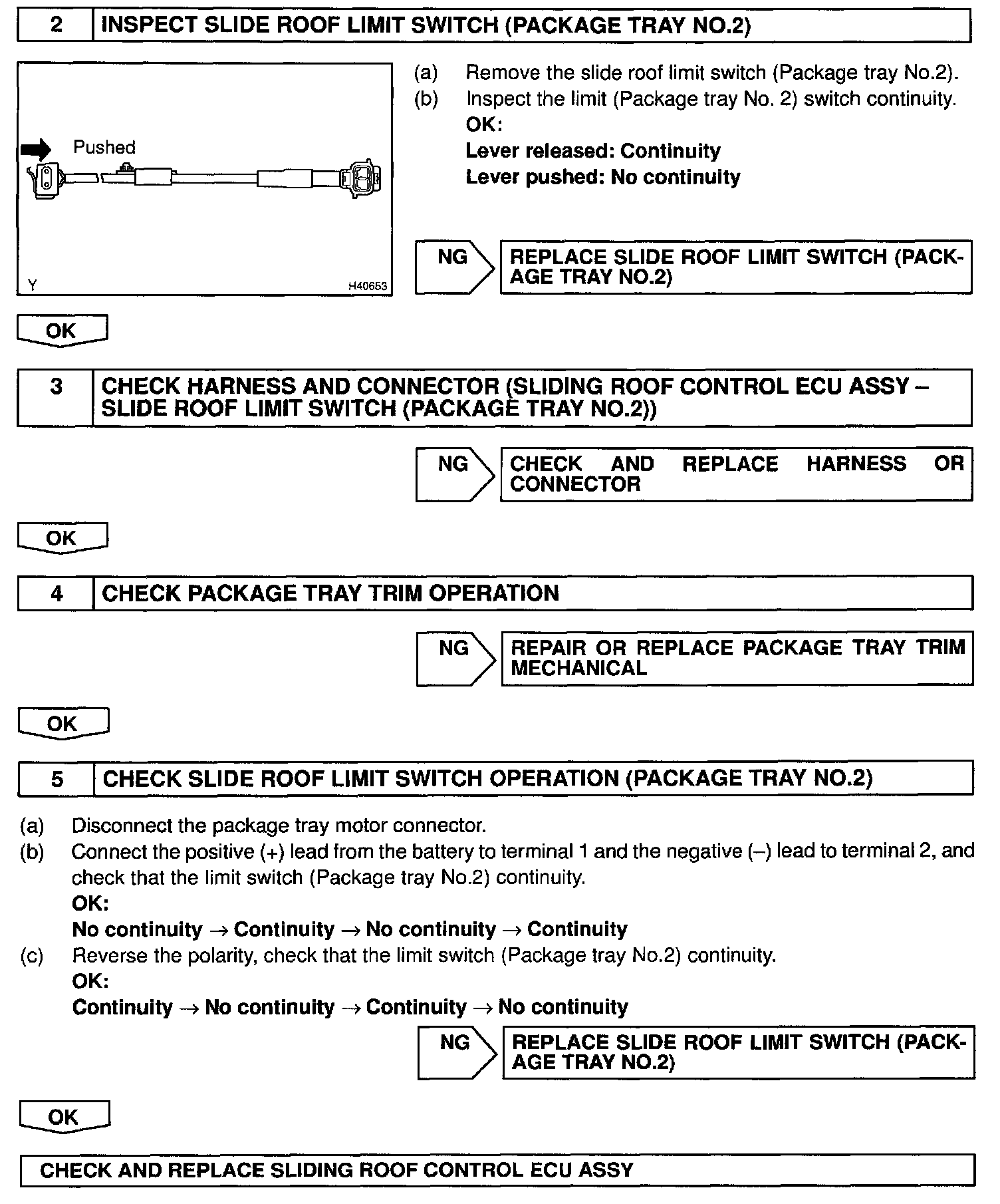

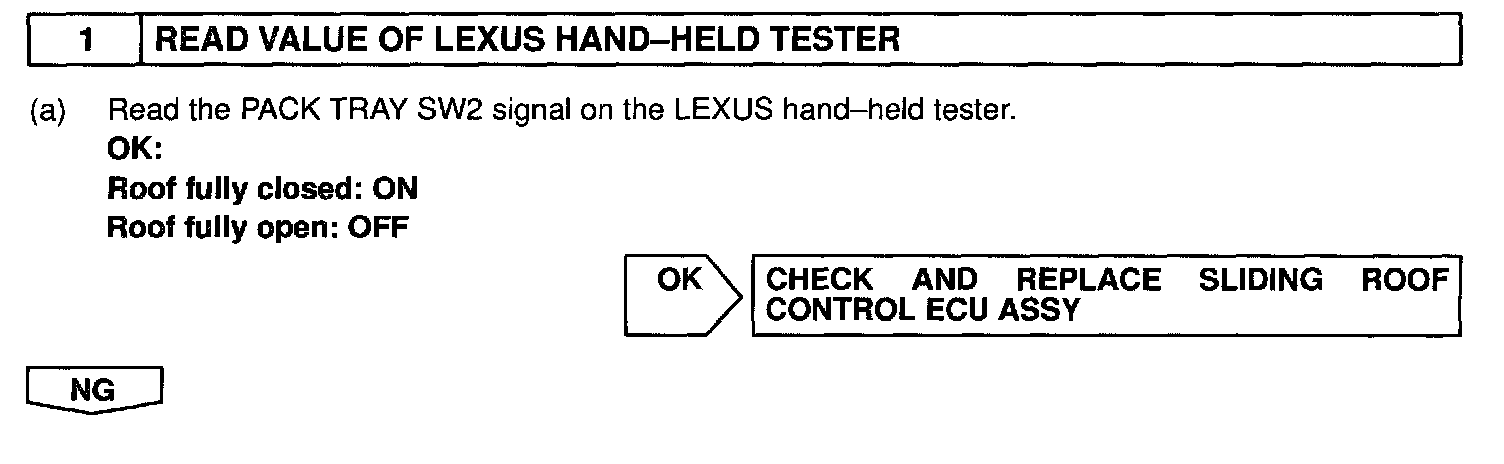

INSPECTION PROCEDURE
