B2531

DTC B2531 LUGGAGE DOOR OPEN SWITCH MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

Located at the bottom of the luggage link.

Detecting if the luggage door is fully open.

Turned ON when the luggage door is fully closed and turned OFF when it is fully open.

Wiring Diagram:

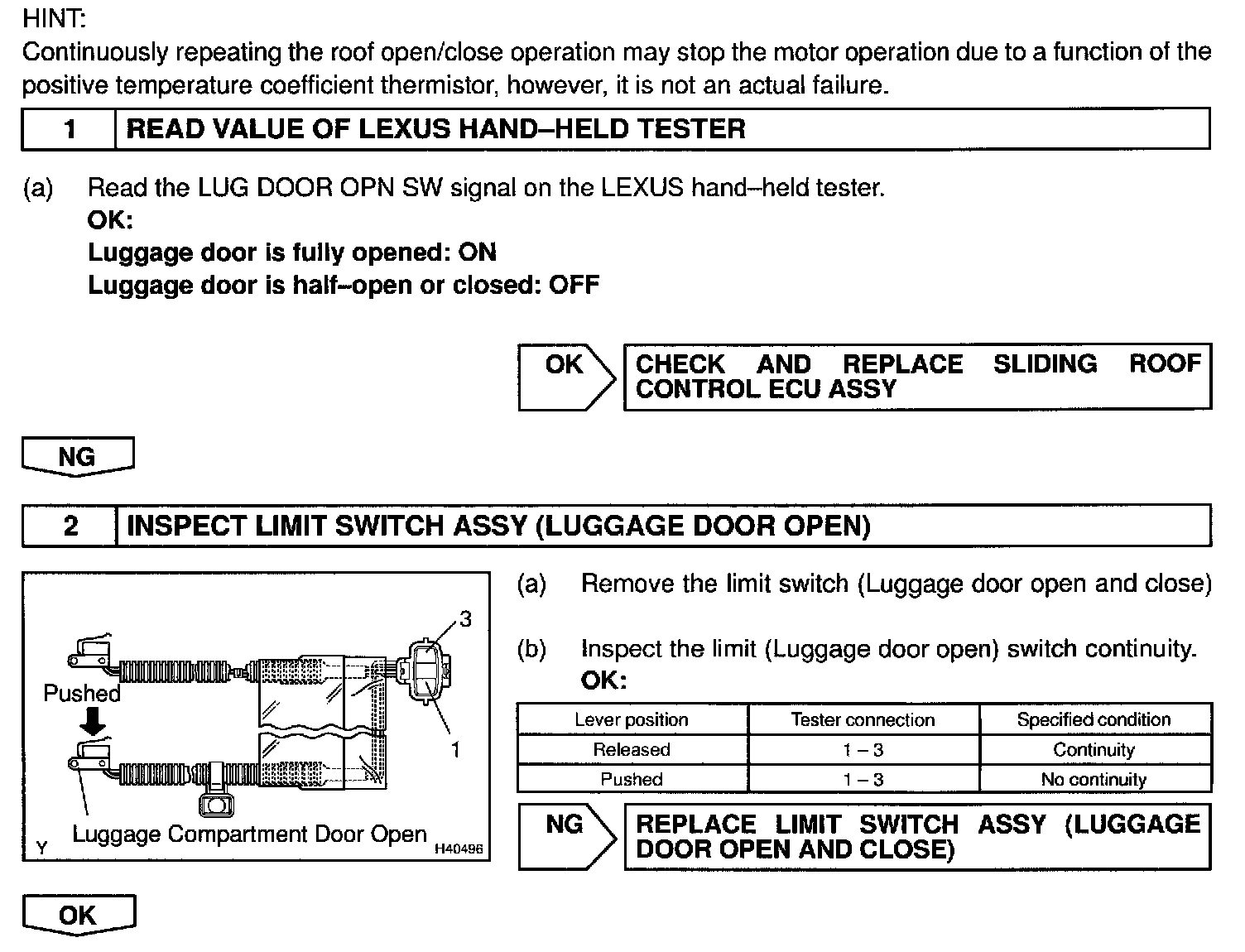

Step 1 - 2:

Step 3 - 4:

INSPECTION PROCEDURE
