B2525

DTC B2525 ROOF POSITION SWITCH NO.3 MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

Located at the bottom of the roof link

Detecting the roof panel position (Position 1 and 2).

Turned ON when the roof is fully closed or fully open.

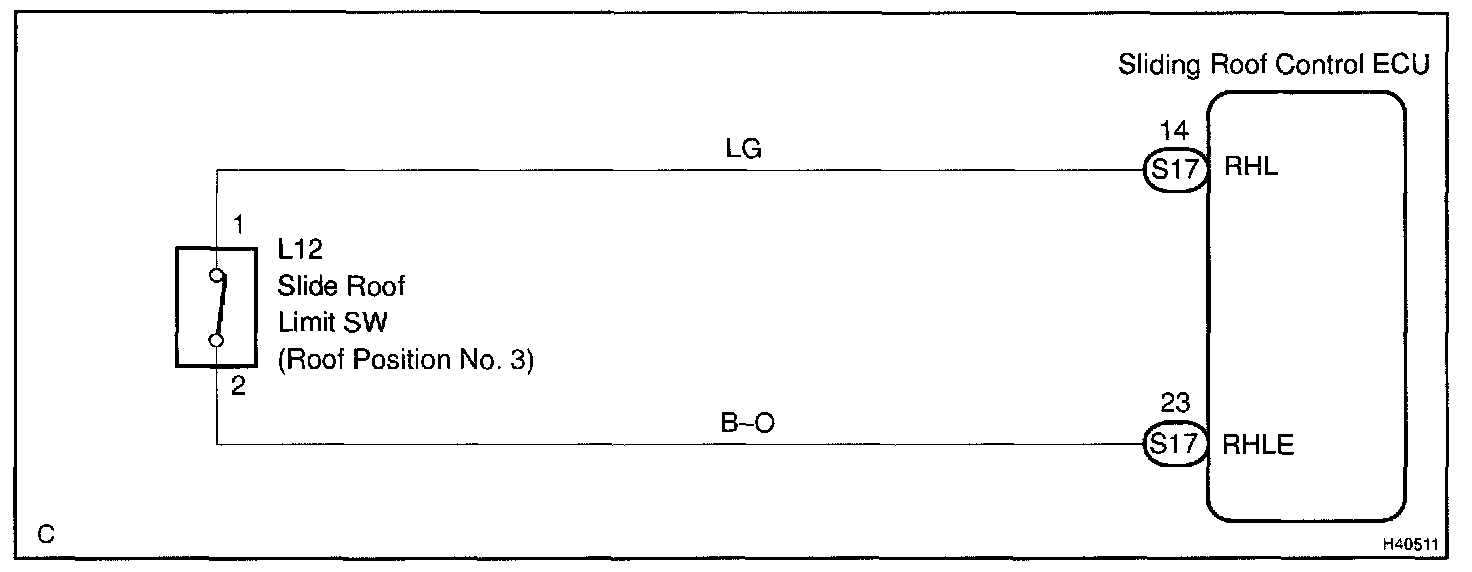

Wiring Diagram:

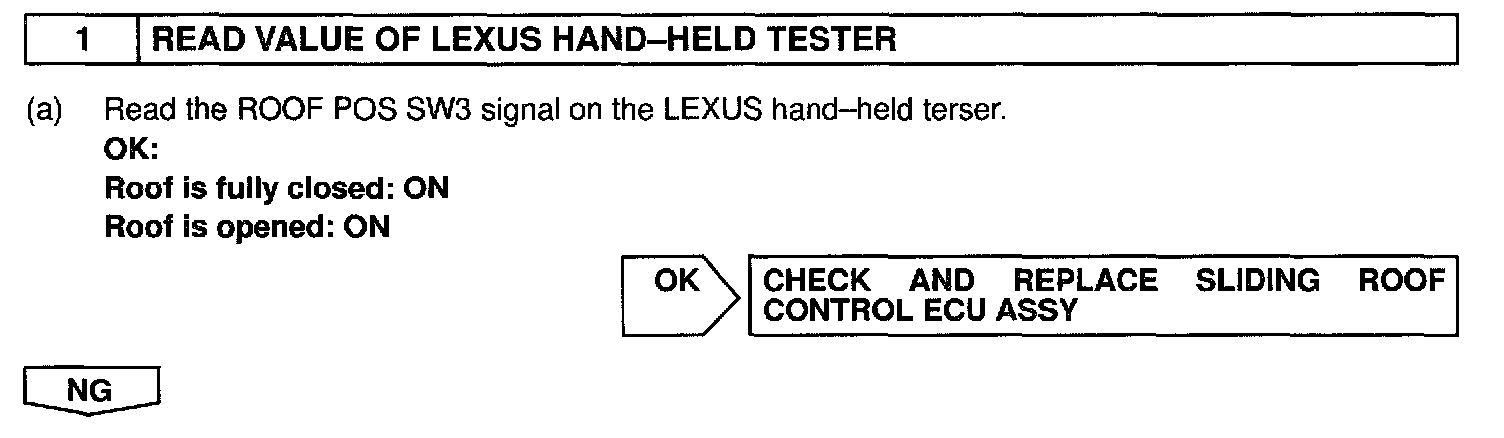

Step 1 - 2:

Step 2 - 4:

INSPECTION PROCEDURE
