B2520

DTC B2520 ROOF LOCK SWITCH MALFUNCTION

CIRCUIT DESCRIPTION

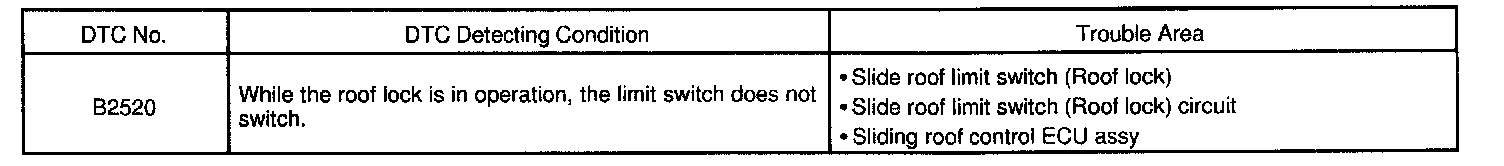

DTC Detecting Condition:

Located at the roof lock portion of the roof panel front edge.

Detecting the lock/unlock condition of the roof header lock assembly when the roof panel is fully closed and the lock/unlock condition of the roof holding assembly when the roof panel is fully open.

Turned ON when the roof lock is locked and turned OFF when it is unlocked.

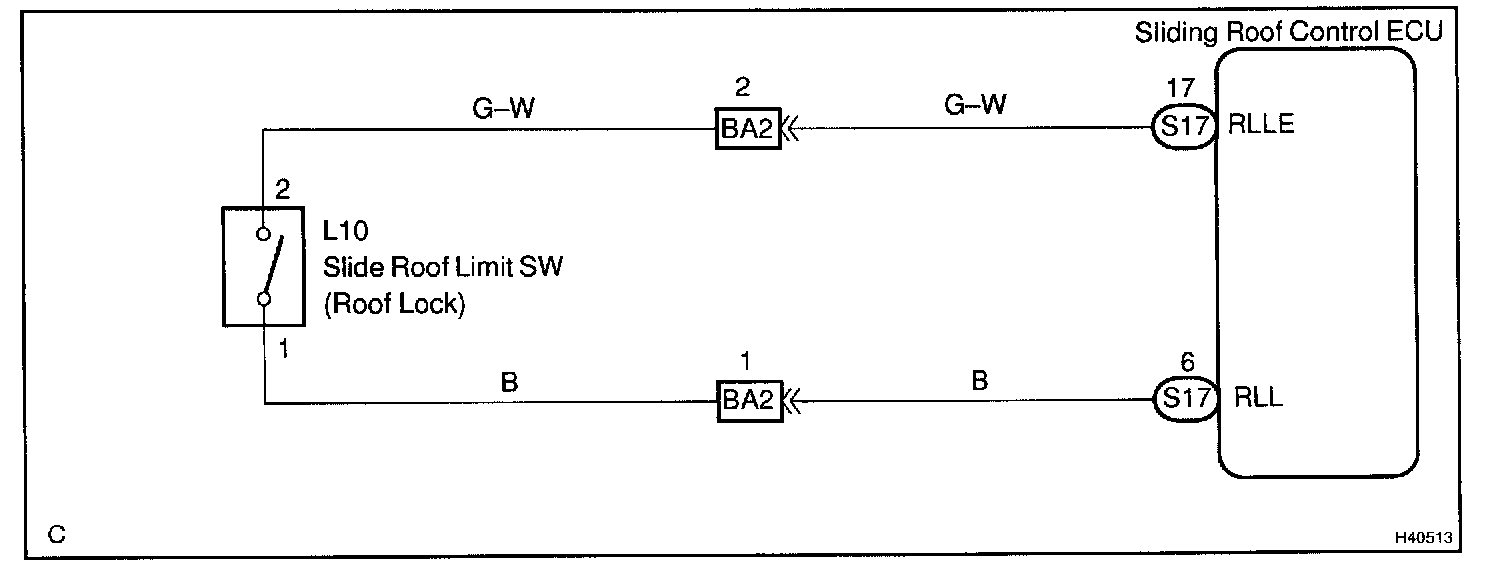

Wiring Diagram:

Step 1:

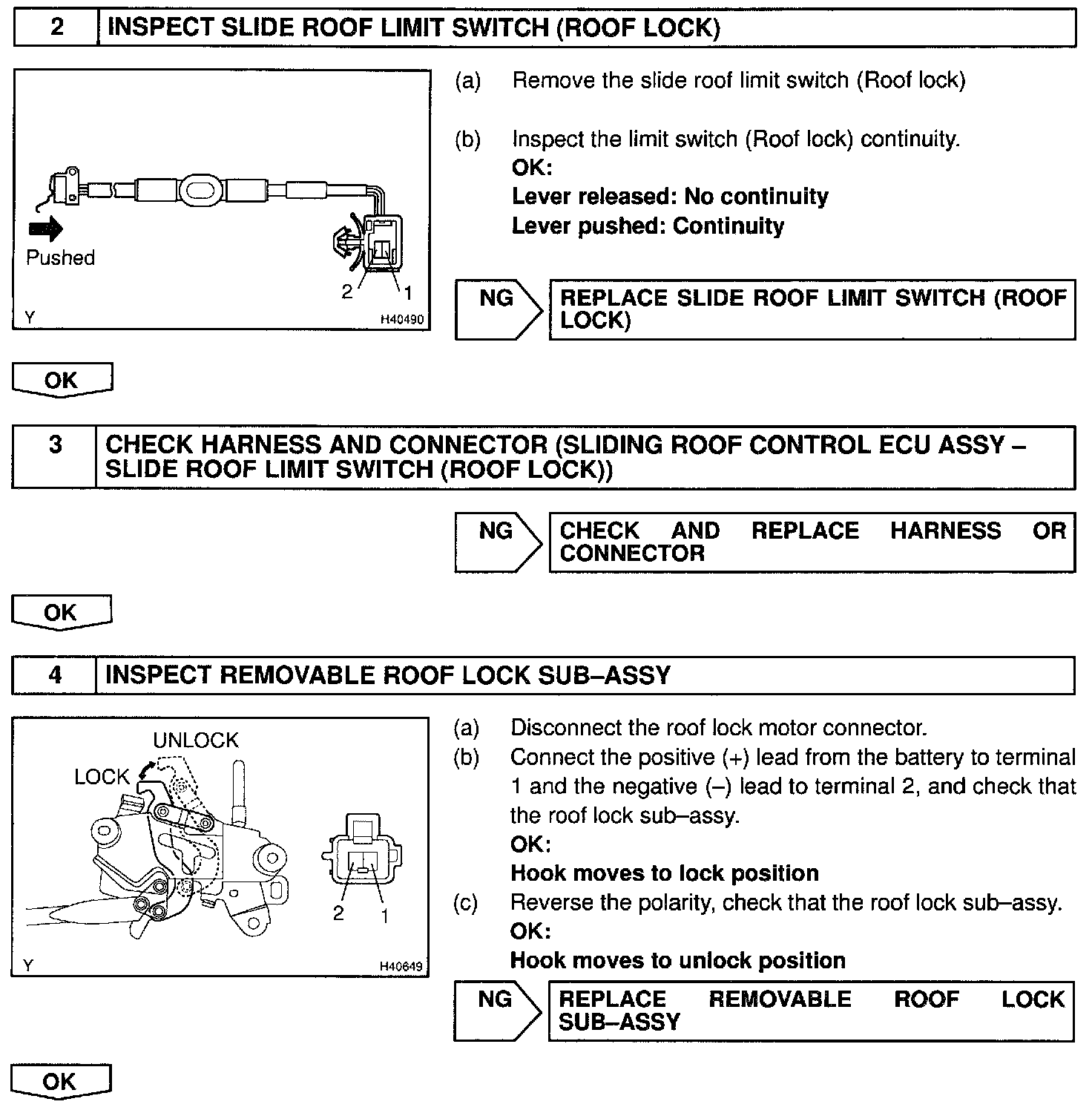

Step 2 - 4:

Step 5:

INSPECTION PROCEDURE
