B2518

DTC B2518 OPEN IN PACKAGE TRAY MOTOR CIRCUIT

CIRCUIT DESCRIPTION

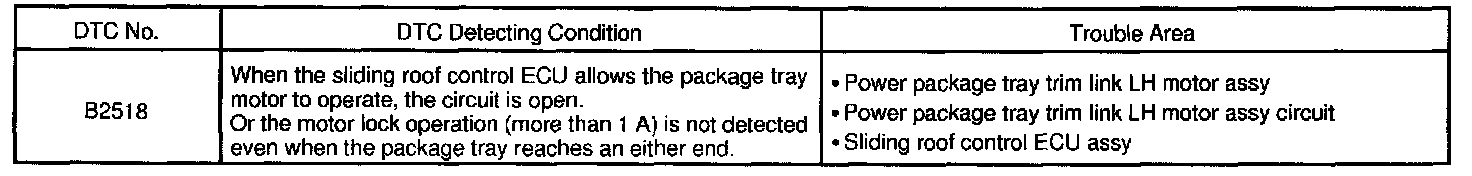

DTC Detecting Condition:

With the roof control switch being pressed, the sliding roof control ECU operates the roof panel, luggage door and package tray in the specified order.

By operating the package tray motor, the position of the package tray can be changed.

Wiring Diagram:

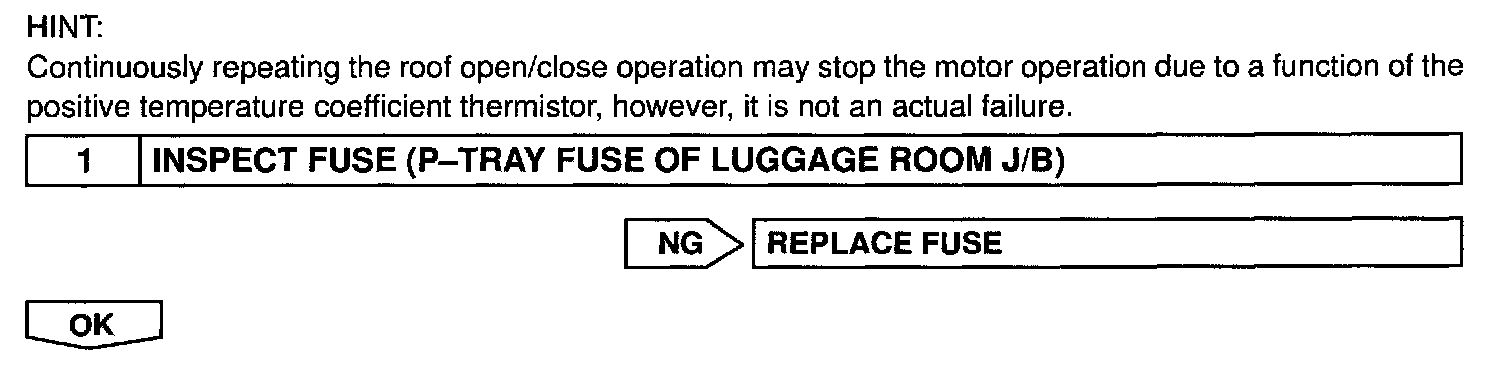

Step 1:

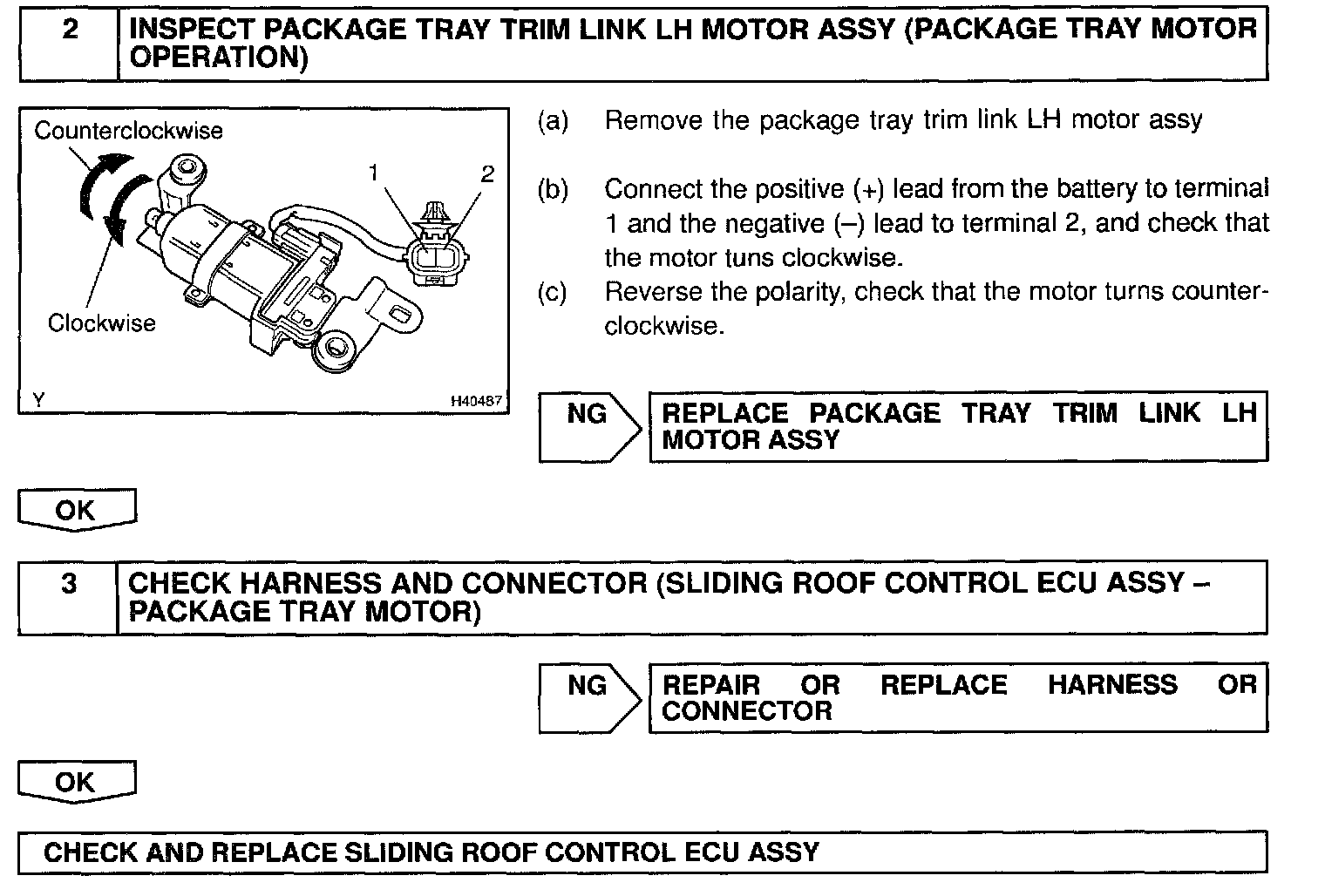

Step 2 - 3:

INSPECTION PROCEDURE
