B2517

DTC B2517 OPEN IN QUARTER WINDOW MOTOR LH CIRCUIT

CIRCUIT DESCRIPTION

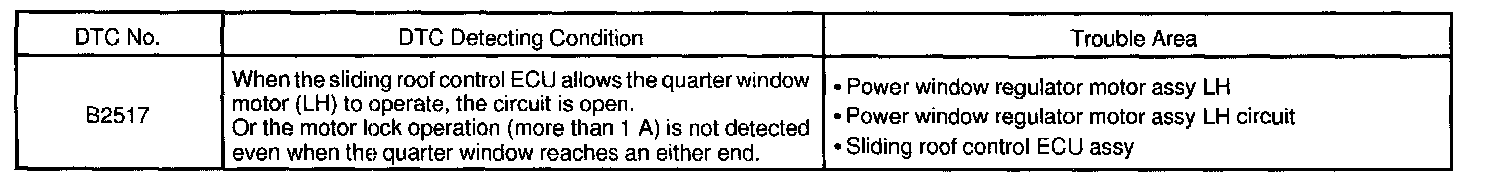

DTC Detecting Condition:

By operating the quarter window motor, the quarter window can be lowered or raised.

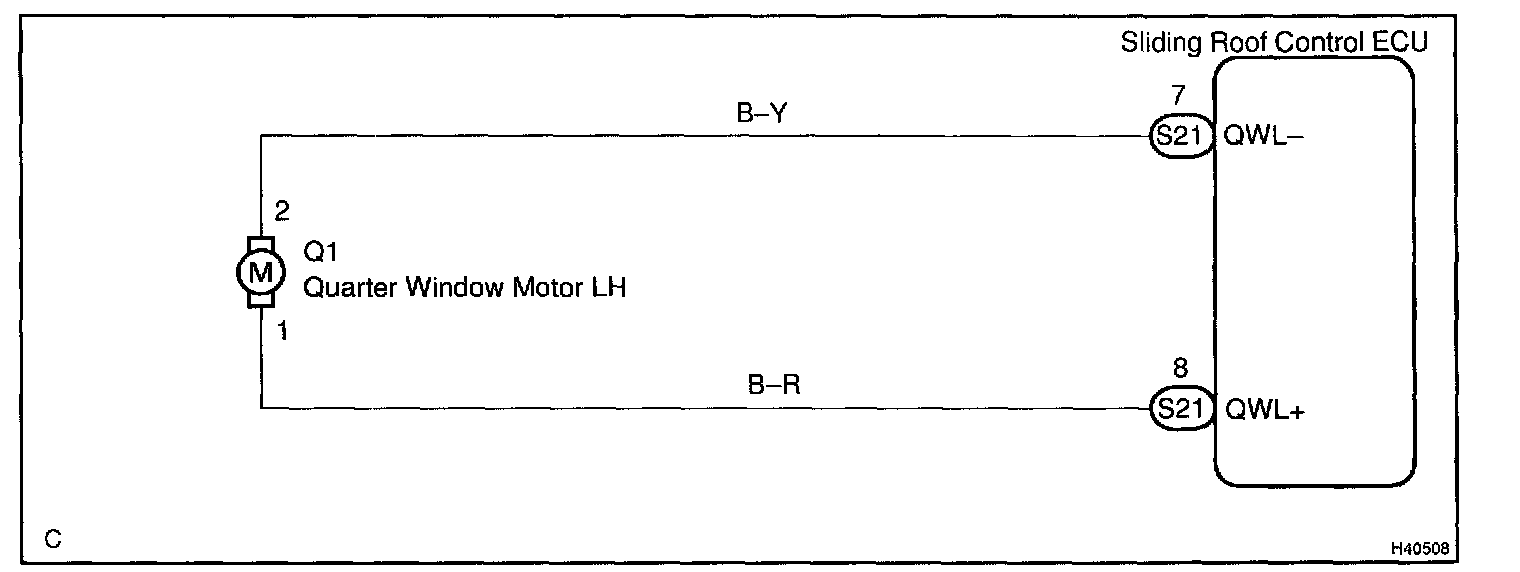

Wiring Diagram:

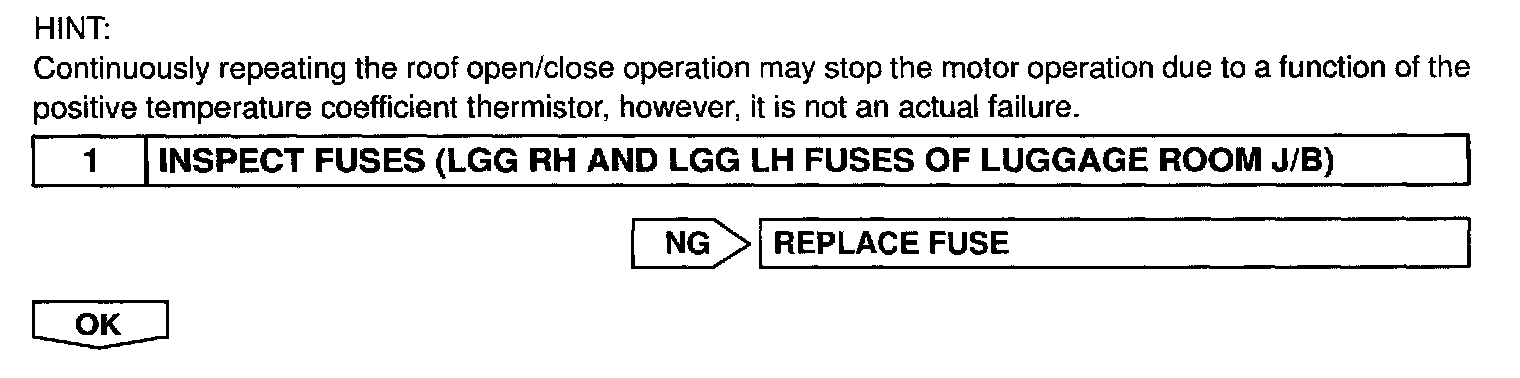

Step 1:

Step 2 - 3:

INSPECTION PROCEDURE
