B2515

DTC B2515 OPEN IN LUGGAGE CLOSER MOTOR LH CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

By operating the luggage closer motor, the luggage lock function can be unlocked, and also the preparatory operation (neutral operation) is performed for locking the luggage door.

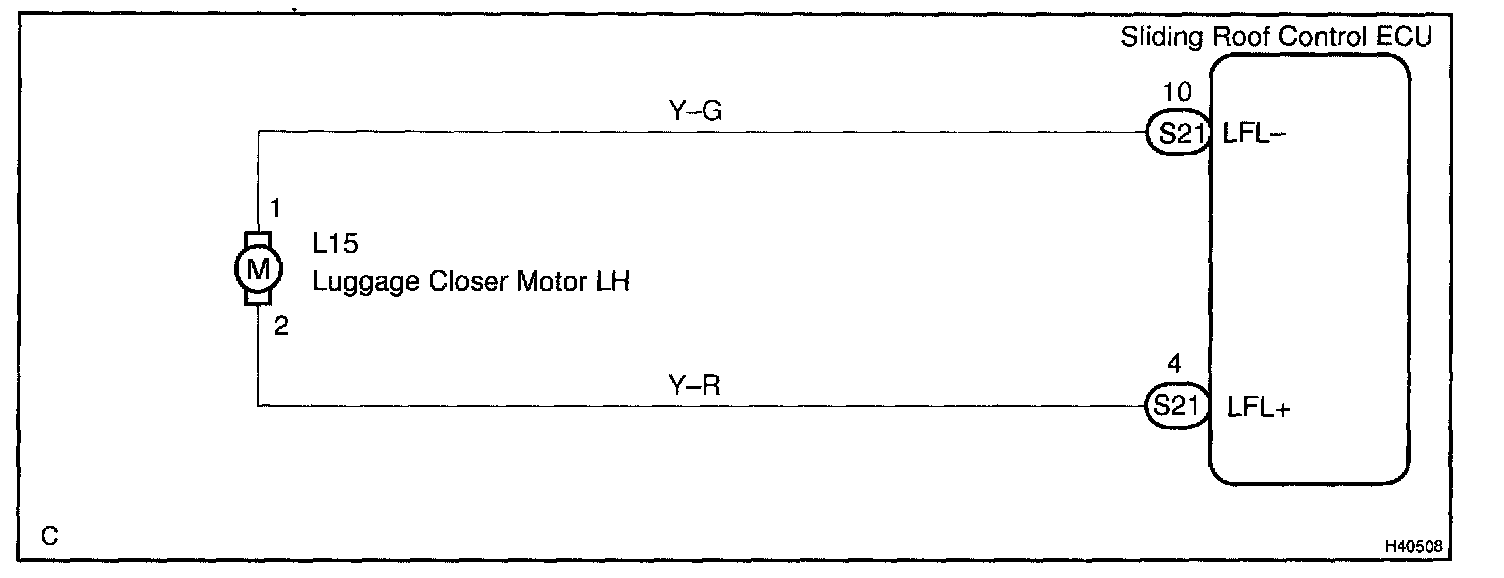

Wiring Diagram:

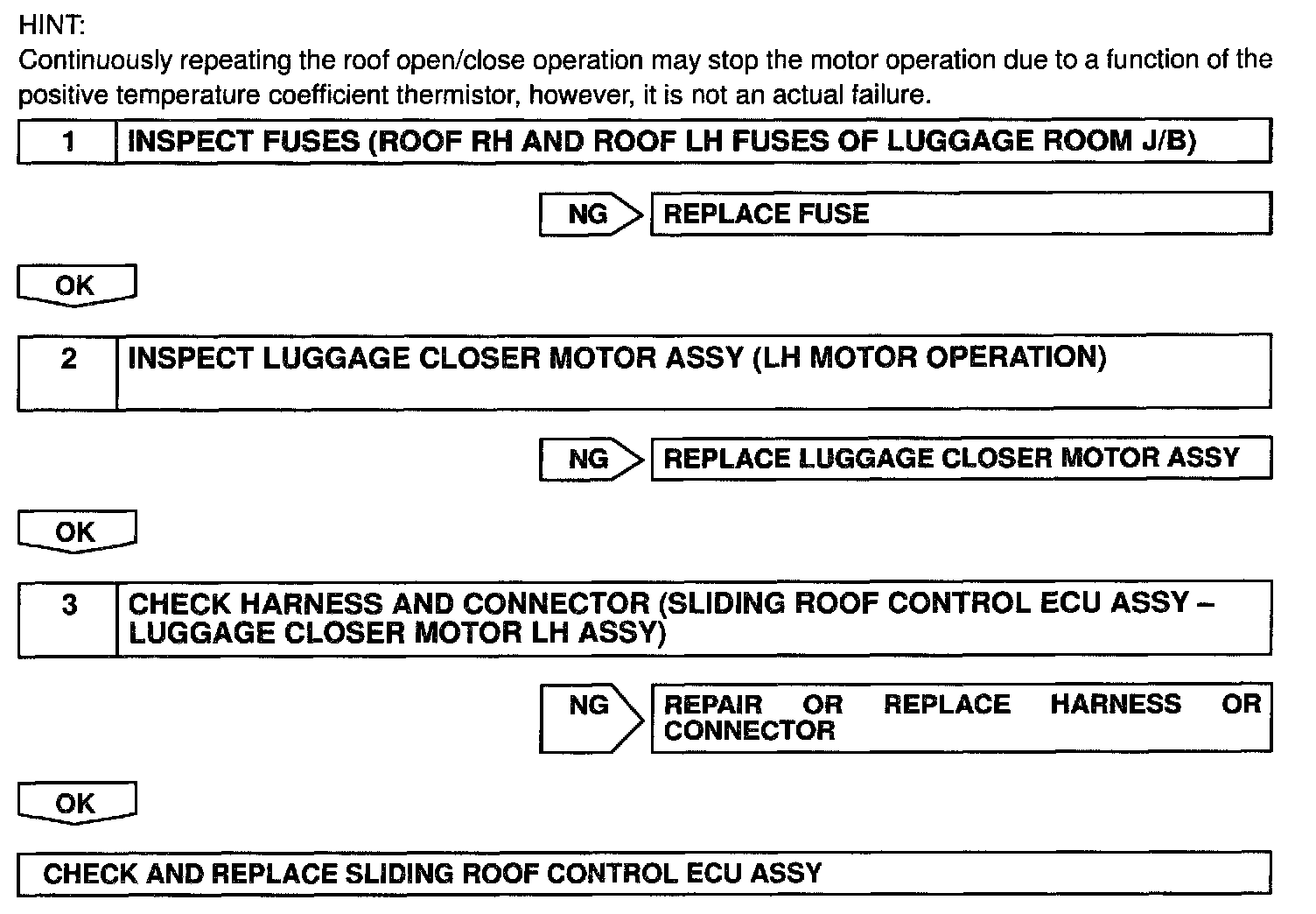

Step 1 - 3:

INSPECTION PROCEDURE
