B2511

DTC B2511 OPEN IN ROOF LOCK MOTOR CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

By operating the roof lock motor the header lock function can be locked or unlocked when the roof panel is fully closed and also the roof retaining function can be locked or unlocked when the roof panel is fully opened.

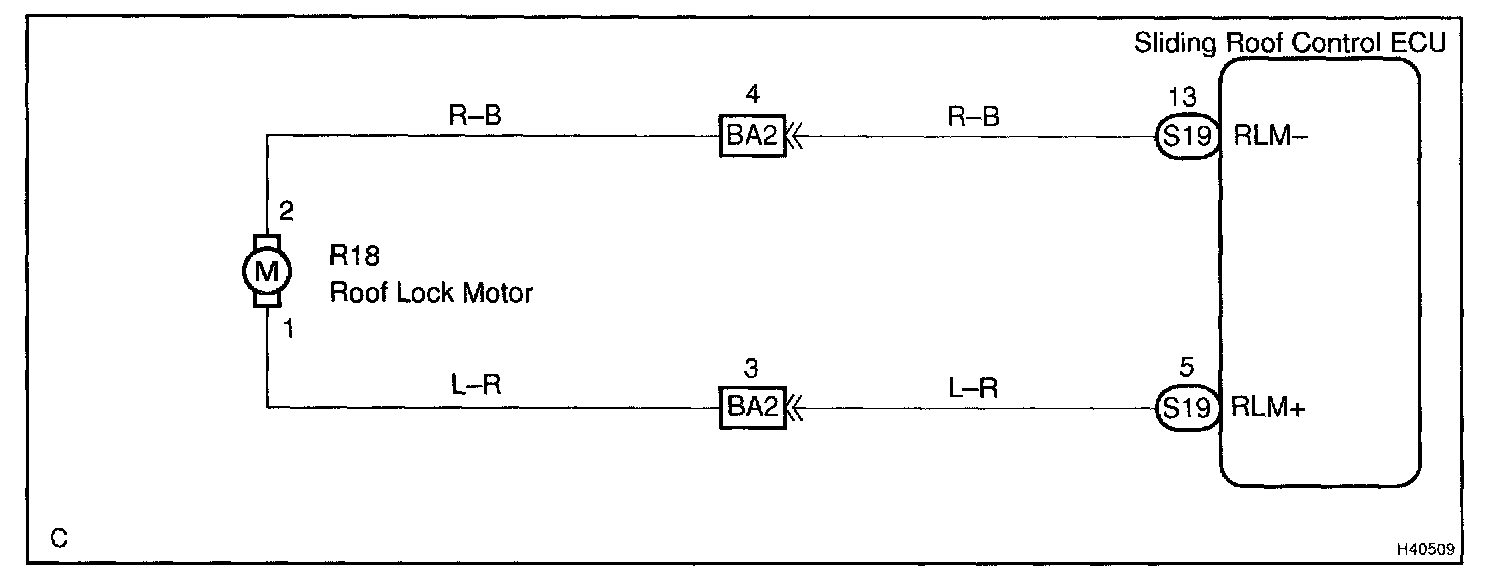

Wiring Diagram:

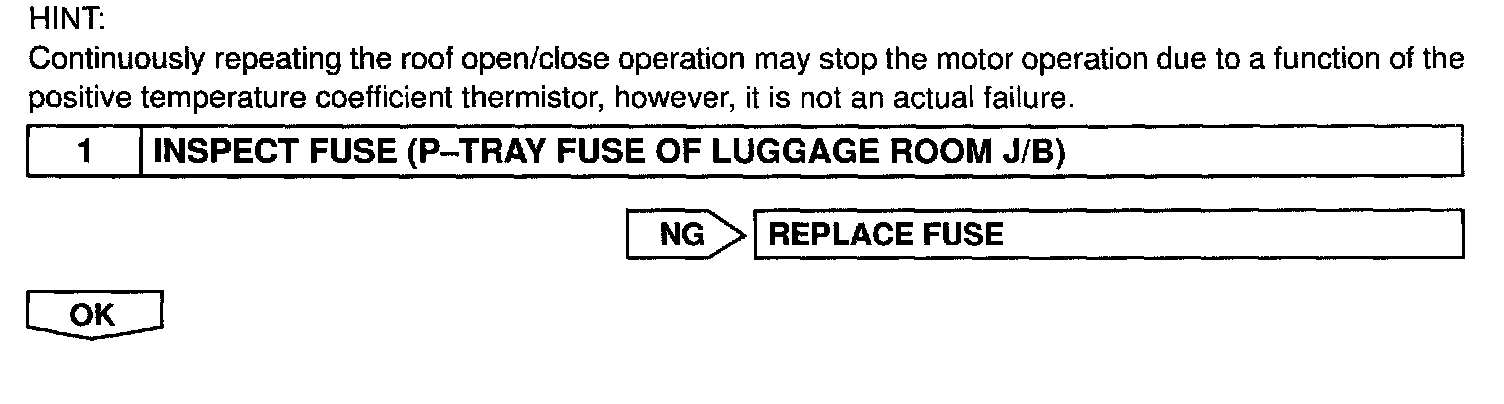

Step 1:

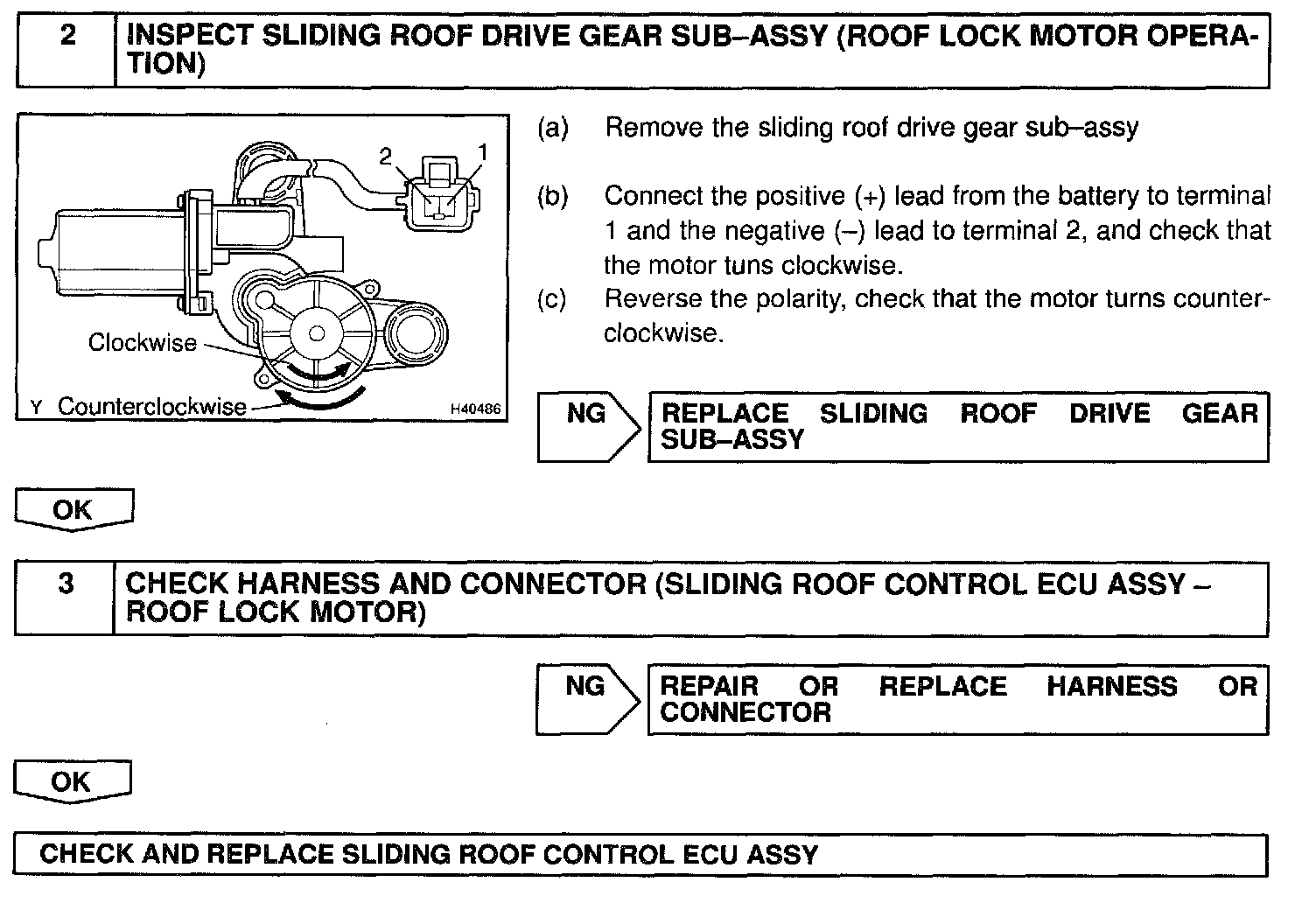

Step 2 - 3:

INSPECTION PROCEDURE
