B2509

DTC B2509 SHORT IN PULSE WIDTH MODULATION MOTOR RH CIRCUIT

CIRCUIT DESCRIPTION

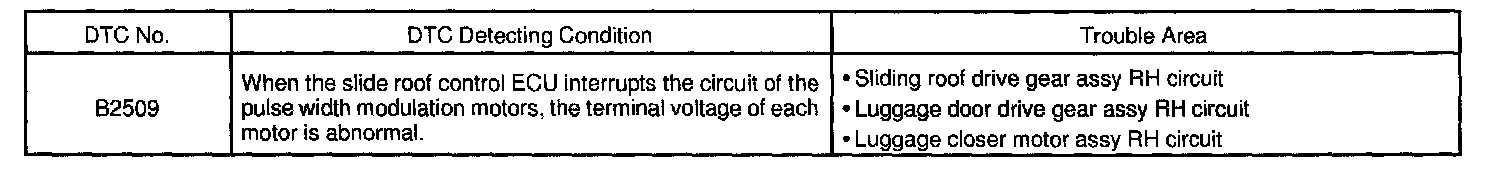

DTC Detecting Condition:

The pulse width modulation motor includes the roof drive motor, luggage door drive motor and luggage closer motor.

The sliding roof control ECU drivers these motors within the same circuit.

Wiring Diagram:

Step 1 - 4:

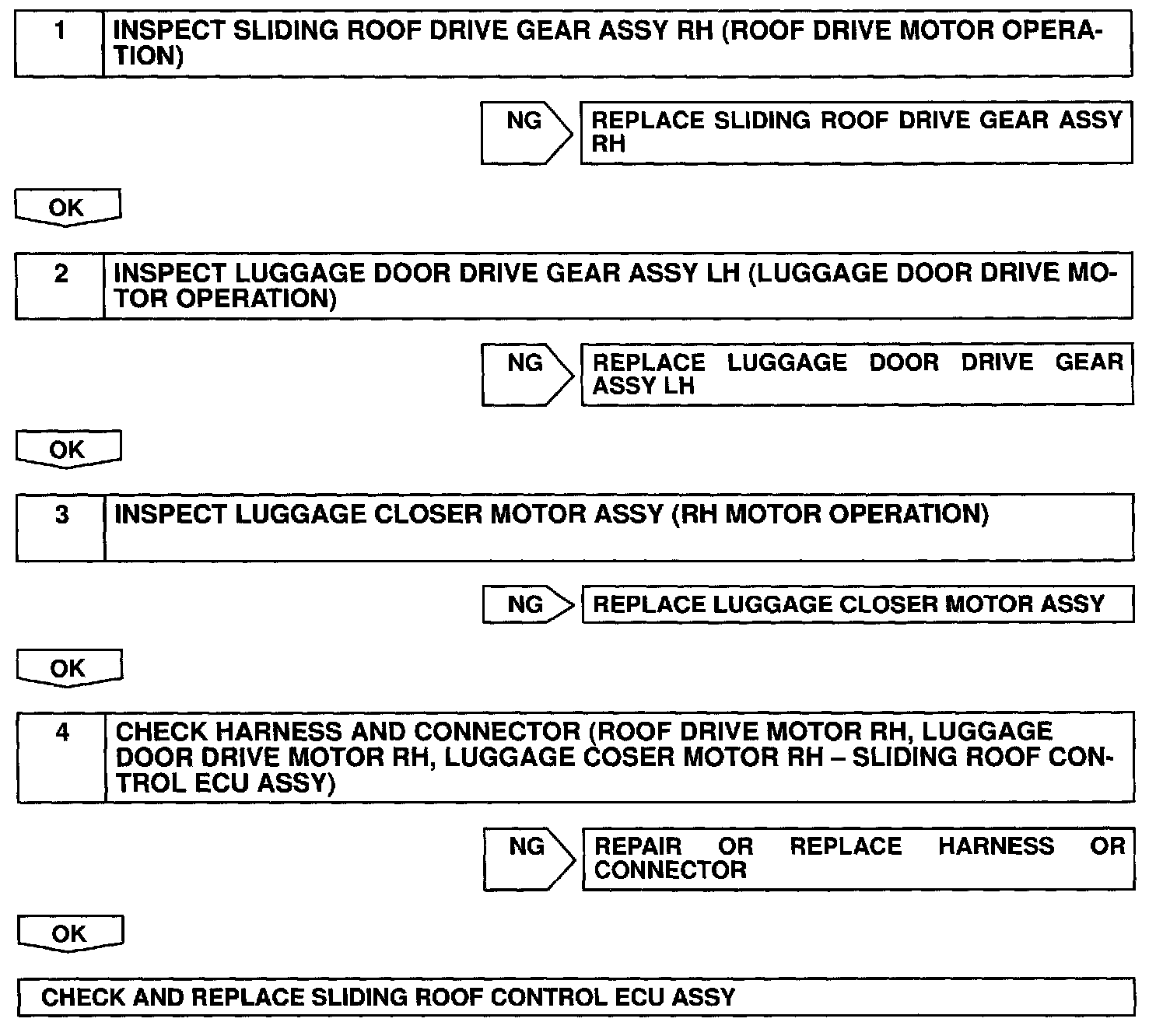

INSPECTION PROCEDURE
