B2508

DTC B2508 OPEN IN LUGGAGE DOOR DRIVE MOTOR LH CIRCUIT

CIRCUIT DESCRIPTION

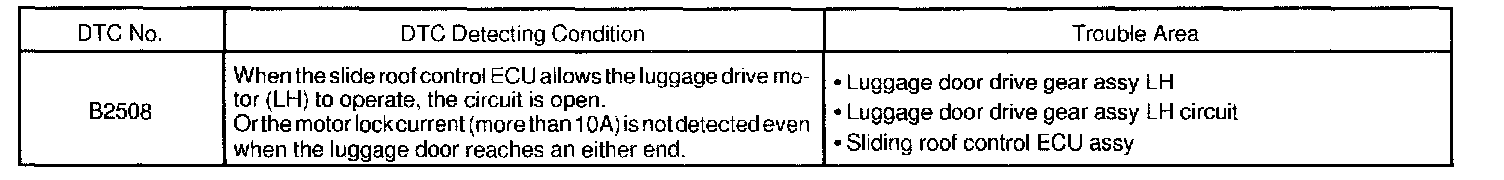

DTC Detecting Condition:

With the roof control switch being pressed, the sliding roof control ECU operates the roof panel, luggage door and package tray in the specified order.

The ECU operates the luggage door, adjusting the speed of the 2 motors positioned on the left and right sides.

Wiring Diagram:

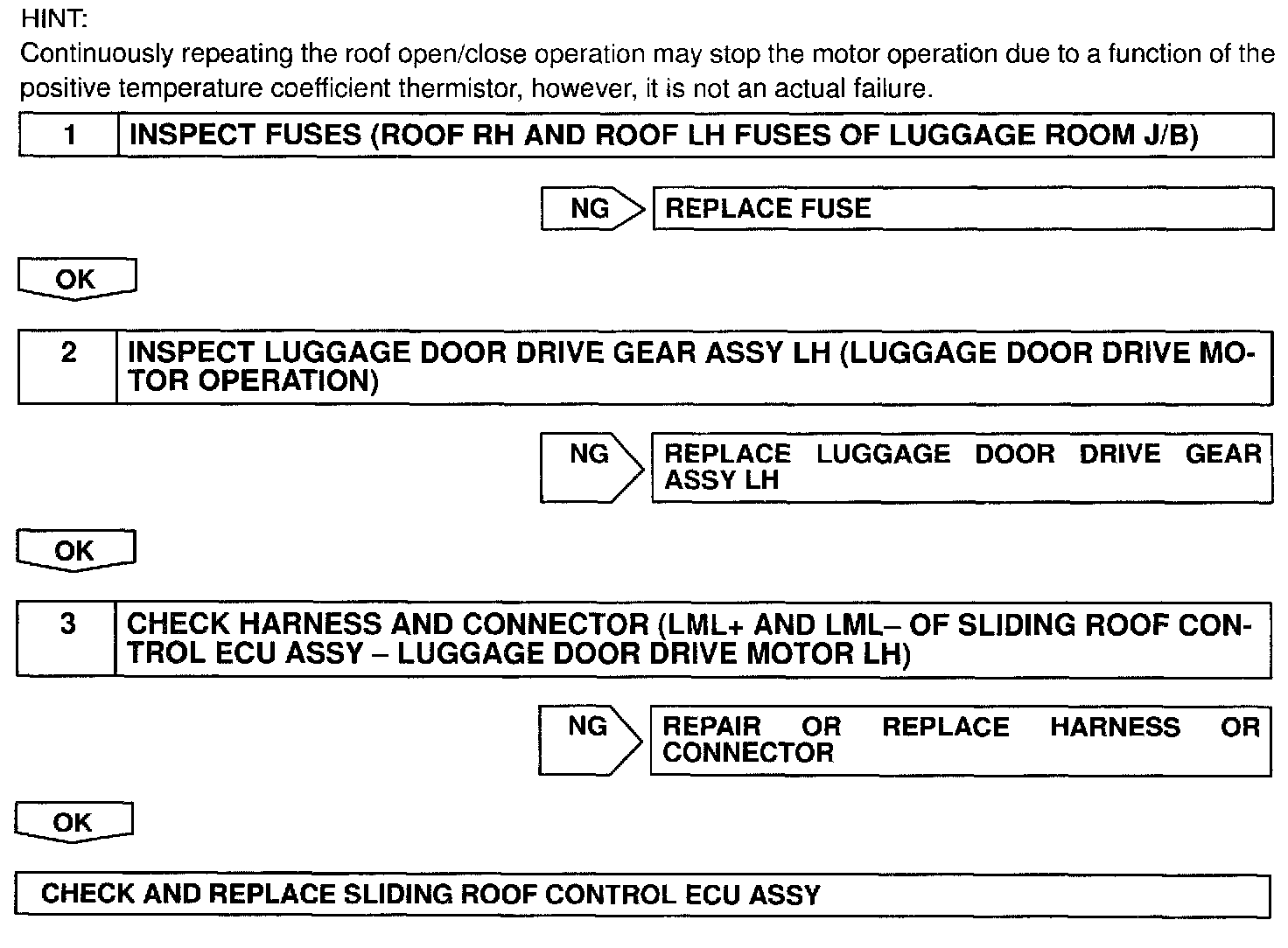

Step 1 - 3:

INSPECTION PROCEDURE
