B1446

DTC B1446 AIR MIX DAMPER CONTROL SERVOMOTOR CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

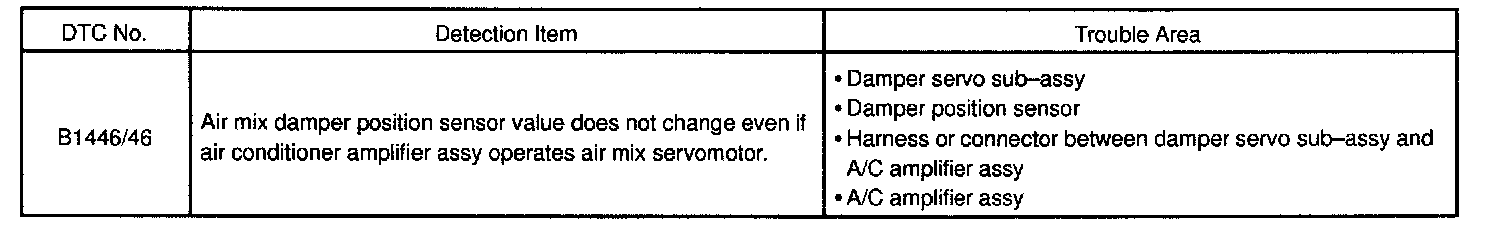

Detection Item:

This damper servo sub-assy is controlled by the A/C amplifier assy and moves the damper servo sub-assy to the desired position.

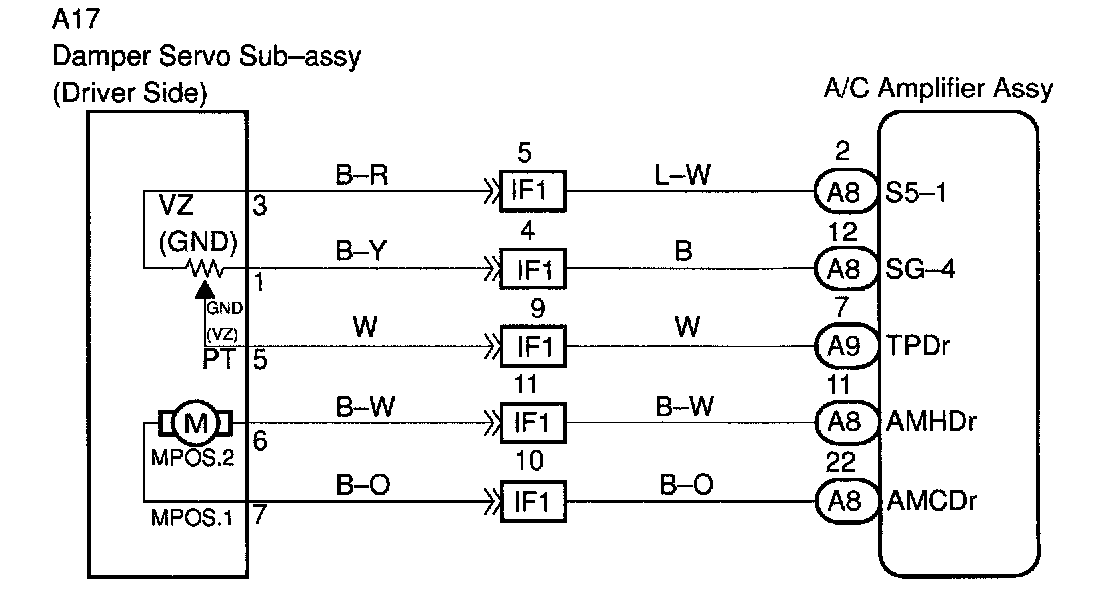

Wiring Diagram:

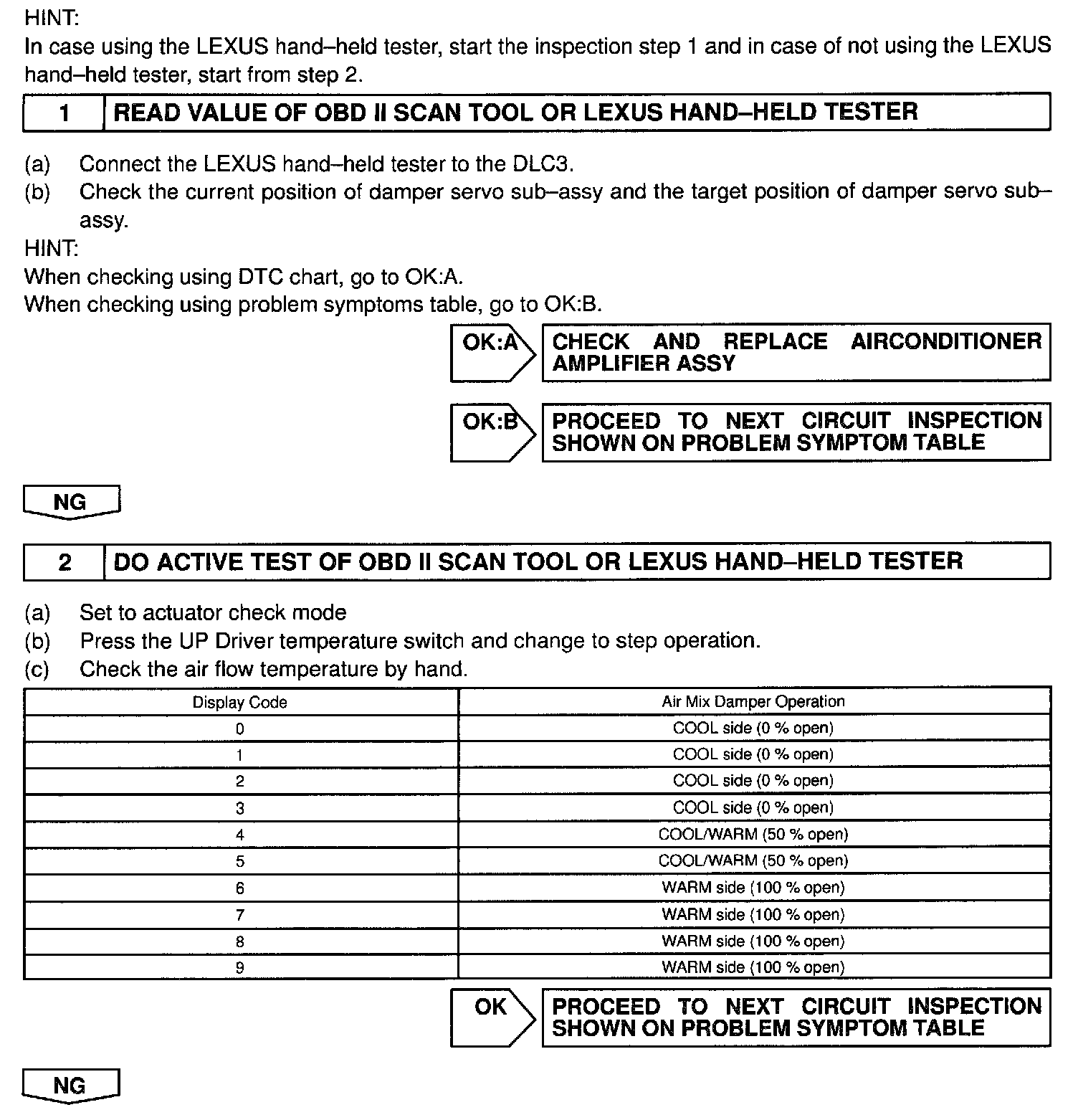

Step 1 - 2:

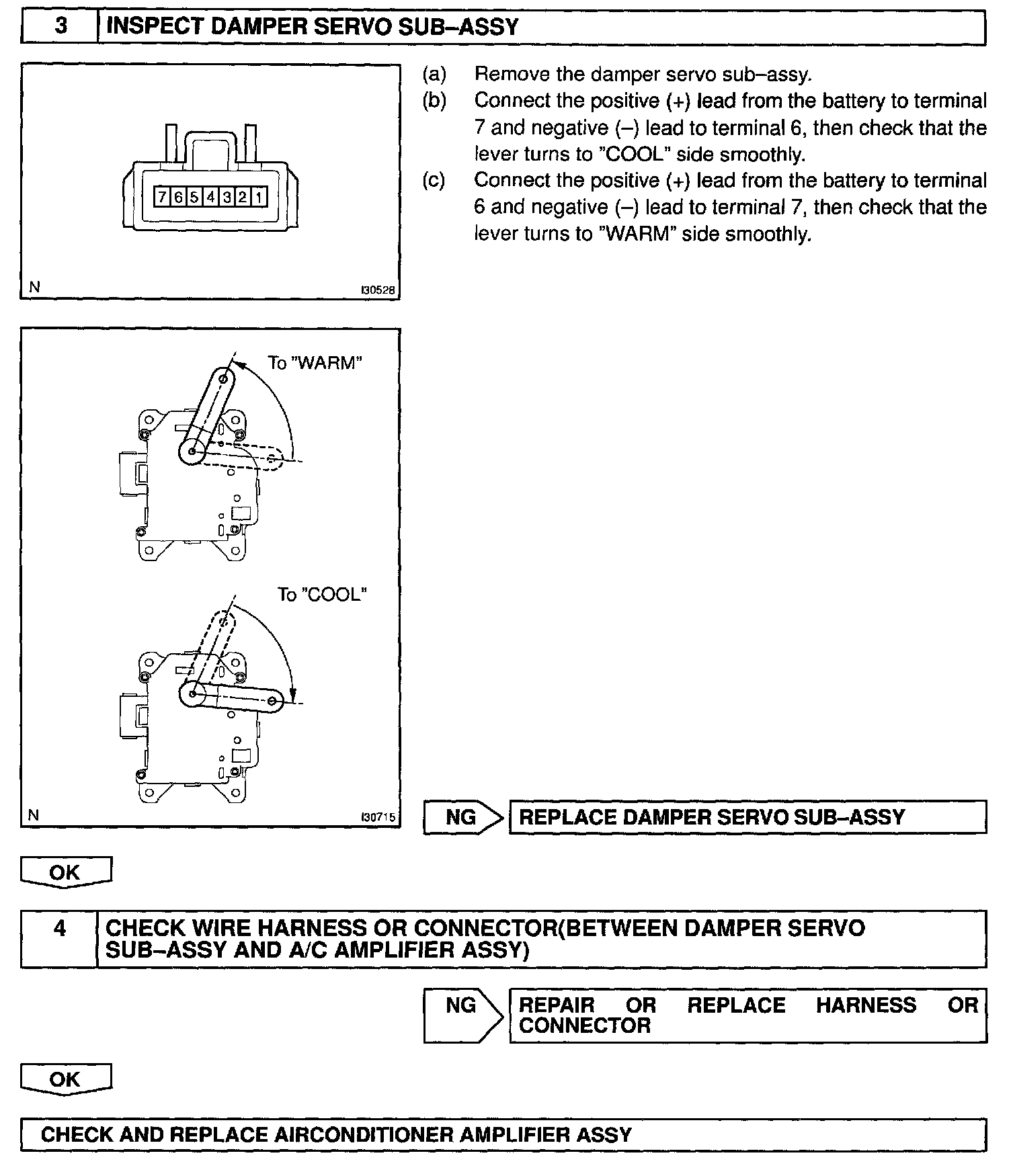

Step 3 - 4:

INSPECTION PROCEDURE
