B1443

DTC B1443 AIR OUTLET DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

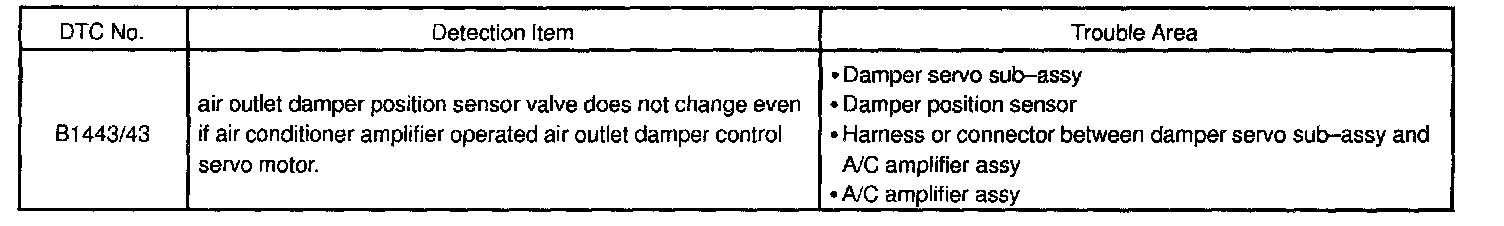

Detection Item:

This circuit turns the servo motor and changes each damper position by the signals from the A/C amplifier assy. When the AUTO switch is on, the A/C amplifier assy. changes the mode automatically between (FACE), (BI-LEVEL), and (FOOT) according to the temperature setting.

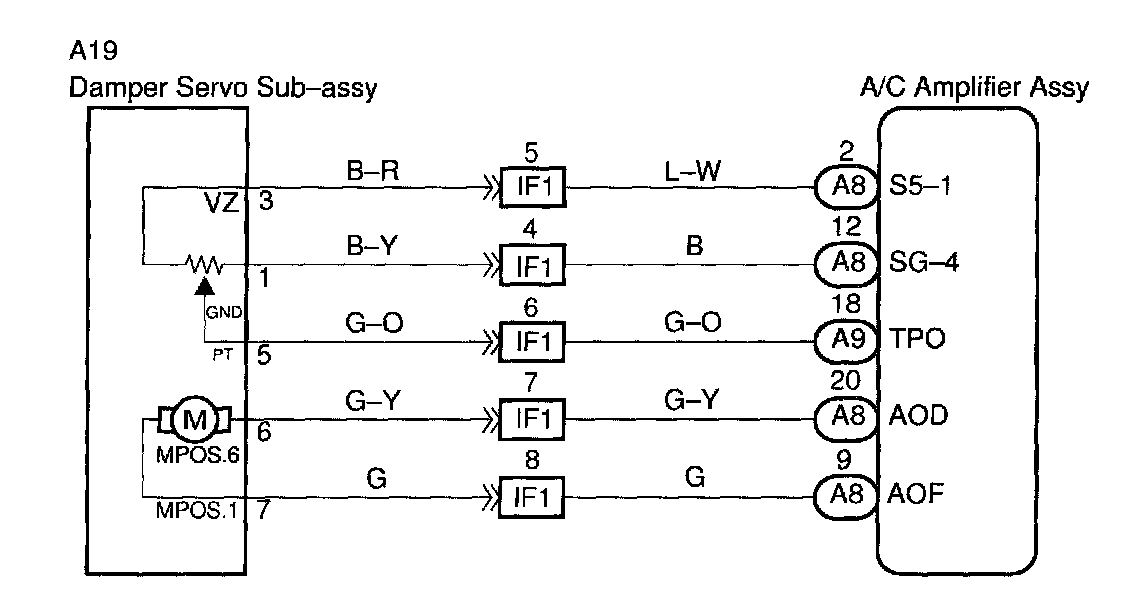

Wiring Diagram:

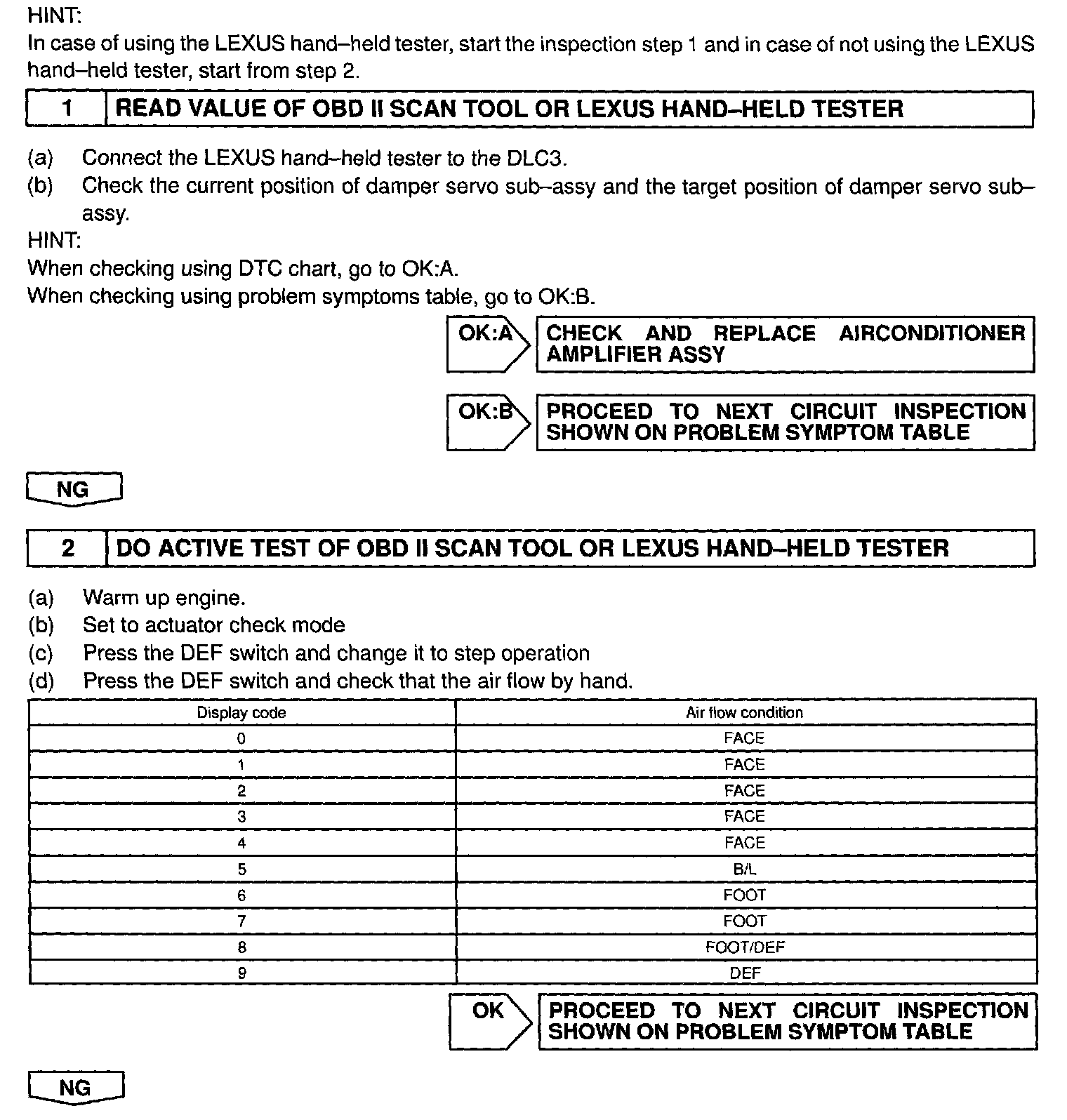

Step 1 - 2:

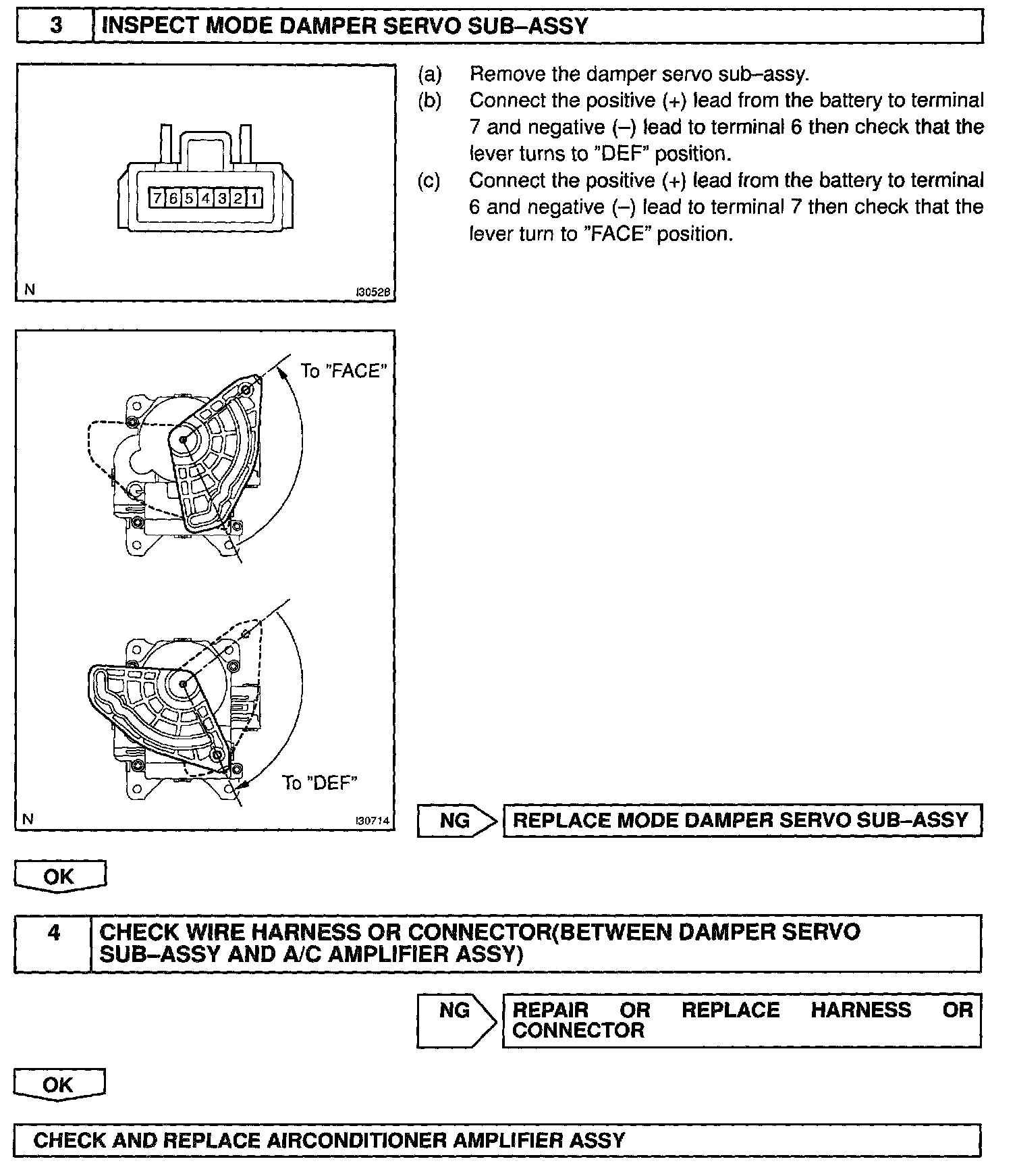

Step 3 - 4:

INSPECTION PROCEDURE
