B1442

DTC B1442 AIR INLET DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

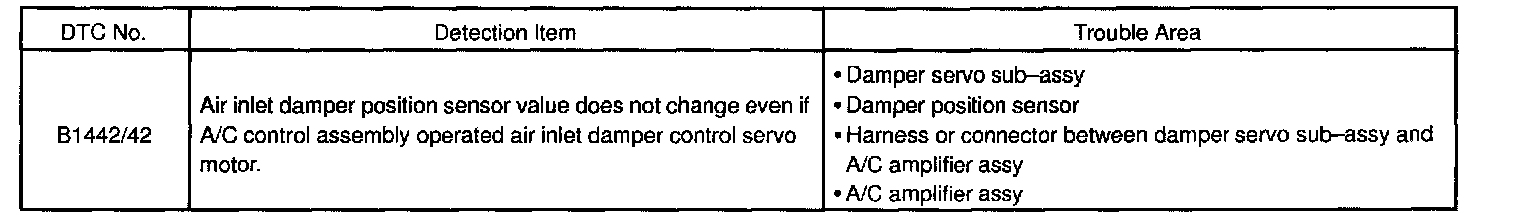

Detection Item:

The damper servo sub-assy is controlled by the A/C amplifier assy and moves the damper servo sub-assy to the desired position.

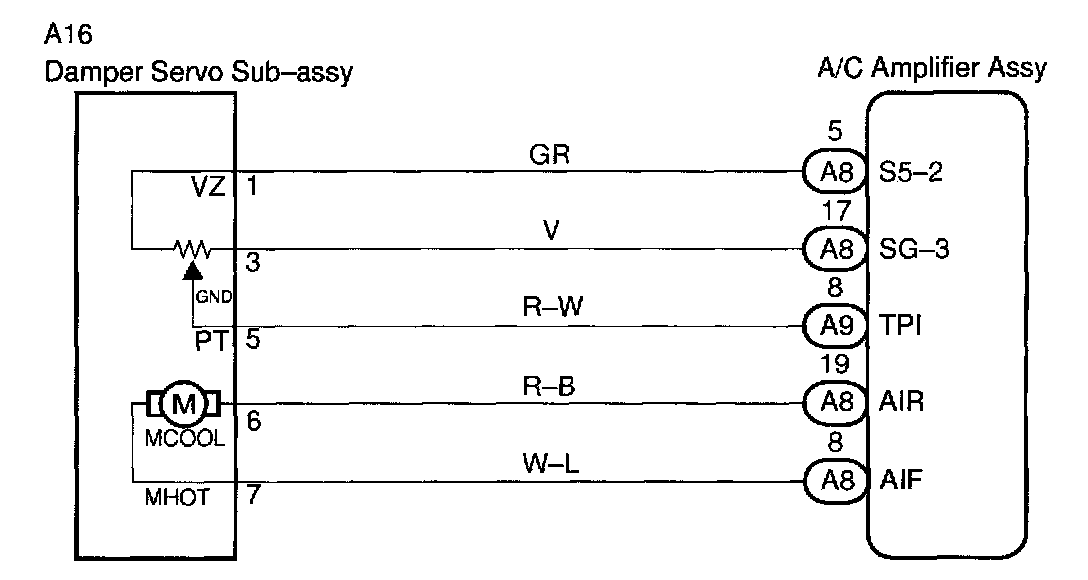

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

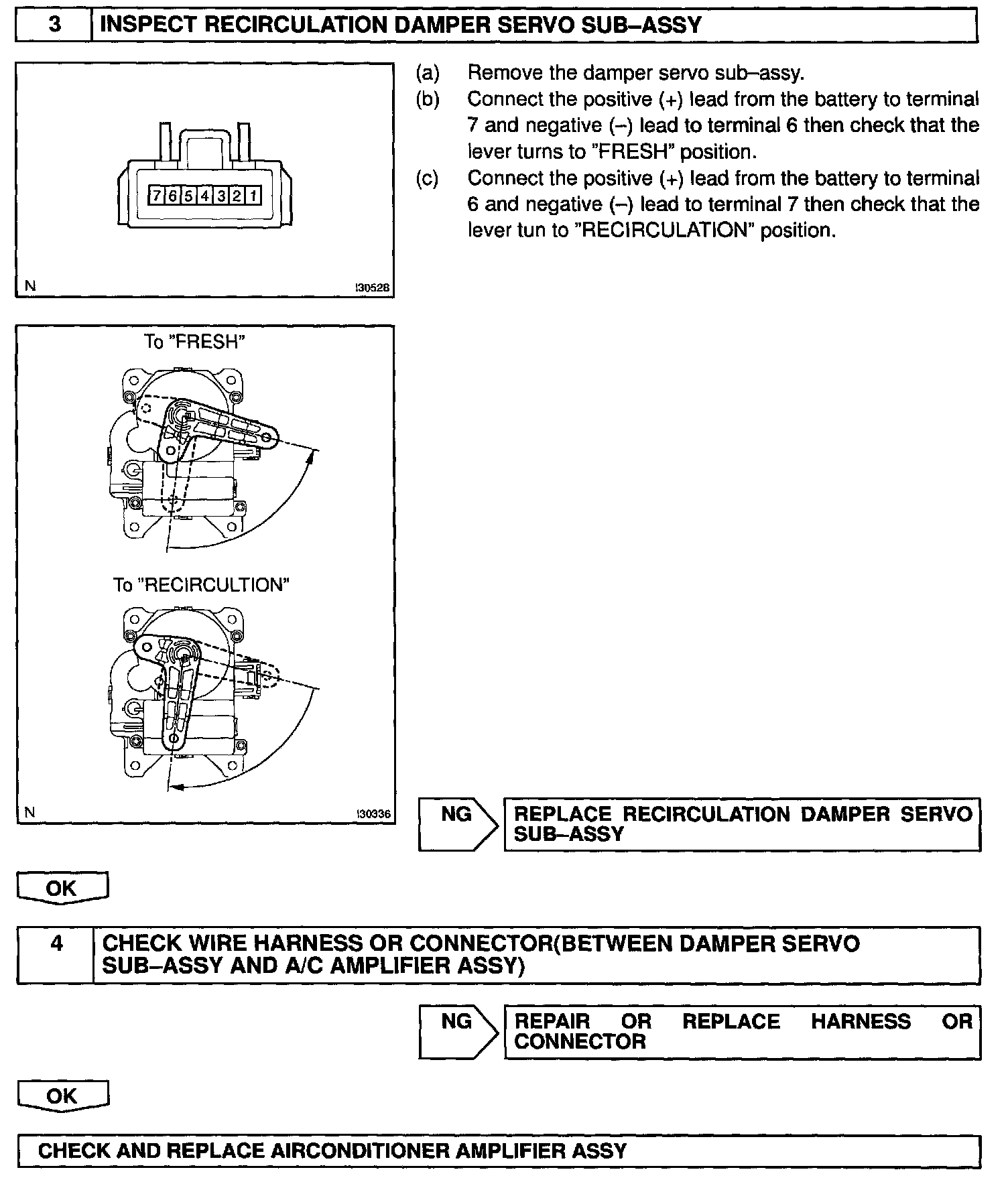

INSPECTION PROCEDURE
