B1433

DTC B1433 AIR OUTLET DAMPER POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

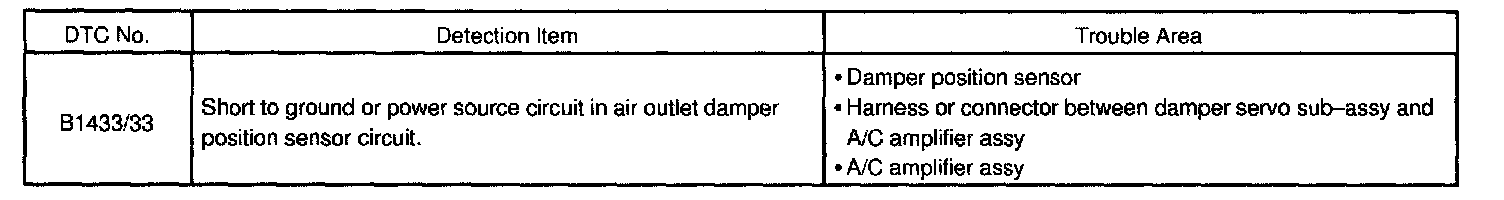

Detection Item:

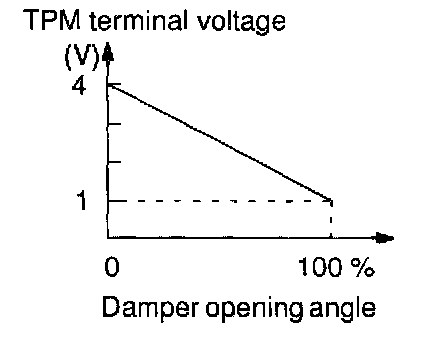

This sensor detects the position of the damper servo sub-assy and sends the appropriate signals to the A/C amplifier assy. The position sensor is built into the damper servo sub-assy

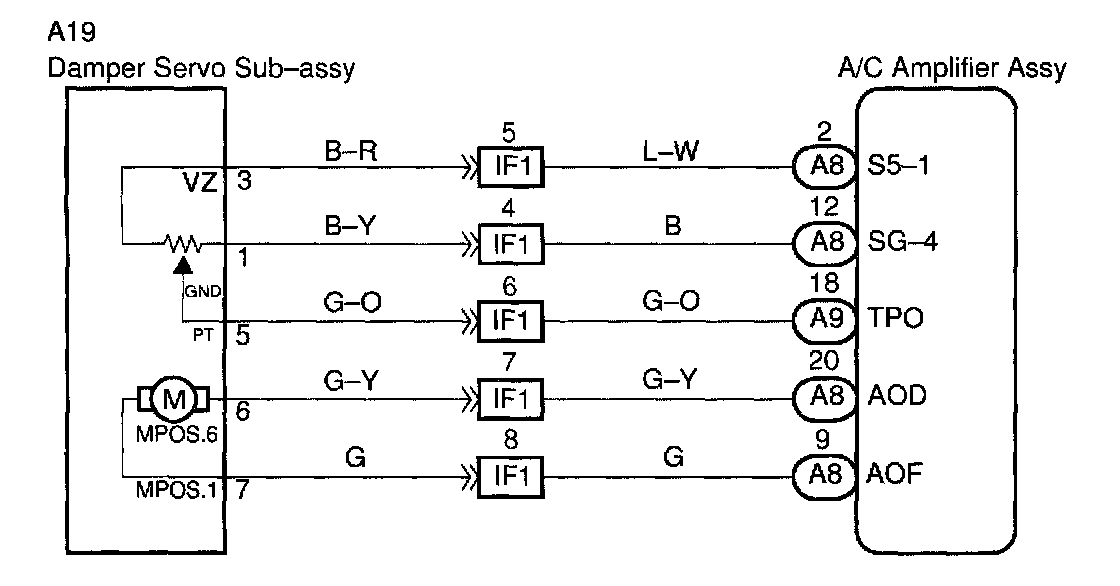

Wiring Diagram:

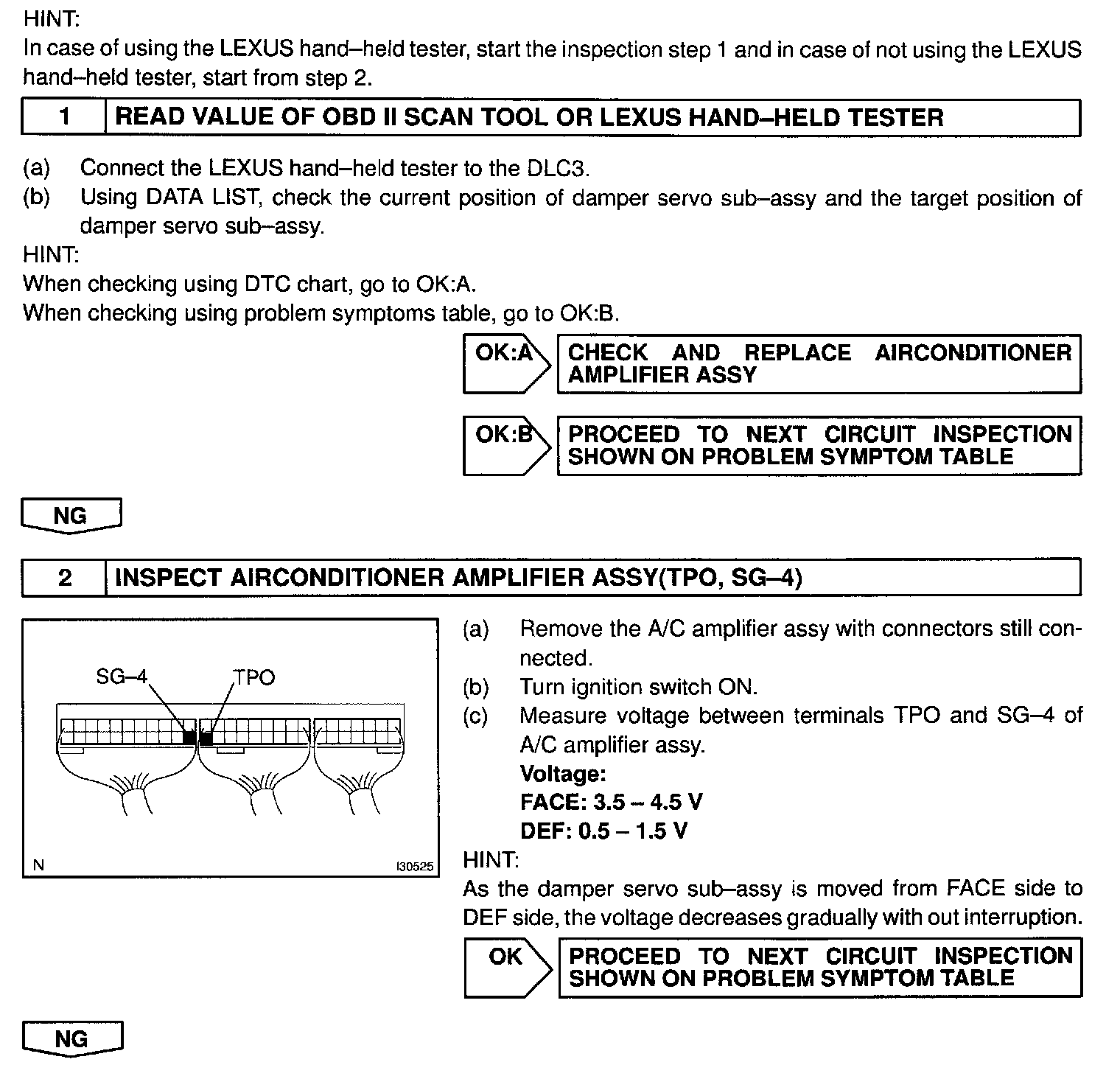

Step 1 - 2:

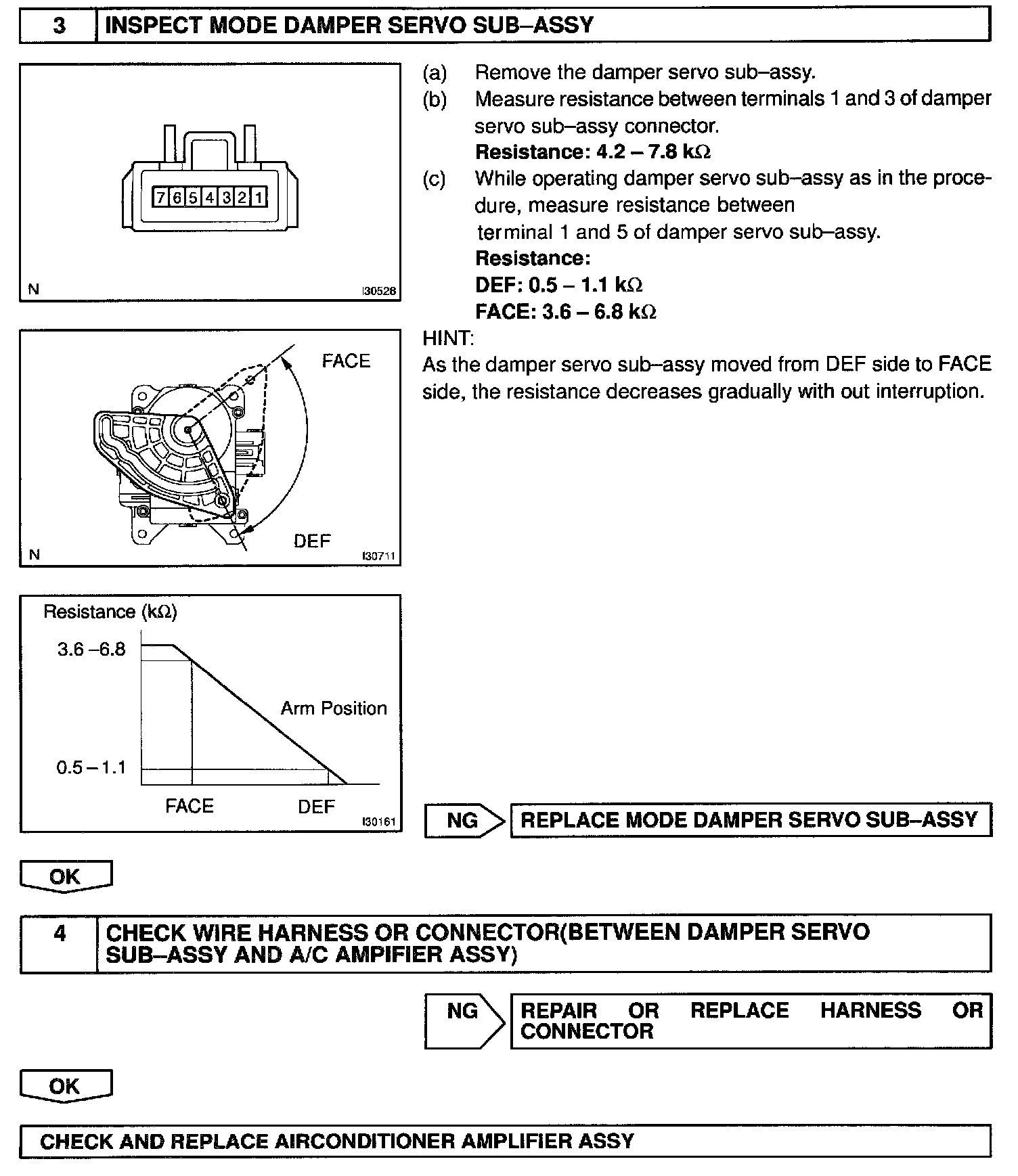

Step 3 - 4:

INSPECTION PROCEDURE
