B1431

DTC B1431 AIR MIX DAMPER POSITION SENSOR CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

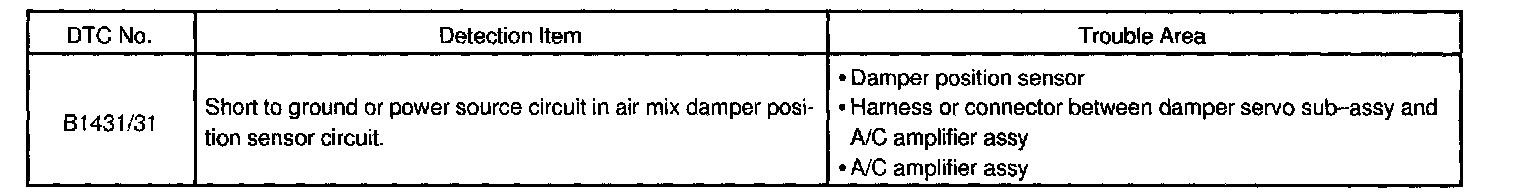

Detection Item:

This sensor detects the position of the damper servo sub-assy and sends the appropriate signals to the A/C amplifier assy. The position sensor is built into the damper servo sub-assy.

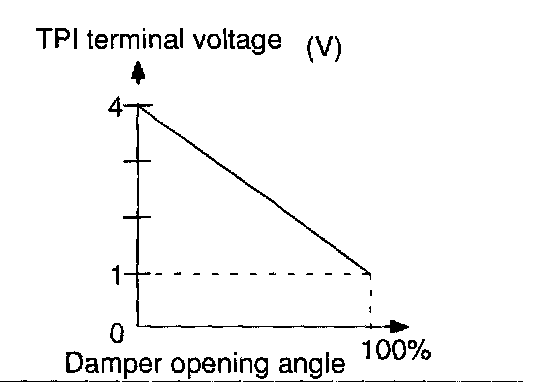

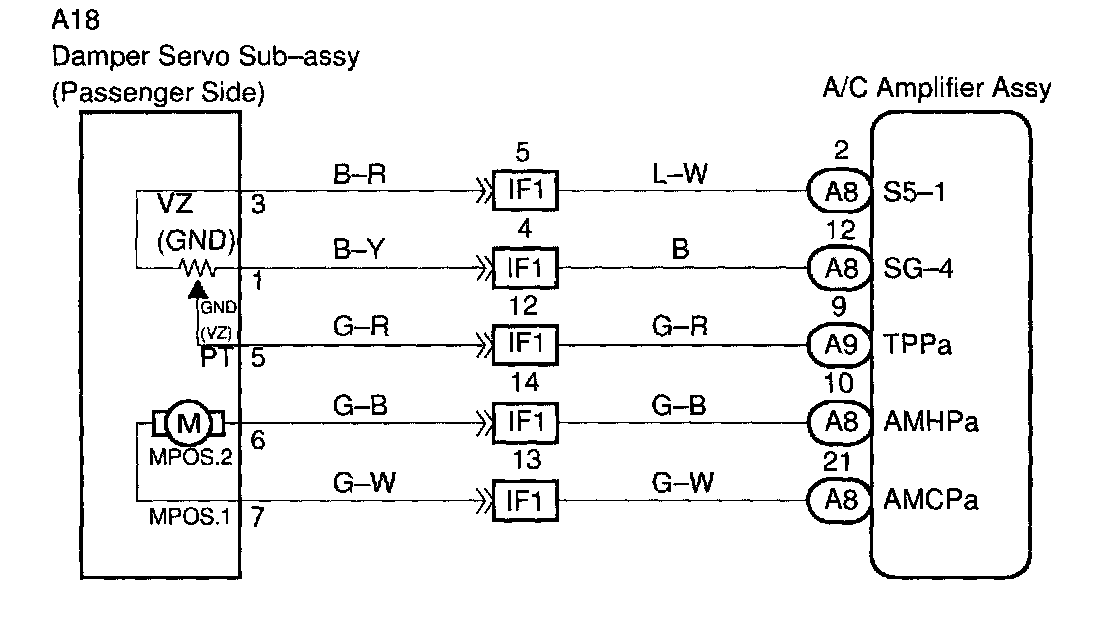

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

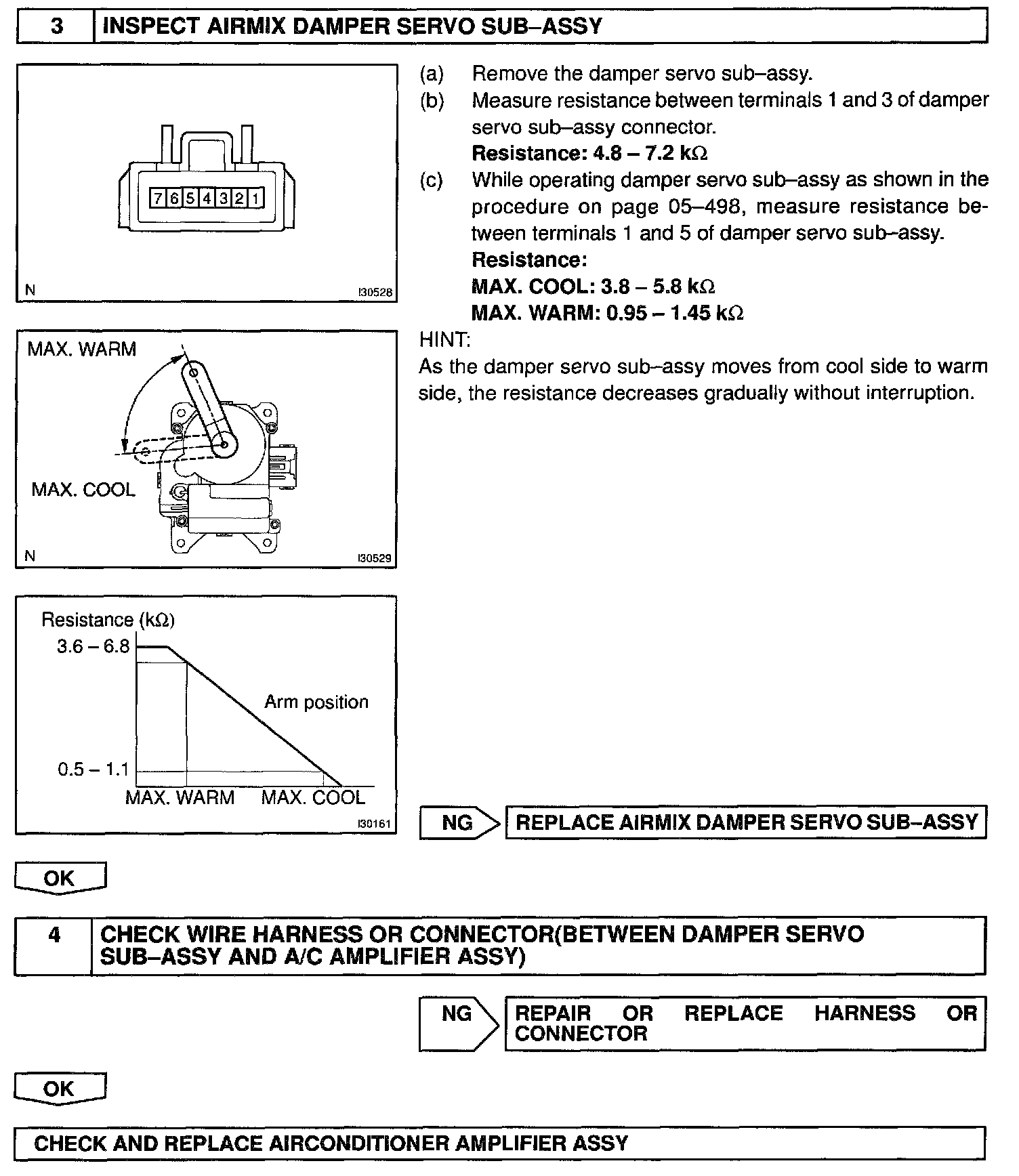

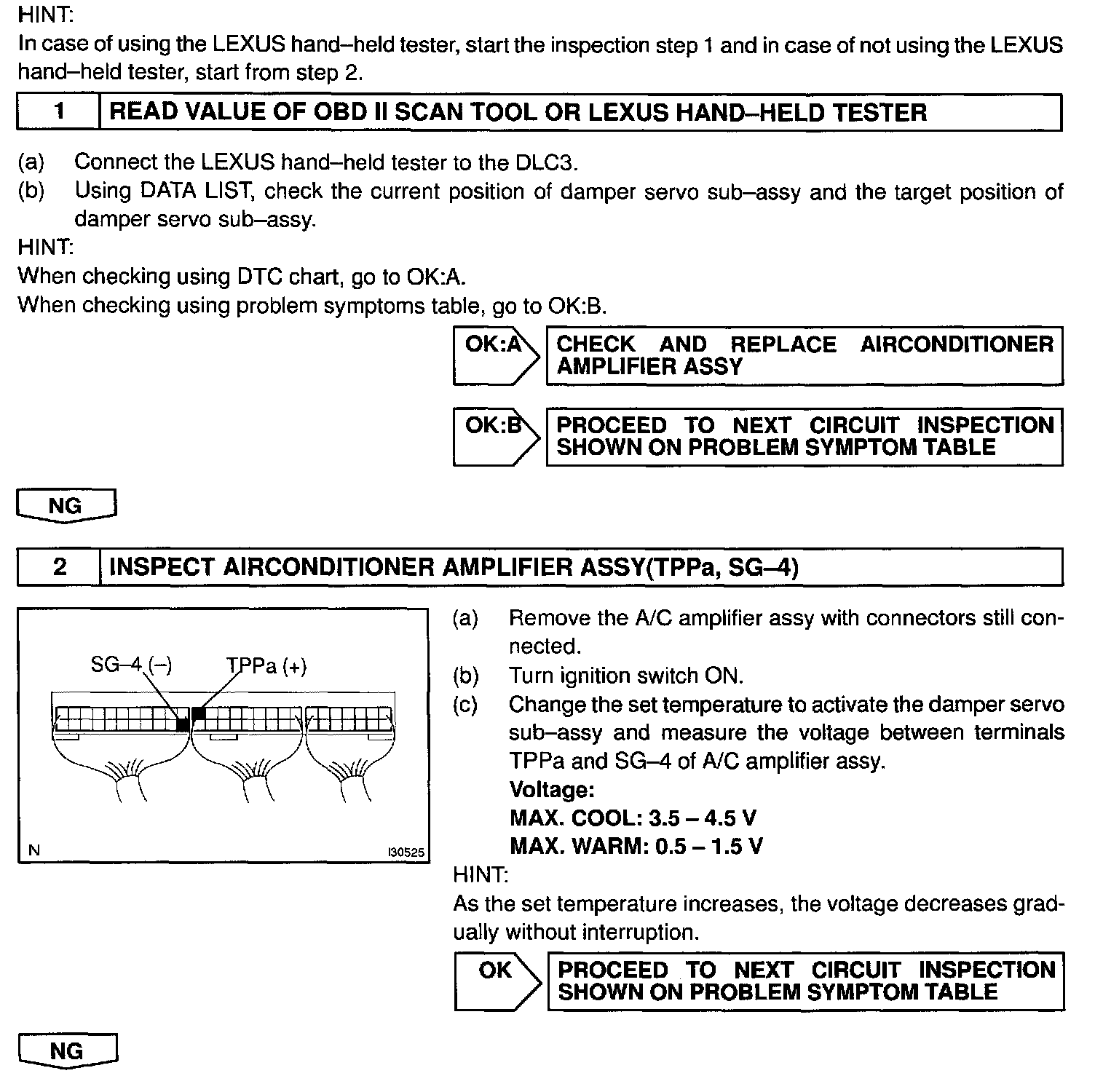

INSPECTION PROCEDURE
