B1424

DTC B1424 SOLAR SENSOR CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

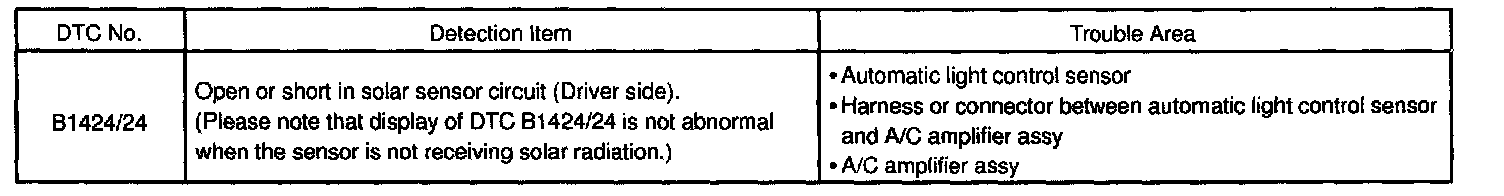

Detection Item:

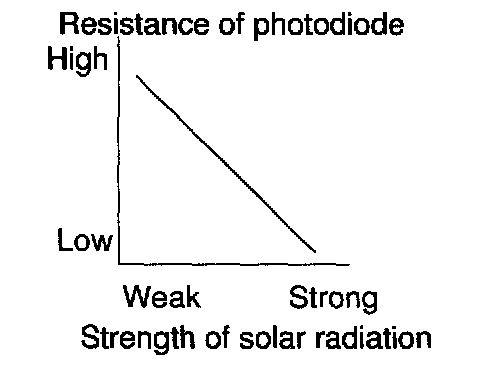

A photo diode in the automatic light control sensor detects solar radiation and sends signals to the A/C amplifier.

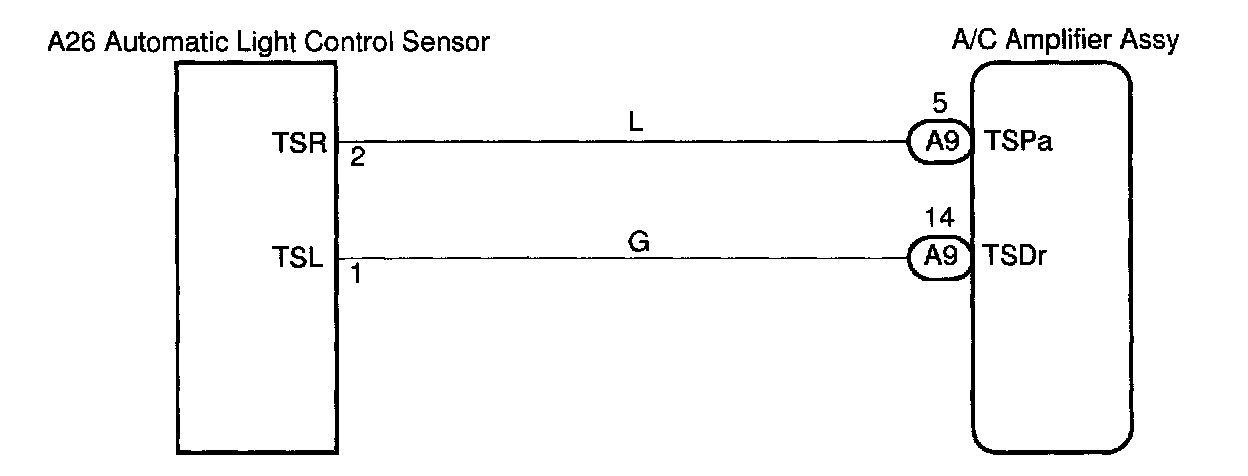

Wiring Diagram:

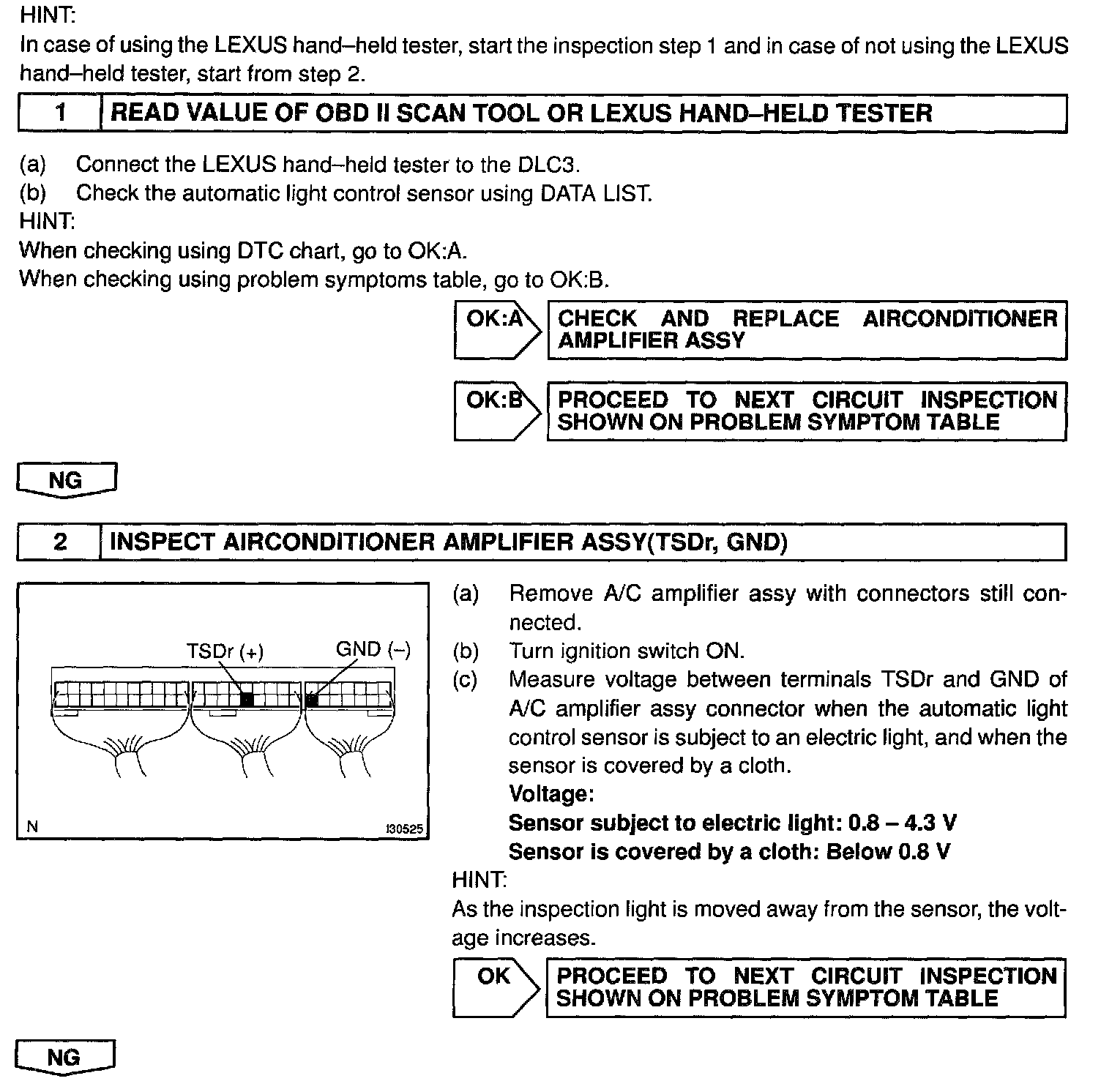

Step 1 - 2:

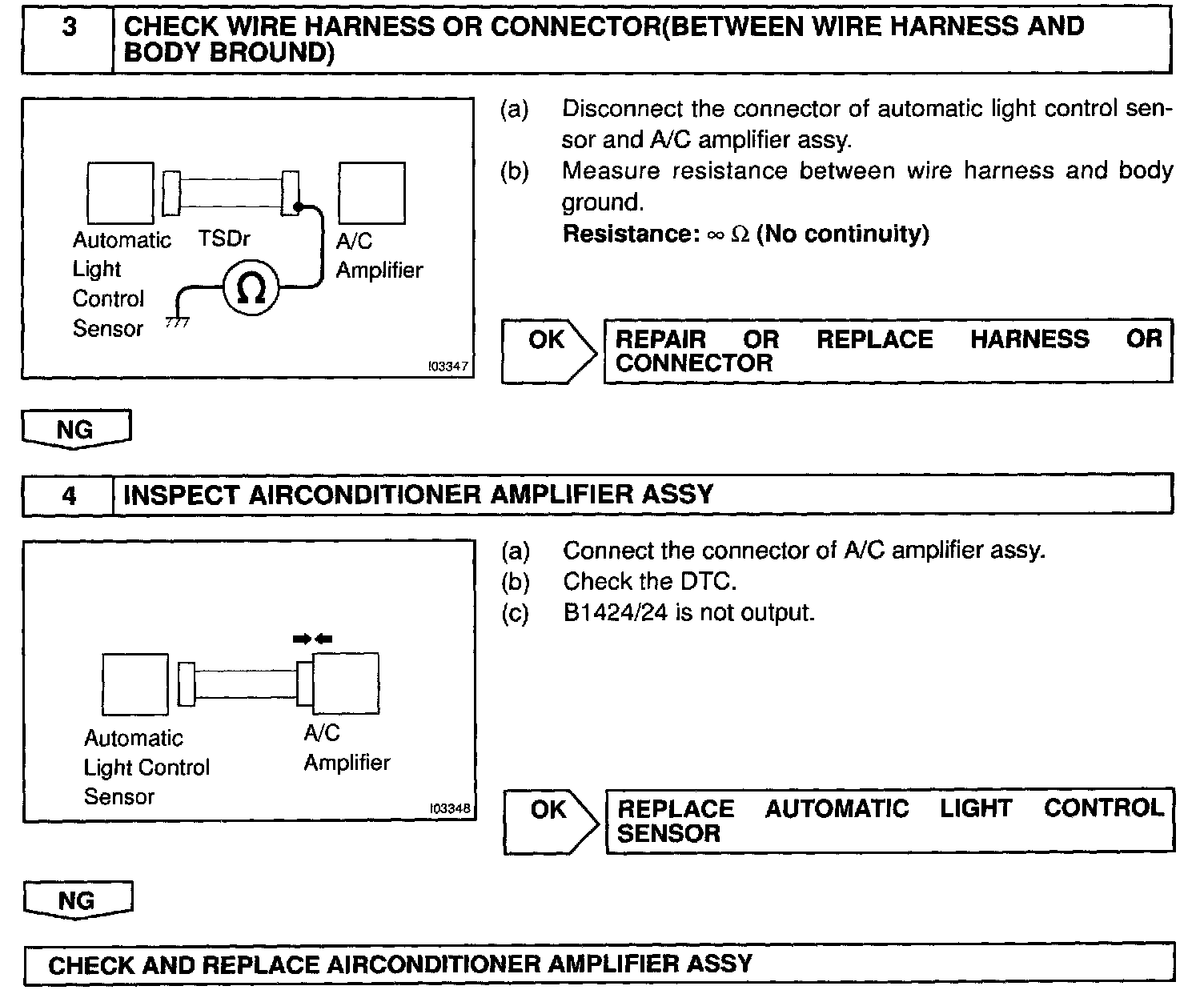

Step 3 - 4:

INSPECTION PROCEDURE
