B1421

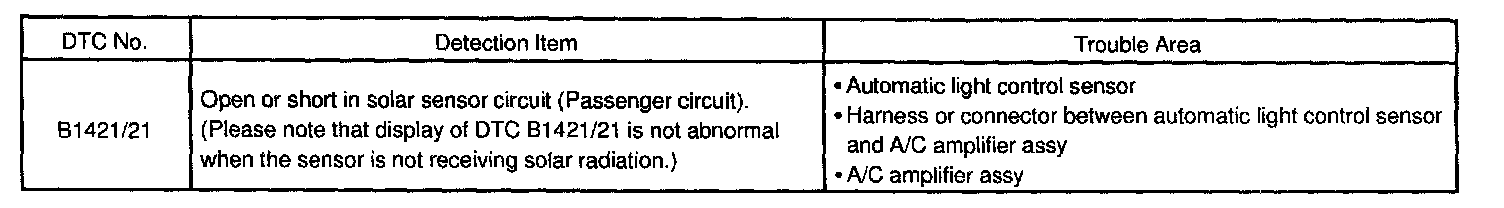

DTC B1421 SOLAR SENSOR CIRCUIT

CIRCUIT DESCRIPTION

Detection Item:

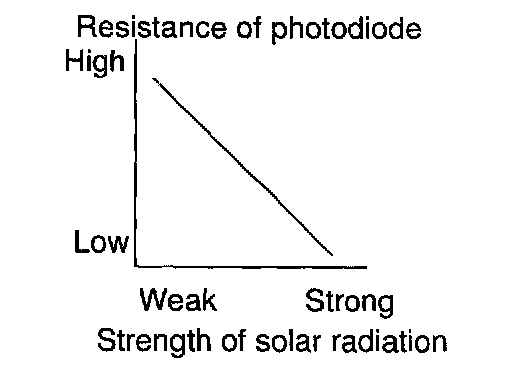

A photo diode in the automatic light control sensor detects solar radiation and sends signals to the A/C amplifier assy.

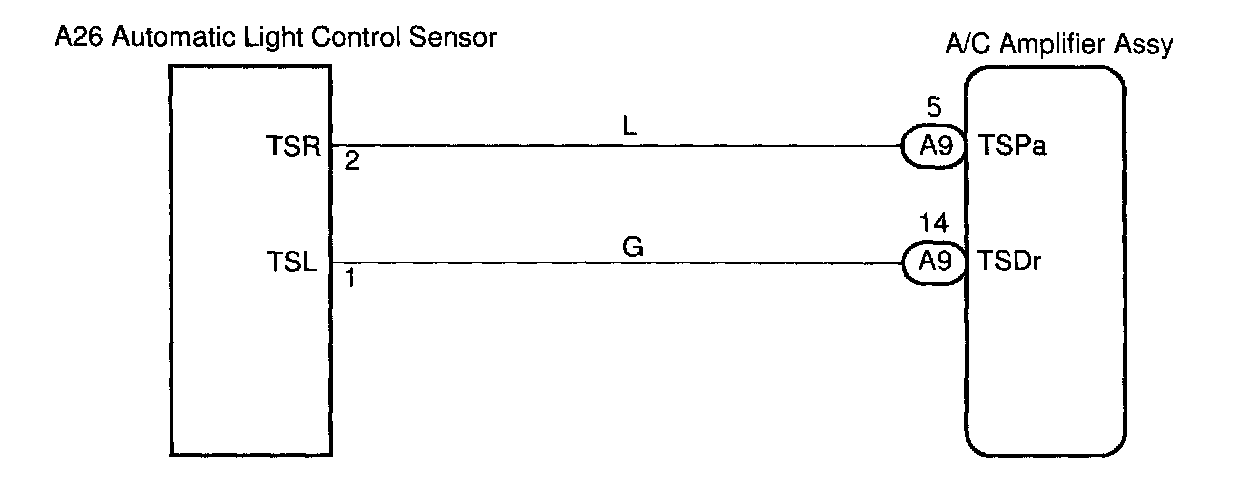

Wiring Diagram:

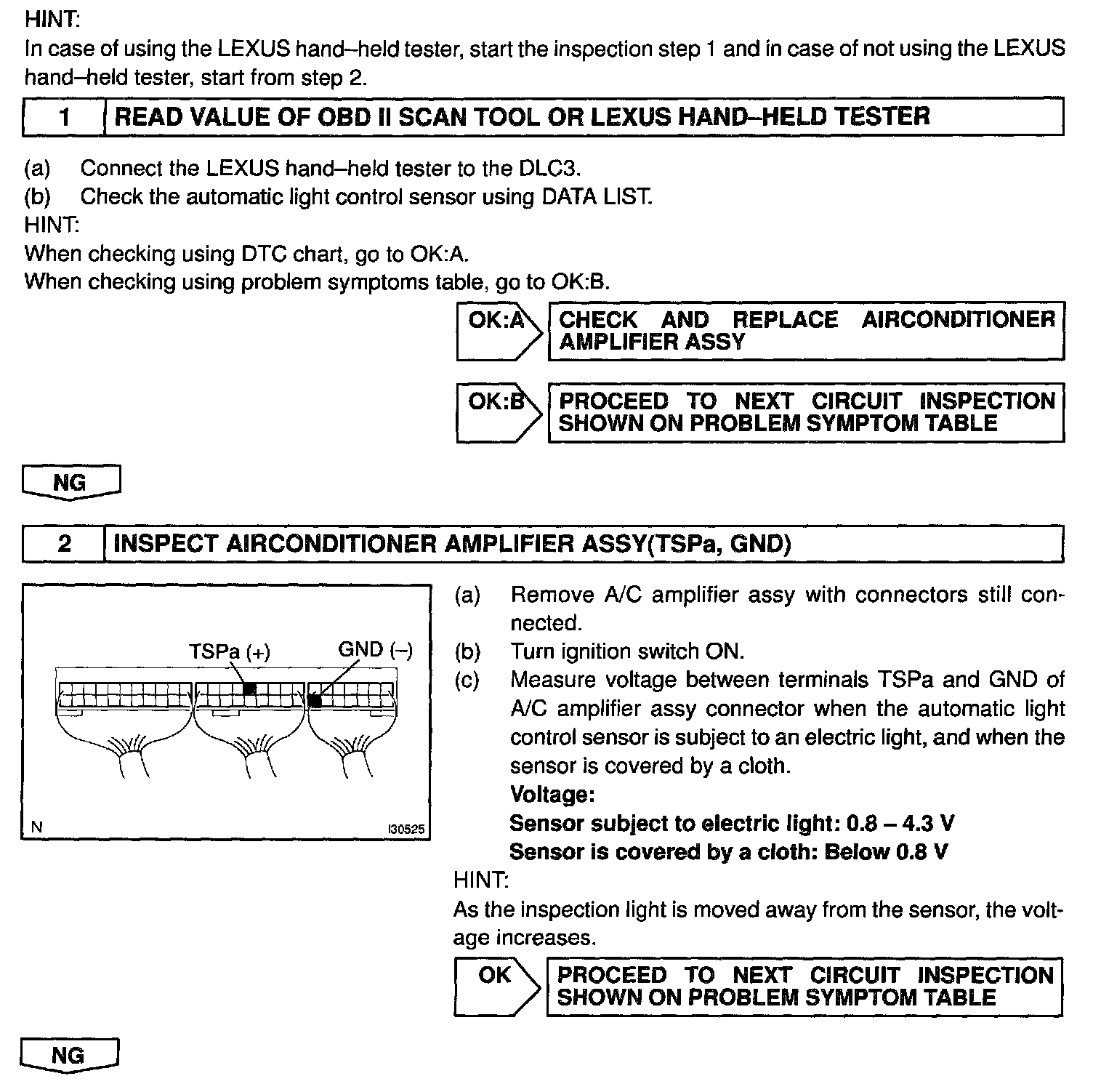

Step 1 - 2:

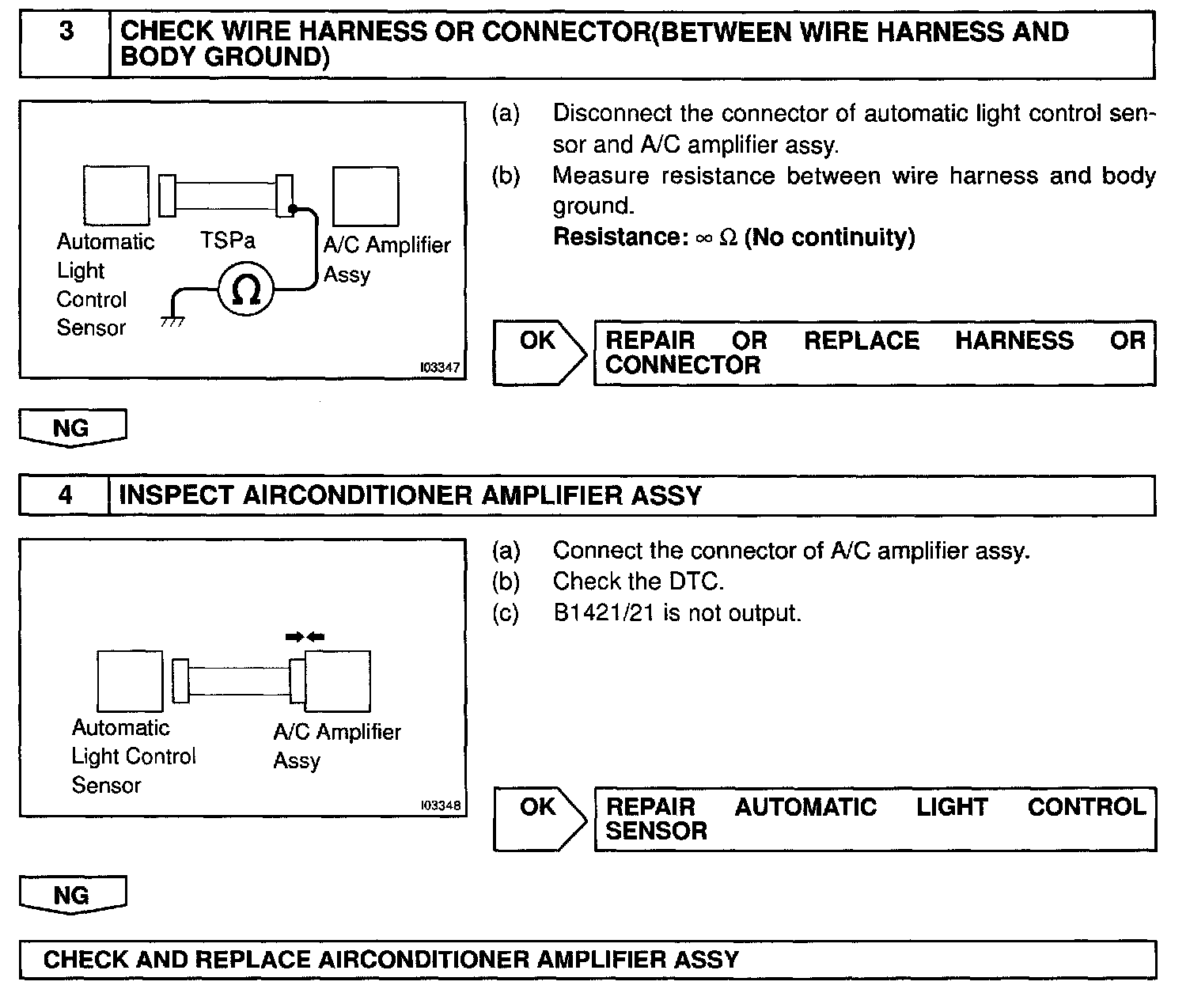

Step 3 - 4:

INSPECTION PROCEDURE
