B1418

DTC B1418 EXHAUST GAS SENSOR CIRCUIT

CIRCUIT DESCRIPTION

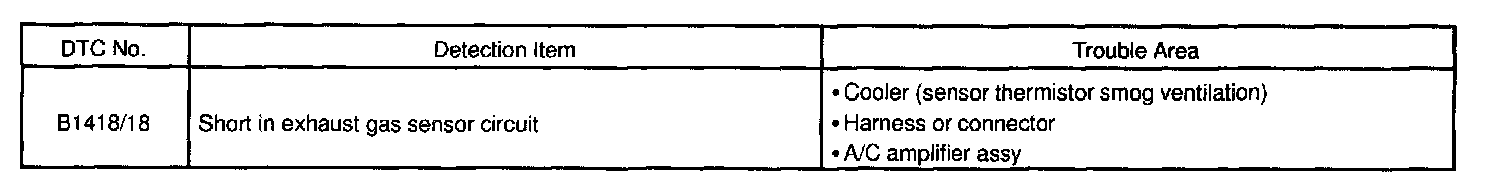

Detection Item:

This sensor defects the exhaust gas outside the vehicle and sends signal to the A/C amplifier assy.

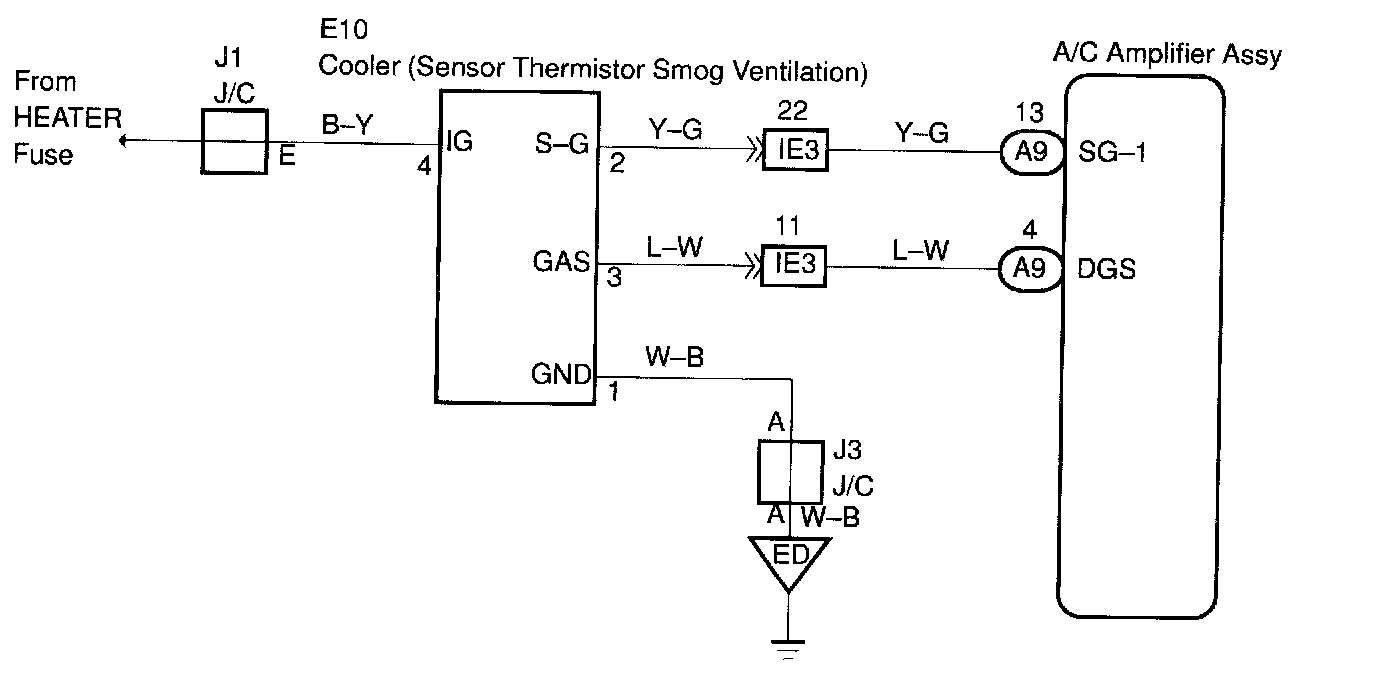

Wiring Diagram:

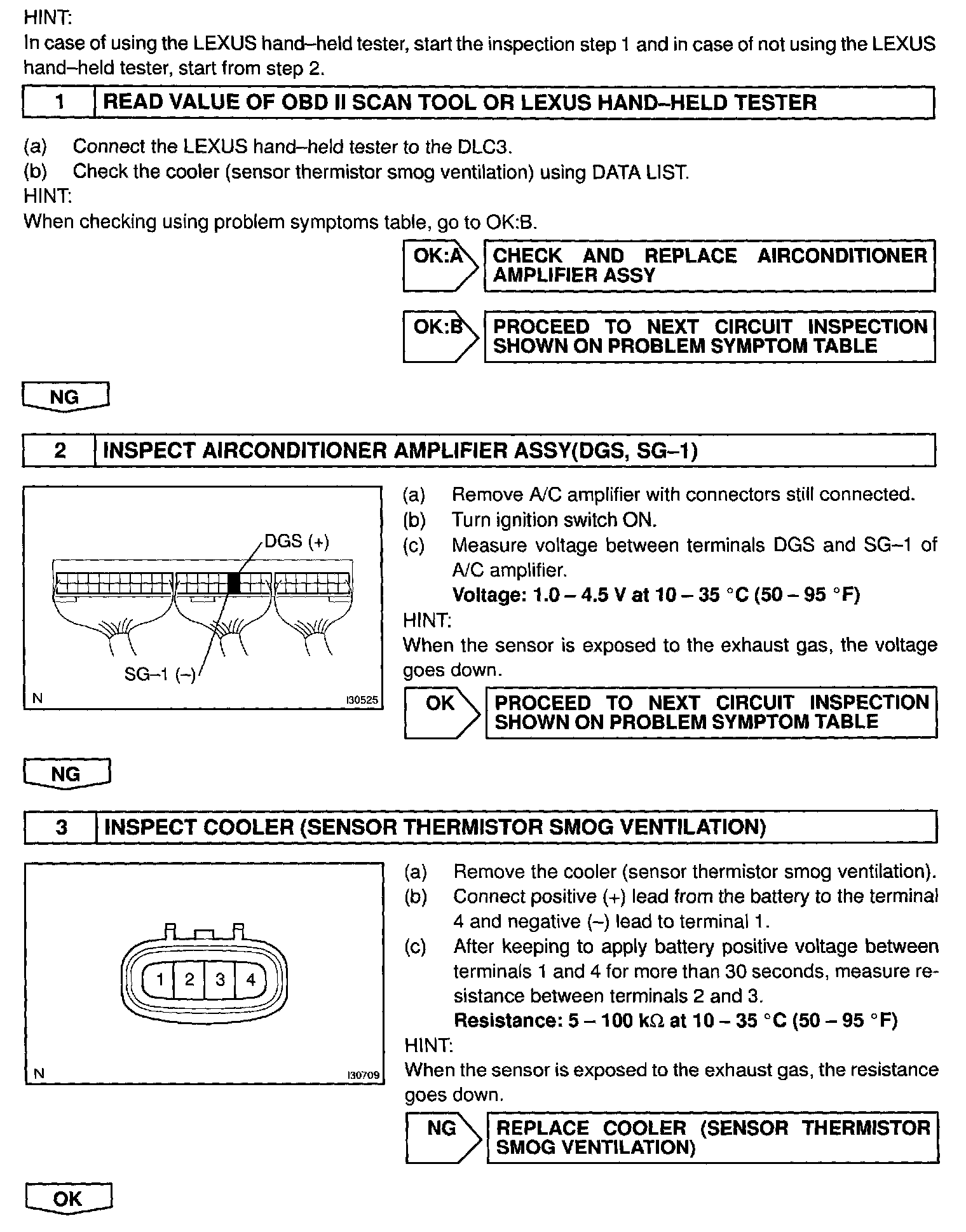

Step 1 - 3:

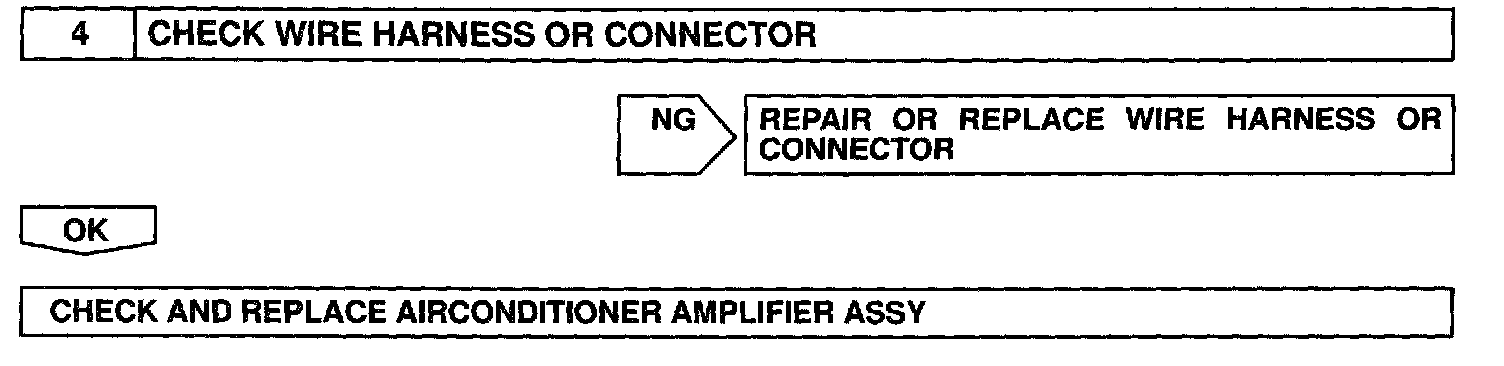

Step 4:

INSPECTION PROCEDURE
