B1413

DTC B1413 EVAPORATOR TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

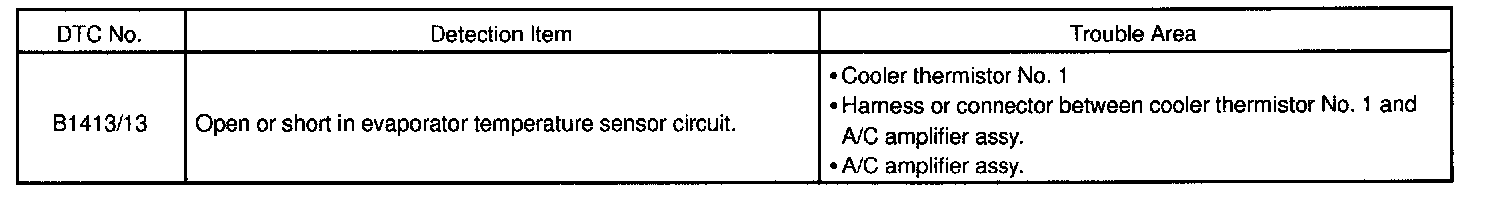

Detection Item:

This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the A/C amplifier assy.

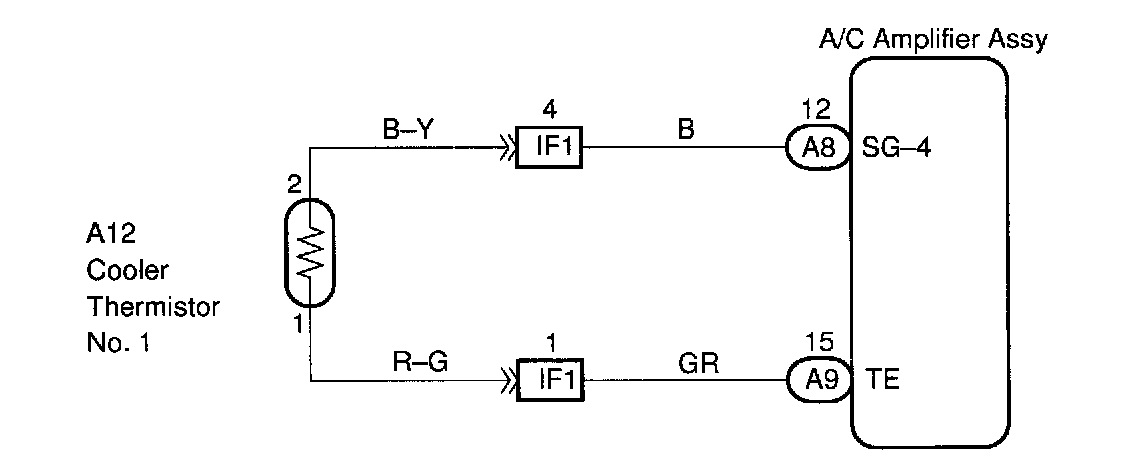

Wiring Diagram:

Step 1 - 2:

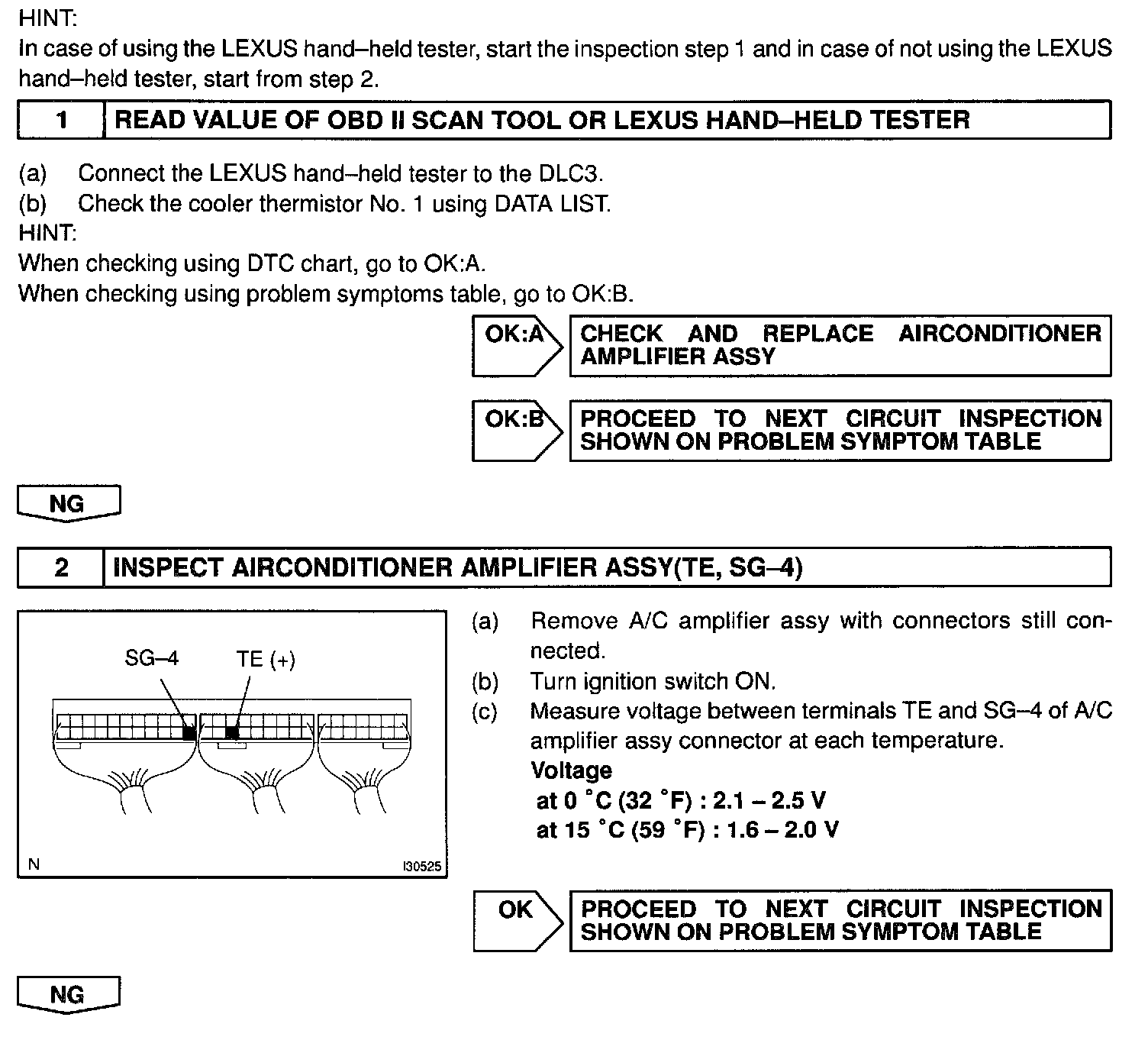

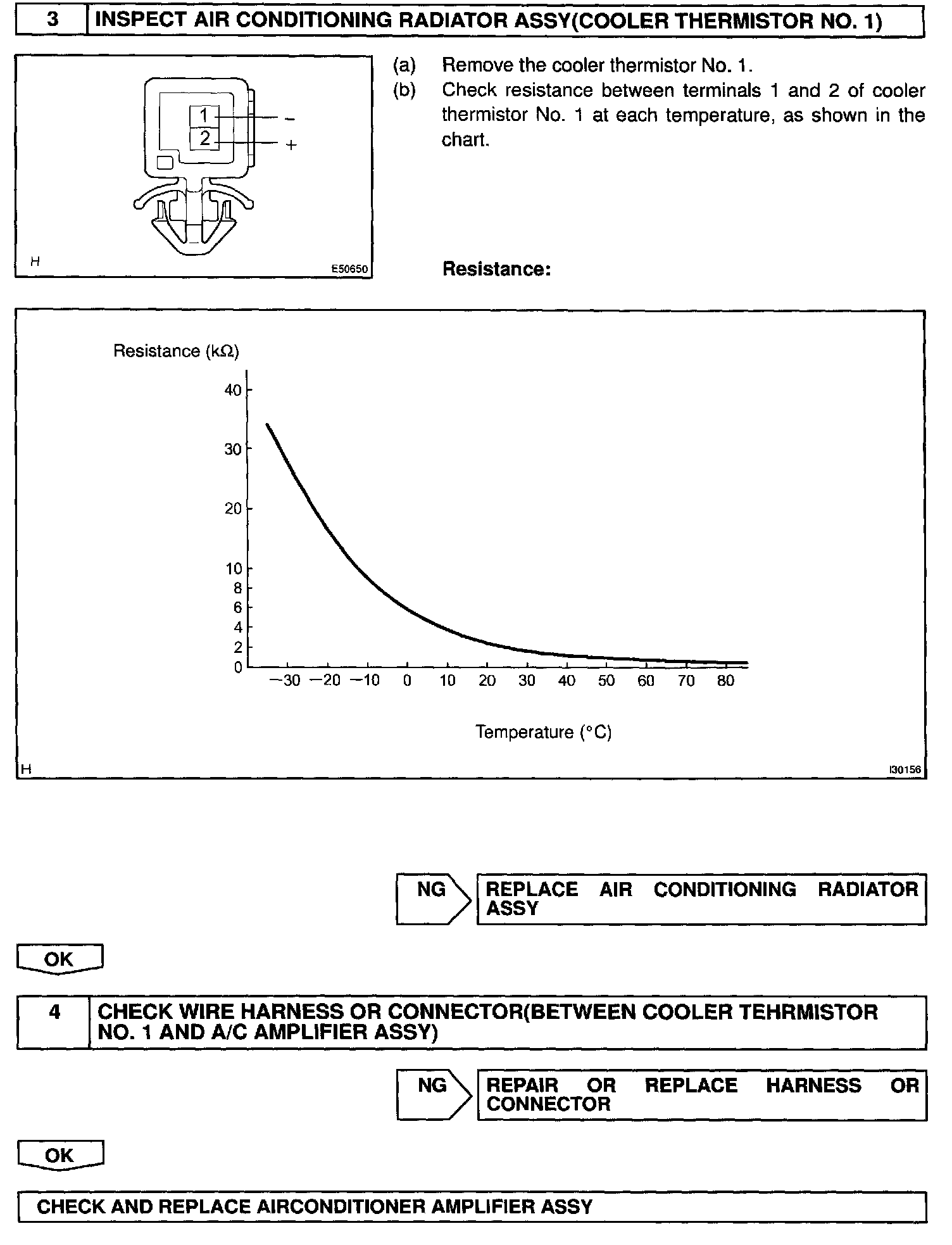

Step 3 - 4:

INSPECTION PROCEDURE
