B1412

DTC B1412 AMBIENT TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

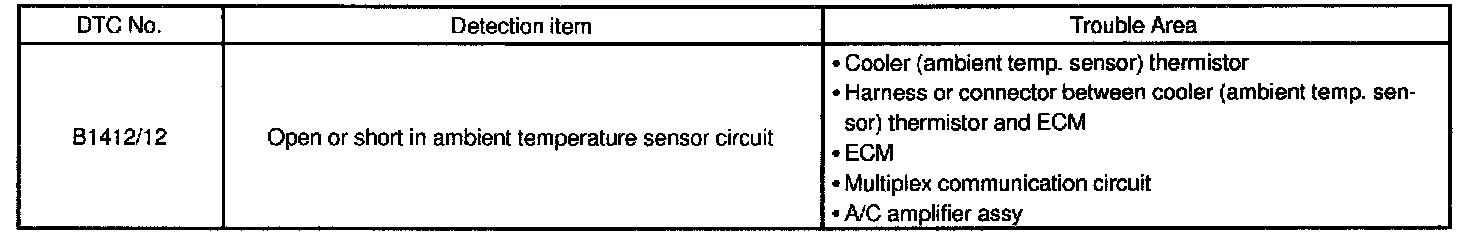

Detection Item:

This sensor detects the temperature outside the cabin and sends the appropriate signals to the ECM.

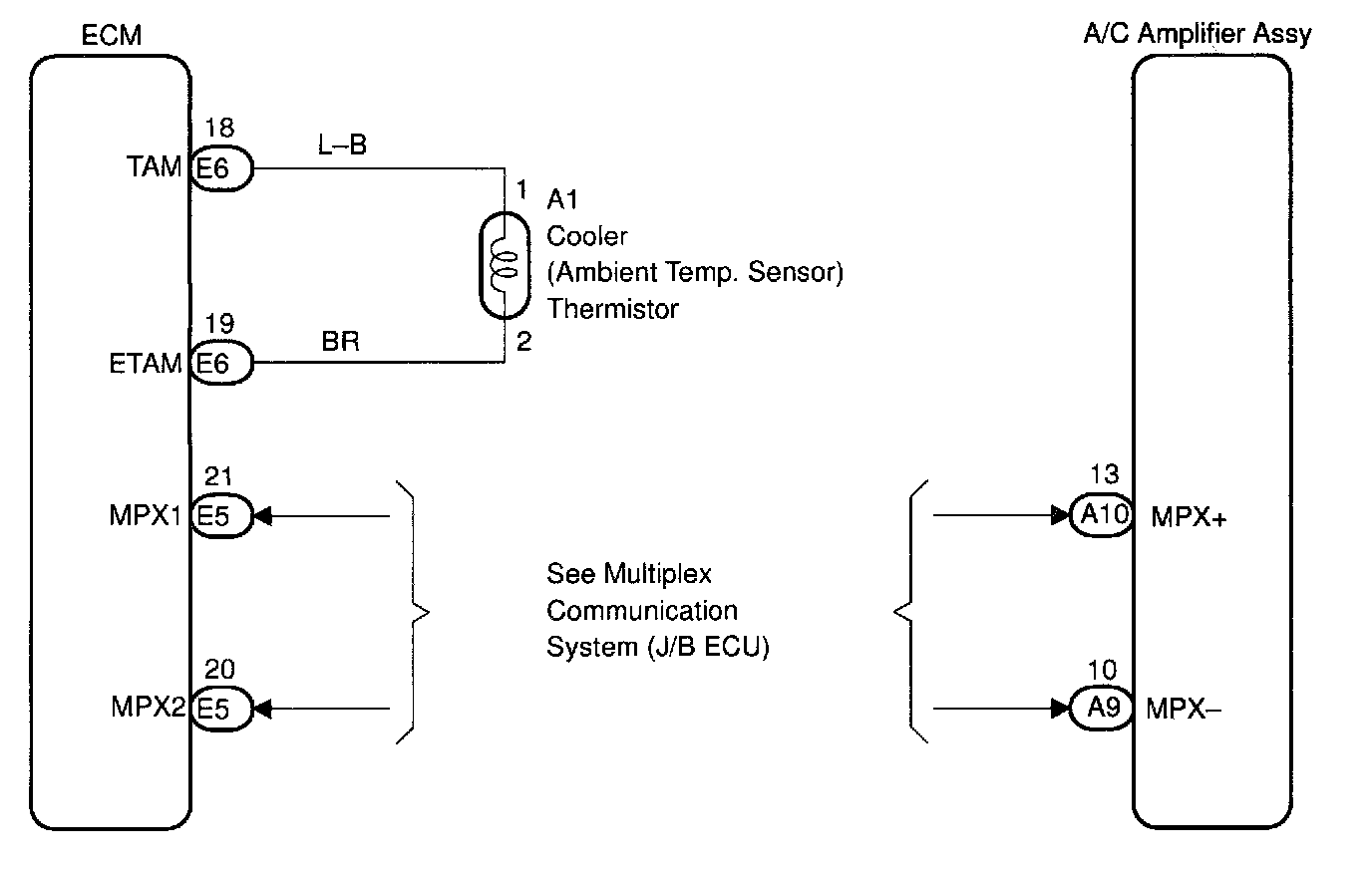

Wiring Diagram:

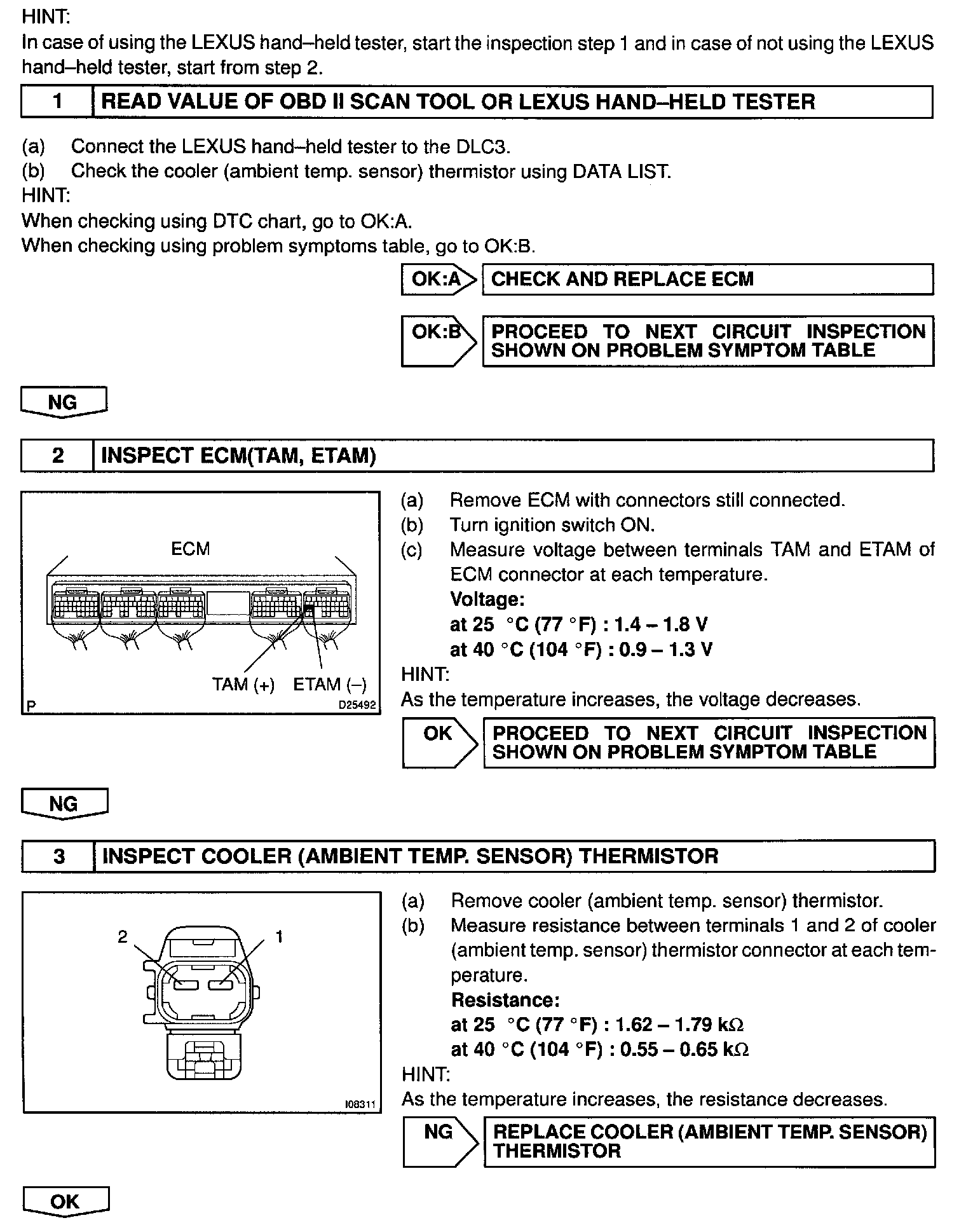

Step 1 - 3:

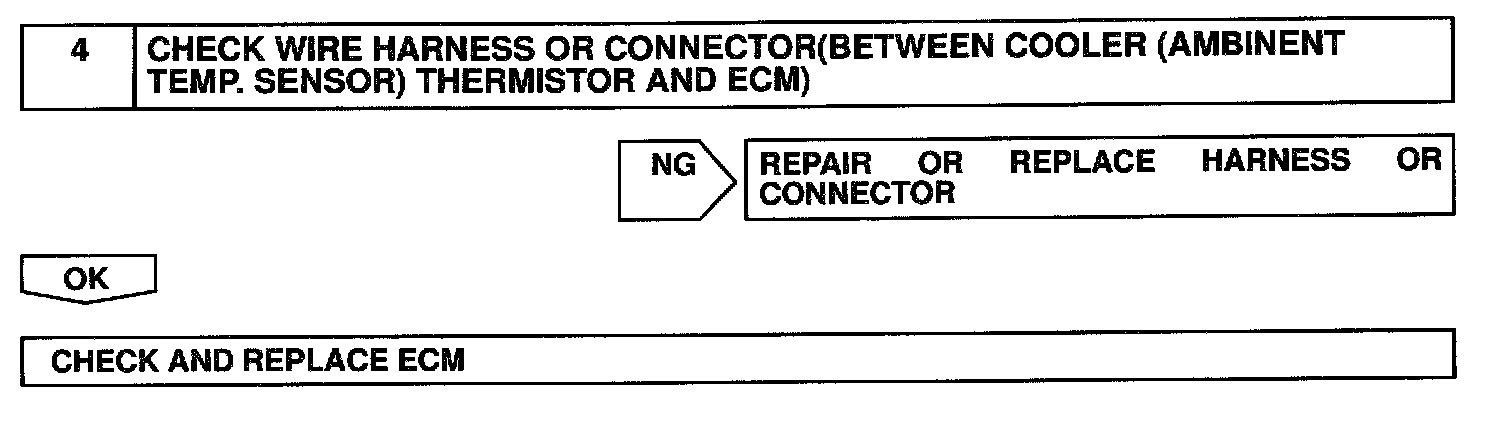

Step 4:

INSPECTION PROCEDURE
