B1289

DTC B1289 PASSENGER SEAT ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detecting Condition:

B1289 will be output when the communication between the passenger seat ECU and gateway ECU stops for more than 10 seconds.

Wiring Diagram:

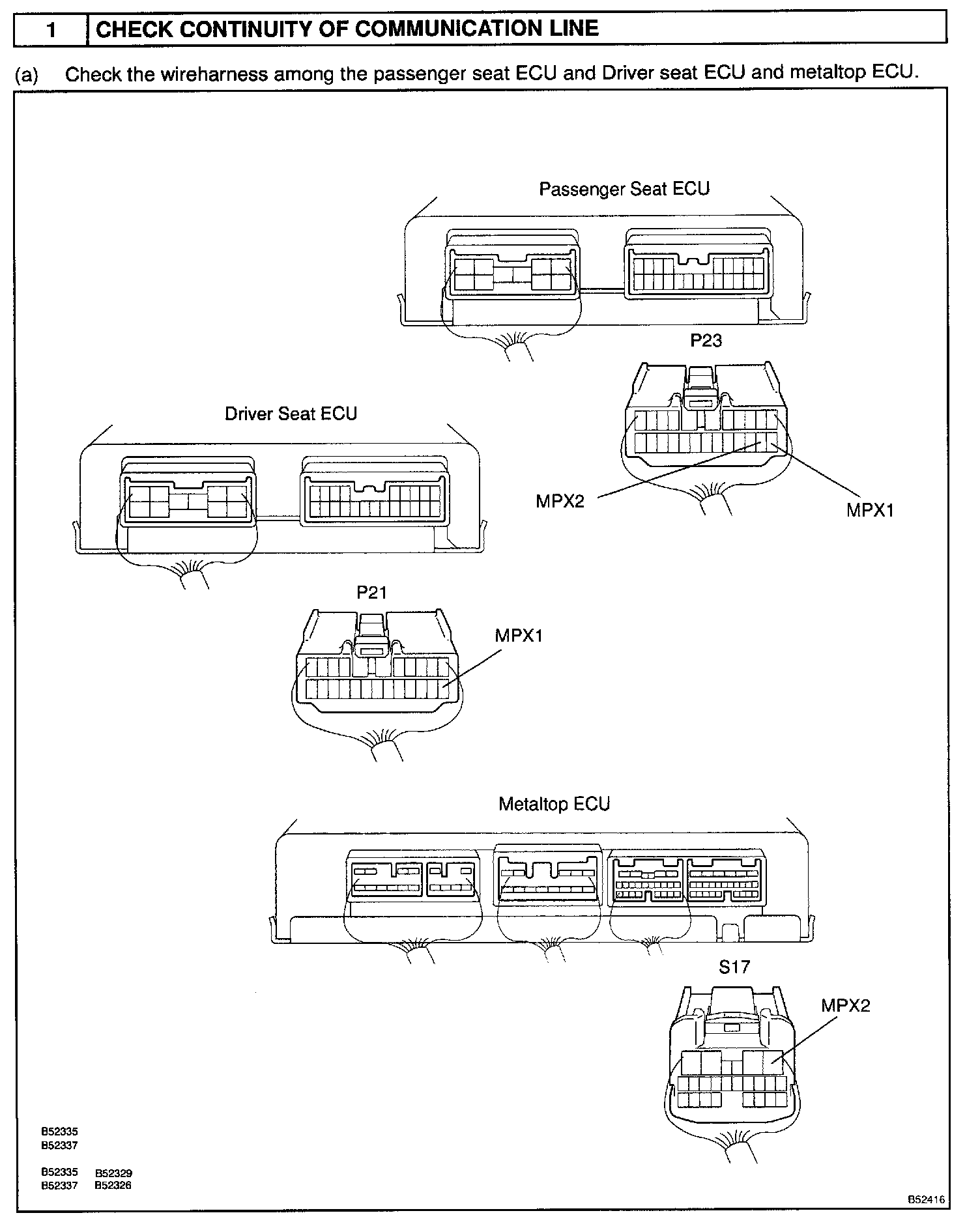

Step 1:

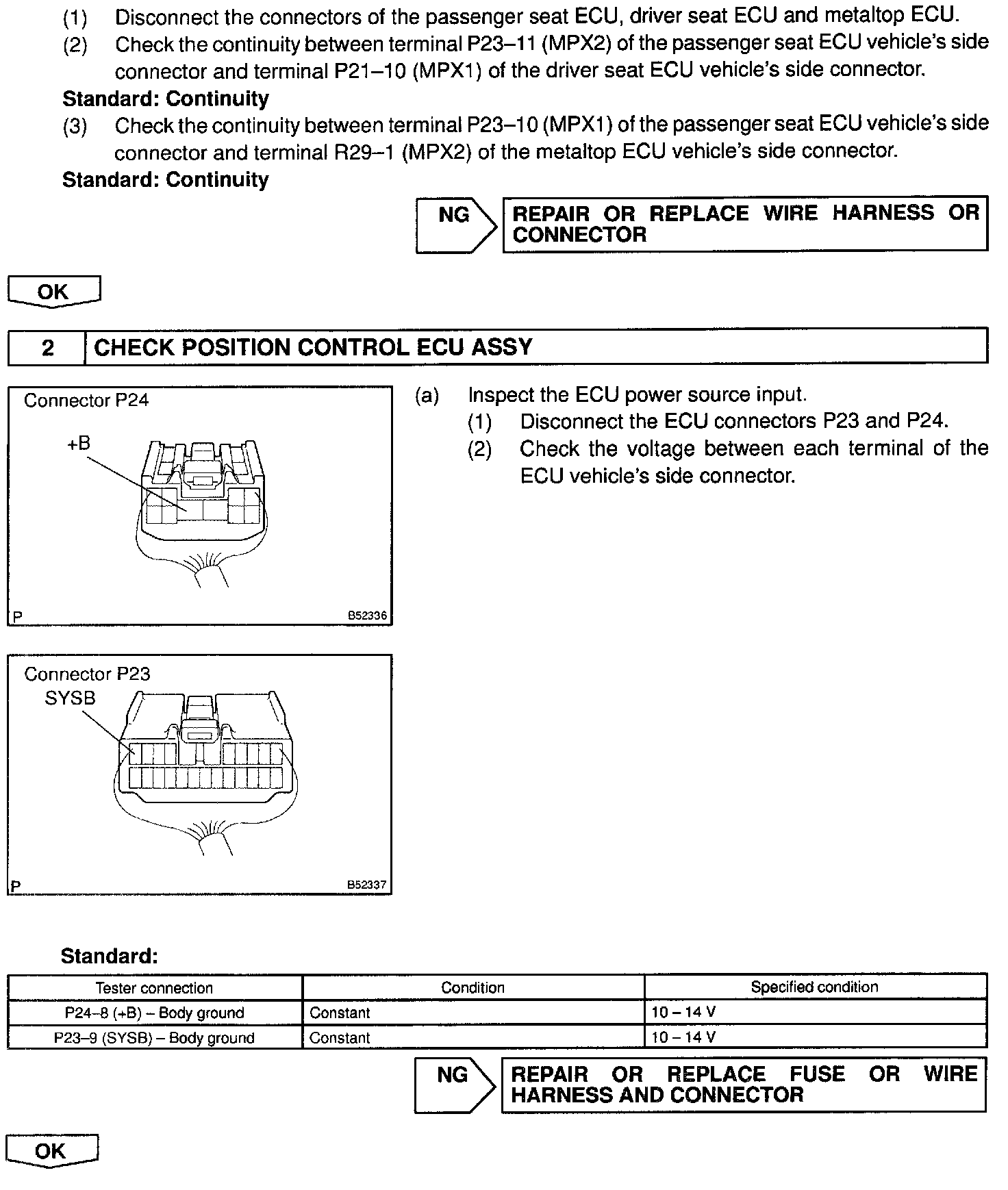

Step 1 (Continued) - 2:

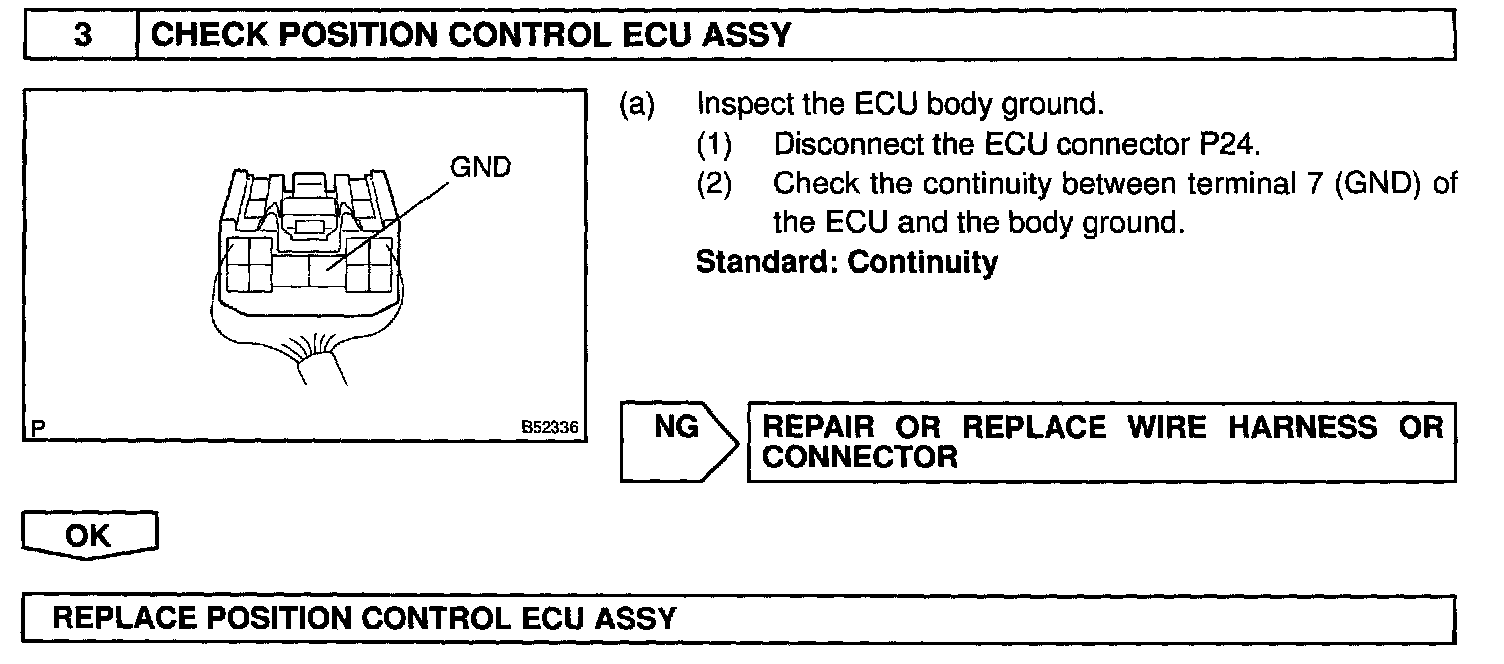

Step 3:

INSPECTION PROCEDURE
