B1285

DTC B1285 STEERING PAD SWITCH COMMUNICATION STOP

CIRCUIT DESCRIPTION

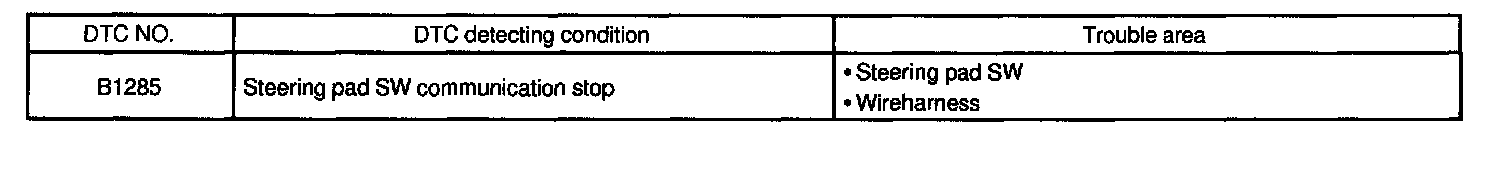

DTC Detecting Condition:

B1285 will be output when the communication between the steering pad SW and gateway ECU stops for more than 10 seconds.

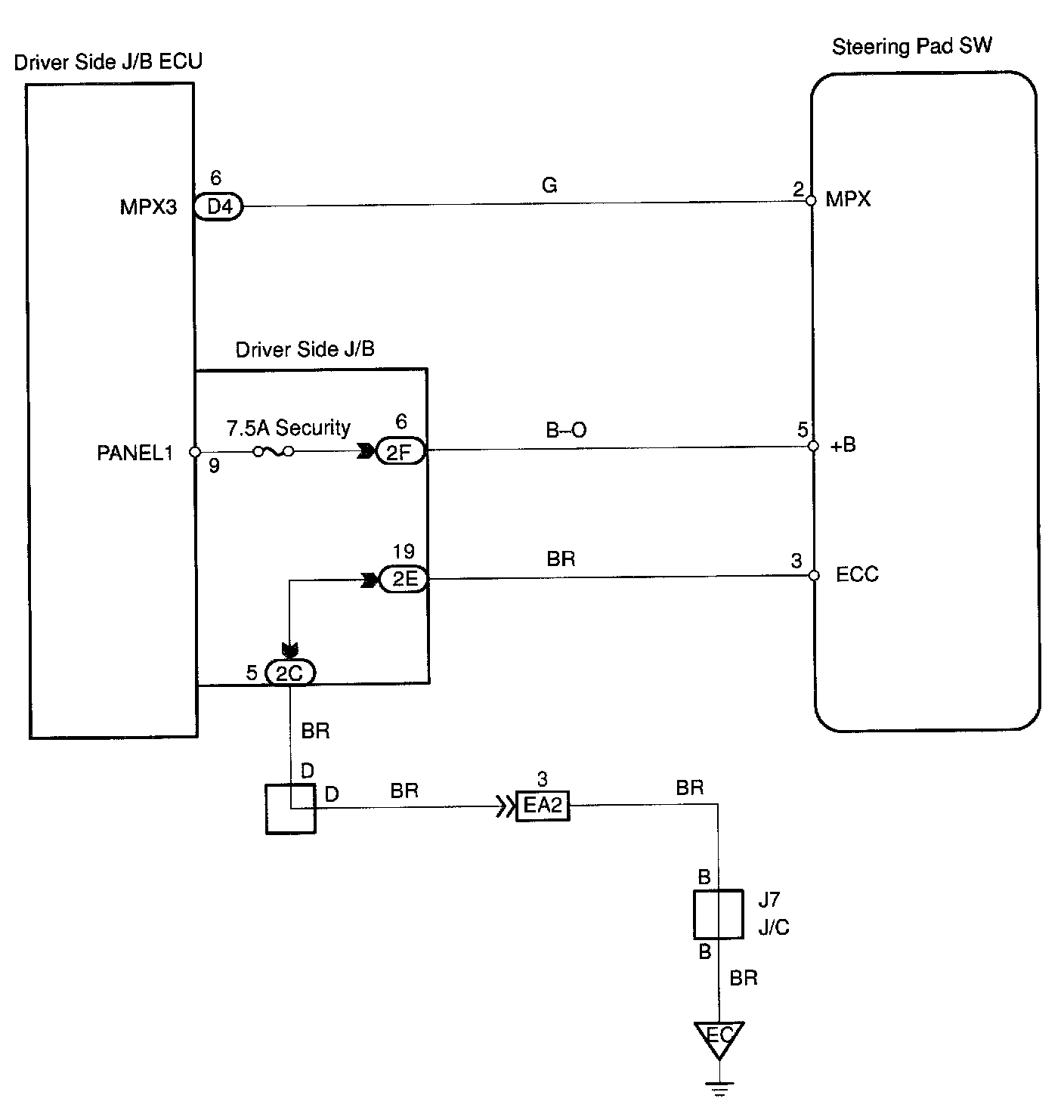

Wiring Diagram:

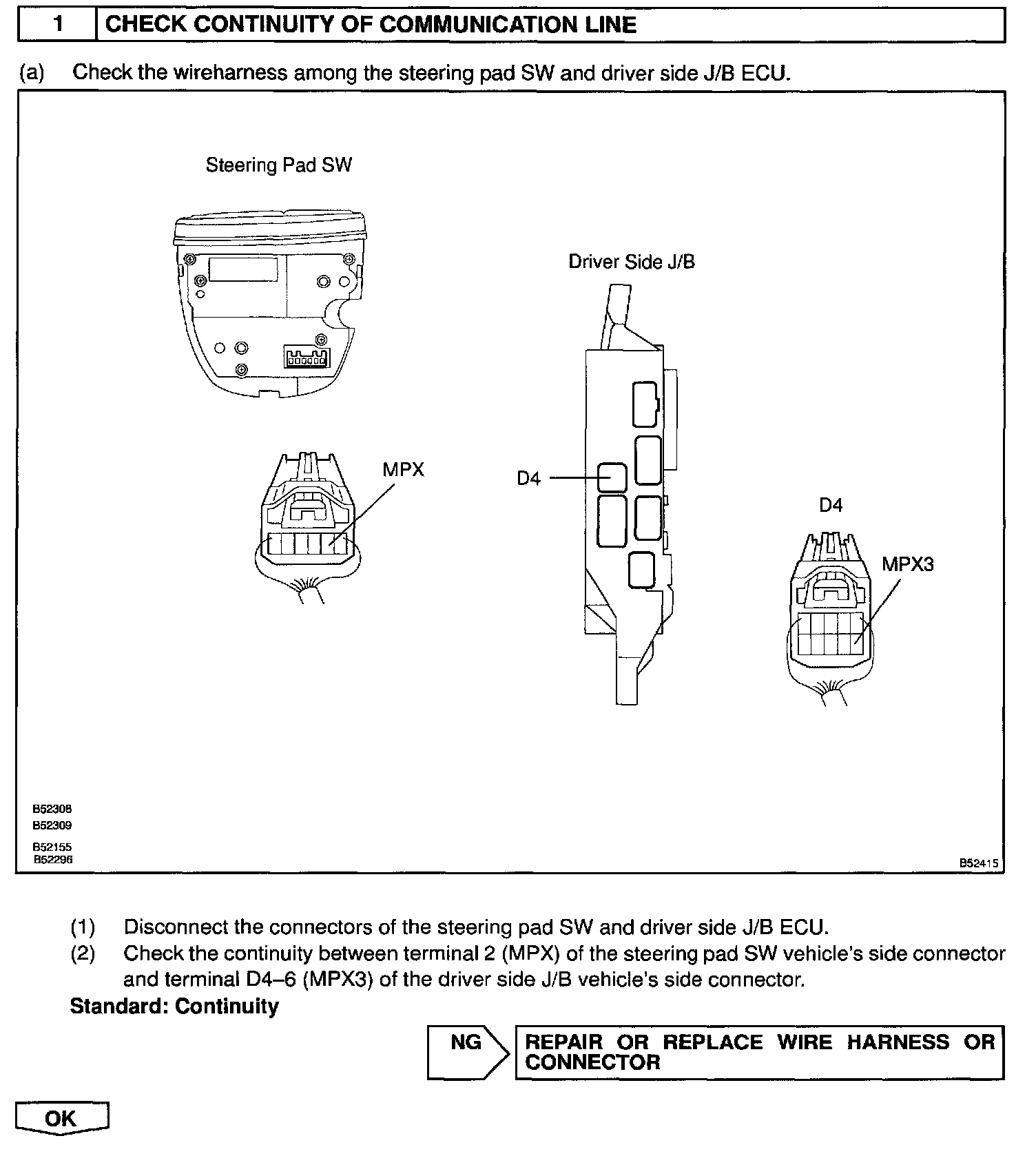

Step 1:

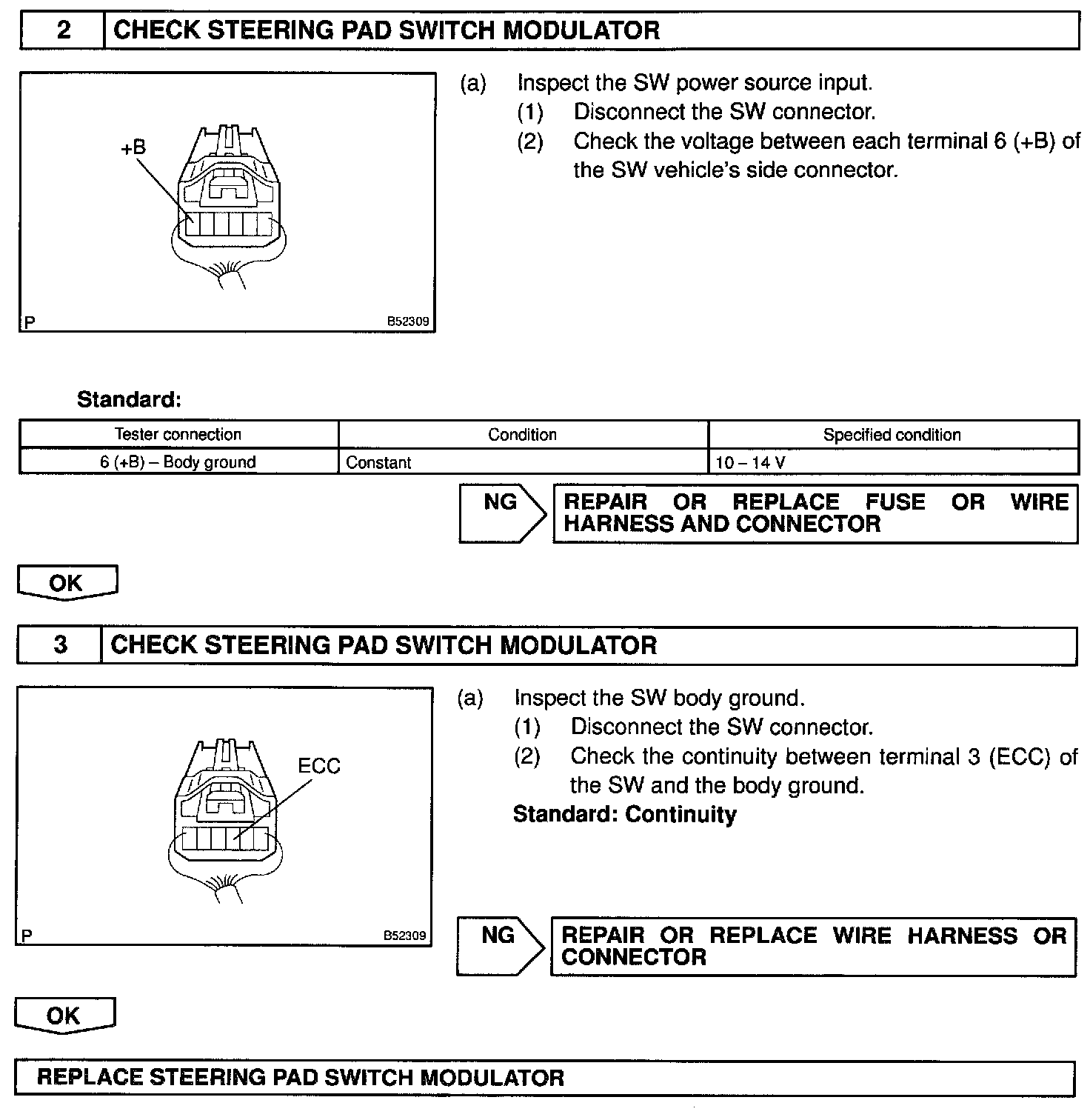

Step 2 - 3:

INSPECTION PROCEDURE
