B1282

DTC B1282 SKID CONTROL ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detecting Condition:

B1282 will be output when the communication between the skid control ECU and gateway ECU stops for more than 10 seconds.

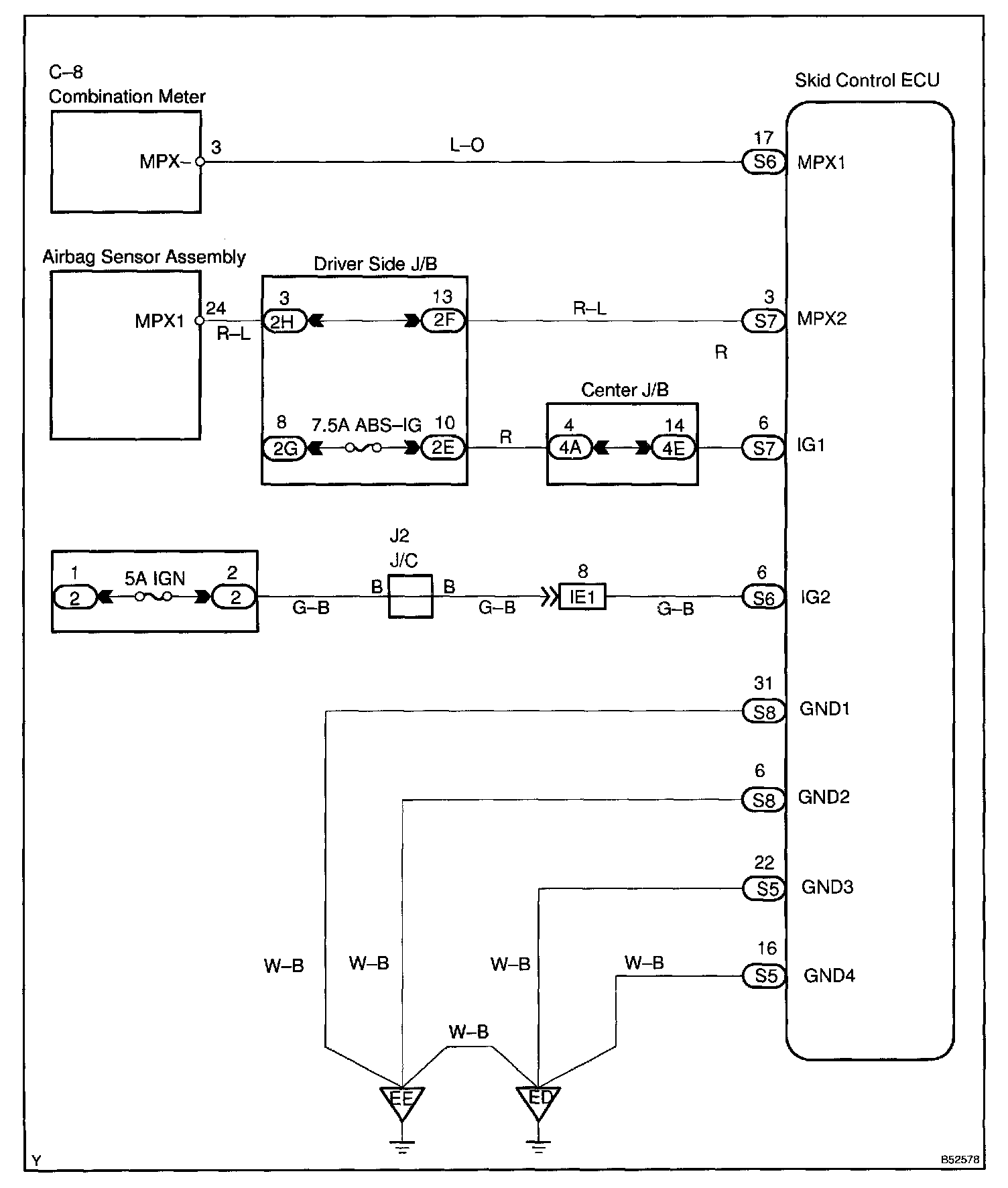

Wiring Diagram:

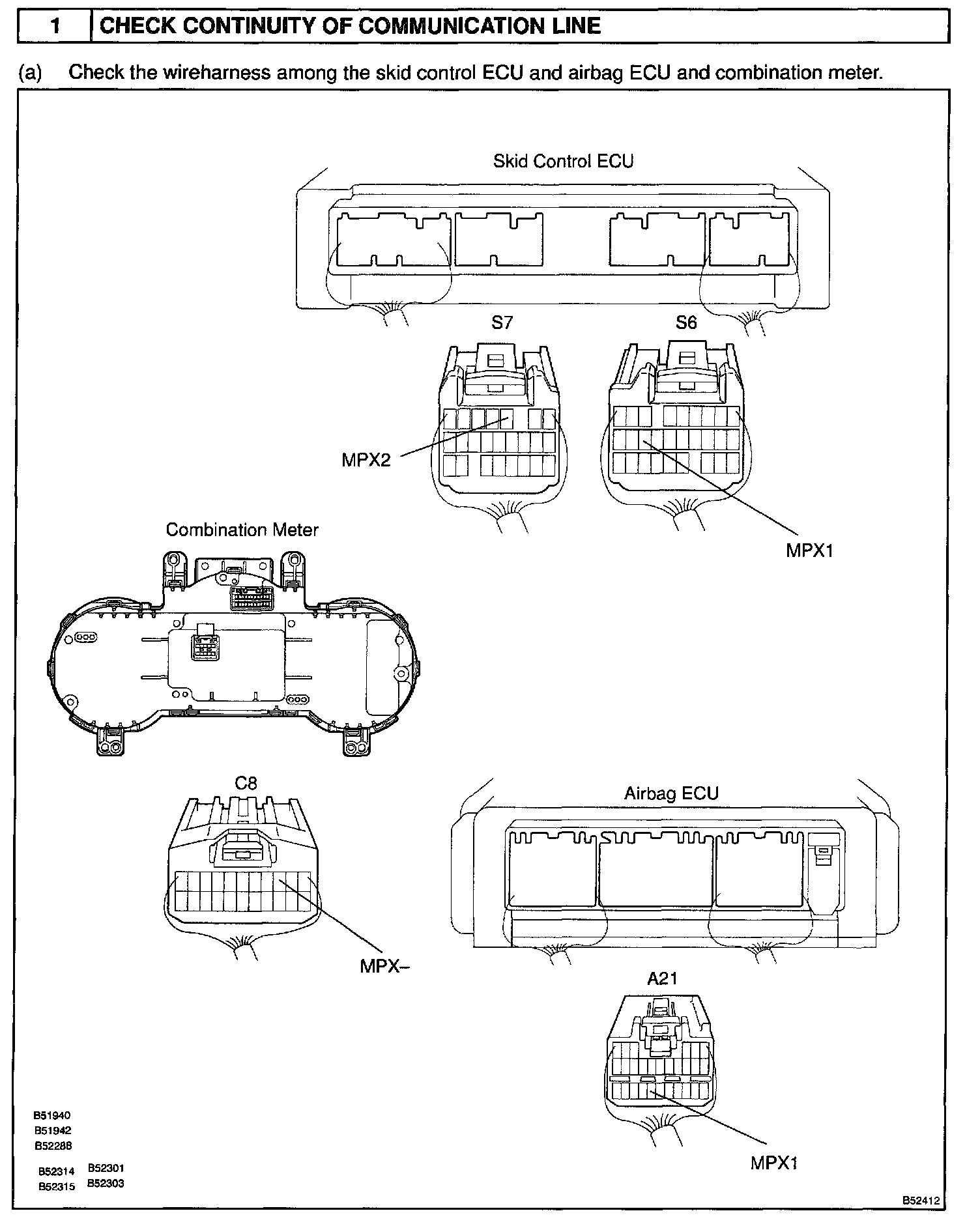

Step 1:

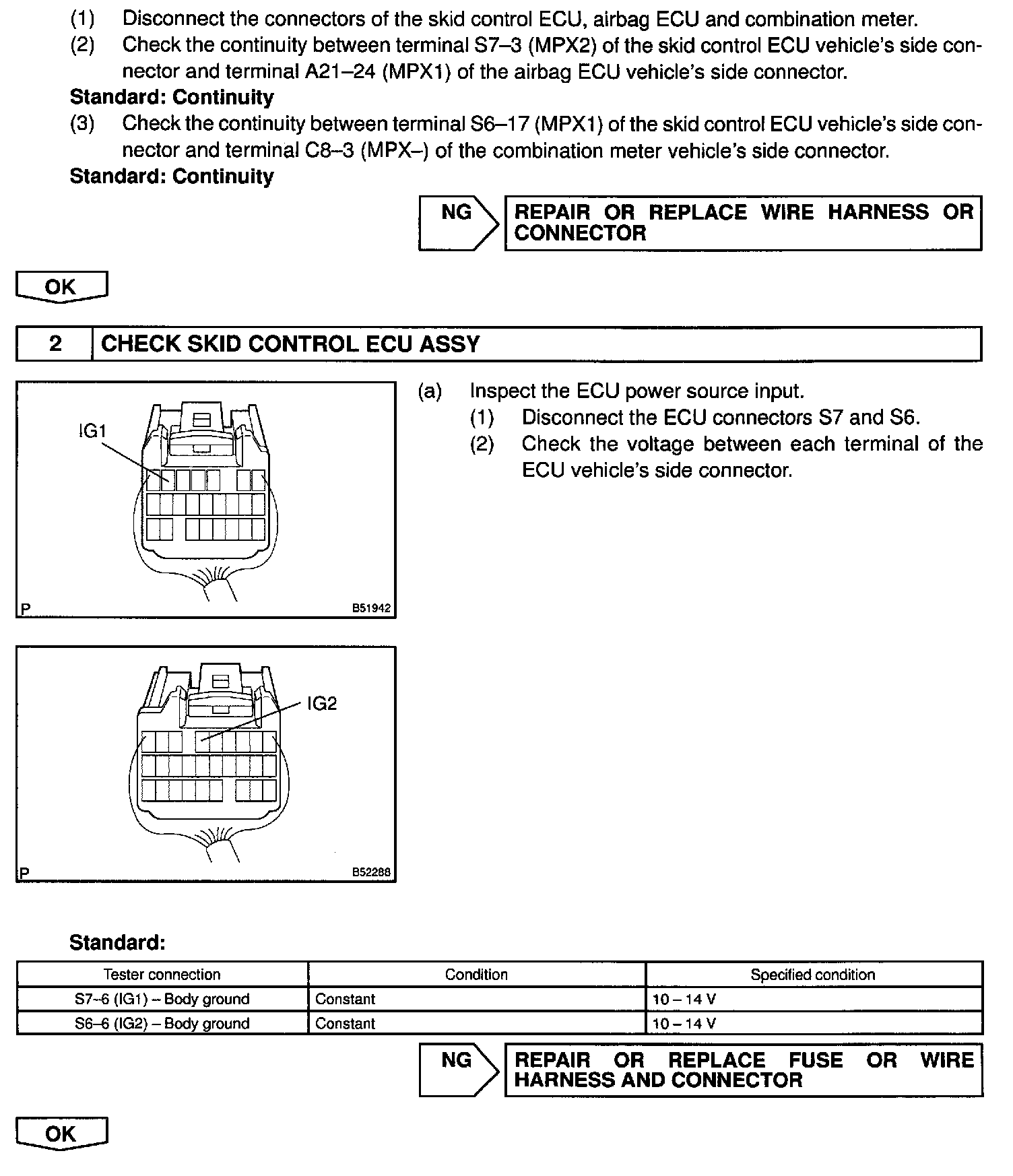

Step 1 (Continued) - 2:

Step 3:

INSPECTION PROCEDURE
