B1281

DTC B1281 AIRBAG ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detecting Condition:

B1281 will be output when the communication between the airbag ECU and gateway ECU stops for more than 10 seconds.

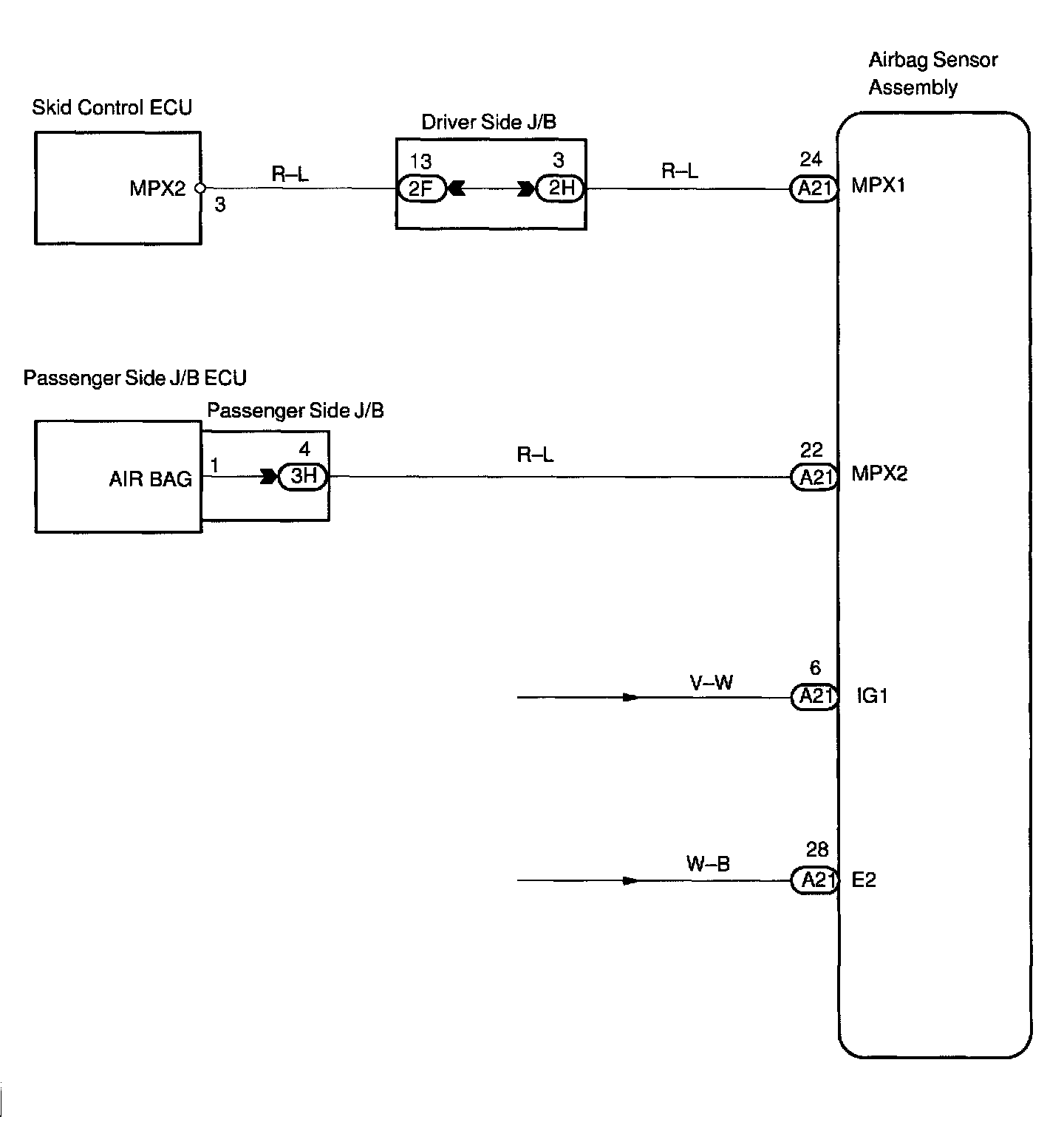

Wiring Diagram:

Step 1:

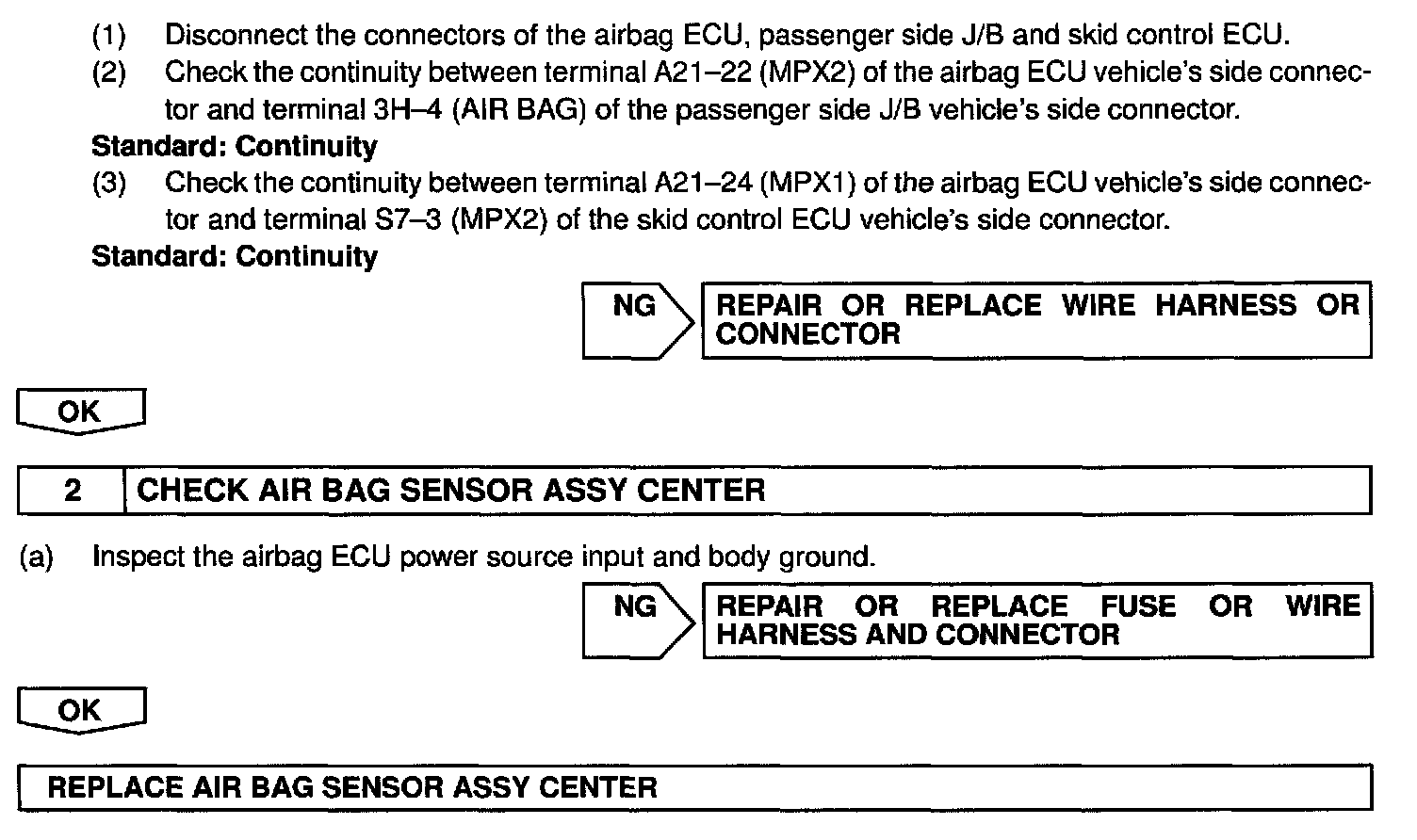

Step 1 (Continued) - 2:

INSPECTION PROCEDURE
