B1278

DTC B1278 COMBINATION SWITCH ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

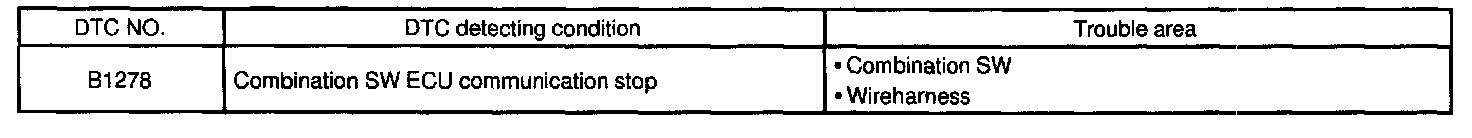

DTC Detecting Condition:

B1278 will be output when the communication between the combination SW and gateway ECU stops for more than 10 seconds.

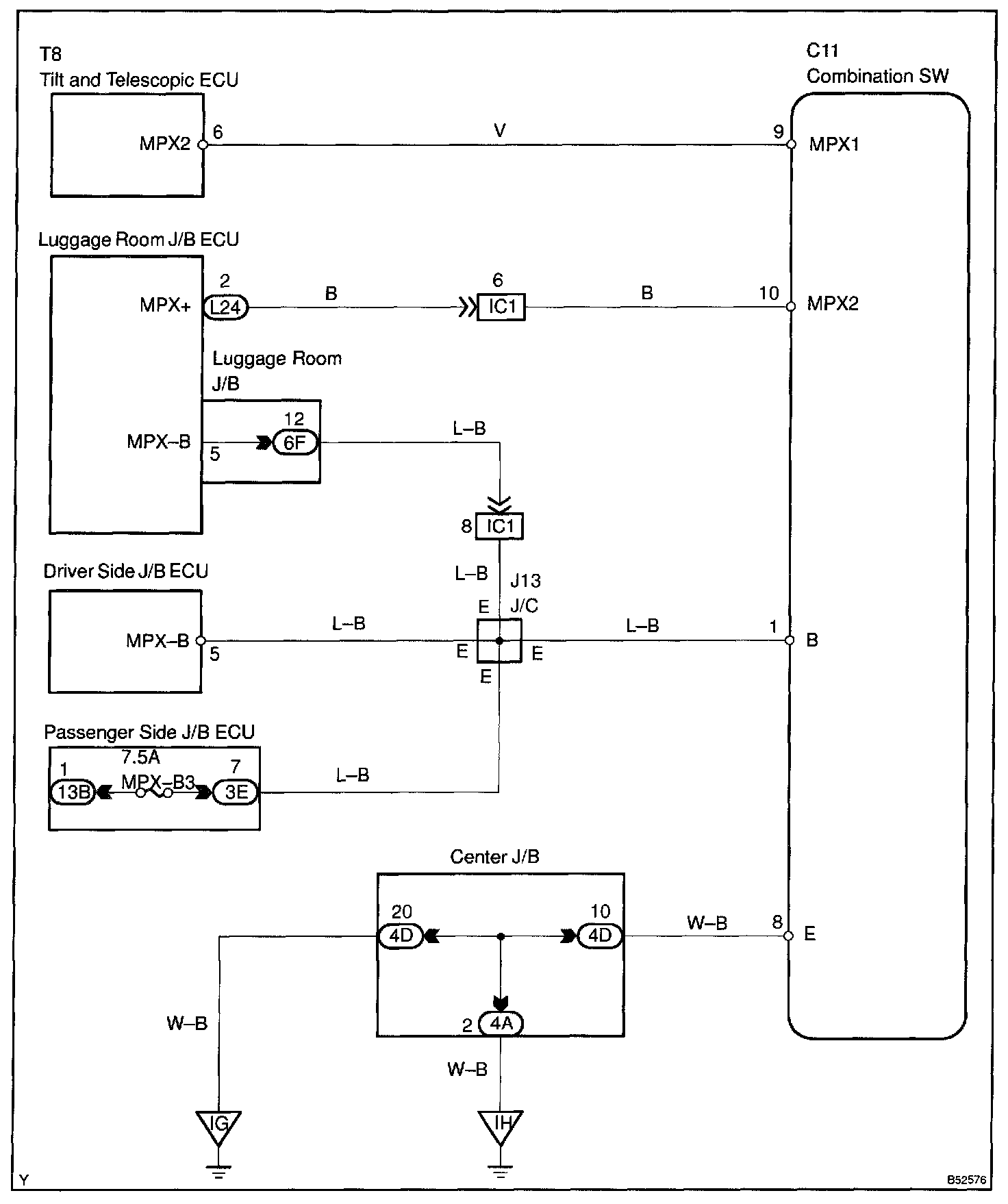

Wiring Diagram:

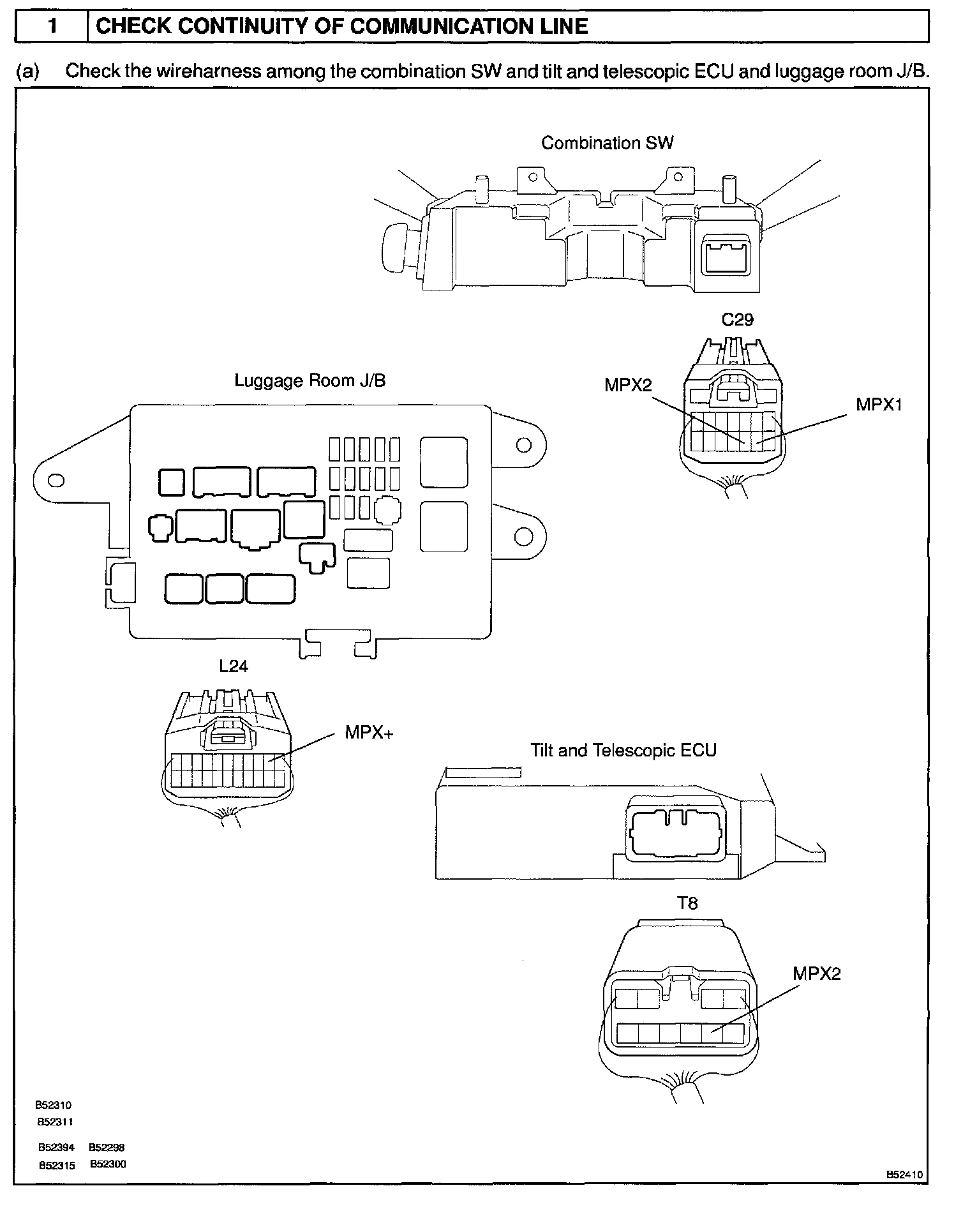

Step 1:

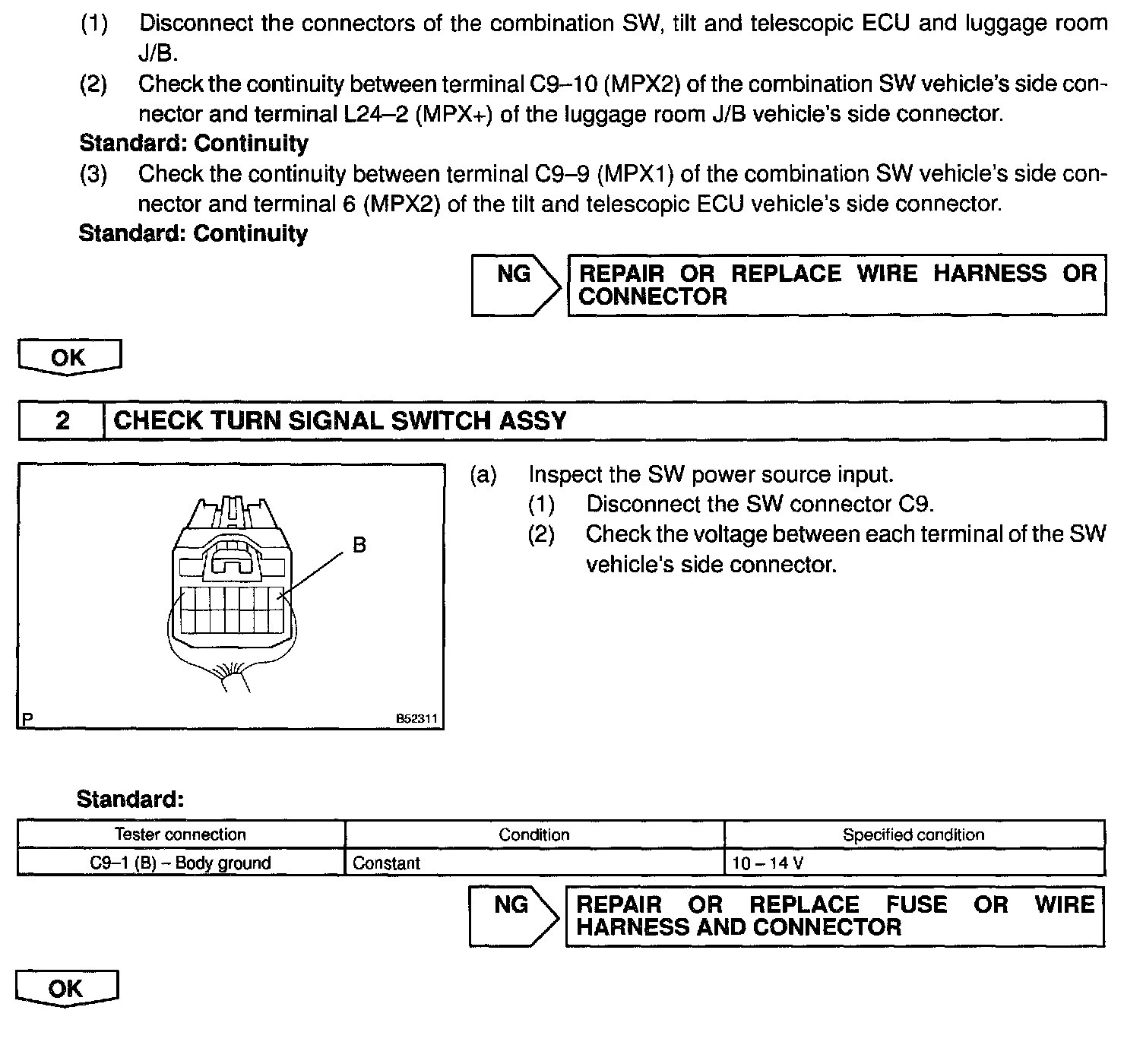

Step 1 (Continued) - 2:

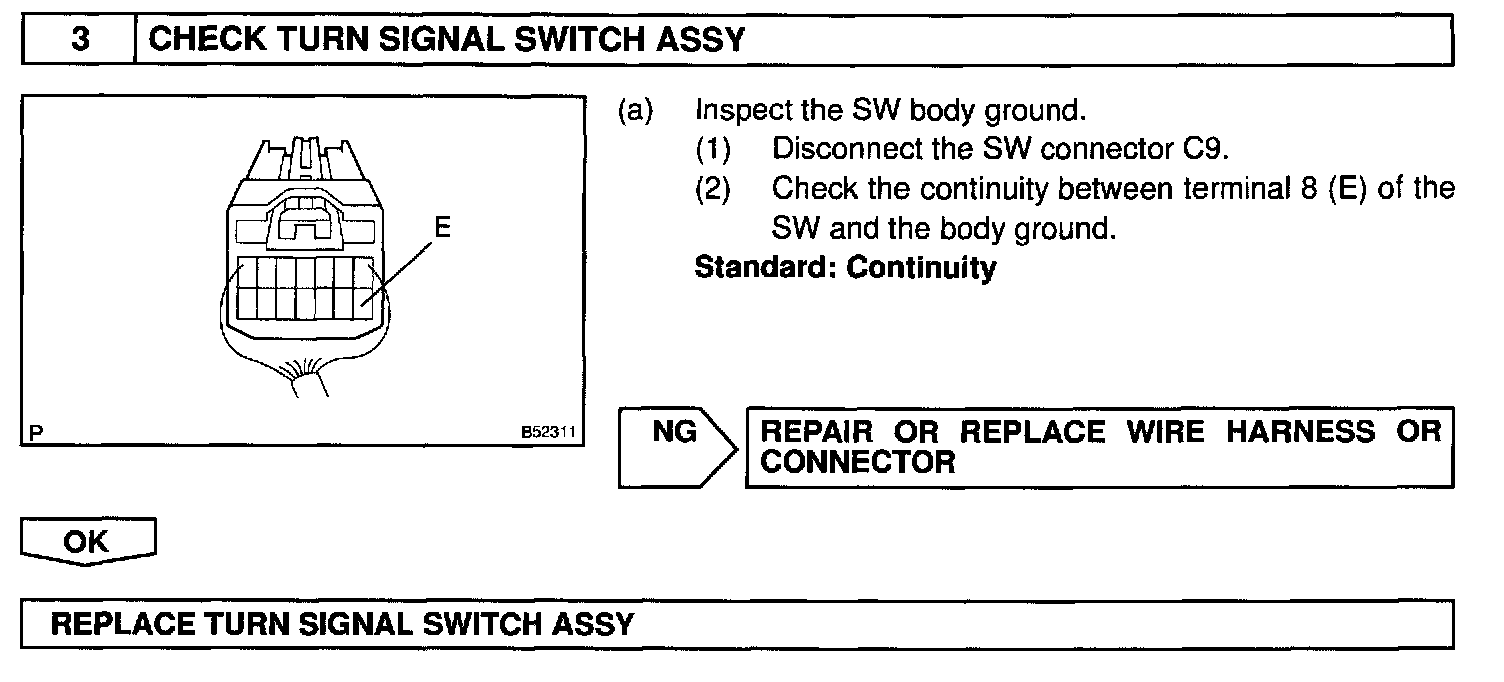

Step 3:

INSPECTION PROCEDURE
