B1268

DTC B1268 BACK-UP COMMUNICATION BUS MALFUNCTION

CIRCUIT DESCRIPTION

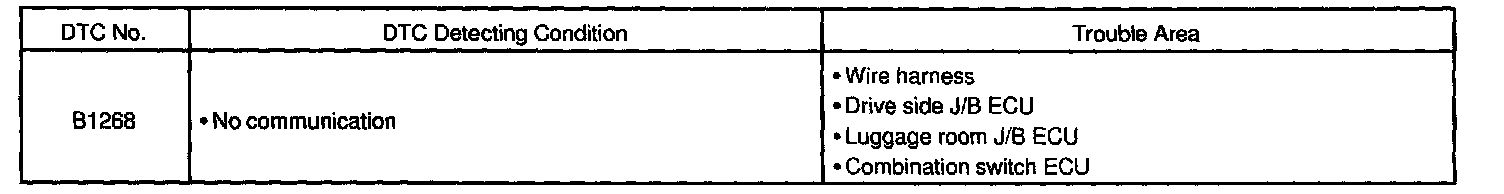

DTC Detecting Condition:

This DTC is output when +B or GND short occurs on back-up communication bus.

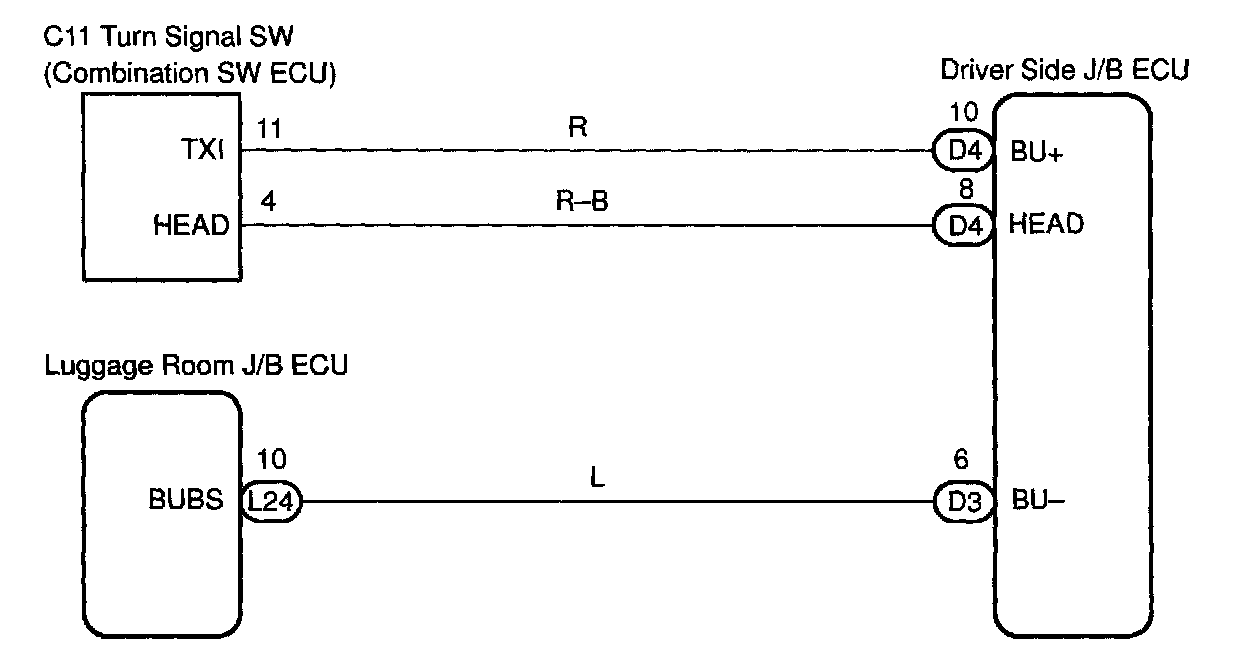

Wiring Diagram:

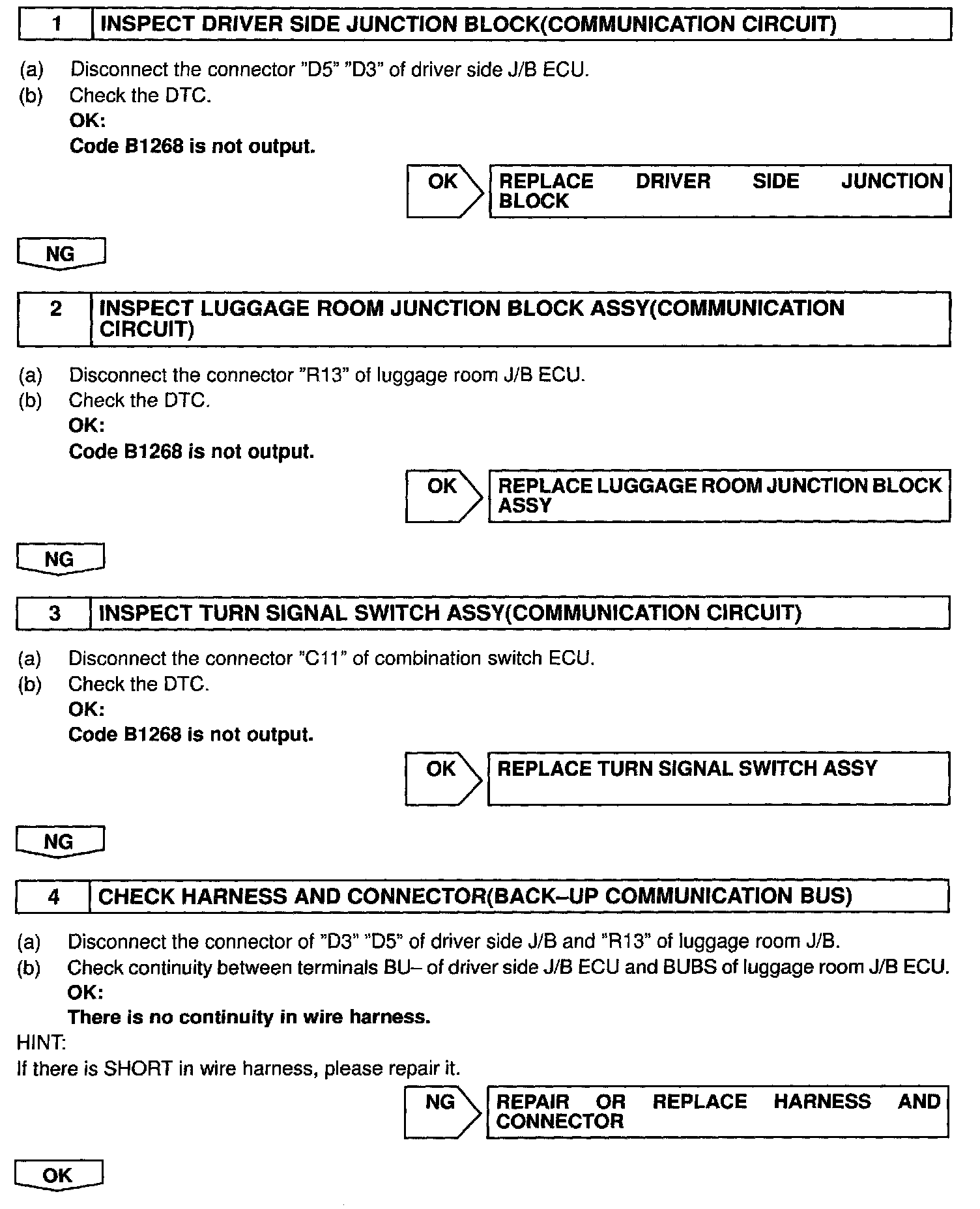

Step 1 - 4:

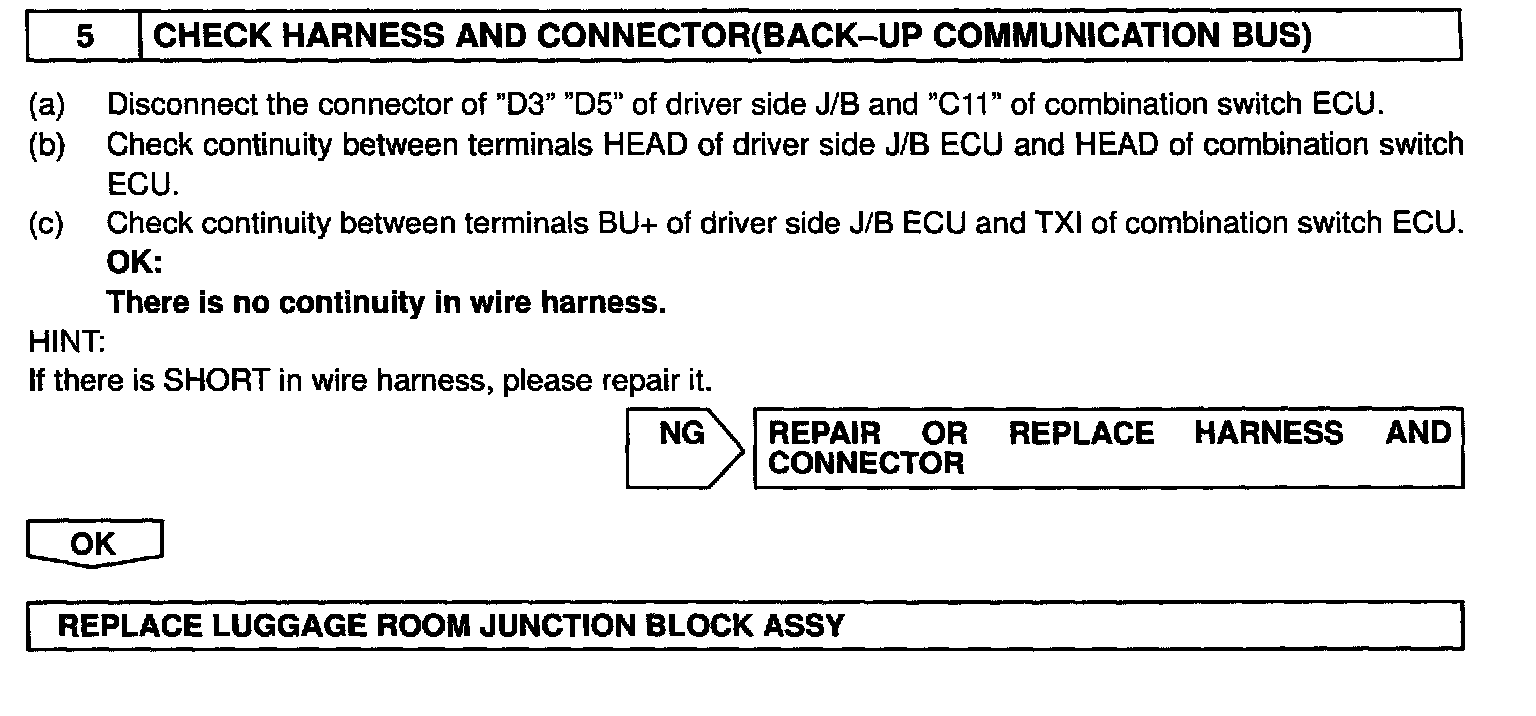

Step 5:

INSPECTION PROCEDURE
