B1262

DTC B1262 A/C ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

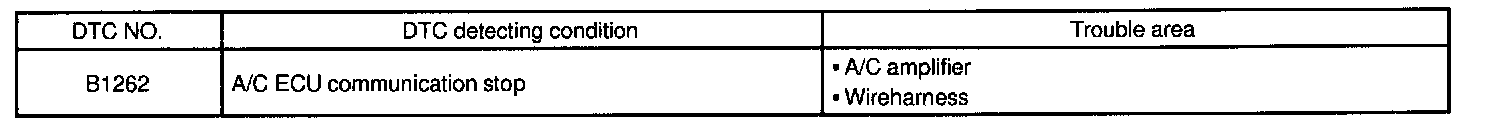

DTC Detecting Condition:

B1262 will be output when the communication between the A/C amplifier and gateway ECU stops for more than 10 seconds.

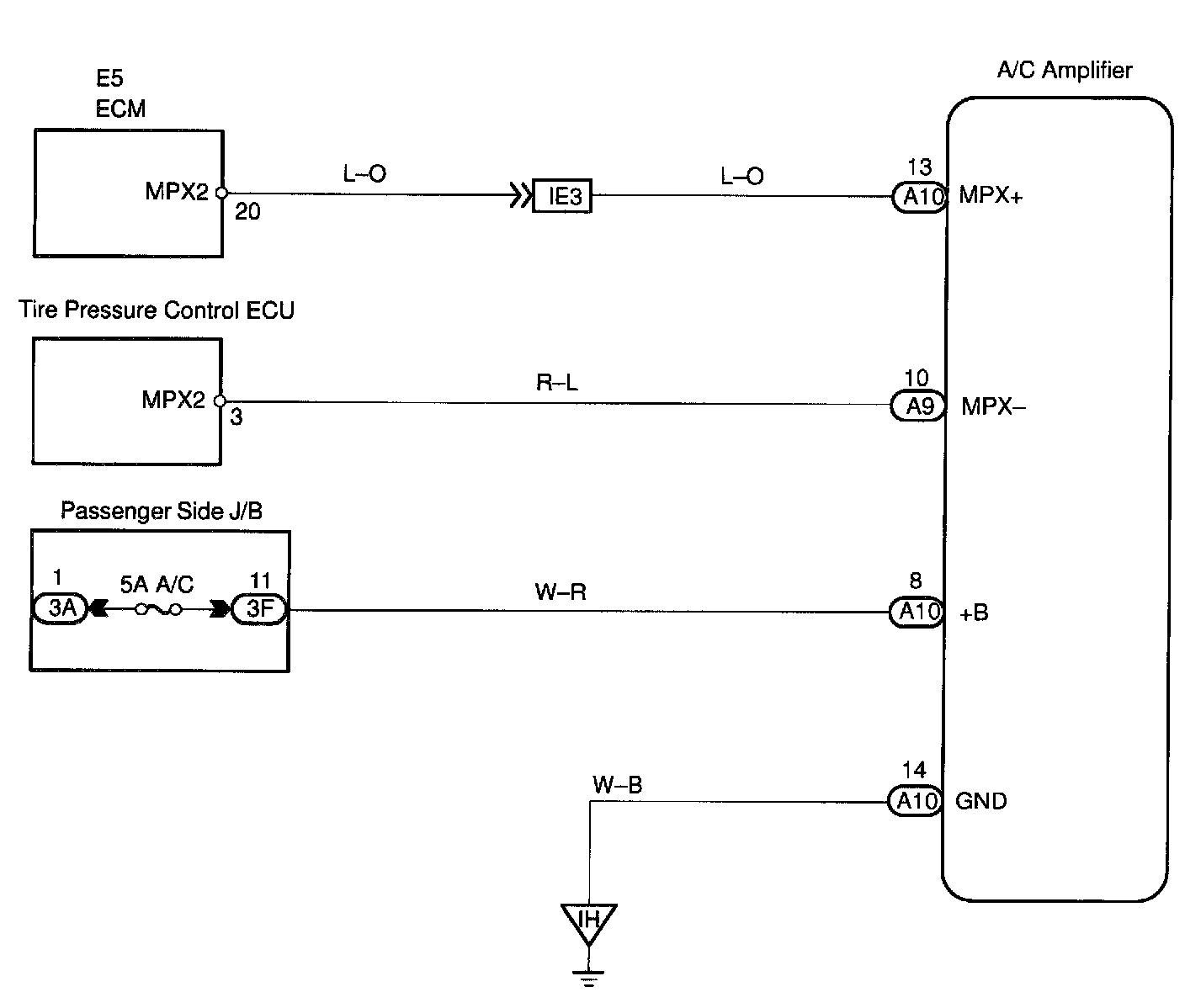

Wiring Diagram:

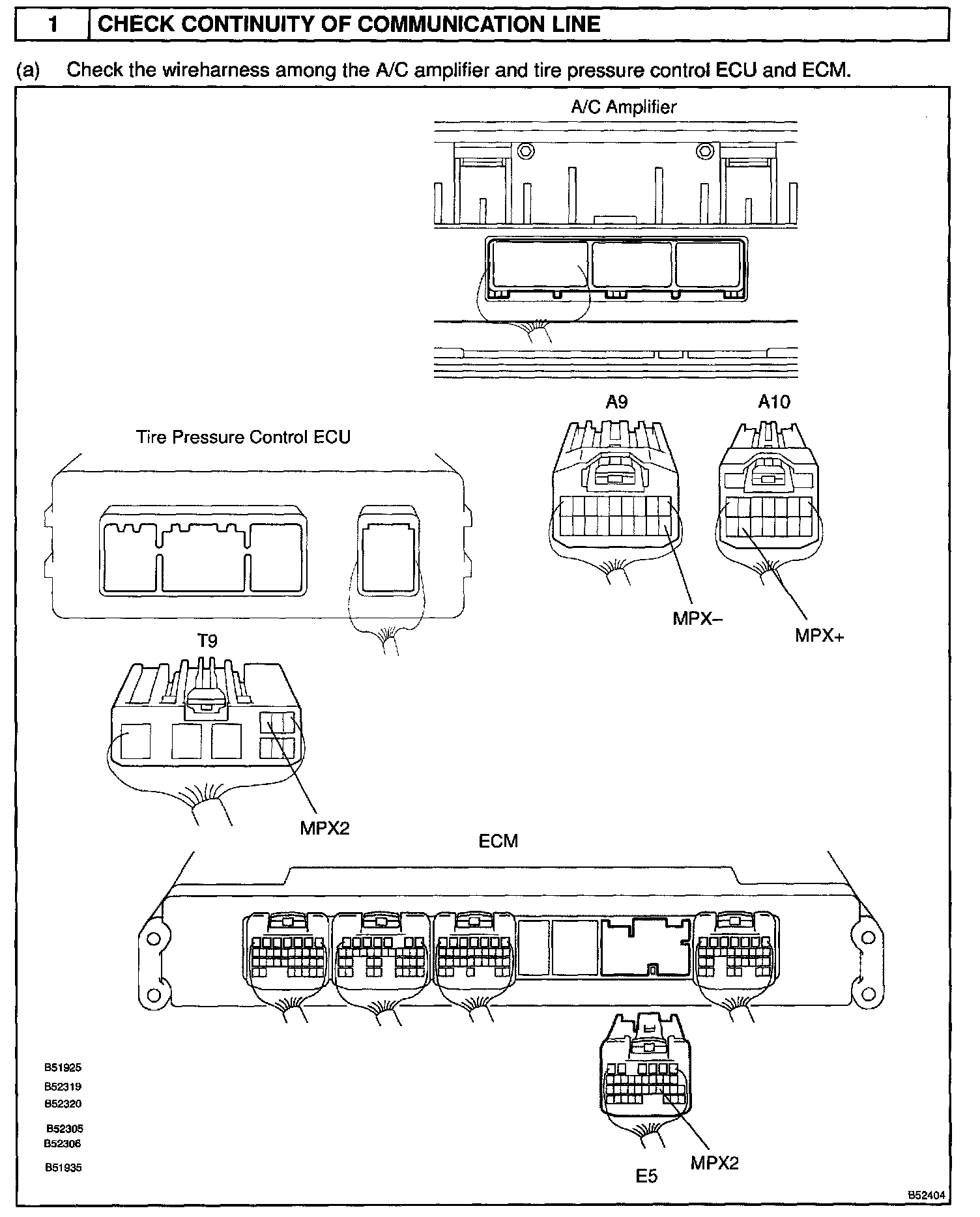

Step 1:

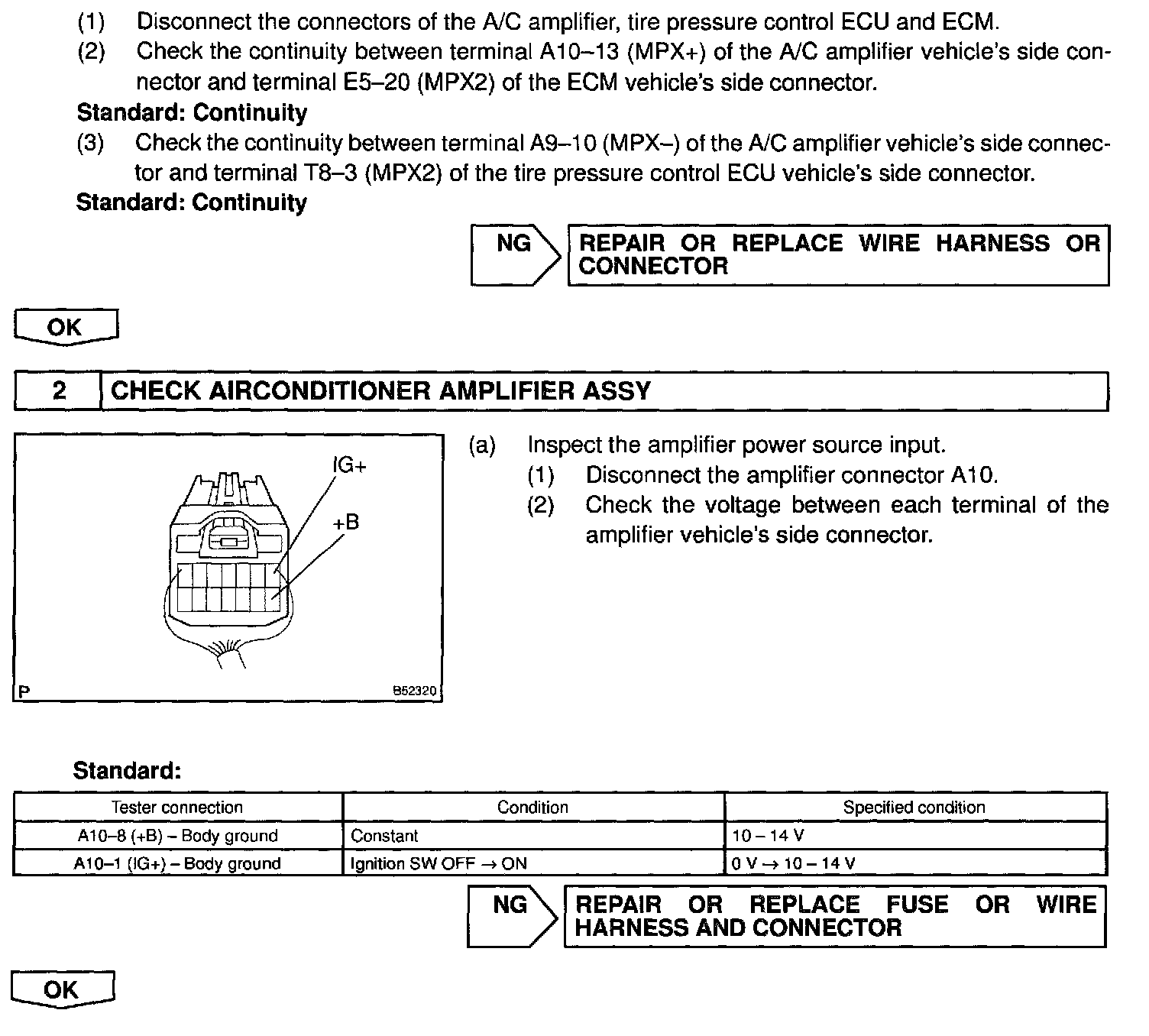

Step 1 (Continued) - 2:

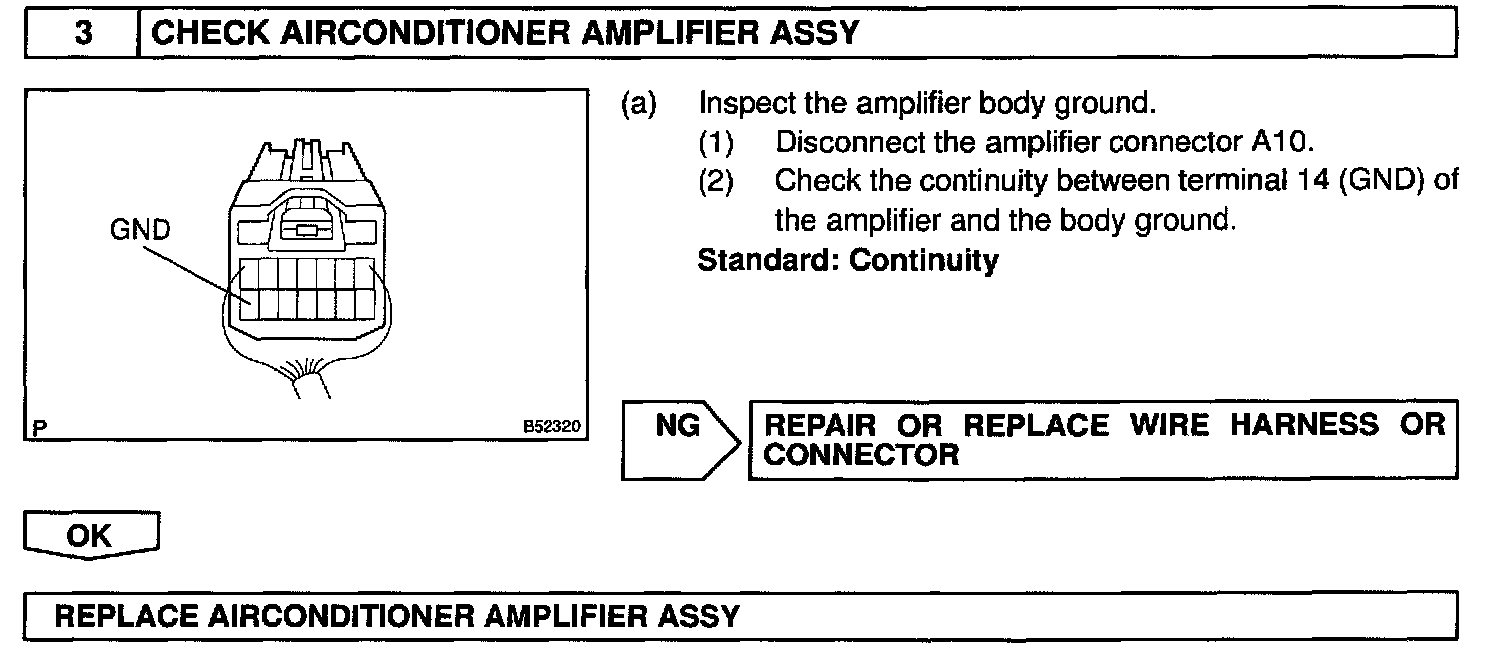

Step 3:

INSPECTION PROCEDURE
