B1261

DTC B1261 ECM (ENGINE ECU) COMMUNICATION STOP

CIRCUIT DESCRIPTION

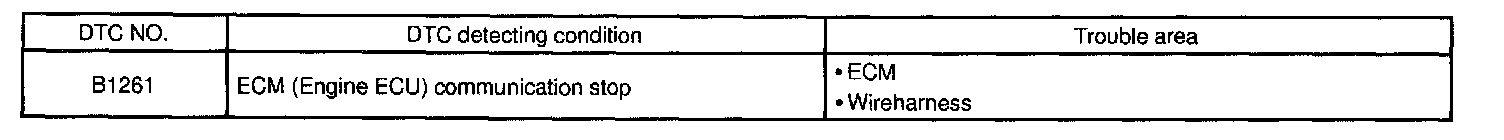

DTC Detecting Condition:

B1261 will be output when the communication between the ECM (engine ECU) and gateway ECU stops for more than 10 seconds.

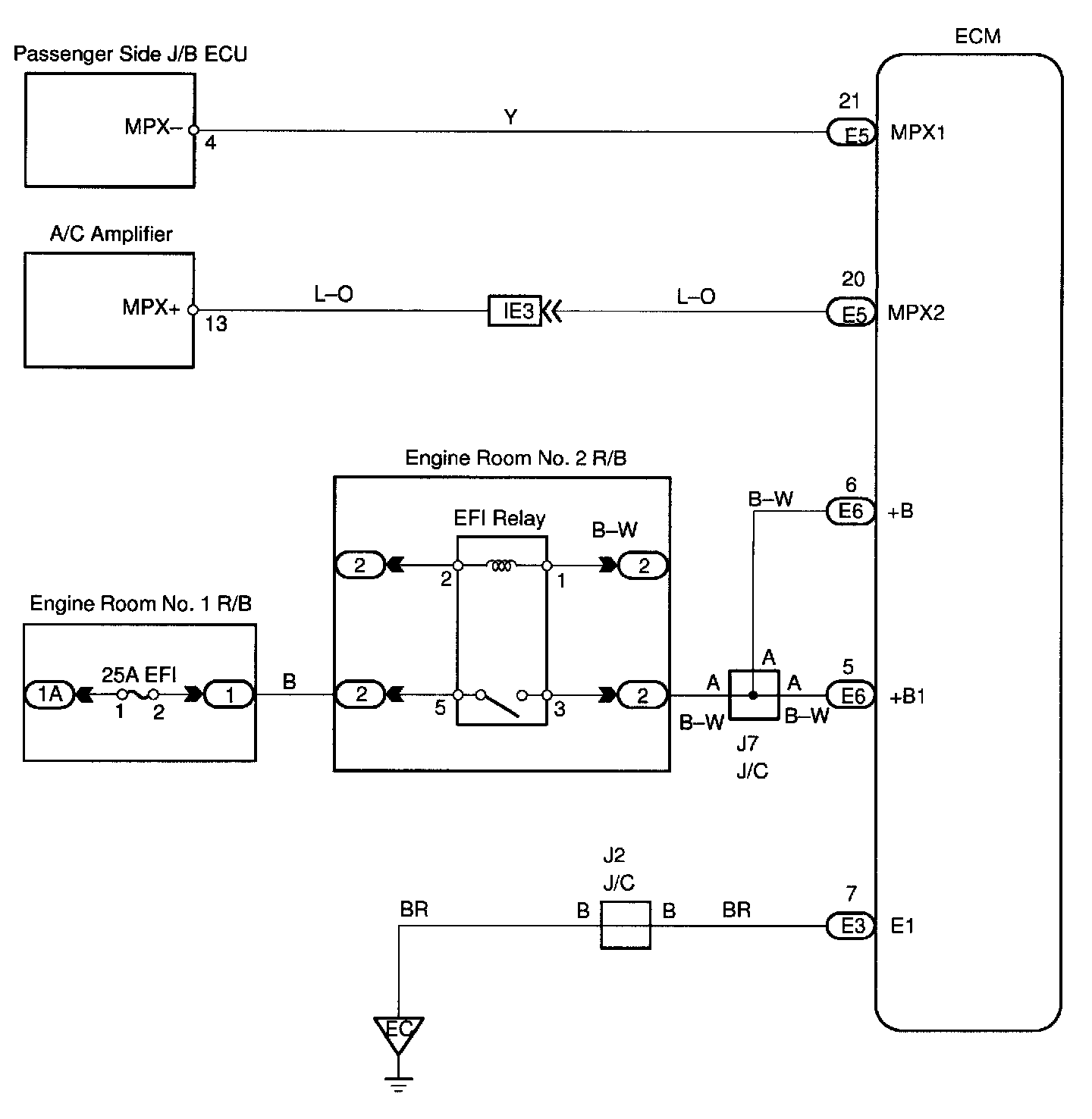

Wiring Diagram:

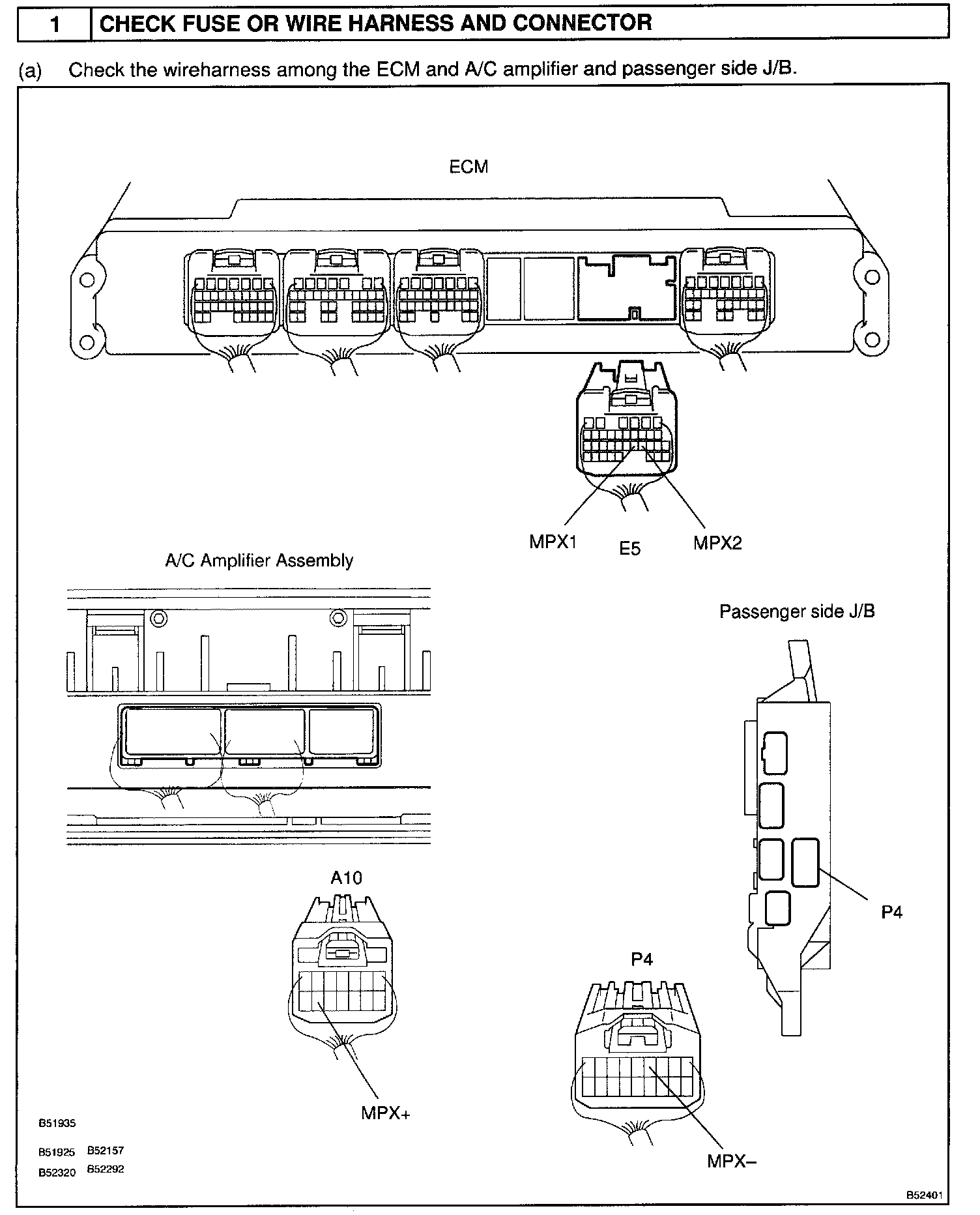

Step 1:

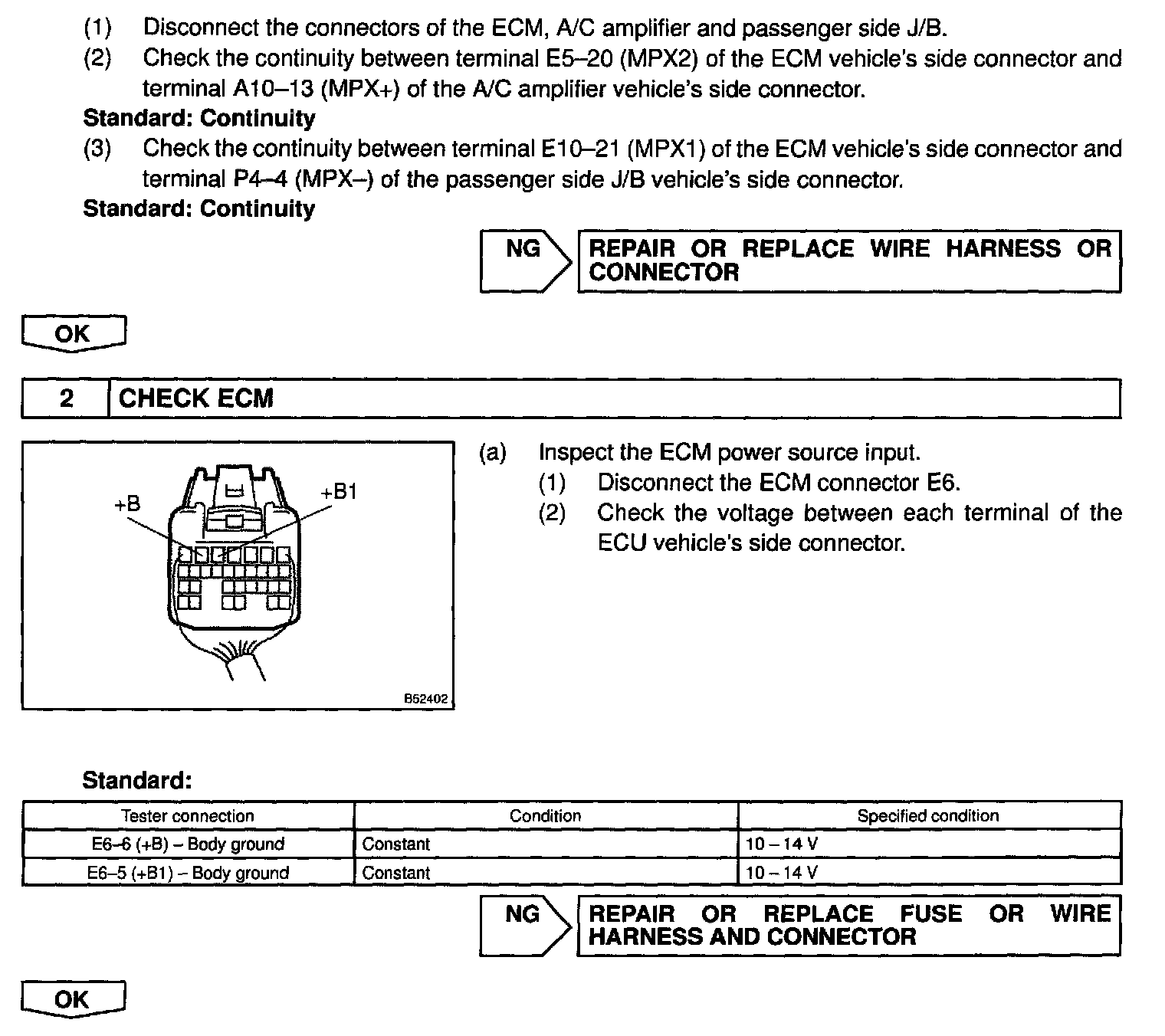

Step 1 (Continued) - 2:

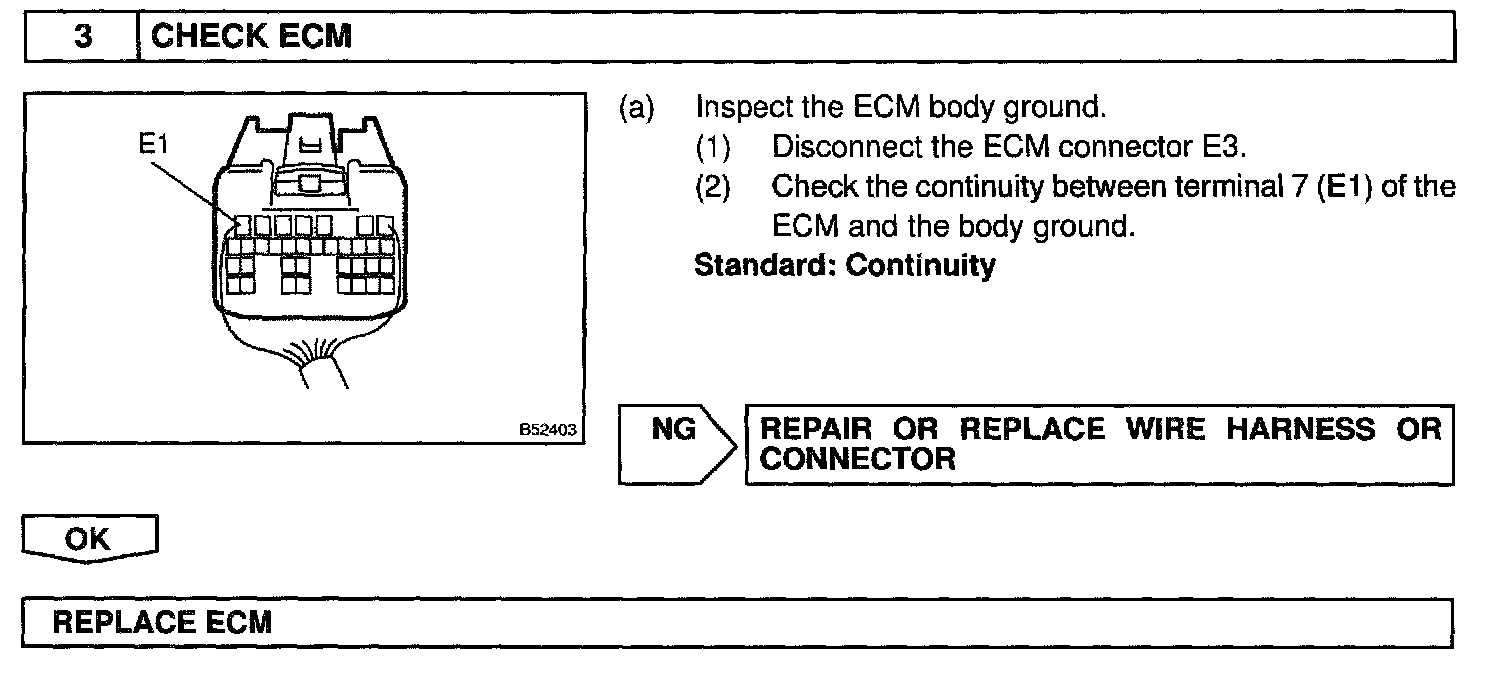

Step 3:

INSPECTION PROCEDURE
