B1248

DTC B1248 AVC-LAN COMMUNICATION IMPOSSIBLE CIRCUIT DESCRIPTION

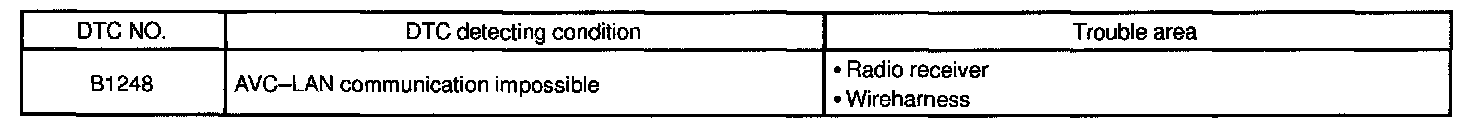

DTC Detecting Condition:

B1248 will be output when the communication impossible between the radio receiver assembly and gateway ECU.

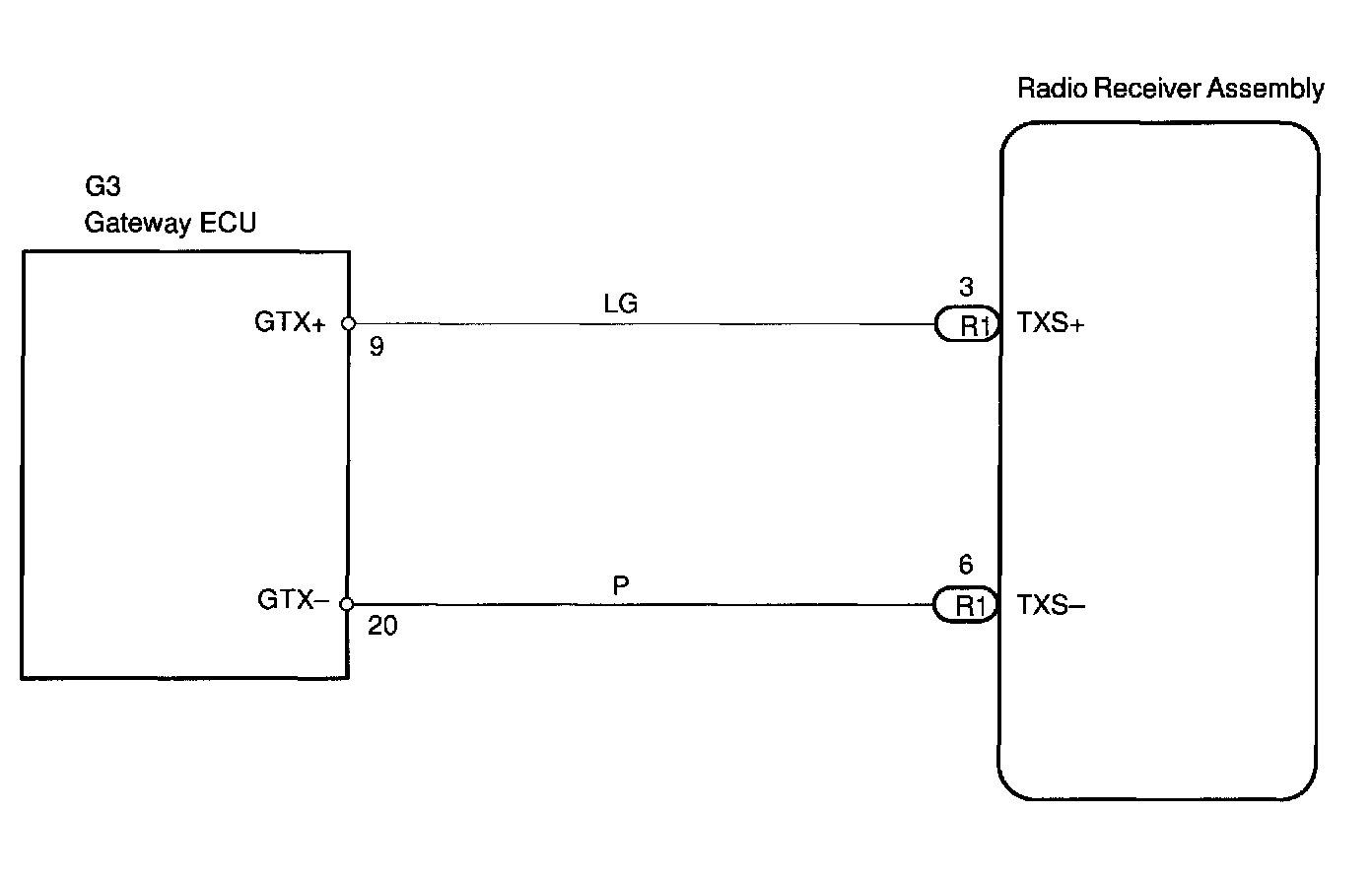

Wiring Diagram:

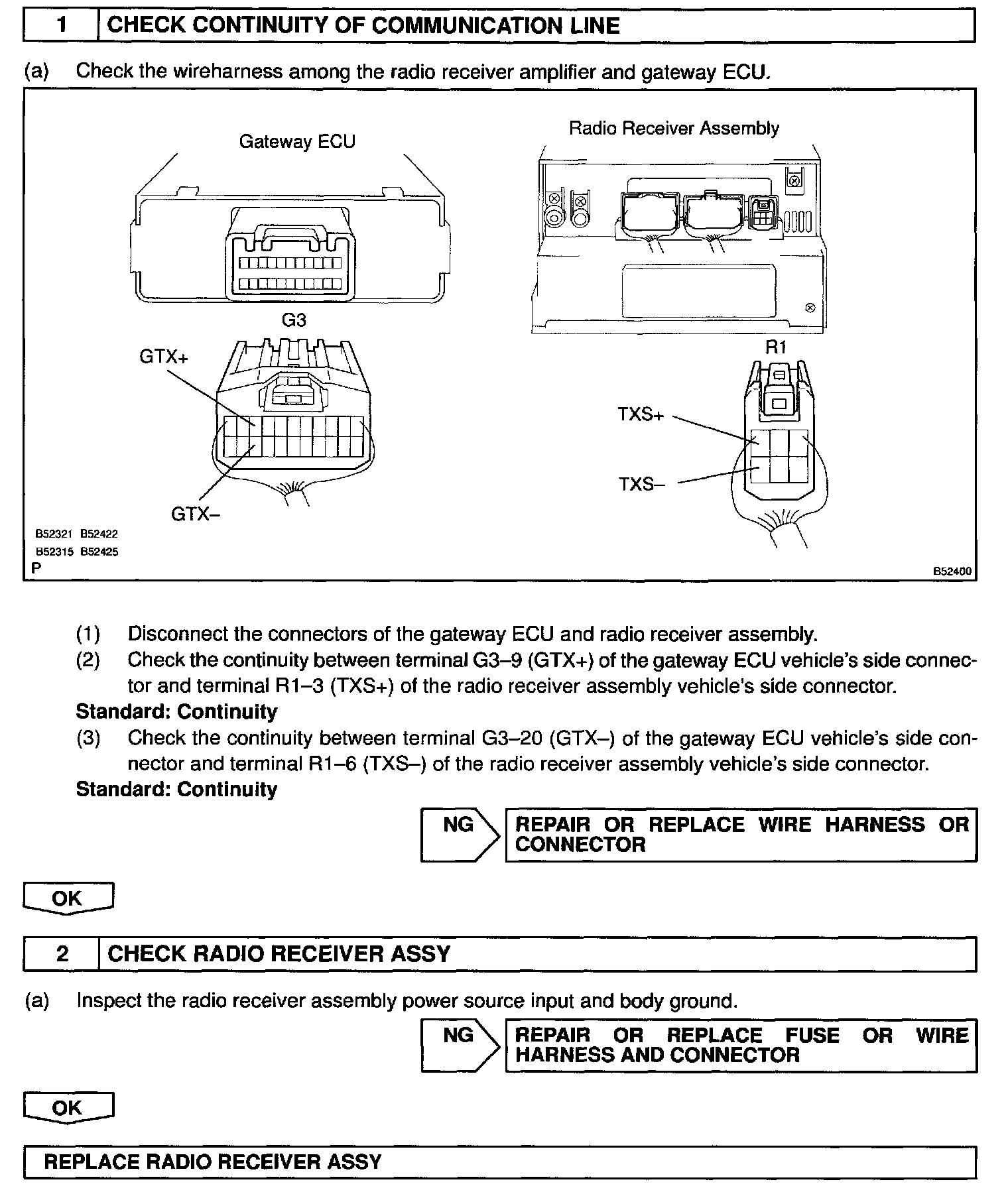

Step 1 - 2:

INSPECTION PROCEDURE
